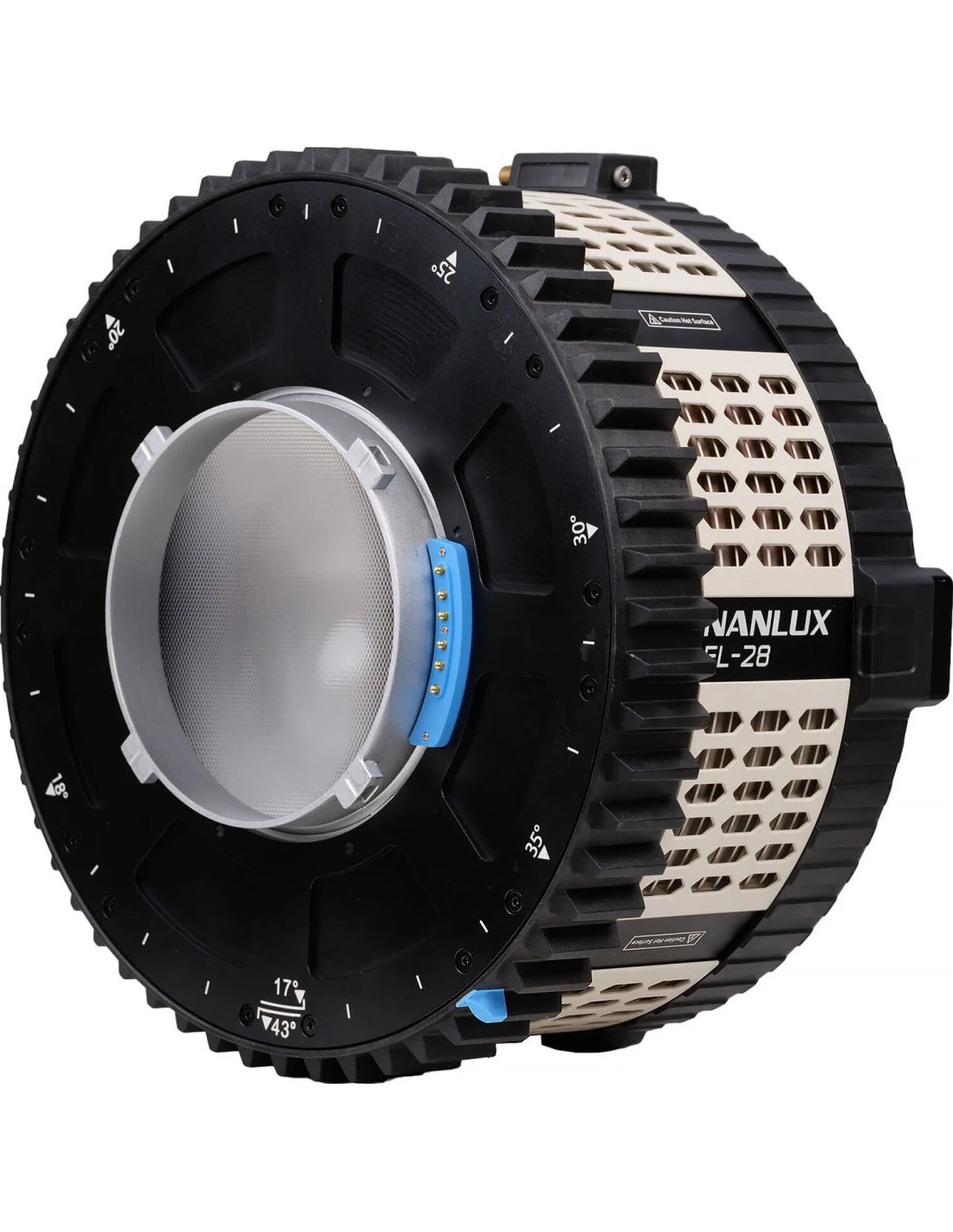

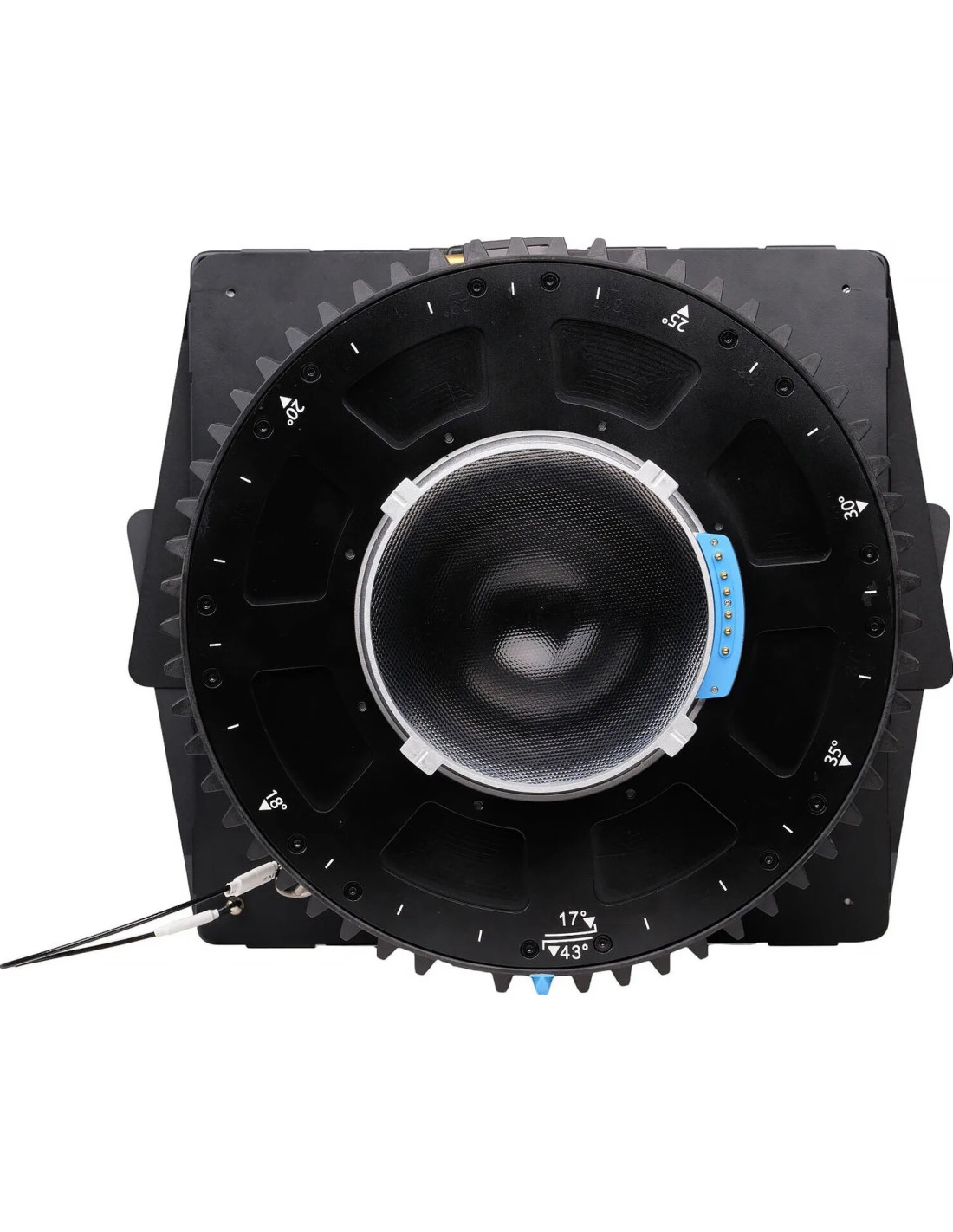

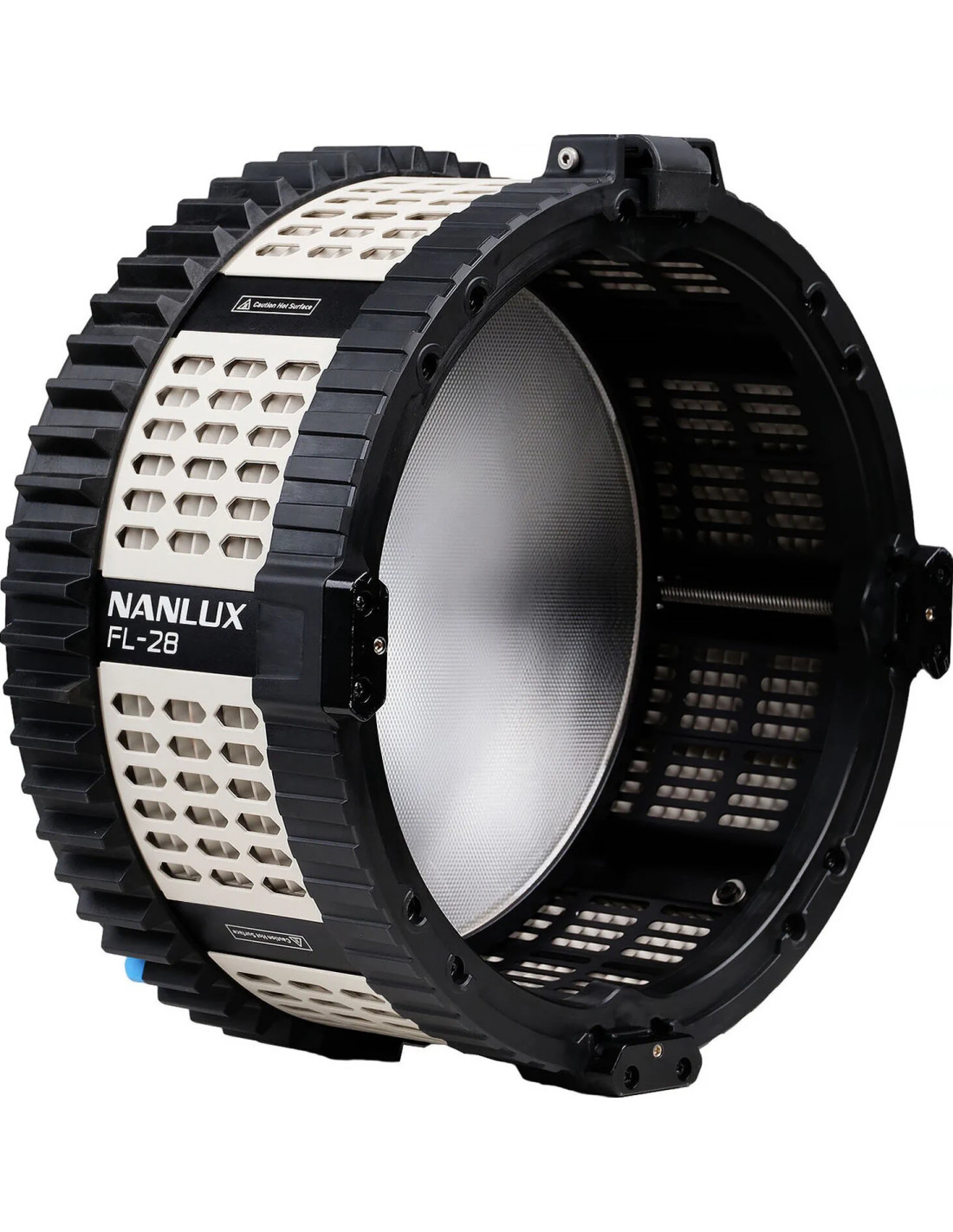

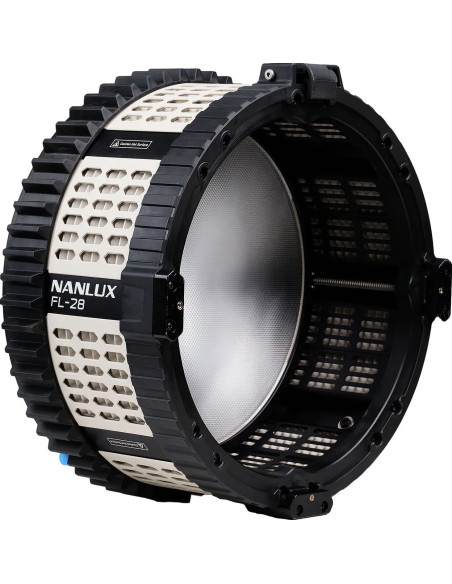

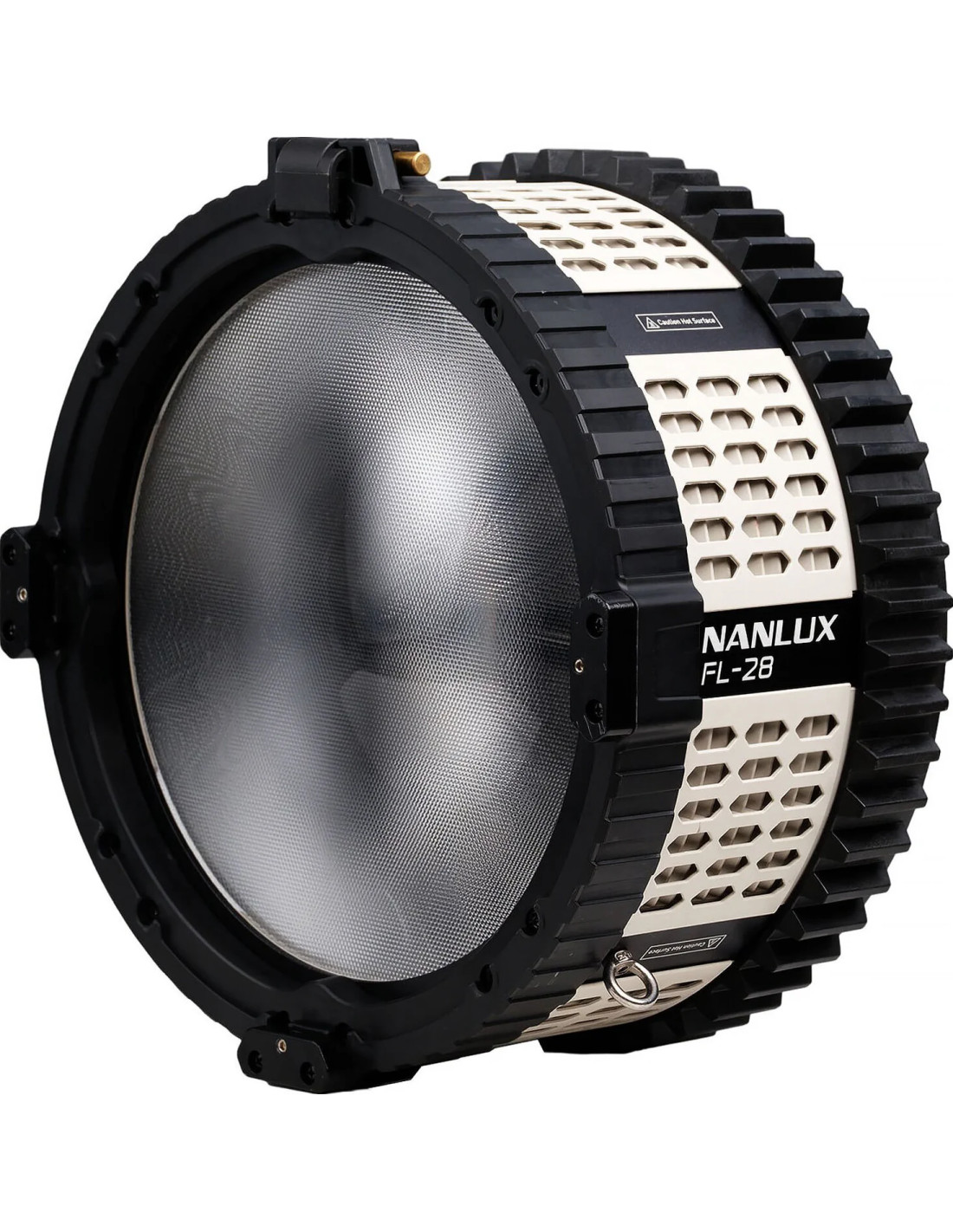

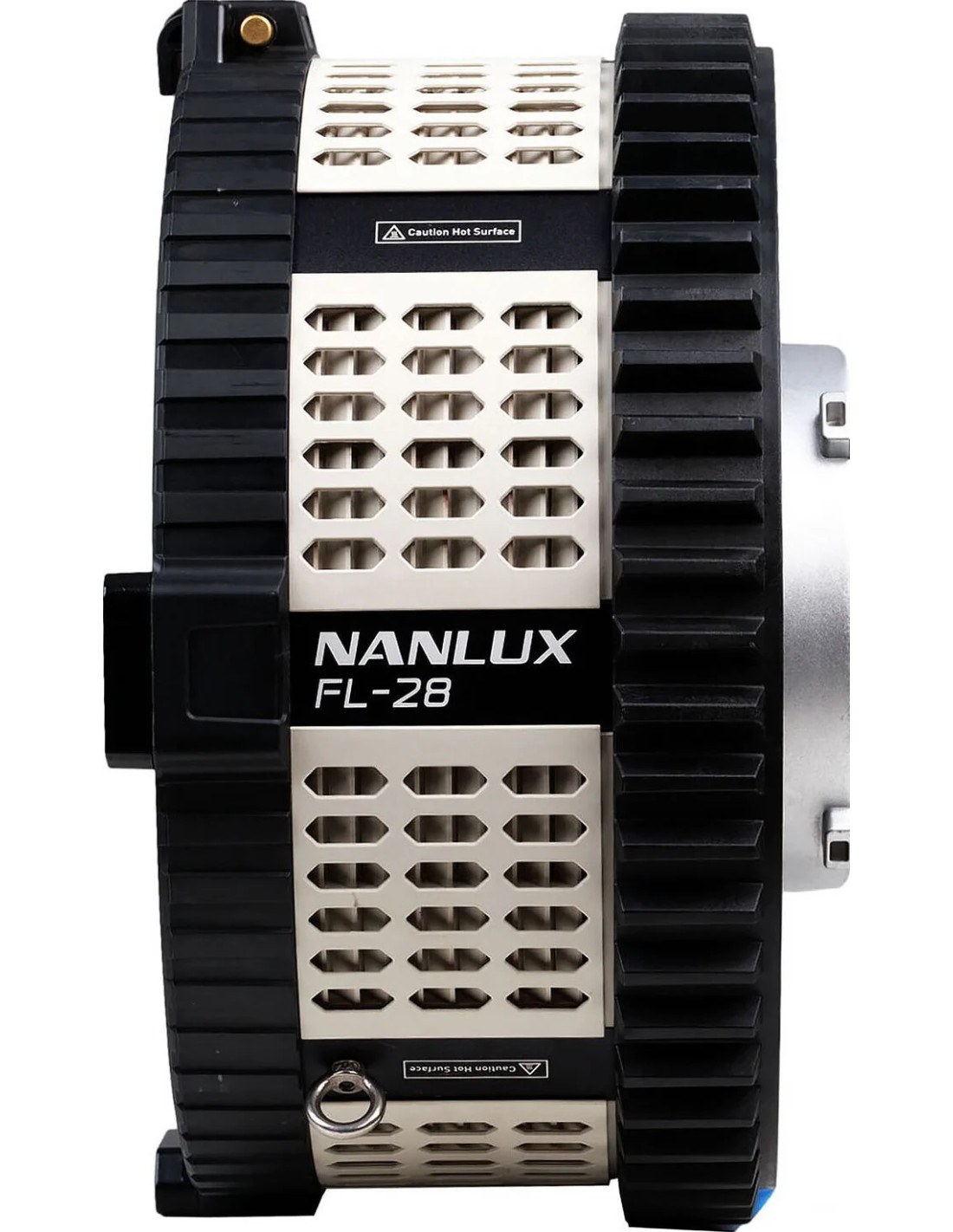

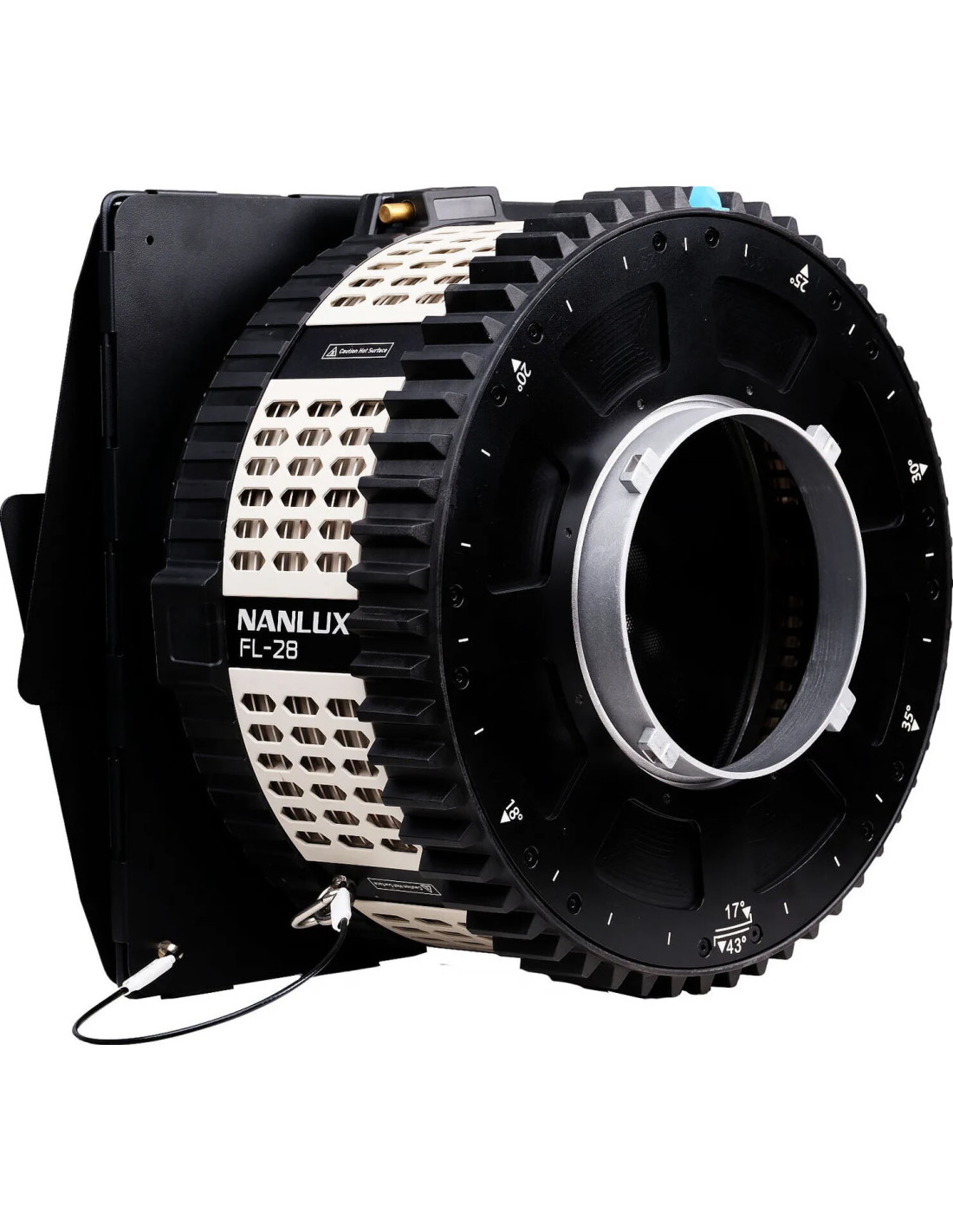

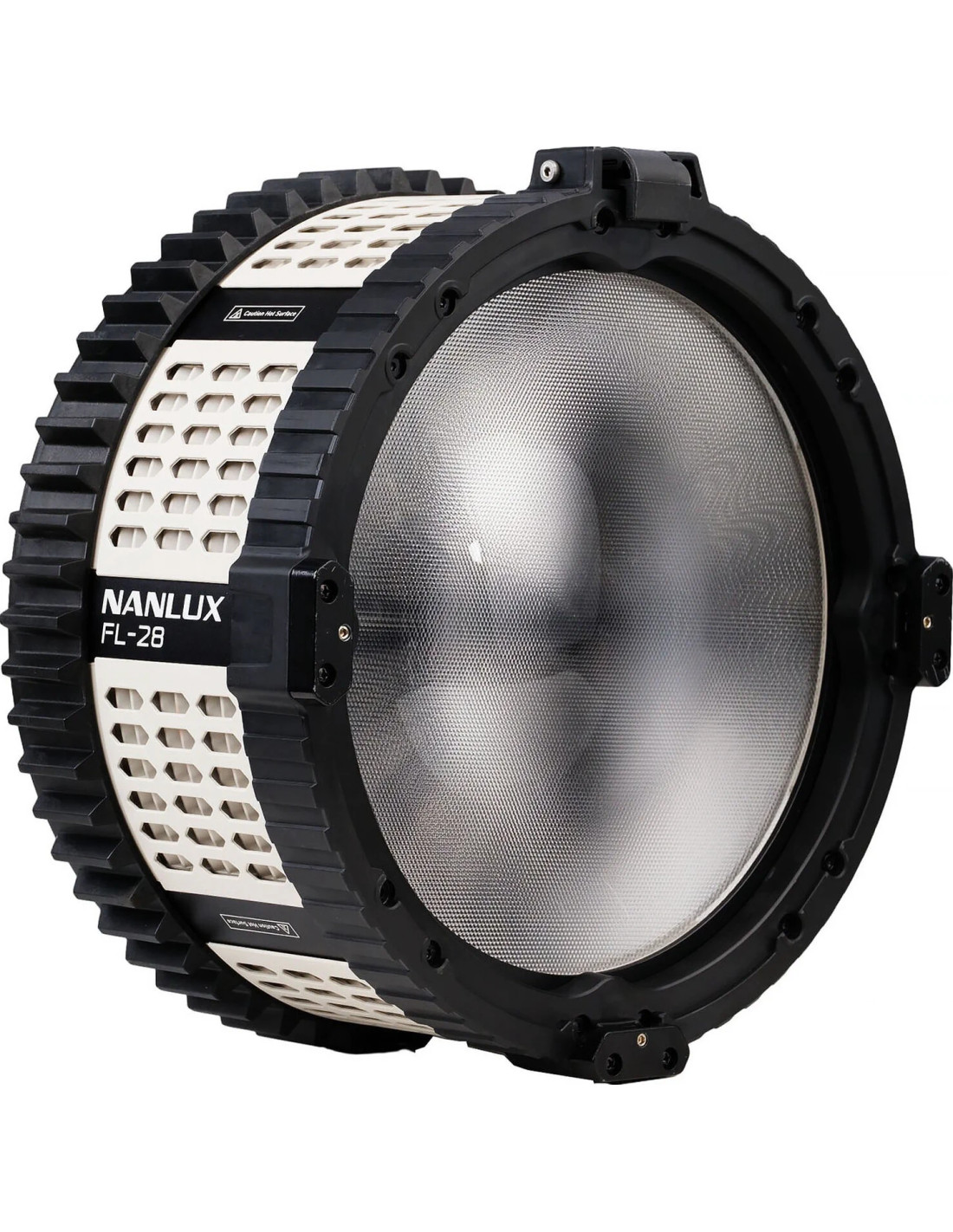

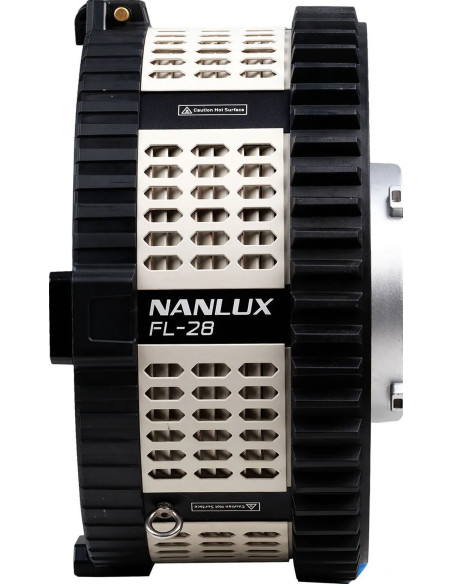

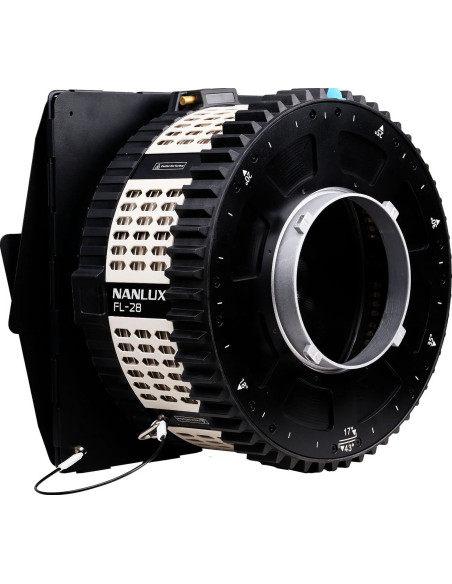

FL-28 Fresnel Lens 17-43 ° for Evoke 900C / 1200

The NANLUX FL-28 weighs only 3.86 kg (excluding protection ports) and is smaller than 60% compared to the current FL-35YK Fresnel. If used with the EVOKE 1200B LED spotlight, it can emit BEN 50.330 LUX at 3 m (5600K, 17 ° emission angle). With EVOKE 900C, the FL-28 generates an emission of 38.580 LUX @ 3M (5600K, 17 ° emission angle).

The FL-28 uses the innovative assembly system NANLUX NL, encoded so that the EVOKE device to which it is connected "knock" exactly how to behave and impose light accordingly. Designed mainly for Evoke 1200, EVOKE 1200B and EVOKE 900C, the FL-28 also works on the latest EVOKE 2400B projector, but due to its higher power, the FL-28 securely limits the issue of about 50% when it is Connected, obtaining a reading of 25,610 lux @ 3M (5600k, 17 ° emission angle). NANLUX He will soon launch another new Fresnel lens specific to Evoke 2400b that will fully exploit its greatest power.

Basic information:

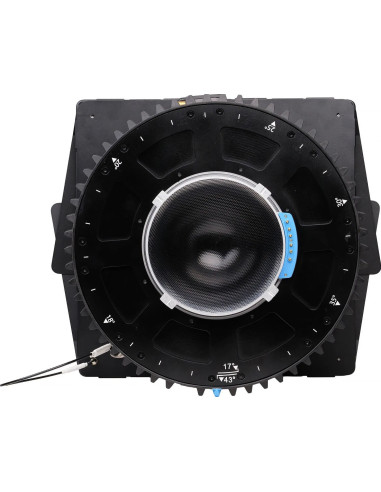

- beam angle 17 ° -43 °
- Compatible product or mounting devices with NL attachment
- Product size (mm):

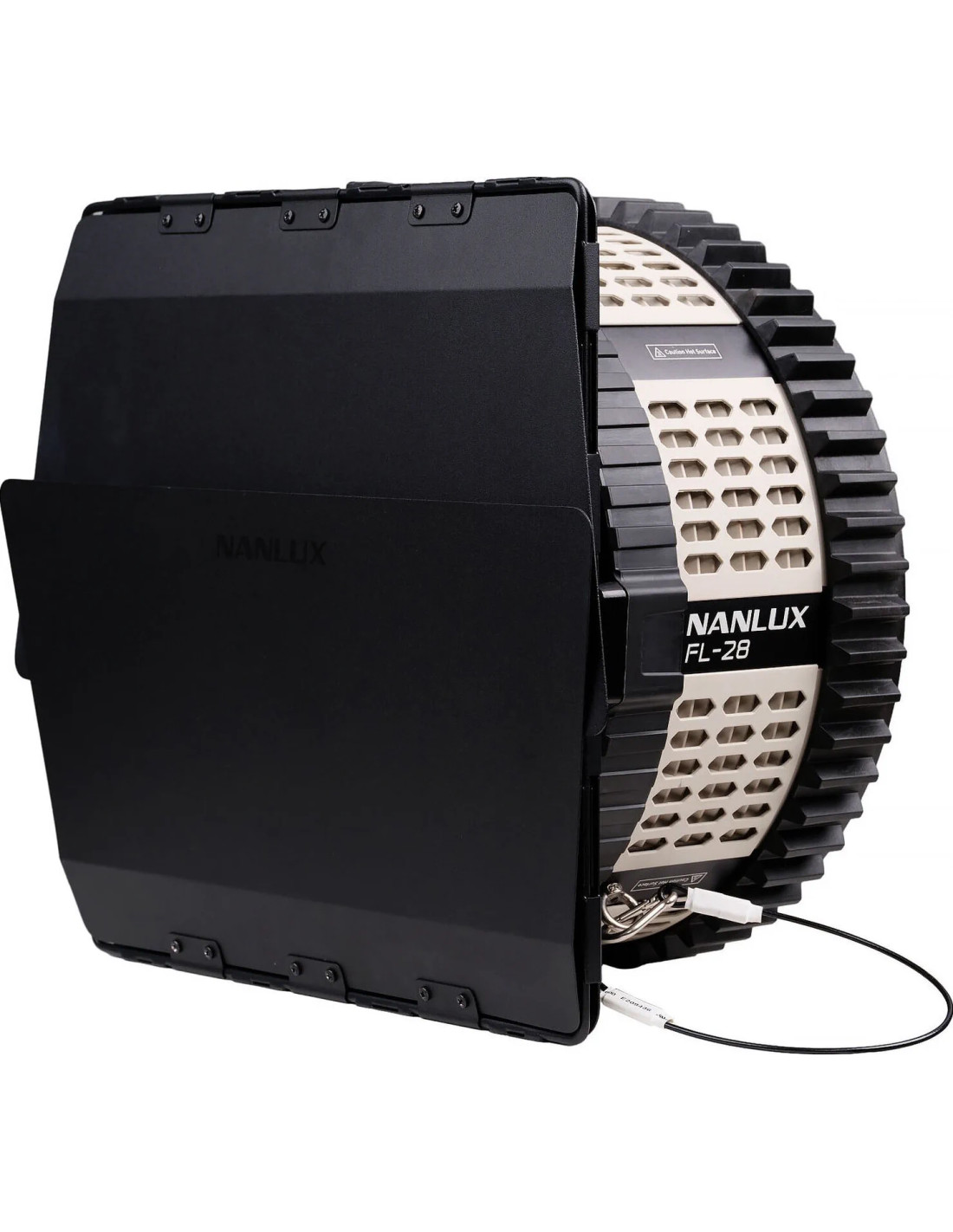

Fresnel lens FL-28 + BARNDOR: 422.3 × 360.6 × 226.4 mm
Fresnel lens FL-28: φ360,5 × 202.1 mm

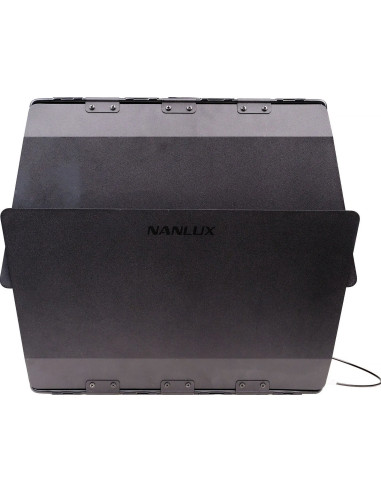

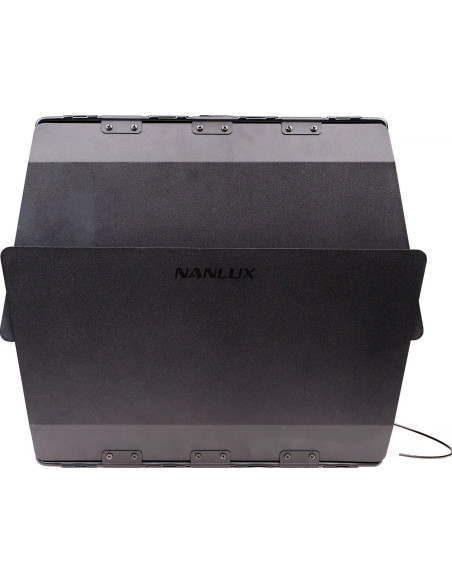

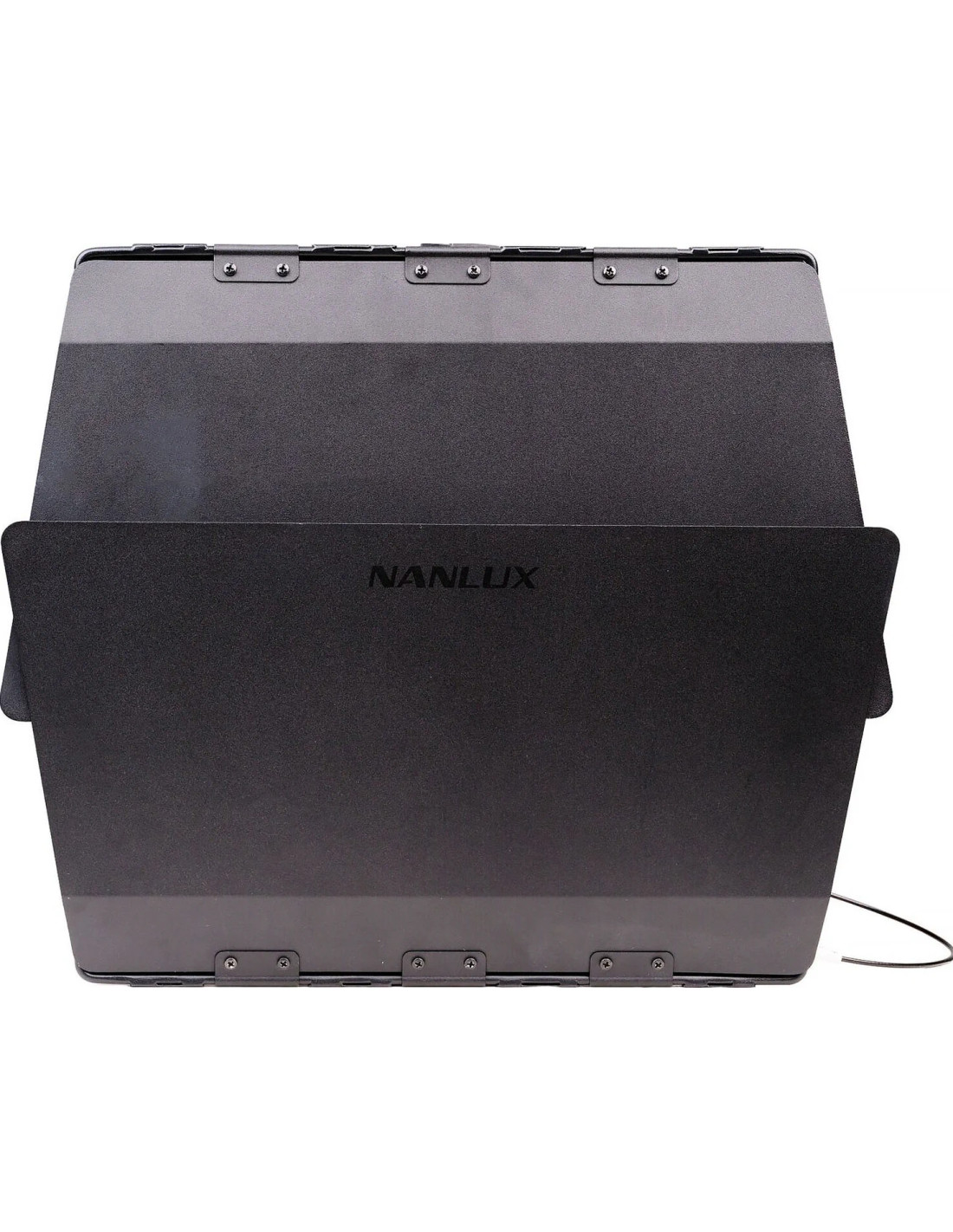

BARNOOR: 422.3 × 354 × 36.1 mm
- Product weight (kg)
FL-28 Fresnel Lens: 3.86 kg
BARNOOR: 1.83 kg

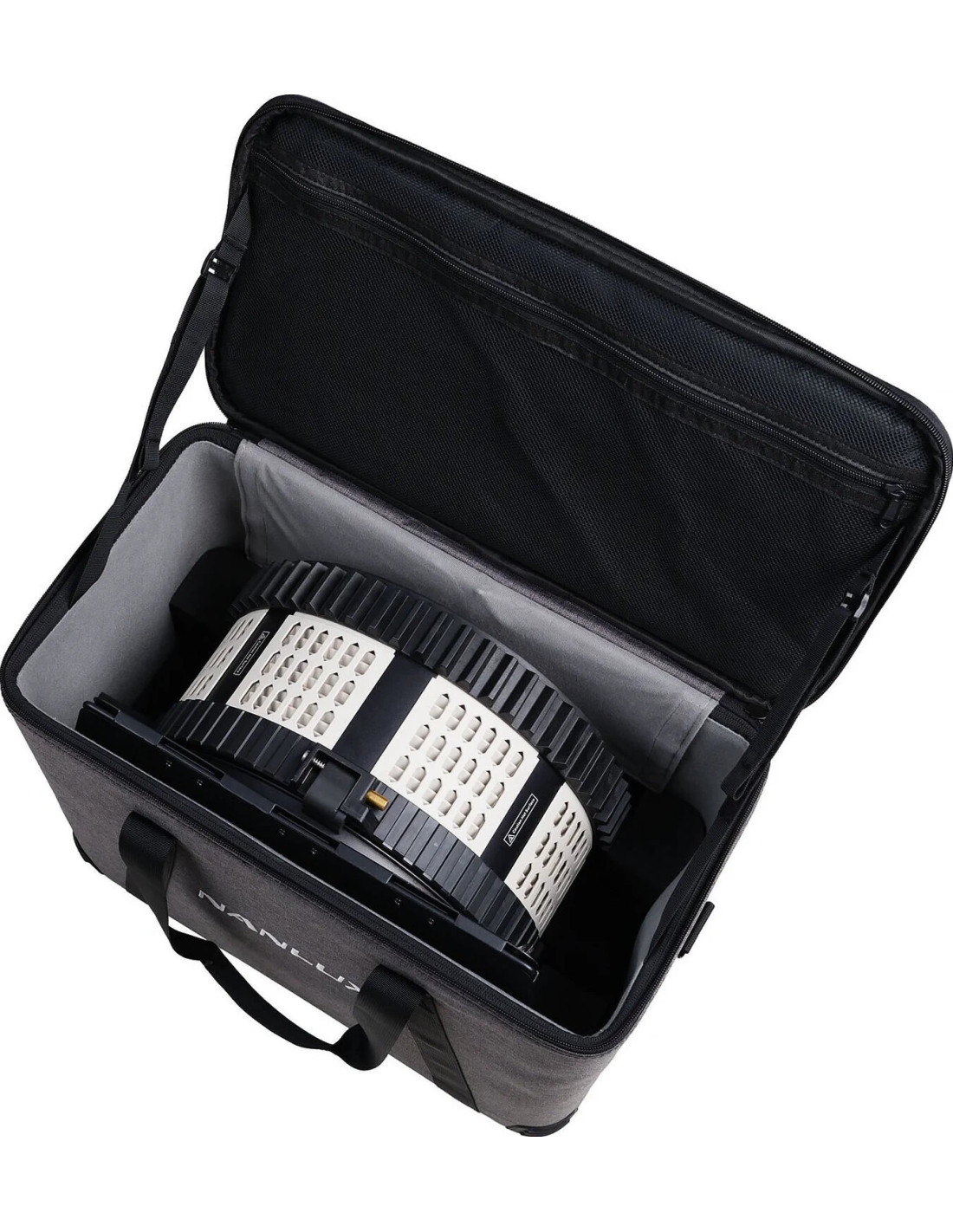

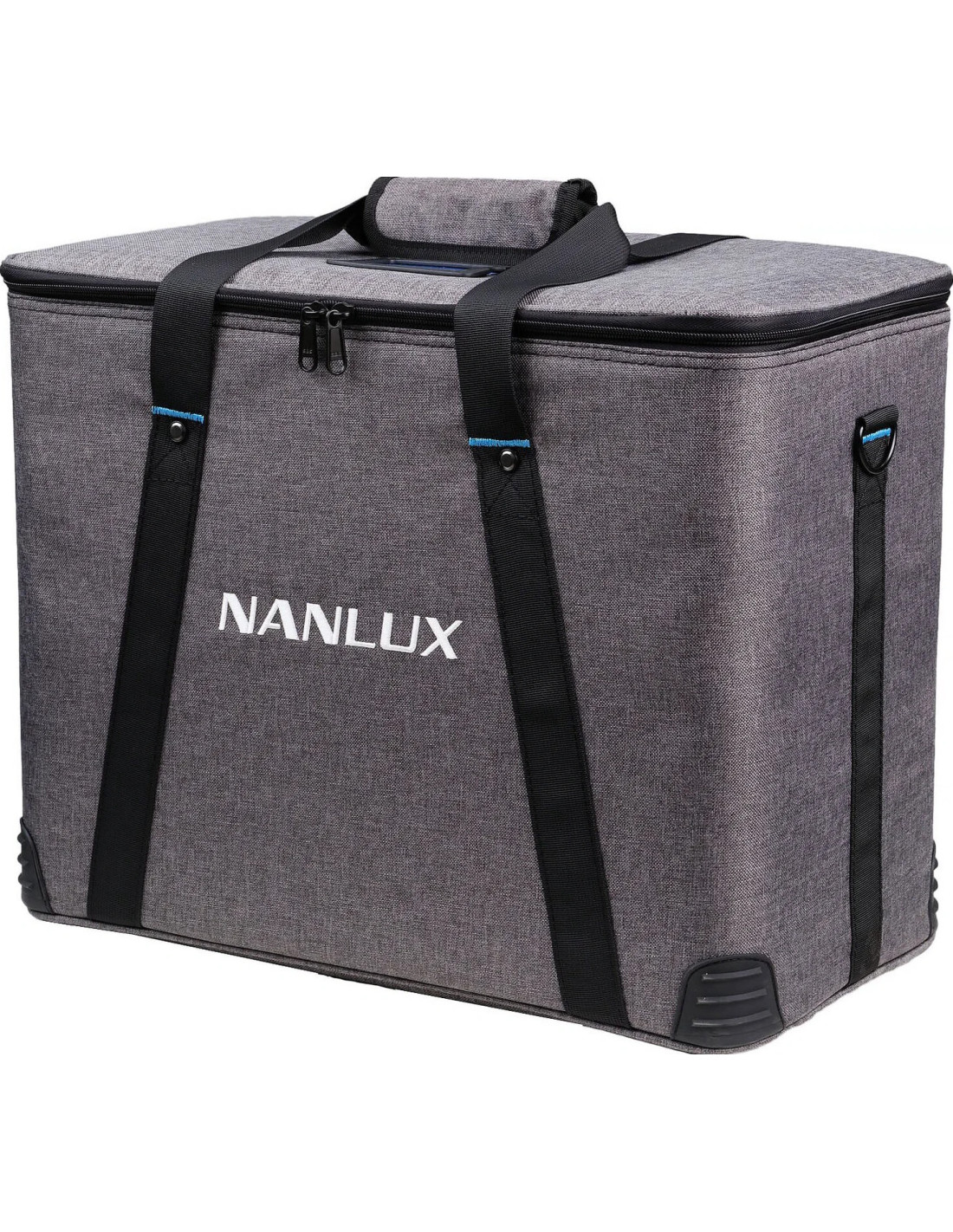

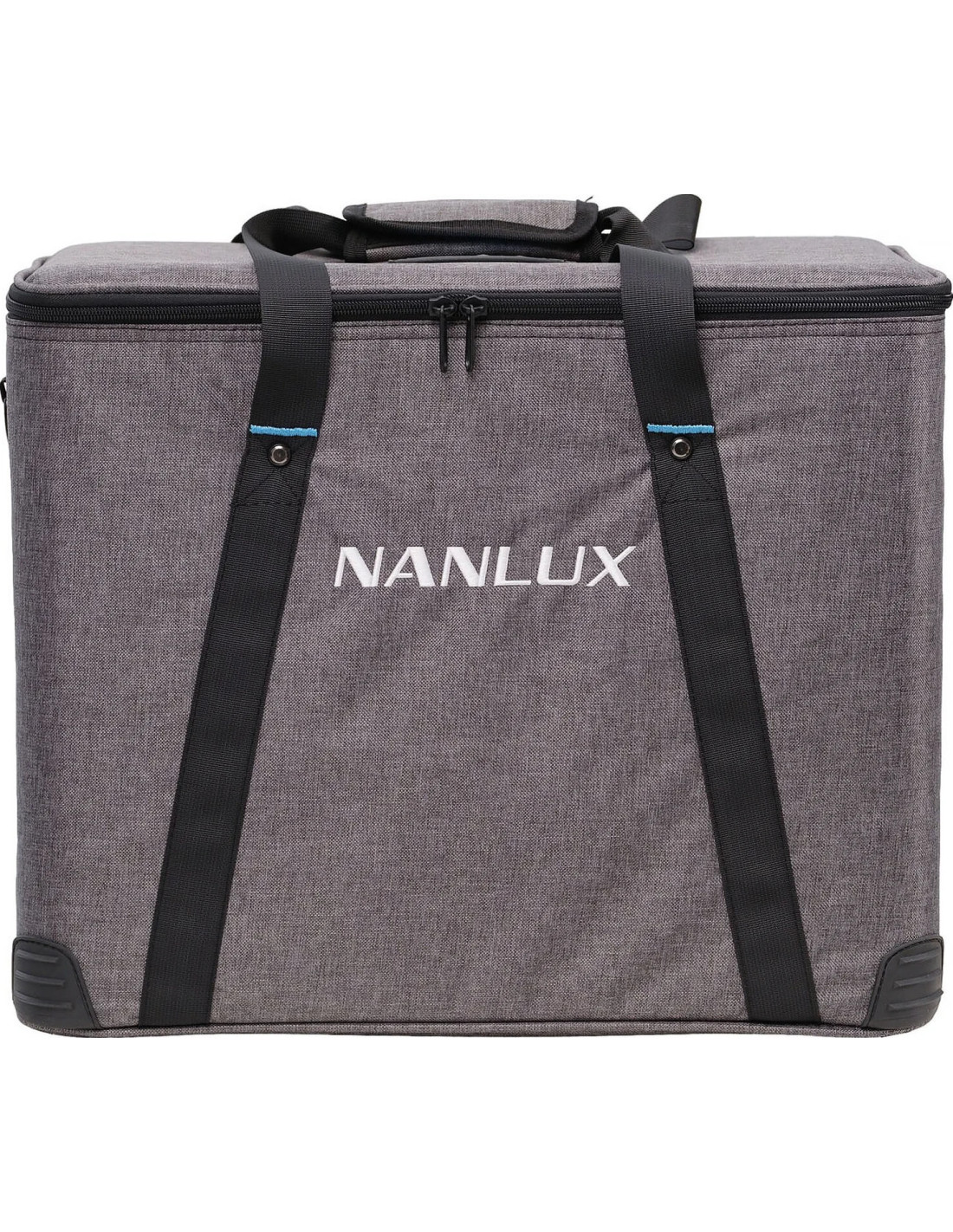

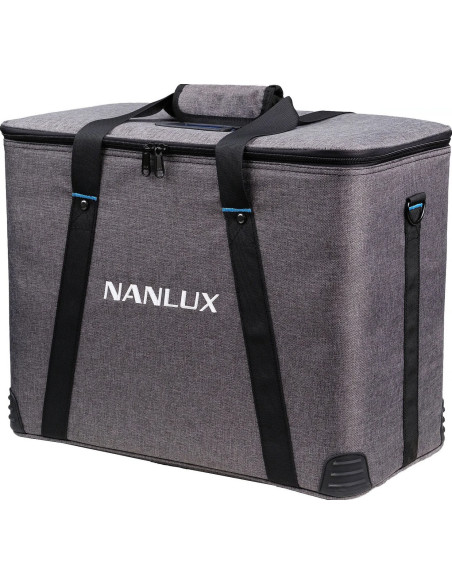

Transport bag: 3.2 kg
- Product material: aluminum alloy, iron, stainless steel 304, brass, nylon, acrylic
- TA 45 ° C
- Rain resistant: Yes

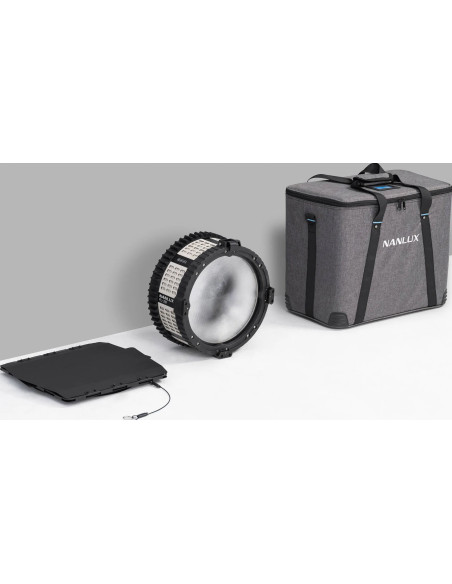

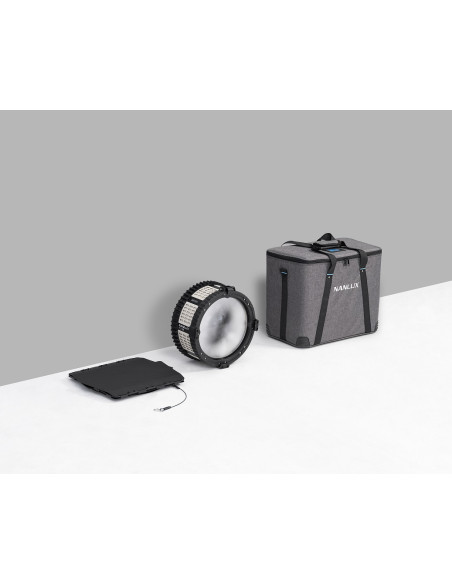

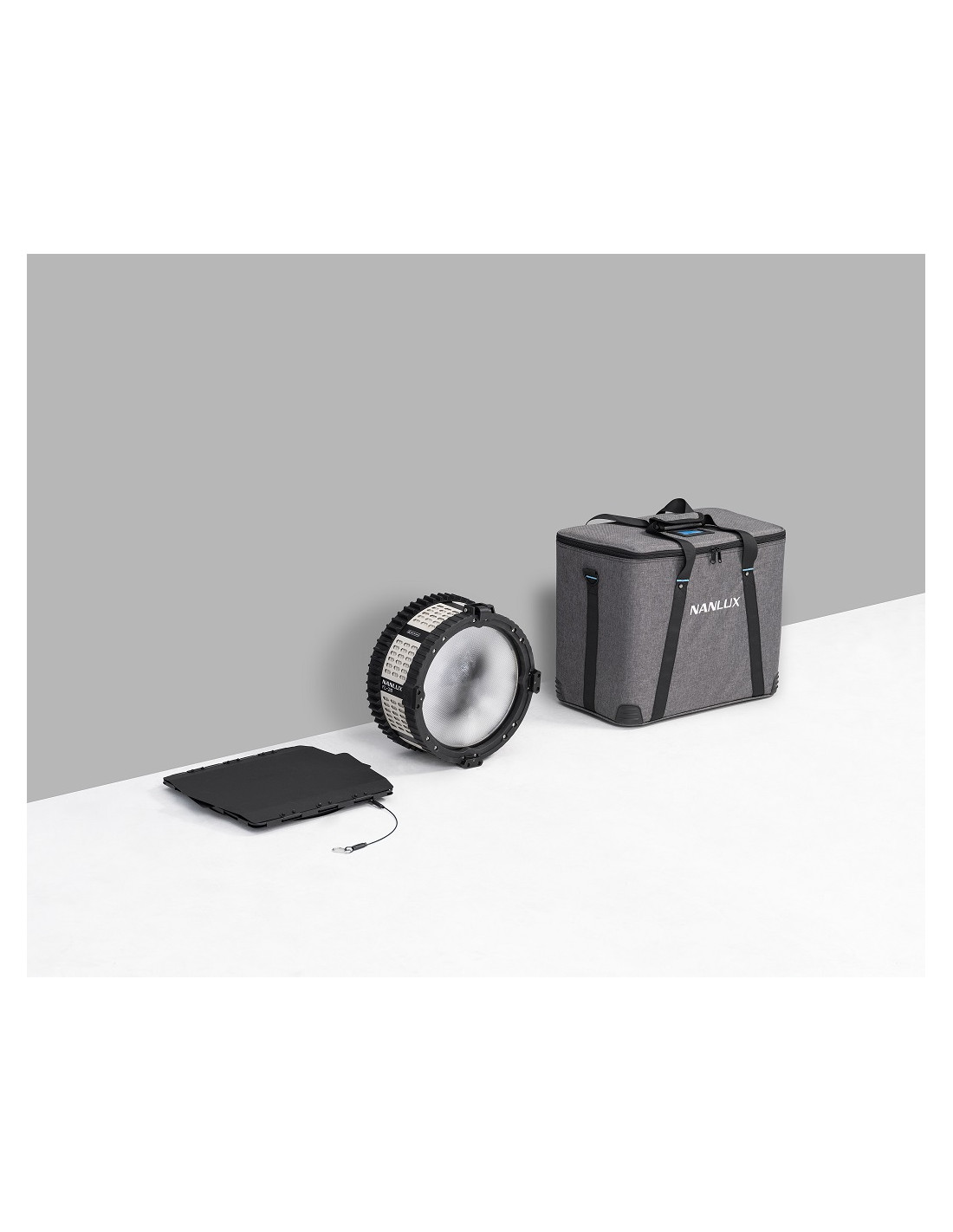

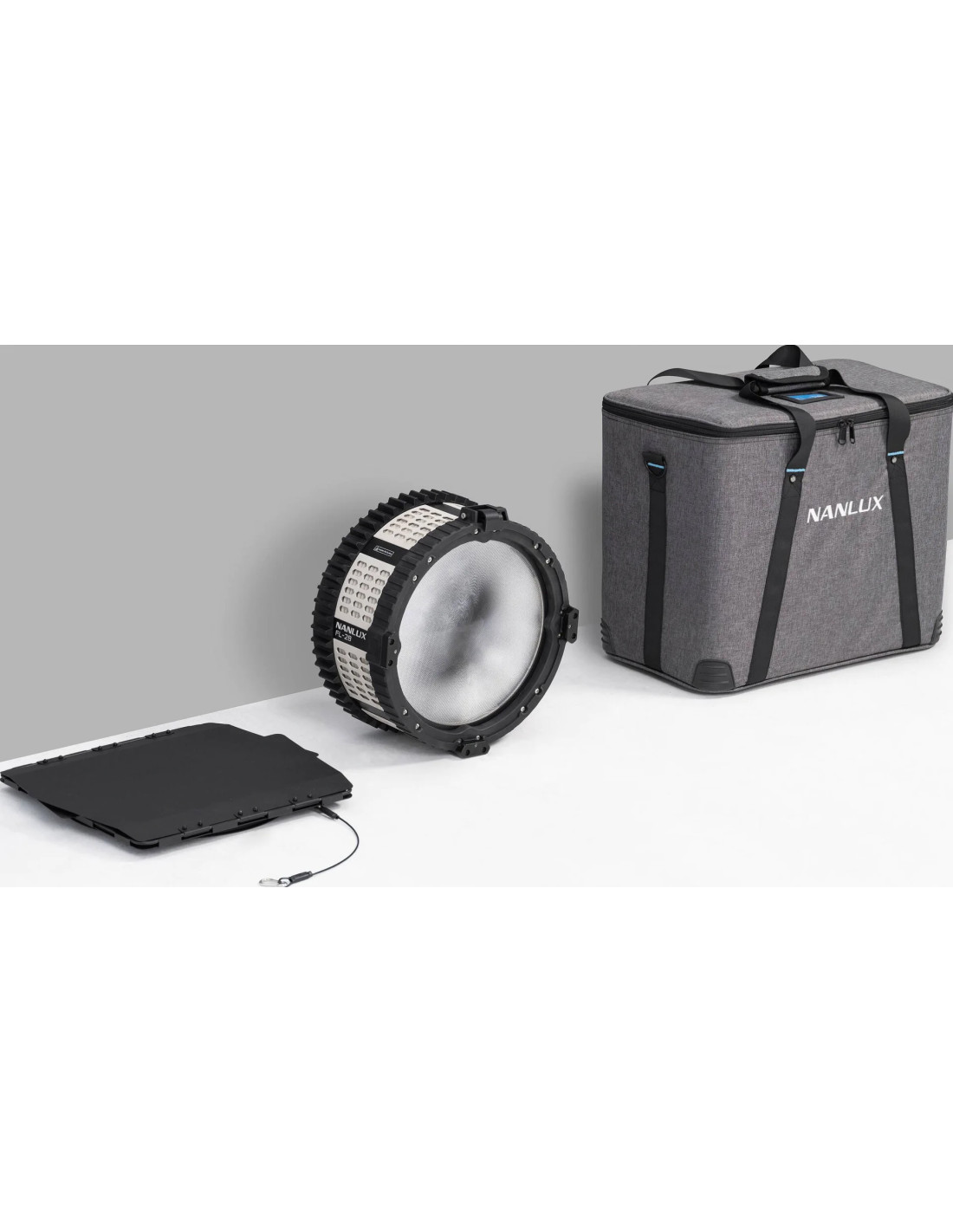

Includes:
FL-28 × Fresnel lens × 1
BARNOOR × 1
User manual × 1
Transport bag × 1
