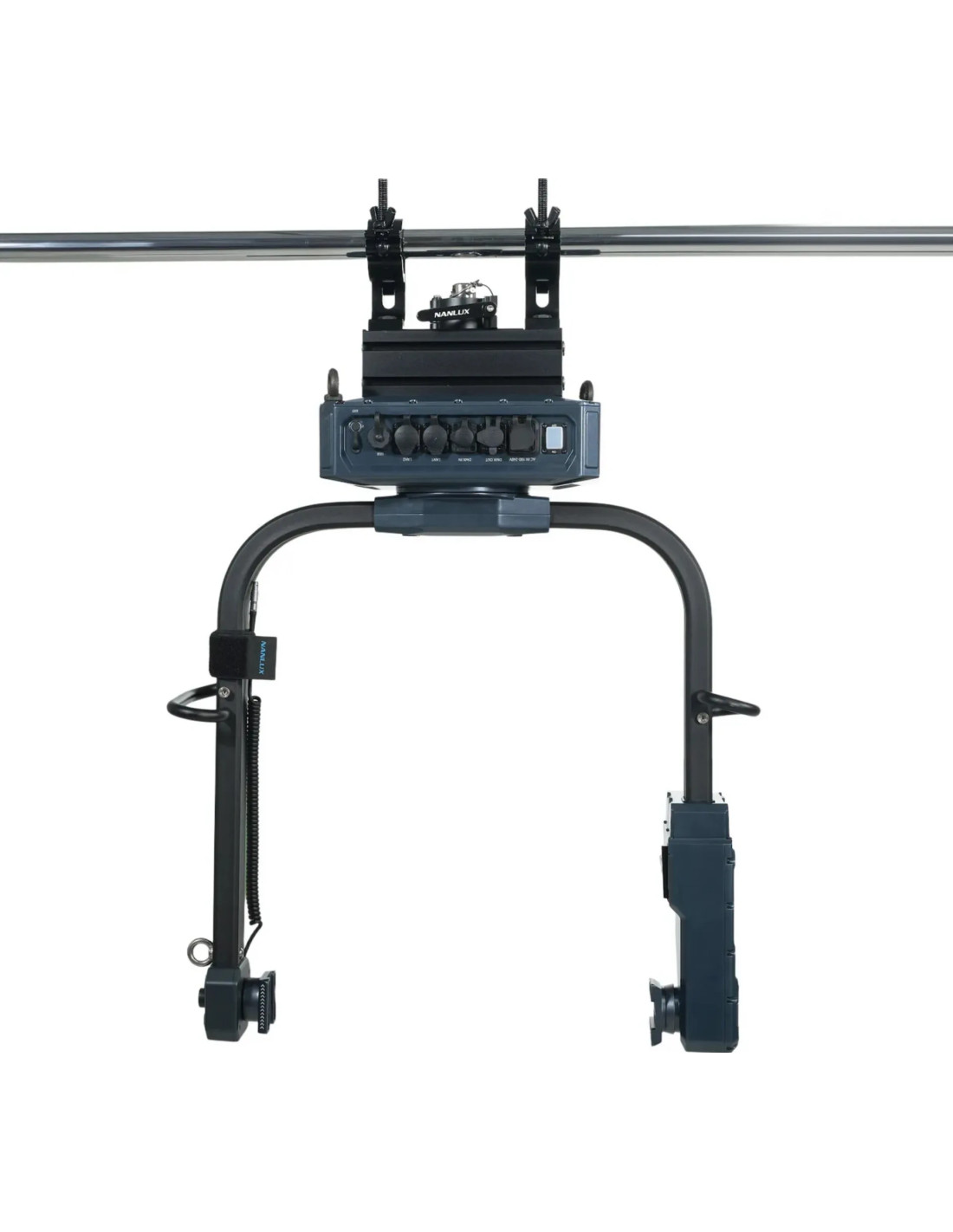

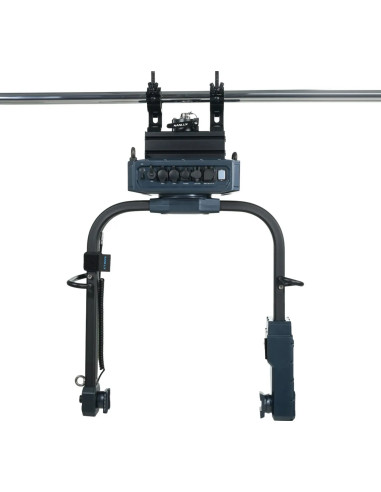

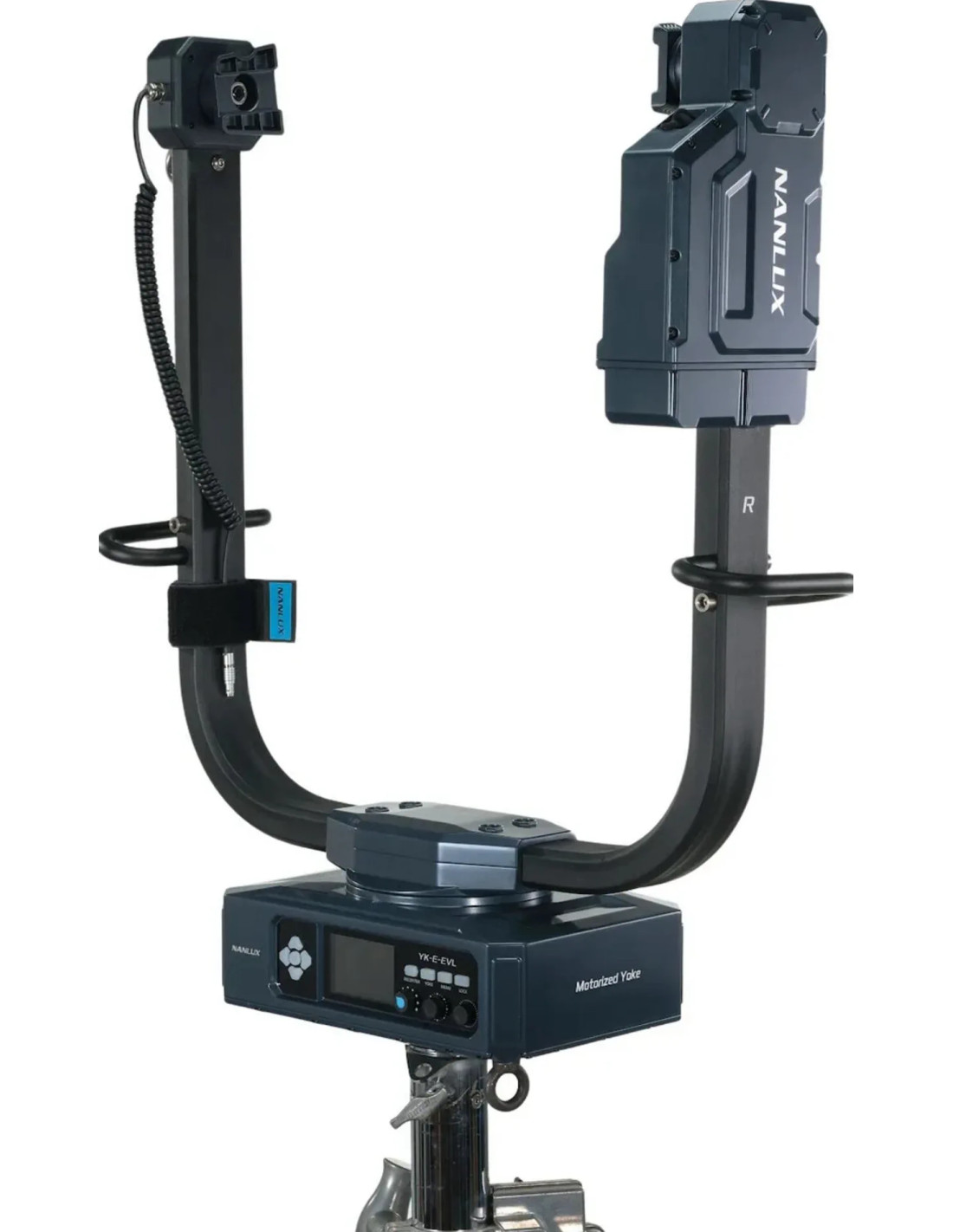

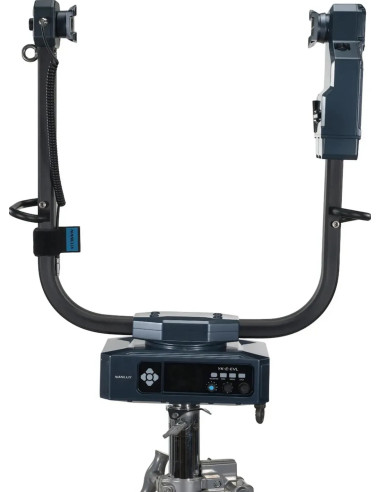

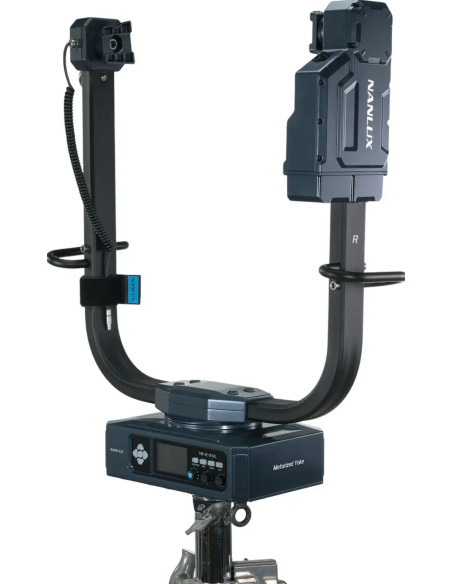

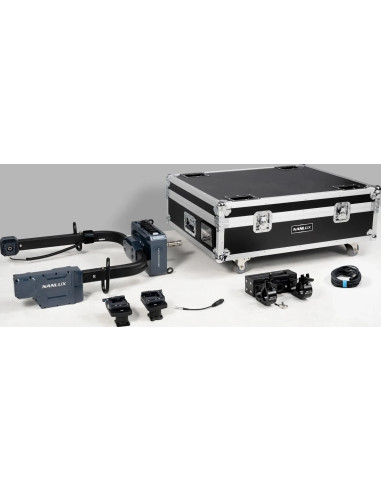

YK-E-EVL-FL Yoke Motorized with Flight Case compatible with Evoke 5000b and 2400b

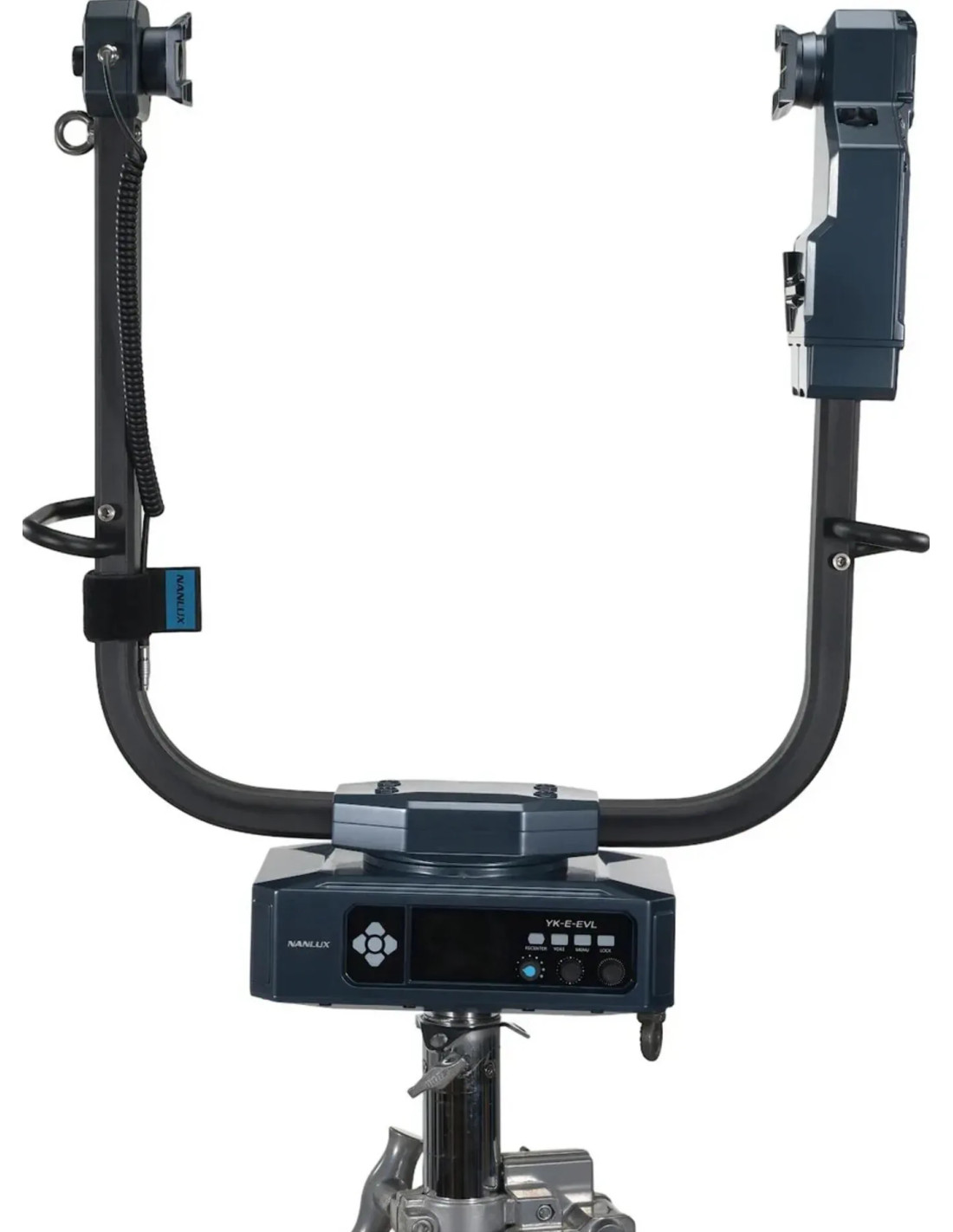

The new YK-E-EVL Motorized Yoke-L now allows efficient control of the inclination and rotation of LED spotlights NANLUX Evoke 5000b and Evoke 2400b.
This reduces the physical workload during the pointing and light repositioning, while improving the workflow and safety on the set. Built with a classified IP66 design, the motorized yoke is the perfect combination for EVOKE 5000B and 2400B devices resistant to all weather conditions, guaranteeing a smooth, precise and reliable operation even in difficult environments.

Safe and reliable
With its magnesium alloy structure, the motorized yoke offers the perfect balance between resistance, weight and load capacity. It is able to safely support heavy configurations such as the EVOKE 5000B with the FL-45E fresnel lens.

A high-resistance engine supplies a pair up to 40 N · m on the inclination axis, allowing fluid adjustments even with heavy loads, keeping the set angle. A mechanism of internal self-lock fixes the yoke in place after the adjustments or when it is turned off, effectively preventing accidental cediment.
If necessary, manual adjustment is also supported.
The quick release plate can be returned to the initial position using the T-handle included, minimizing the effort necessary to detach the appliances from the yoke.

Easy to install

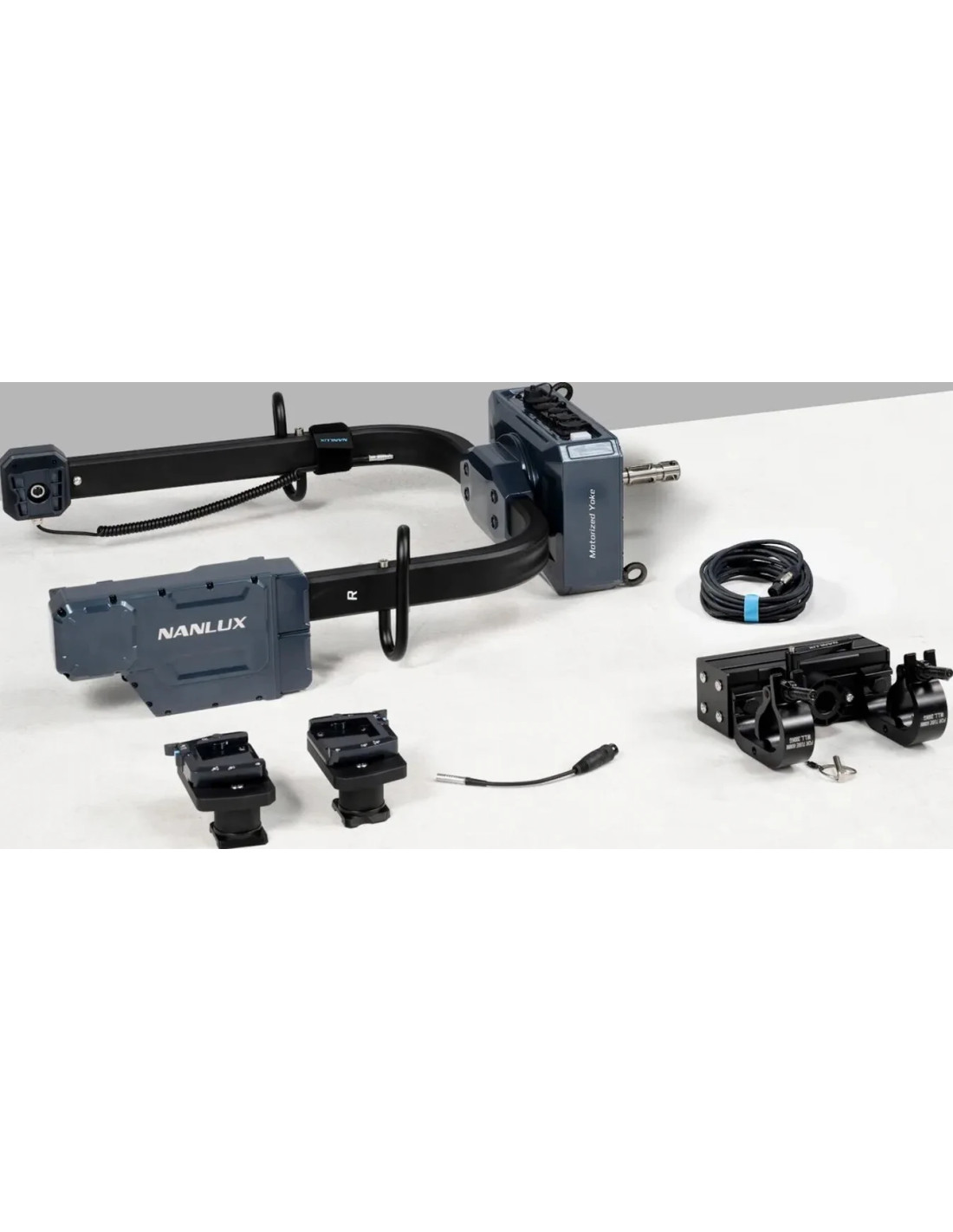

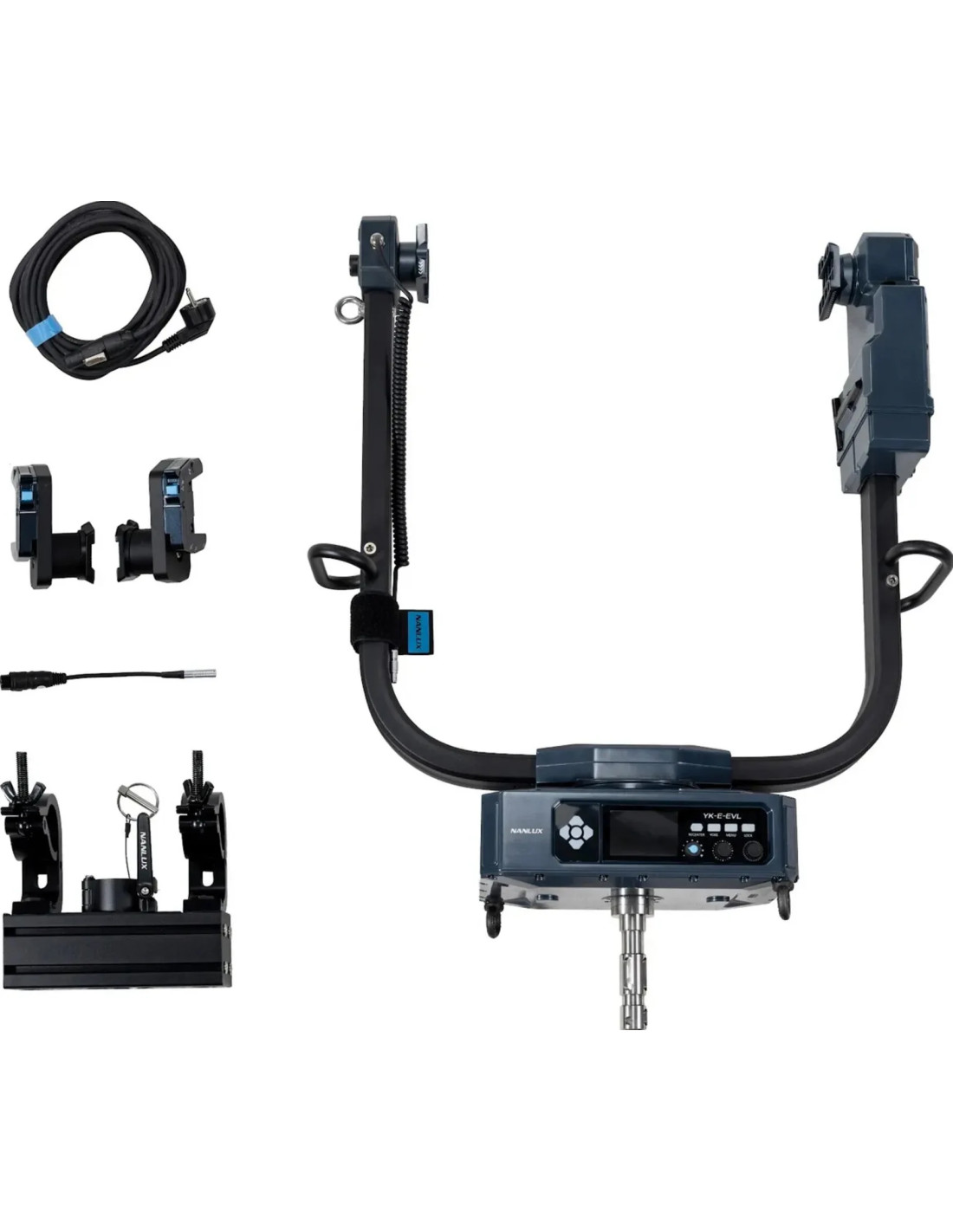

Installing the motorized yoke is simple. With the Evoke 5000B, simply enter the rapid release plates of the yoke in the corresponding bases of the appliance, connect the extension cable to the extension extension of the appliance and the game is done. For Evoke 2400B, users can connect quick release adapters and connect the extension cable to the DMX port into the device using the DMX adapter cable. The motorized yoke can be installed directly on stands with a junior pin receiver or mounted on pylons up to 60 mm in diameter using the included pylons adapter. This makes it ideal for a wide range of different applications.

Versatile control methods
Just like the appliances that supports, the motorized yoke offers different control options, both wired and wireless. The buttons and knobs on the control panel allow precise angular adjustments, while the Center button instantly returns the yoke in the pan and TILT position at 0 °.

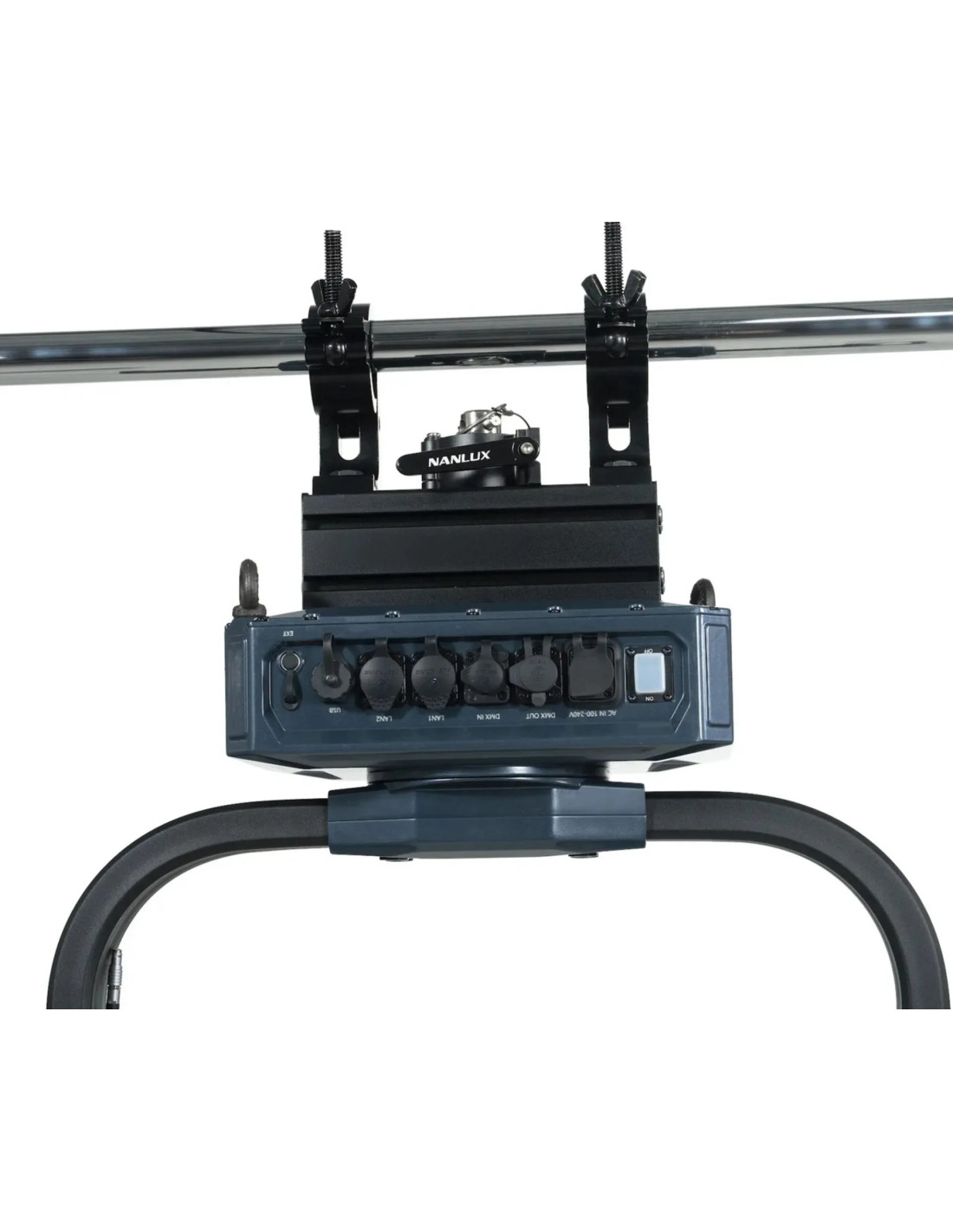

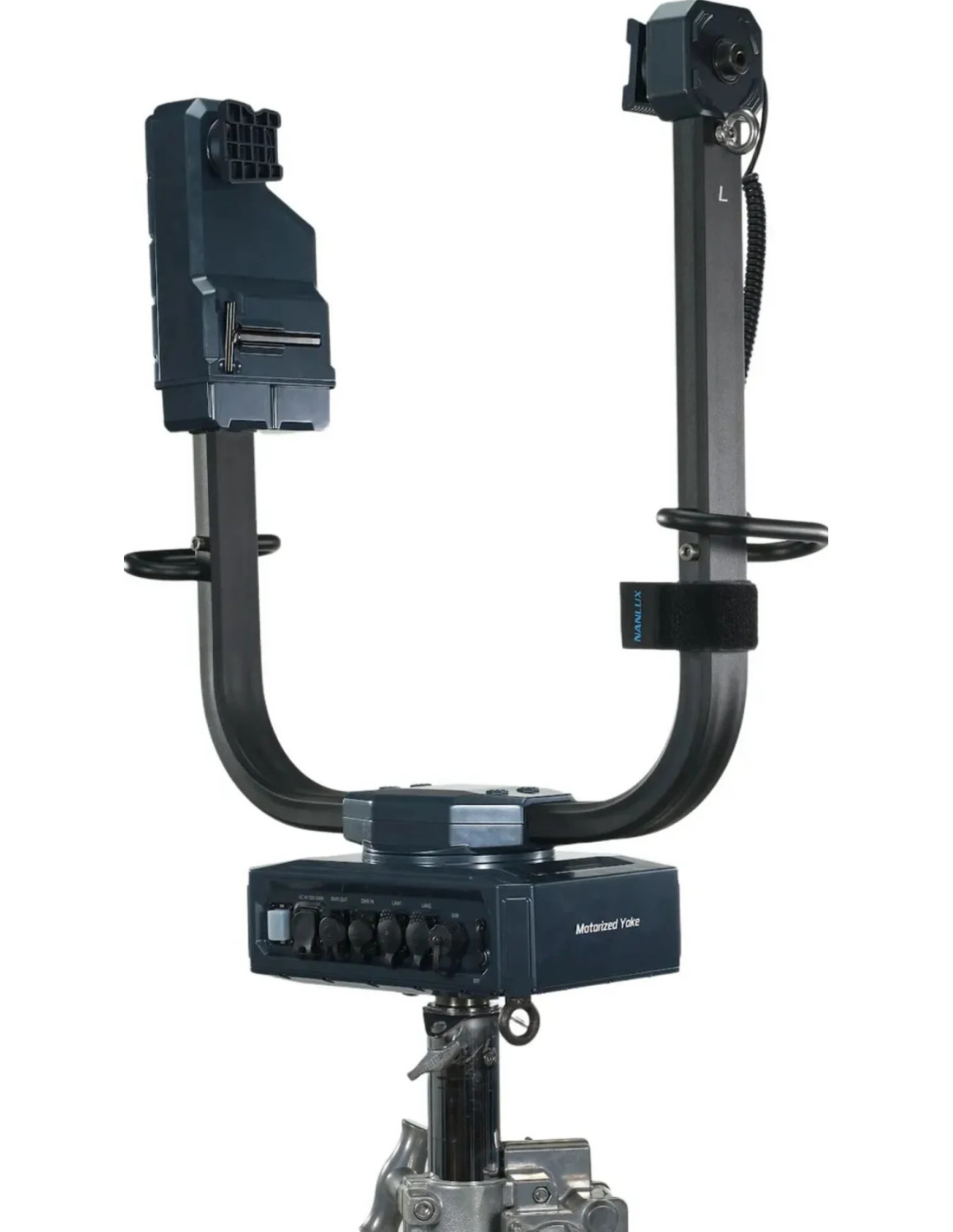

Ext, DMX and LAN ports on its control box allow control via wired controller, DMX / RDM and Art-Net / Sacn. Integrated Bluetooth and CRMX modules also allow wireless control without interruption via the NanLink app and CRMX compatible devices.

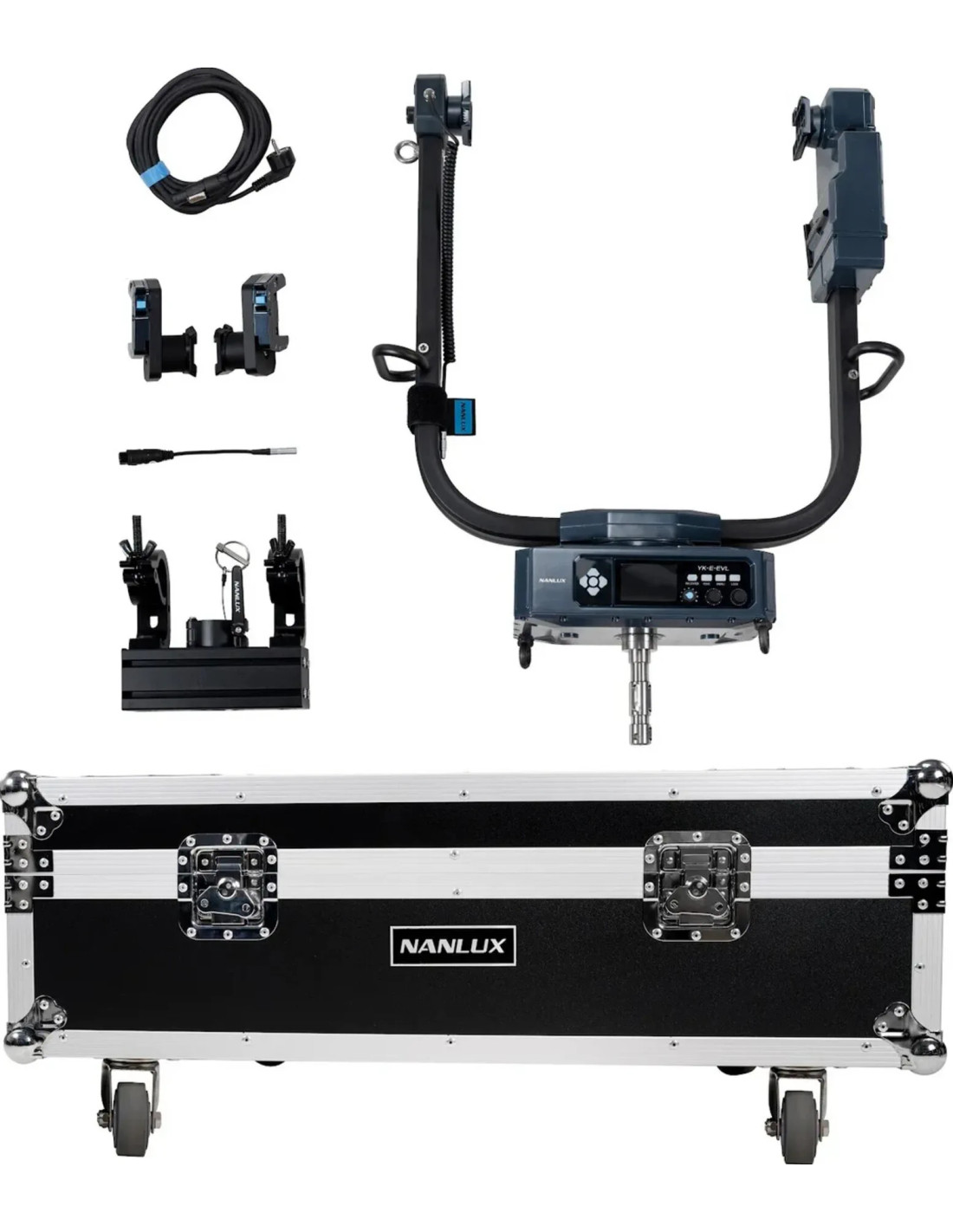

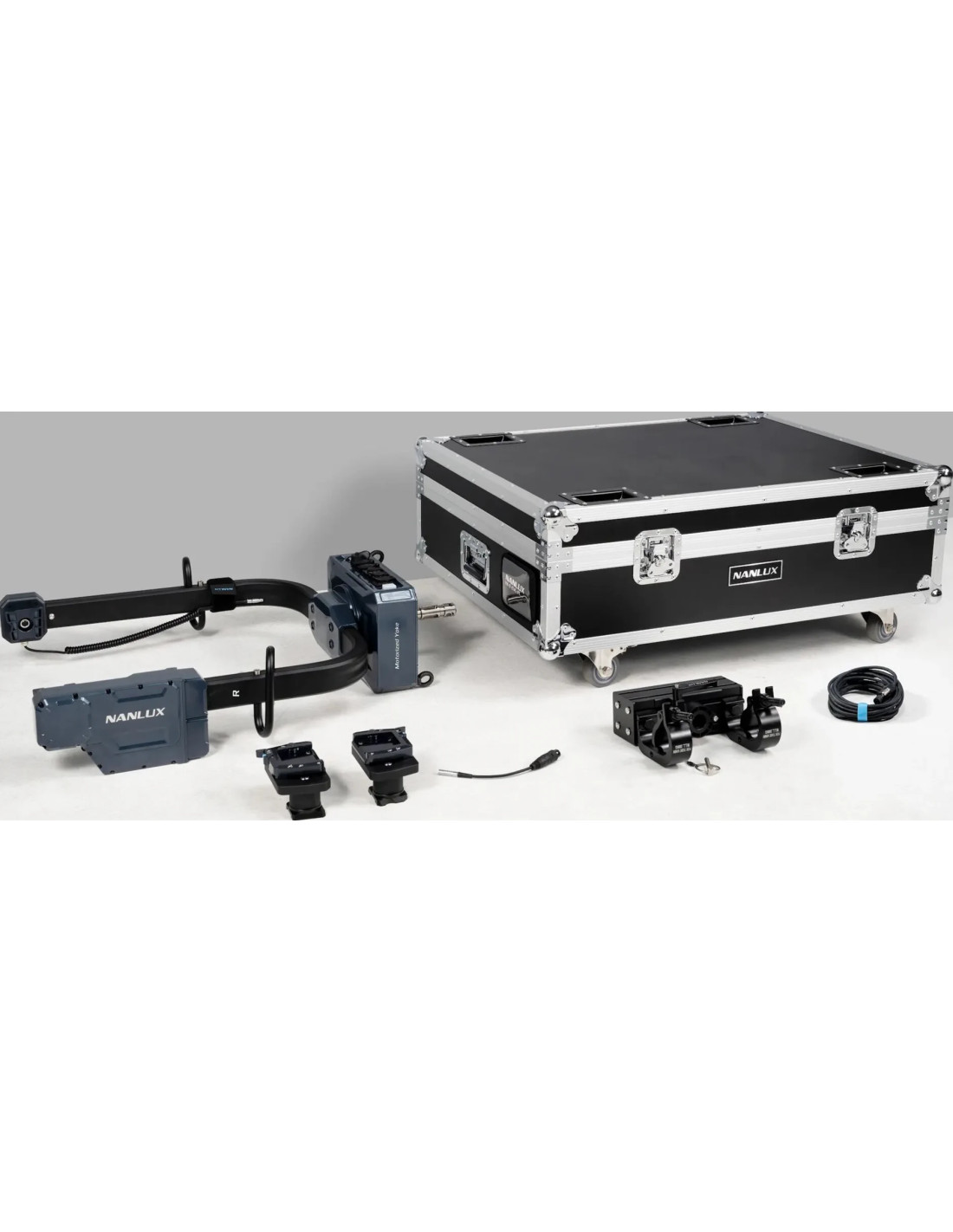

Optional transport case
The included transport case is designed to withstand the set stress, is made of aluminum alloy and equipped with wheels, ideal for frequent transport and difficult production environments.

Main features:
• Compatible with Evoke 5000B / 2400B
• Double-axis adjustment
• Wide range: Pan 540 ° and TILT 270 °
• Magnesium alloy design with high load capacity
• IP66 protection
• The self-locking mechanism prevents accidental failure
• Supports manual adjustment
• Two mounting solutions: junior pin stands and pylons with diameter ≤60 mm
• Wired and wireless control methods: integrated, wired controller, DMX / RDM,
Art-Net / Sacn, NanLink App, LumenRadio CRMX
