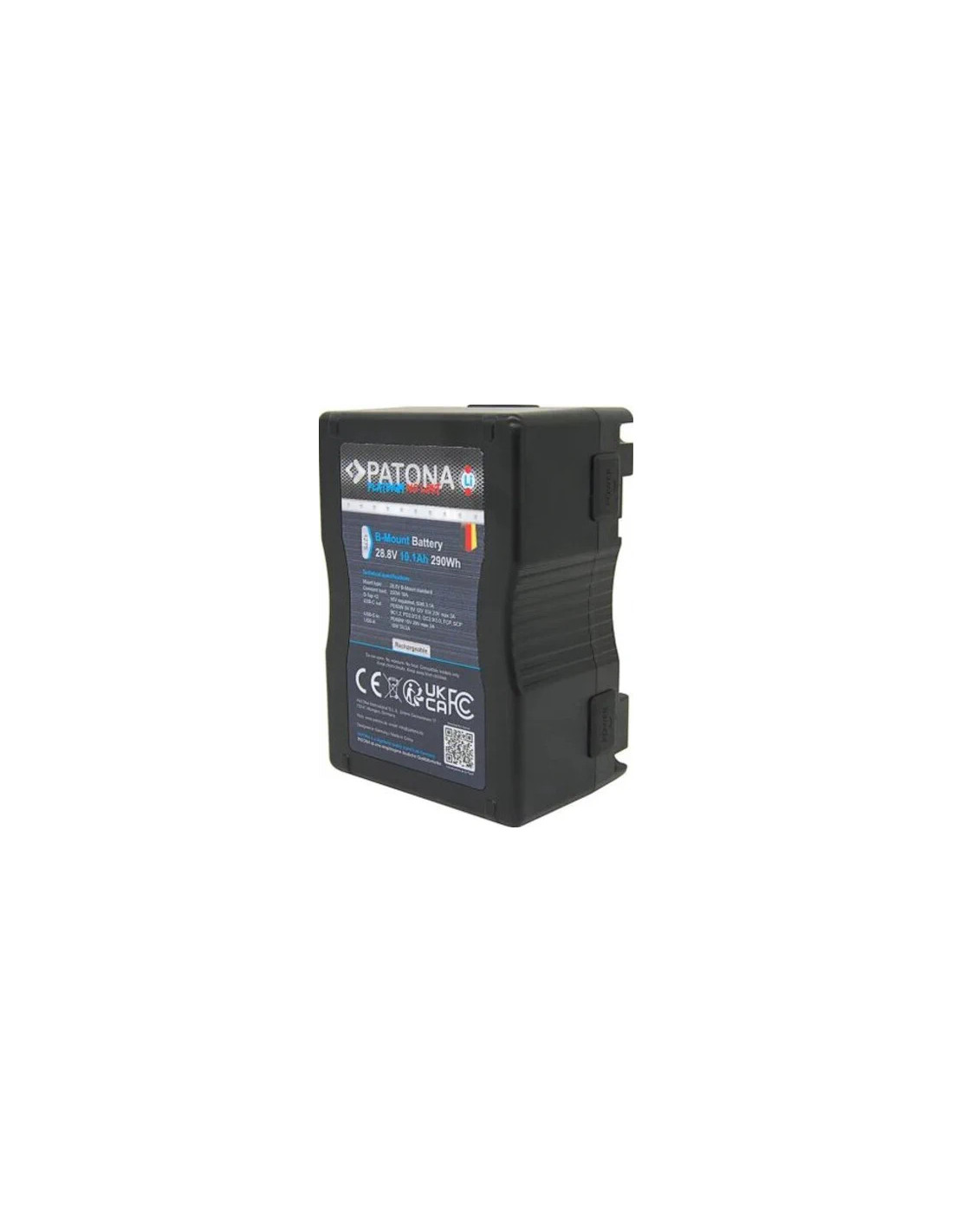

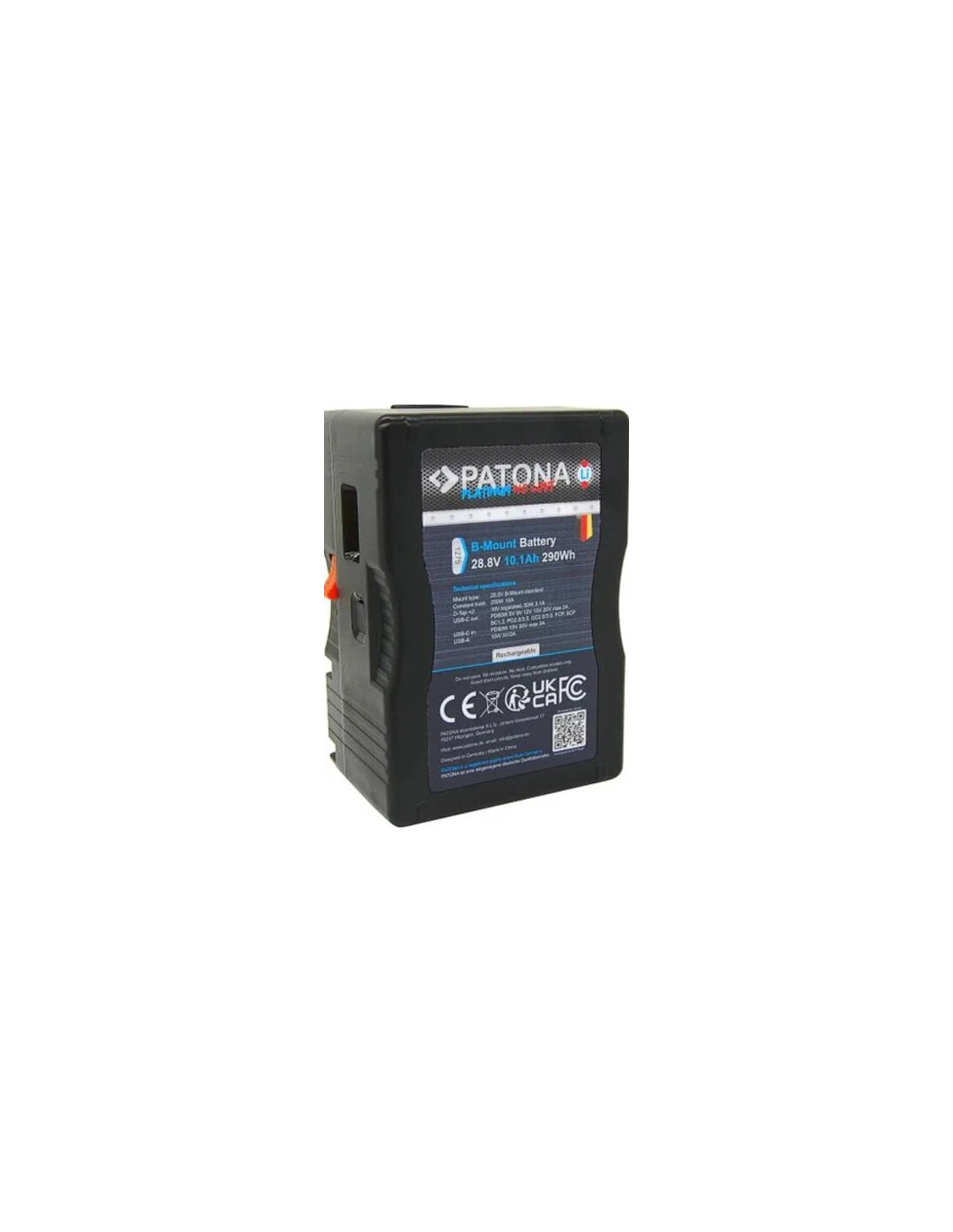

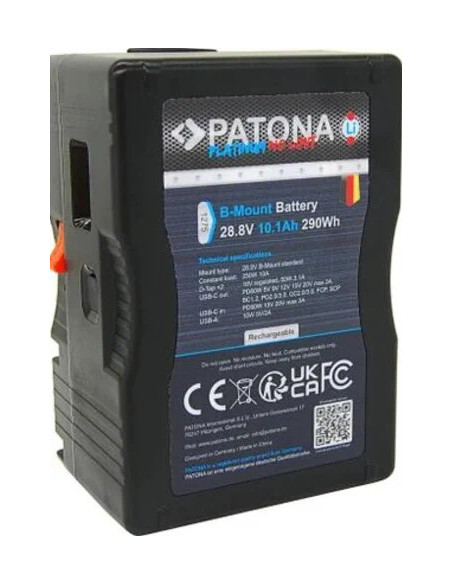

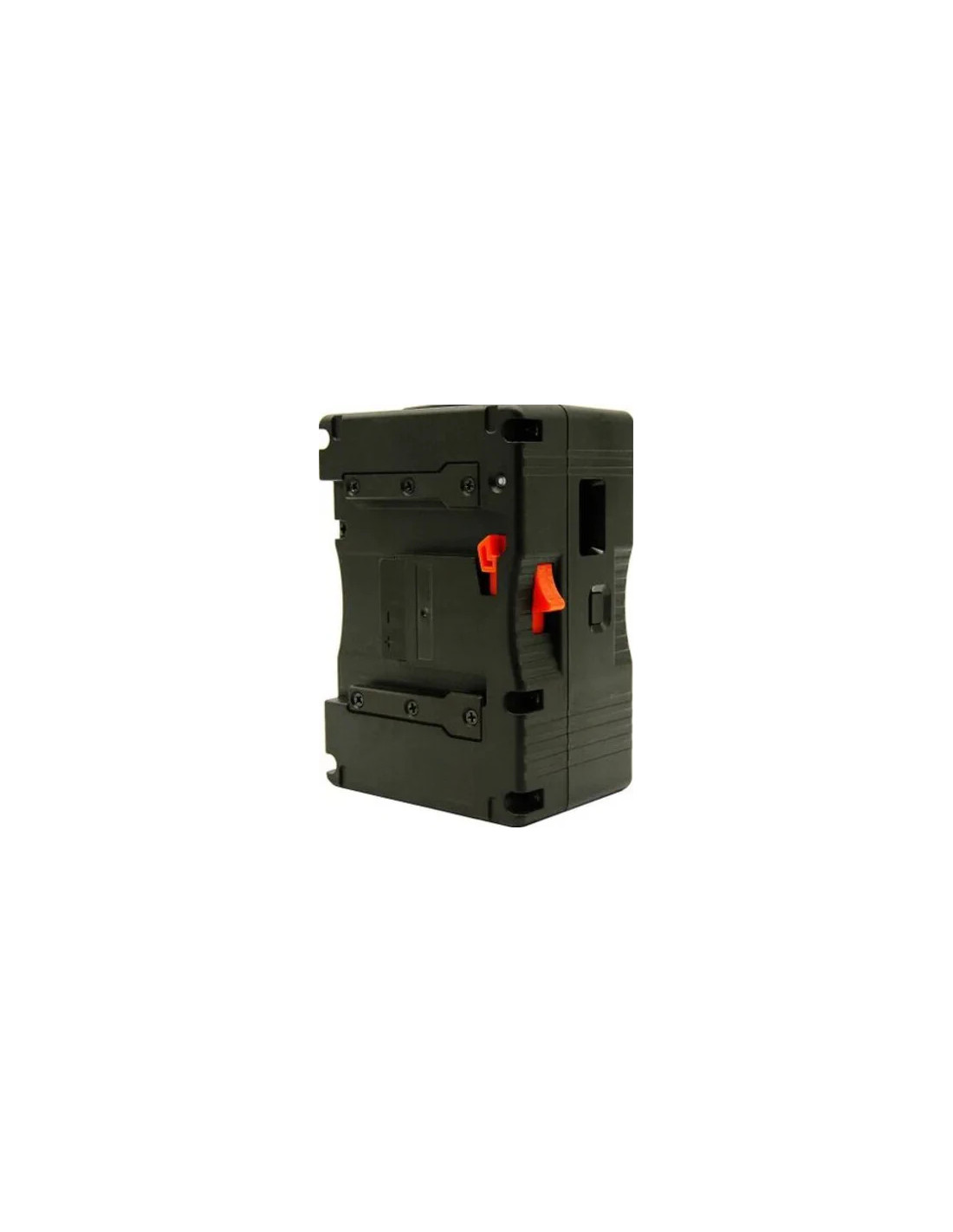

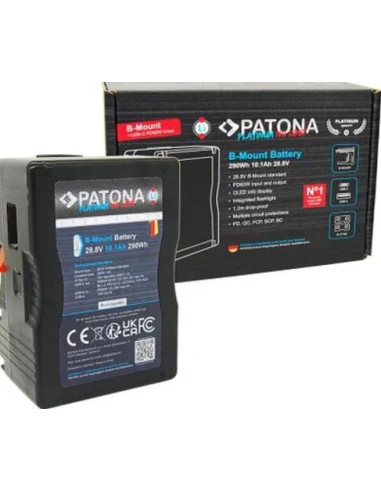

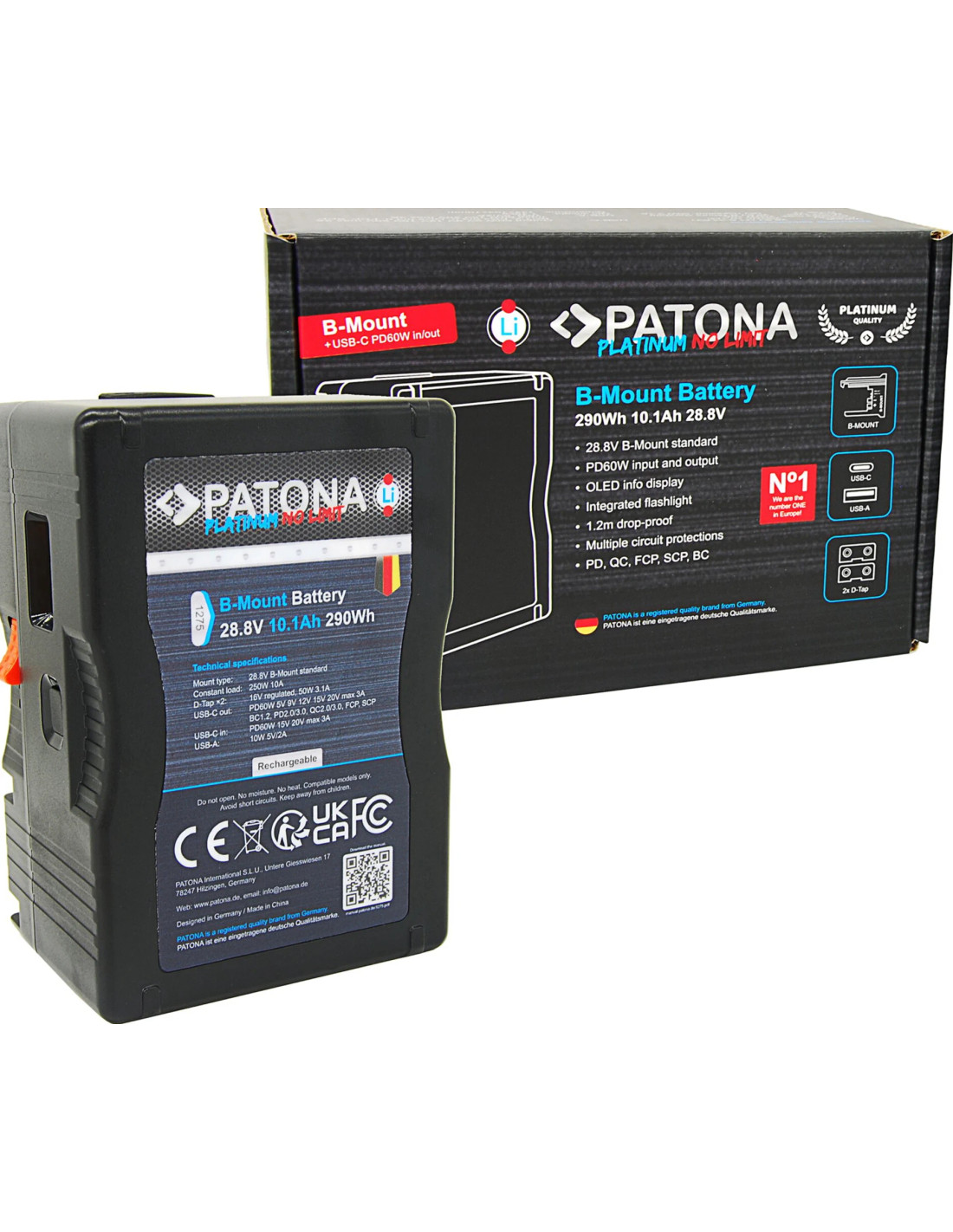

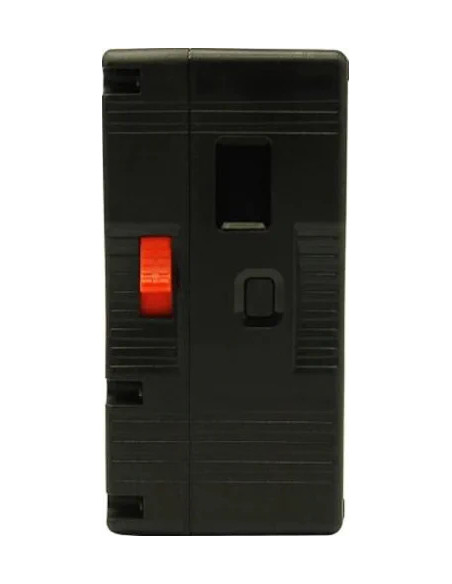

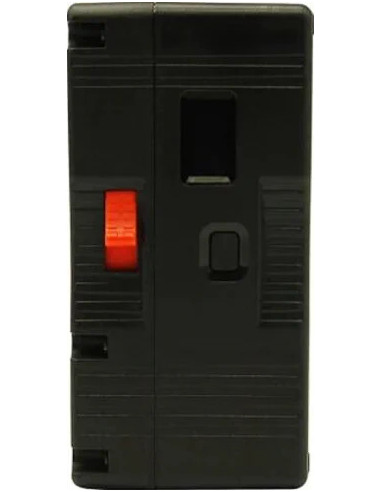

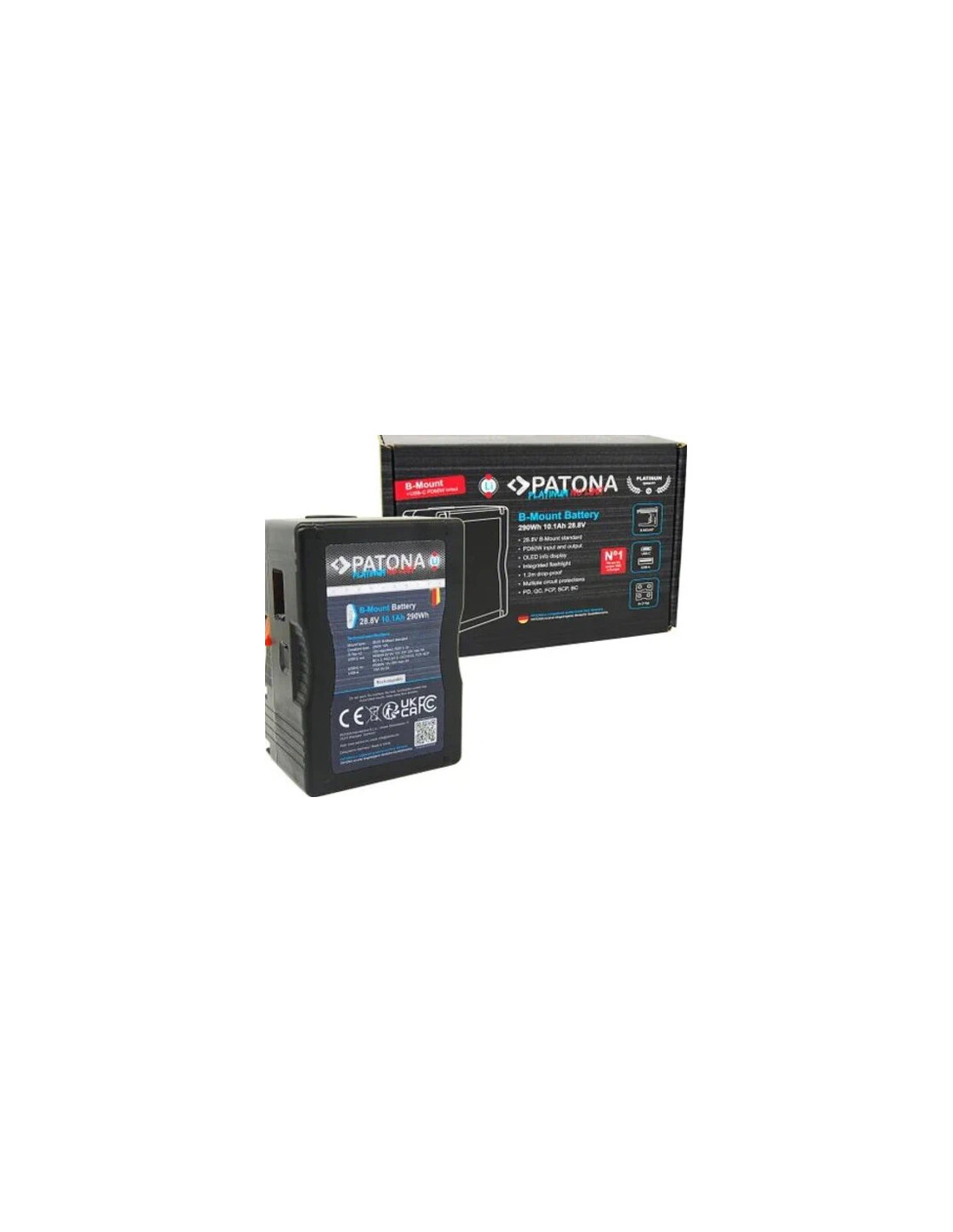

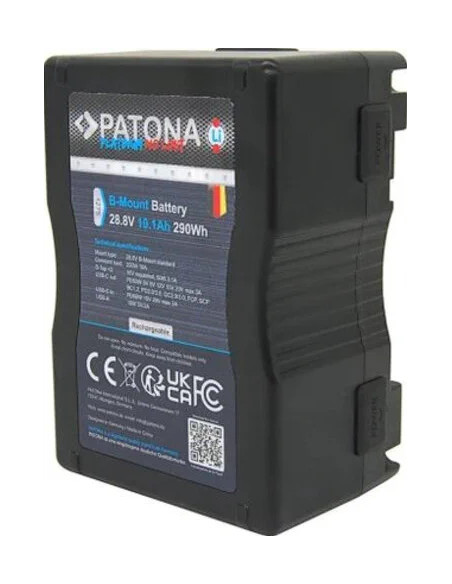

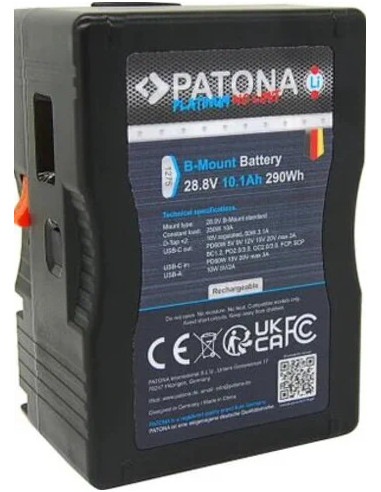

Platinum B-Mount battery with USB-C Input and 2xD-TAP 16V output

Discover the latest innovation of the series PATONA Platinum: B-Mount batteries. Equipped with advanced cellular technology, these batteries offer exceptional performance and reliability for higher needs. Their powerful protection circuits continuously monitor cell balancing, temperature, overload and over-drain to ensure maximum safety and operational efficiency.

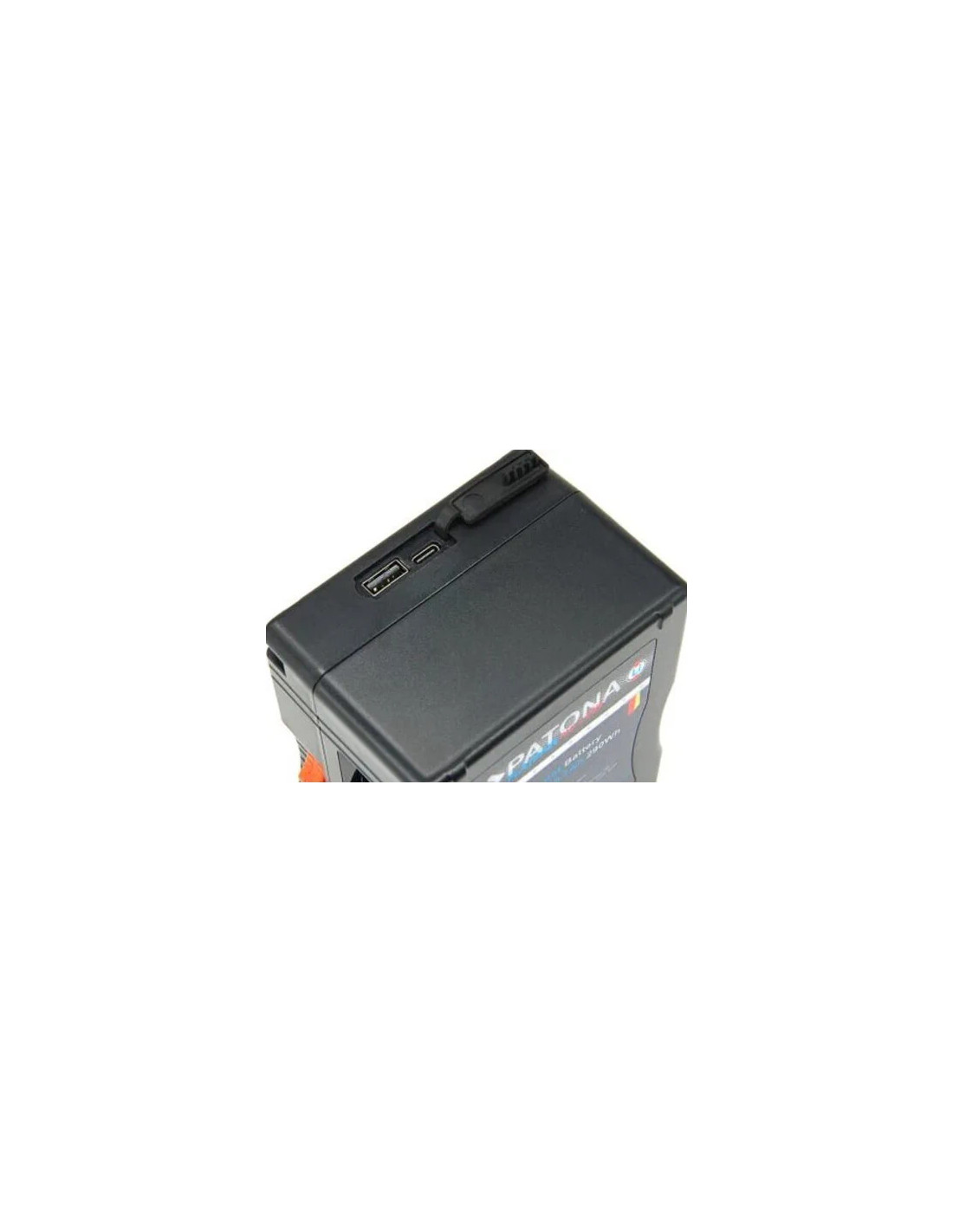

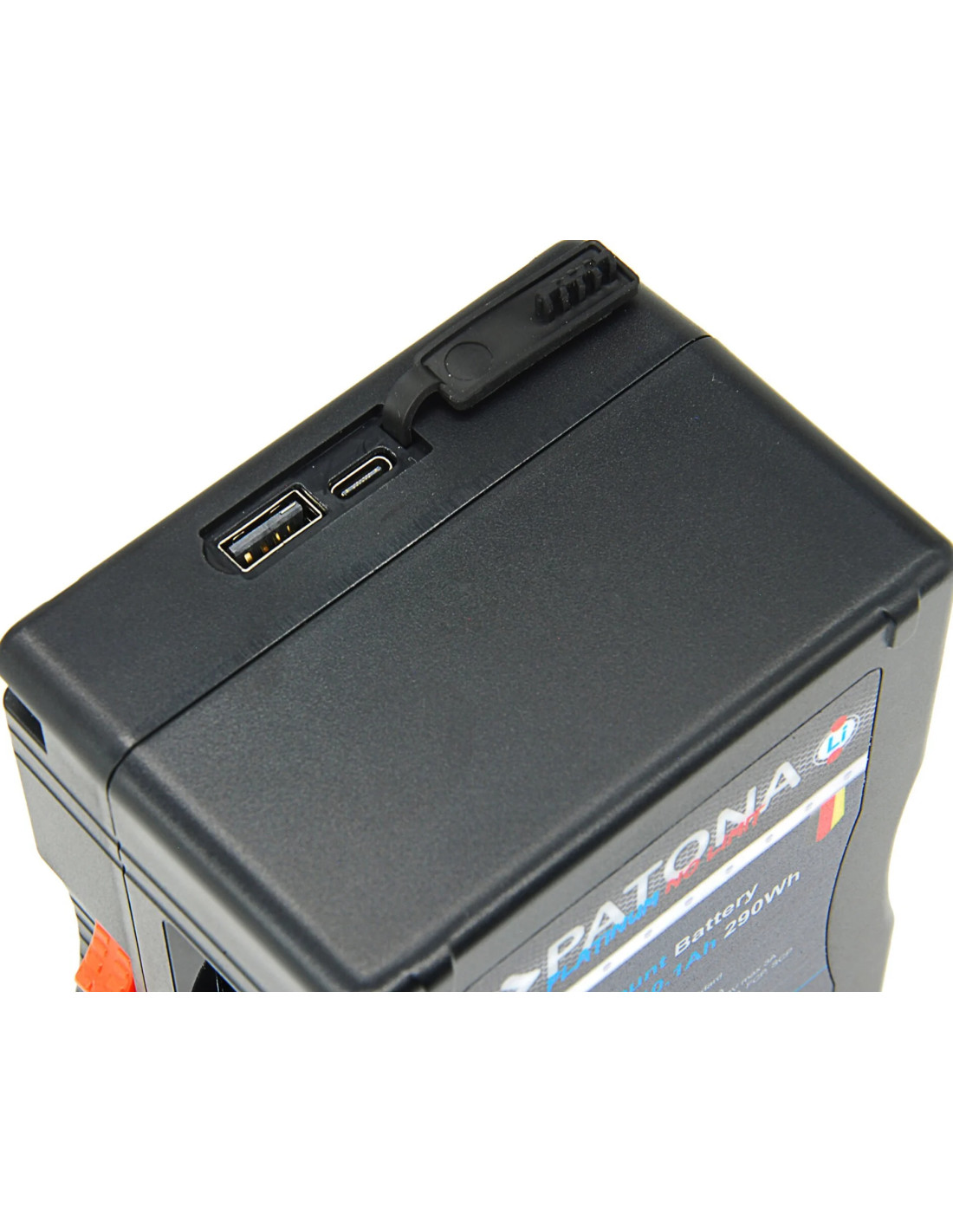

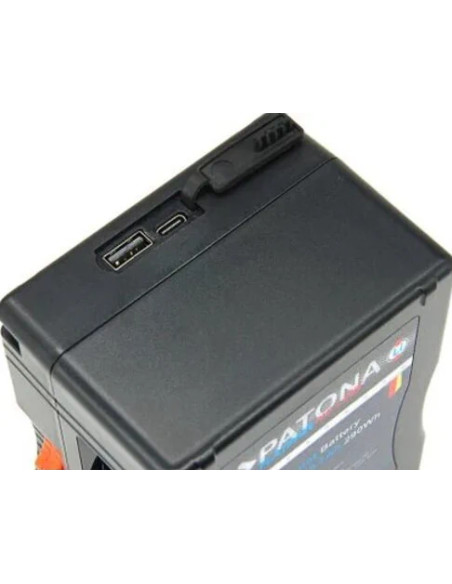

The integrated OLED display provides a clear overview of residual capacity, to always keep yourself informed. Thanks to the versatile D-TAP output, it is possible to easily connect lights and other external devices. USB-A and USB-C ports allow you to easily top up smartphones, tablets and other devices.

A strong point of the Platinum B-Mount battery is the integrated Power Bank function. Upload devices up to 60W and enjoy the freedom of a mobile nutrition.

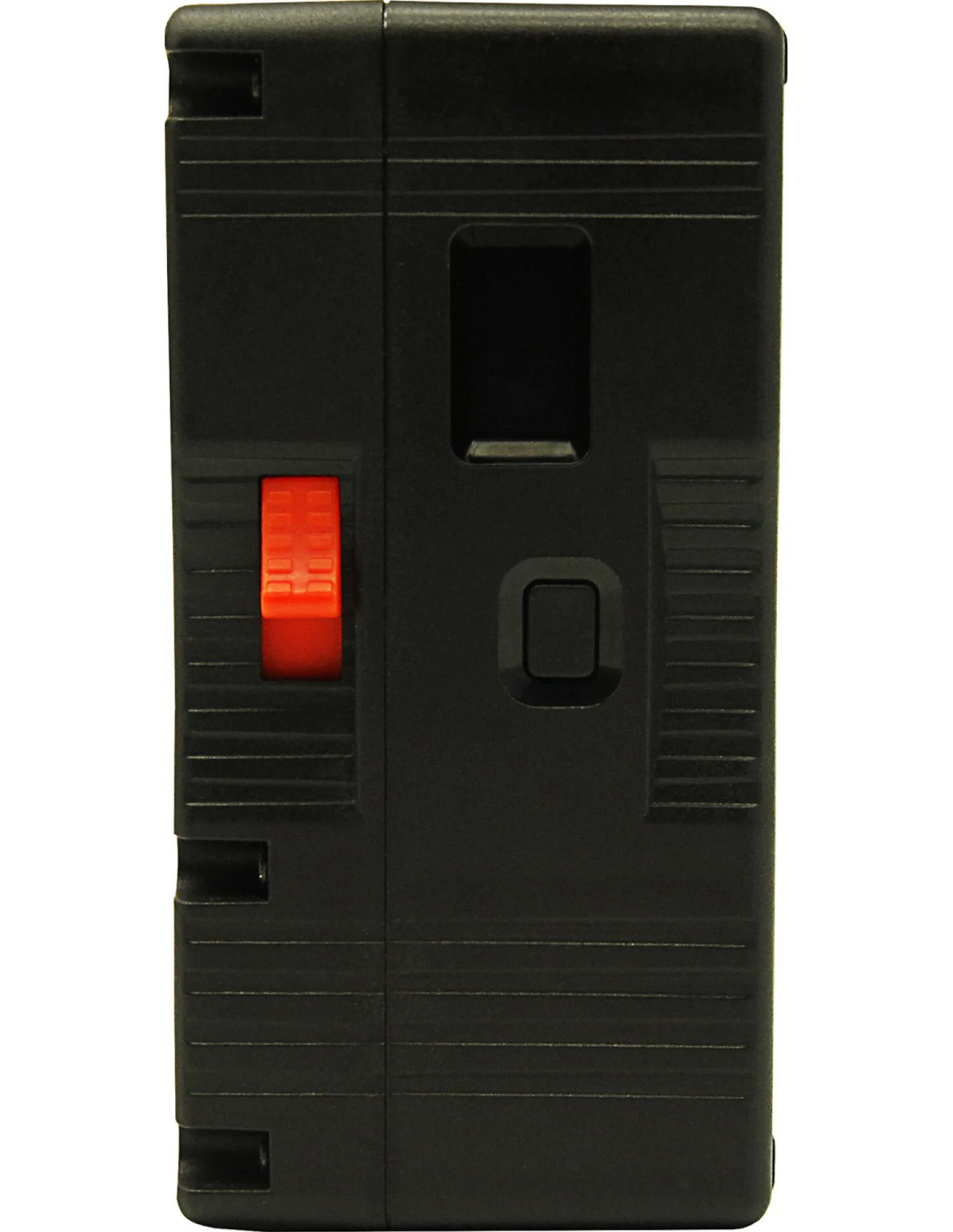

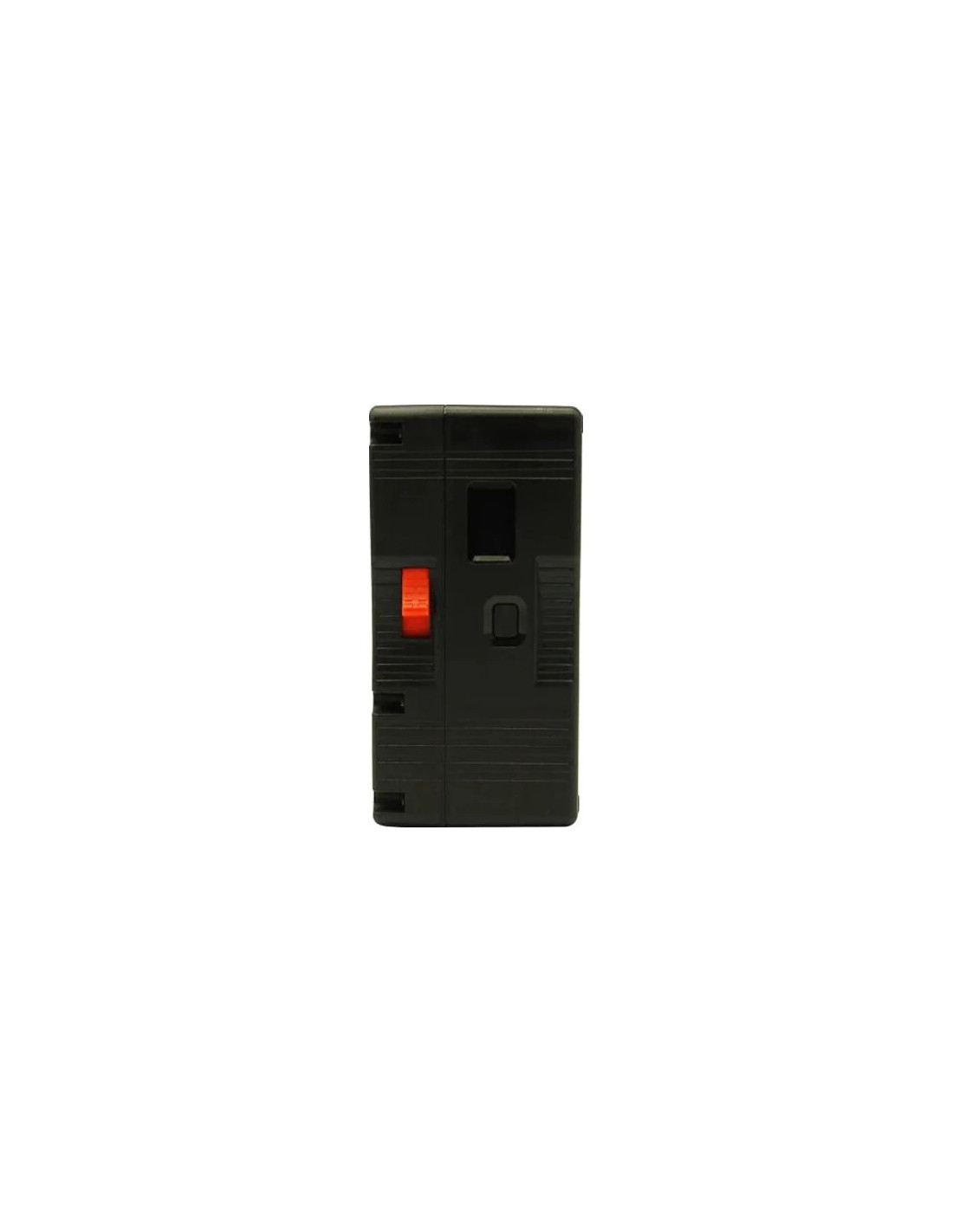

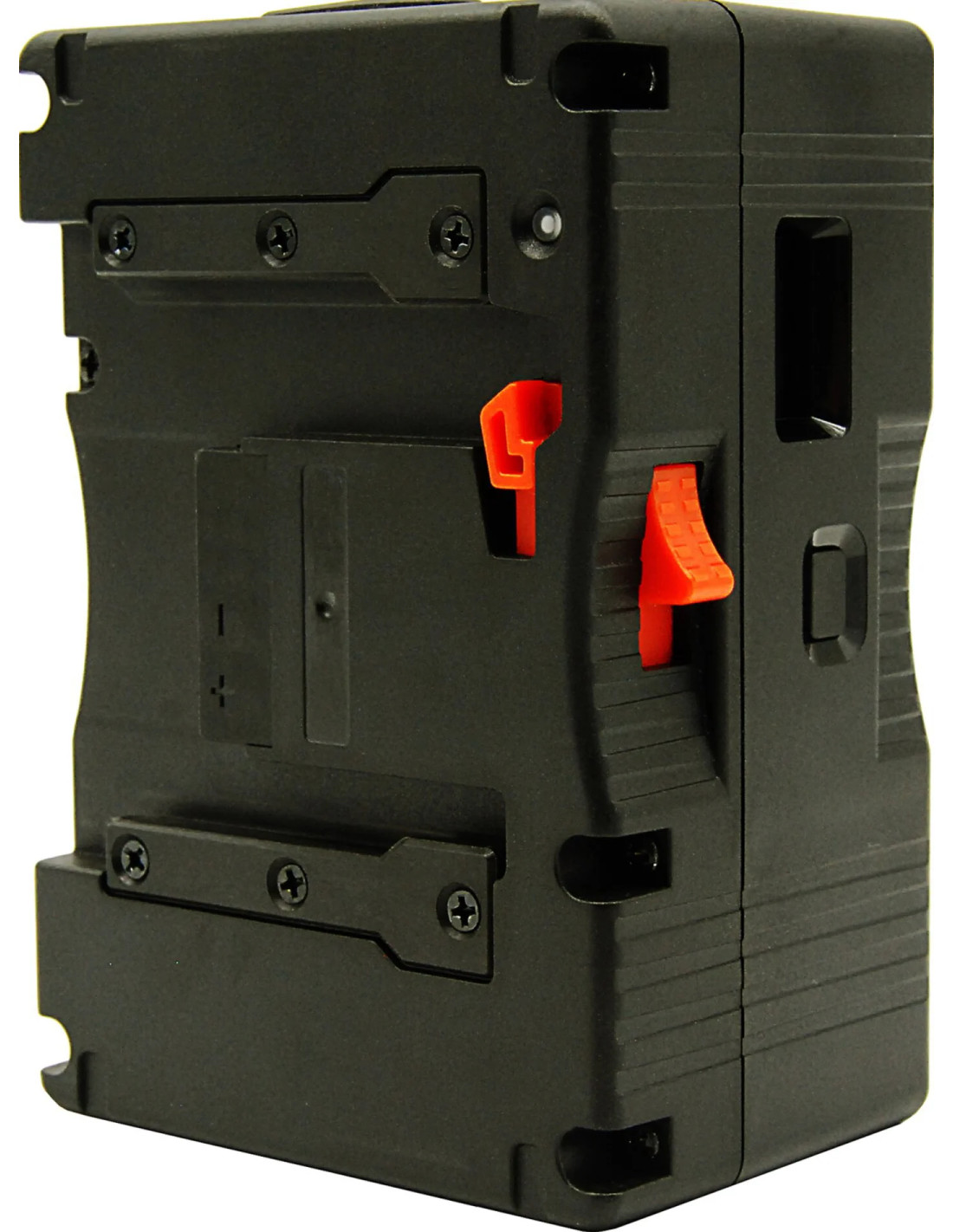

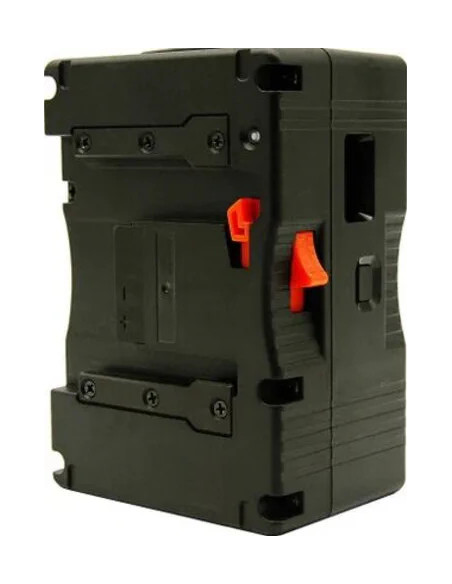

By pressing the Power-Check button twice, the LED light is activated on the back of the battery, making the B-MOUNT plate easily visible even in dark production environments. By pressing the Power-check button twice twice, the light turns off, allowing full lighting control at any time. This feature optimizes maneuverability and guarantees efficient work even in difficult conditions.

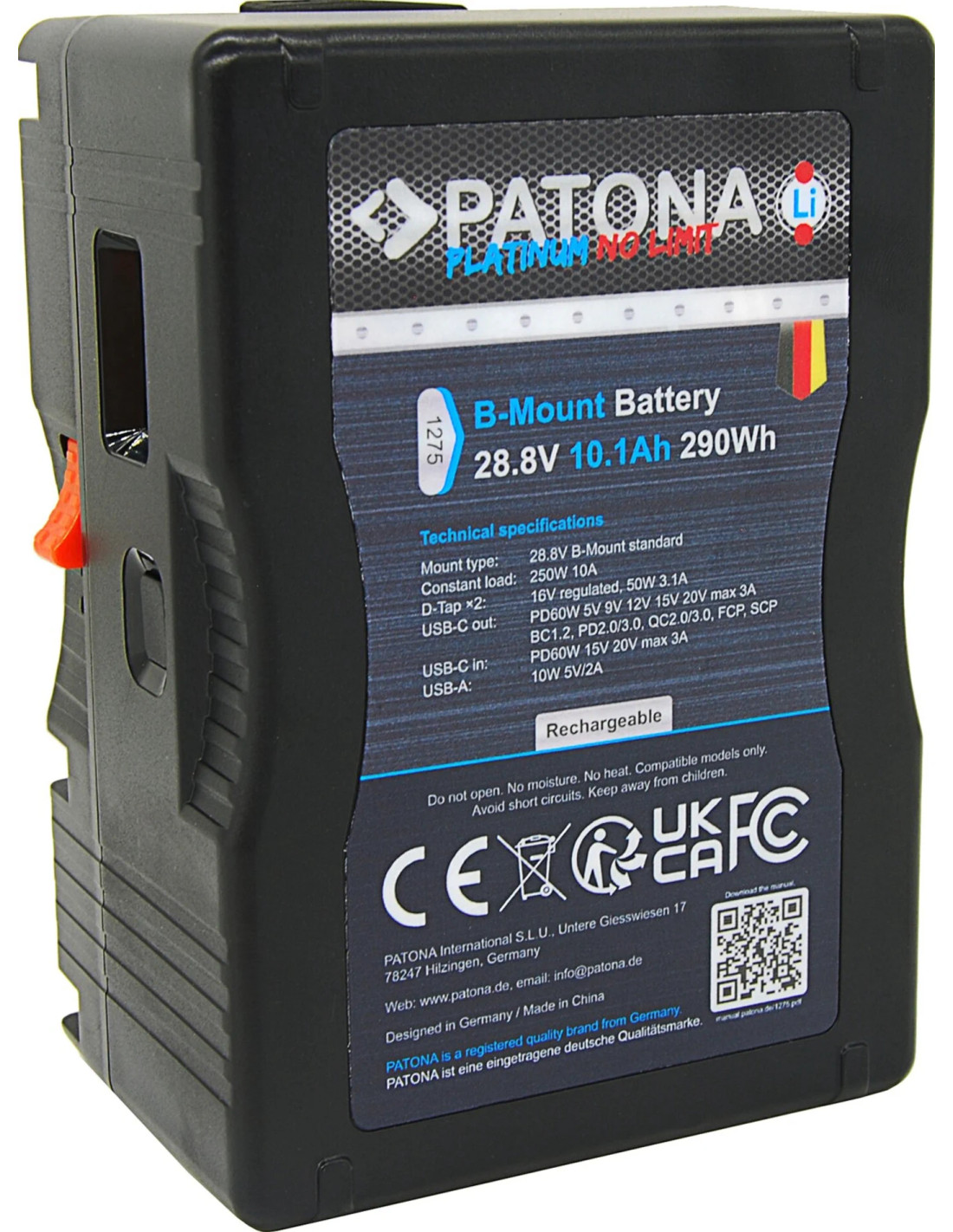

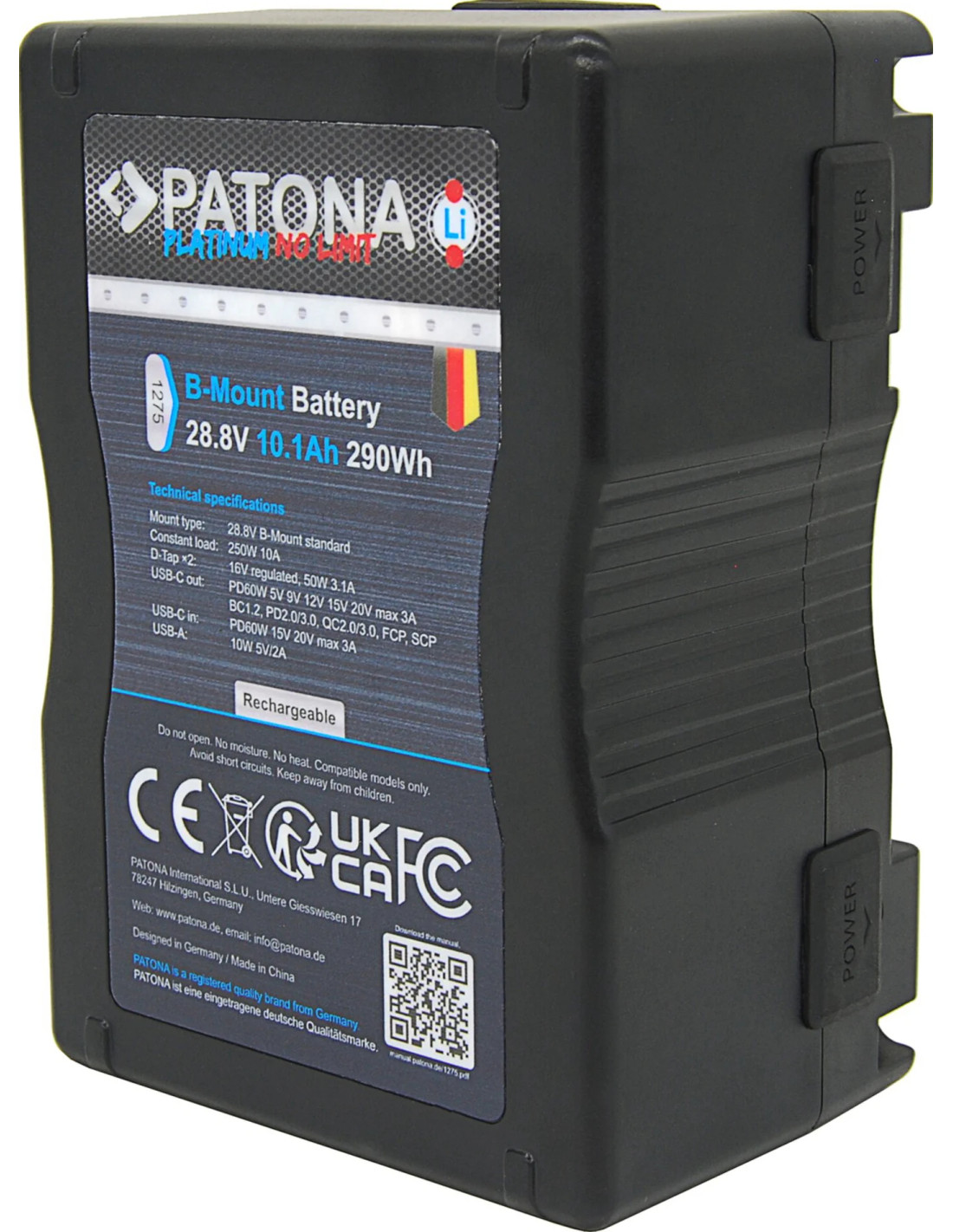

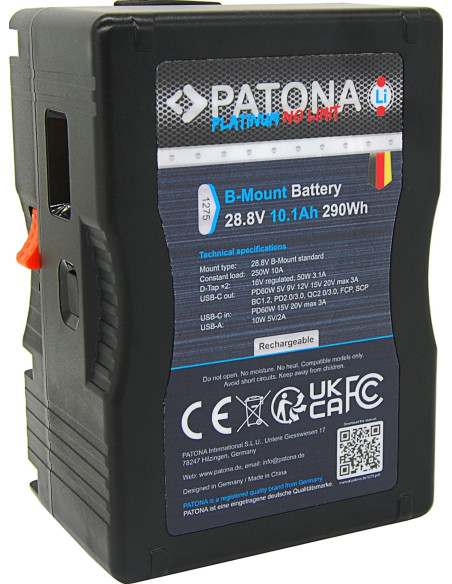

Technical data:
- Voltage: 28.8 Volts
- Capacity: 10,1Ah / 290Wh
- Constant load: 250W, 10A
- Maximum charge current: 165W, 5A
- Quick top-up: 100W, 3a
- Type of cell: Lithium ions
- Number of cells: 24x 18650ga
- integrated LED light
- D-TAP 2X Output voltage: max. 50W, 16V / 3.1A
- USB-C door input: PD 60W, 15V / 20V (max.) 3a -> 100% 5.5h charging time.
- USB-C port output: 60W, 5V / 9V / 12V / 15V / 20V (max.) 3a, BC1.2, PD2.0 / 3.0, QC2.0 / 3.0, FCP, SCP
- USB-A port: 10W, 5V / 2A
- Charging temperature range: 0 - 40 ° C
- Download temperature: -20 - 50 ° C
- Weight: 1484 g
- Dimensions: 143 x 101 x 70 mm
- Brand: PATONA Platinum

The battery is compatible with the following models:
- Blackmagic Ursa Cine
- Arri Alexa 35

Battery PATONA Platinum B-Mount establishes new standards in USB-C power, especially for professional use on film sets. Thanks to the capacity to deliver variable voltages of 5 V, 9 V, 12 V, 15 V up to 20 V to 3 to constants, this battery guarantees a constant and reliable diet. Compatibility with a wide range of advanced charging protocols such as BC1.2, PD2.0 / 3.0, QC2.0 / 3.0, FCP and SCP underlines versatility and performance. PATONA Platinum B-Mount is the perfect choice for the most demanding users who rely on a wide range of laptops compatible with USB-C, including MacBook Air, MacBook Pro, Huawei Matebook, ThinkPad, HP, ASUS, Dell and many other models. There is no better solution for mobile power.
