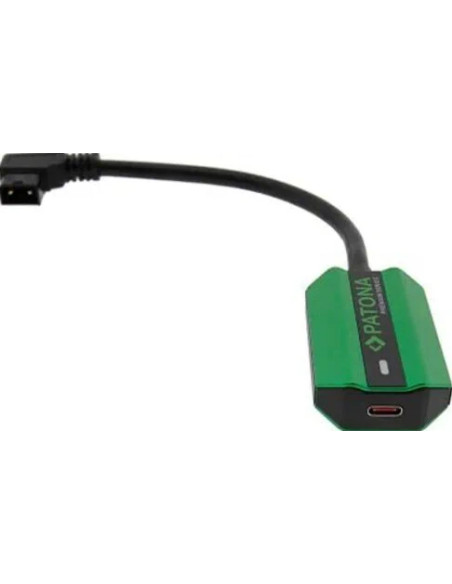

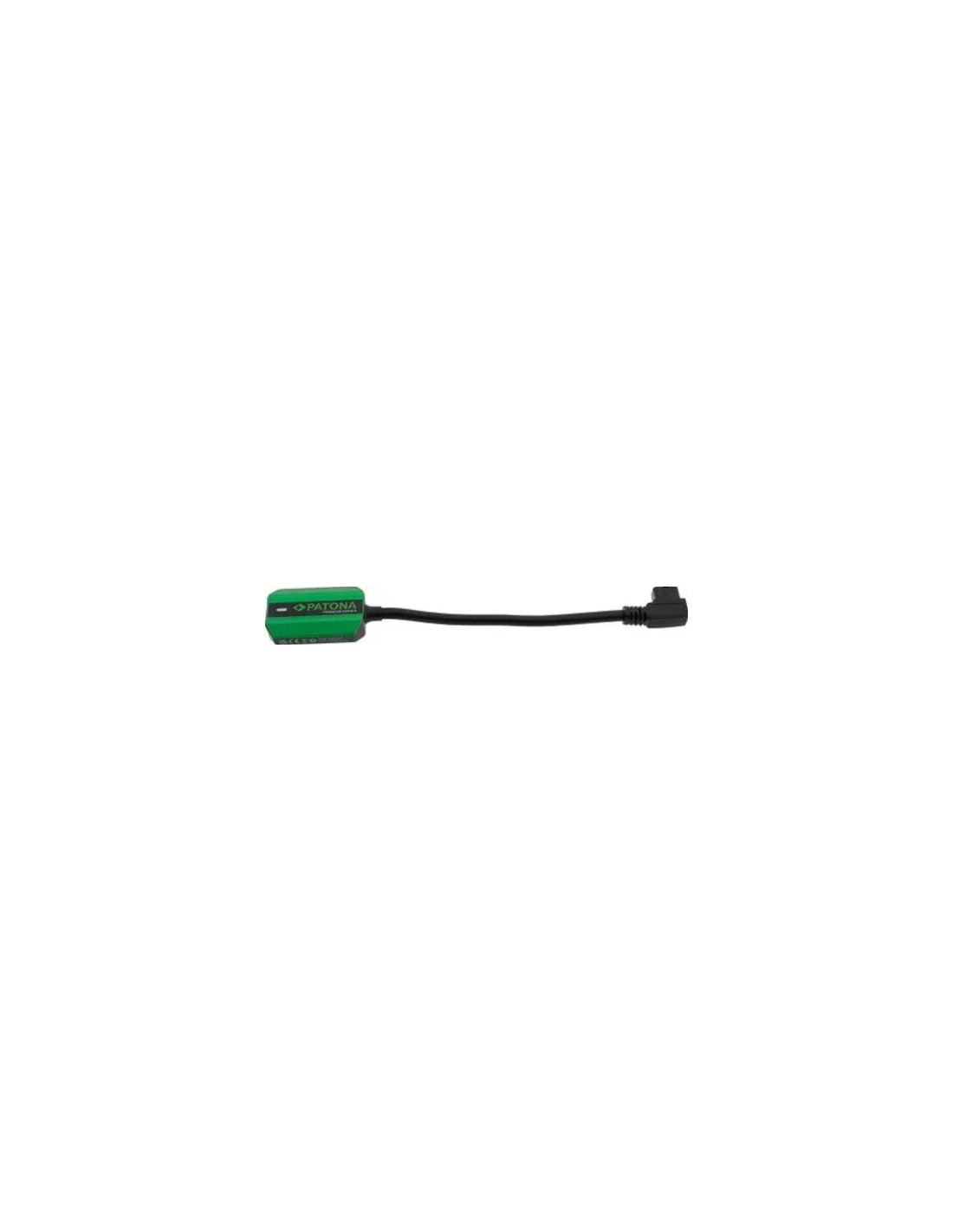

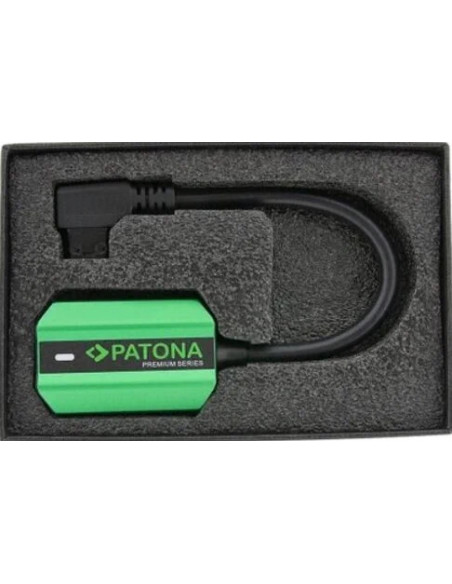

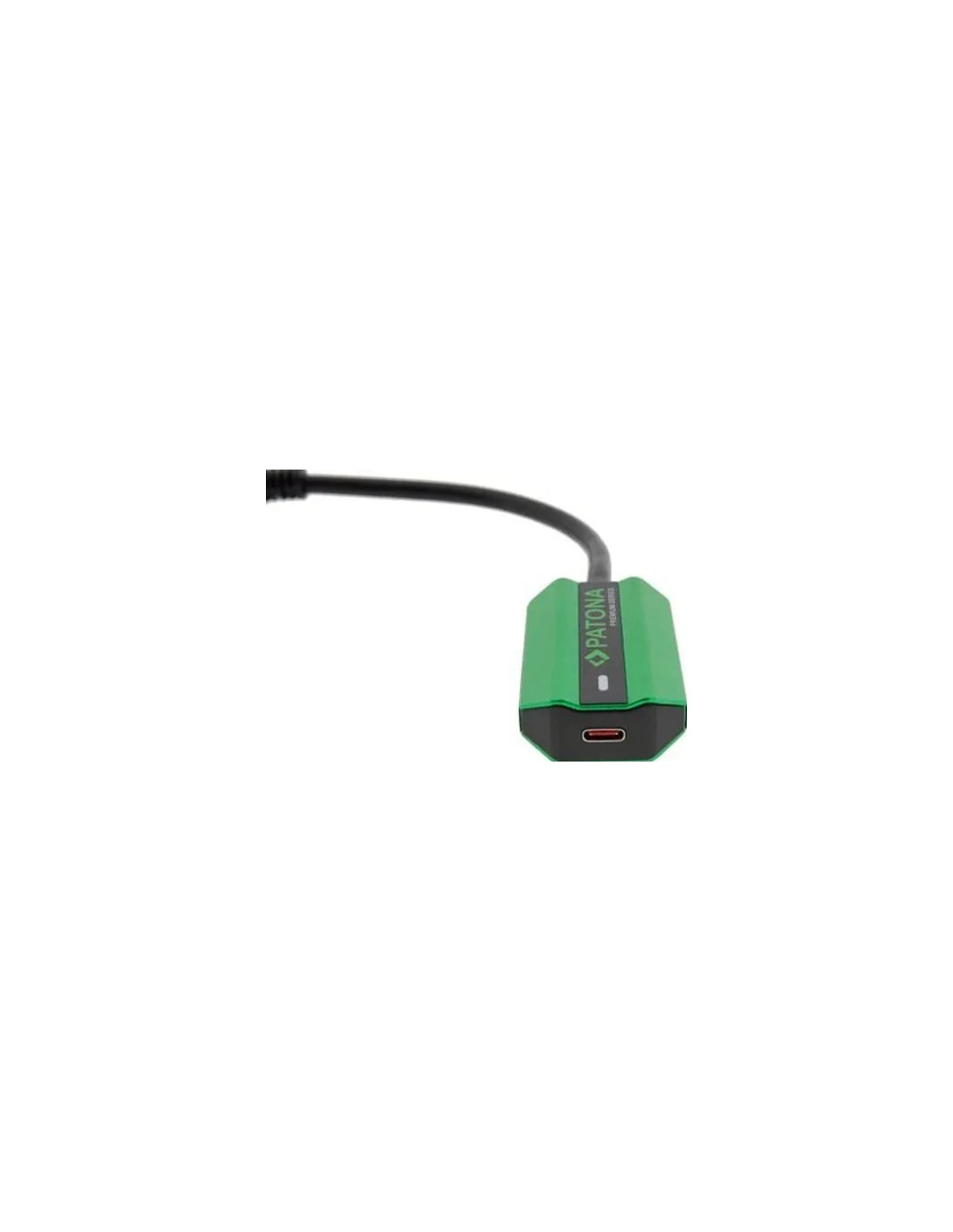

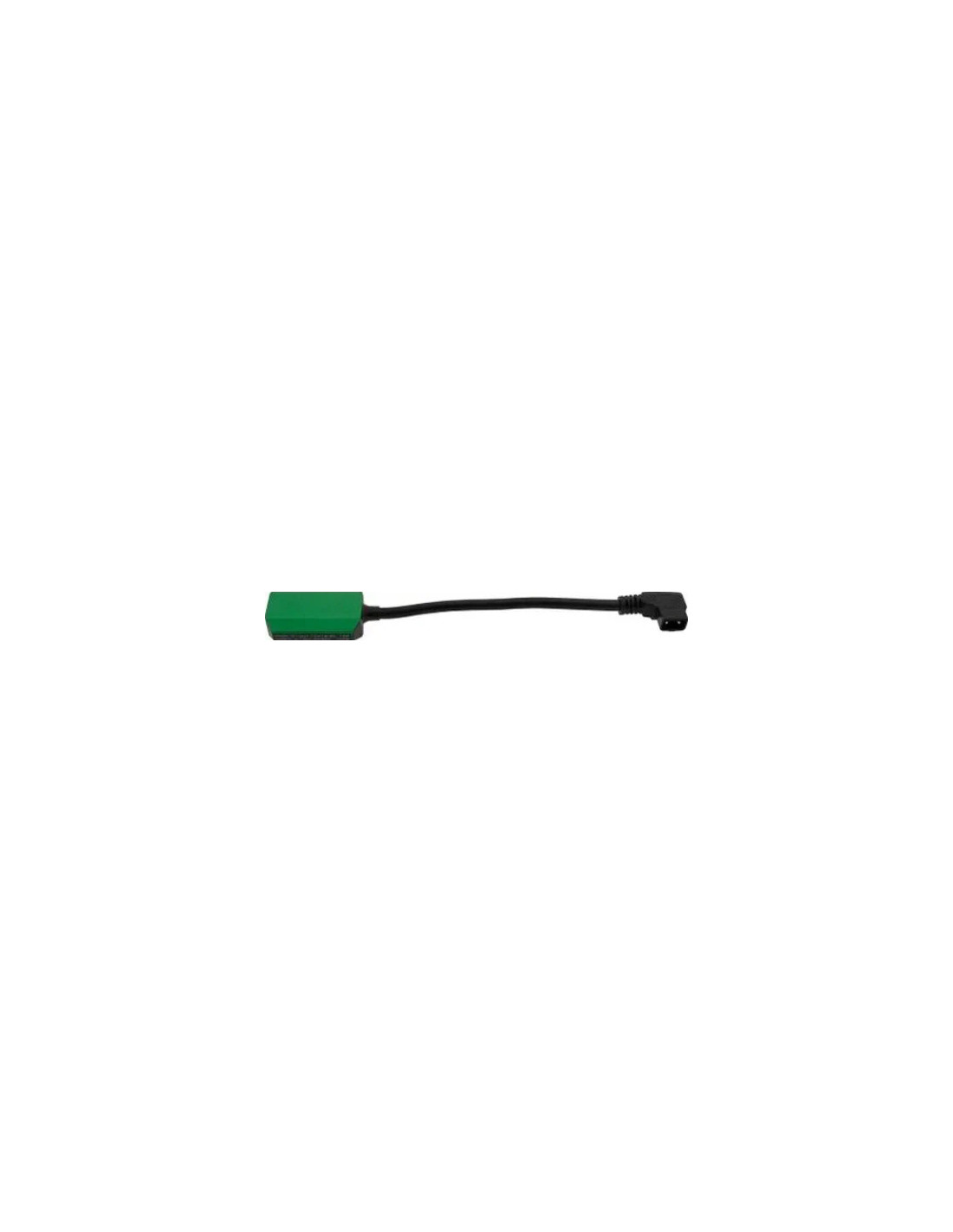

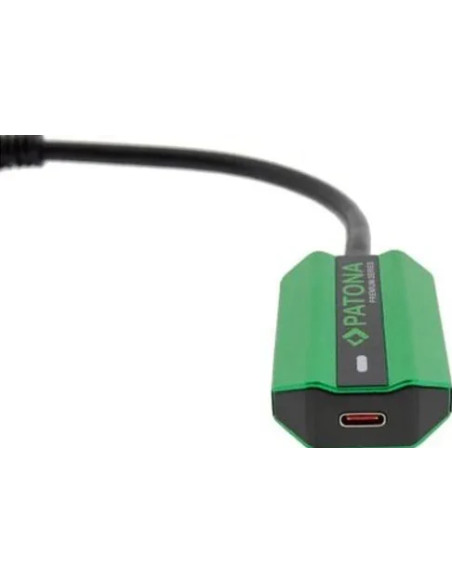

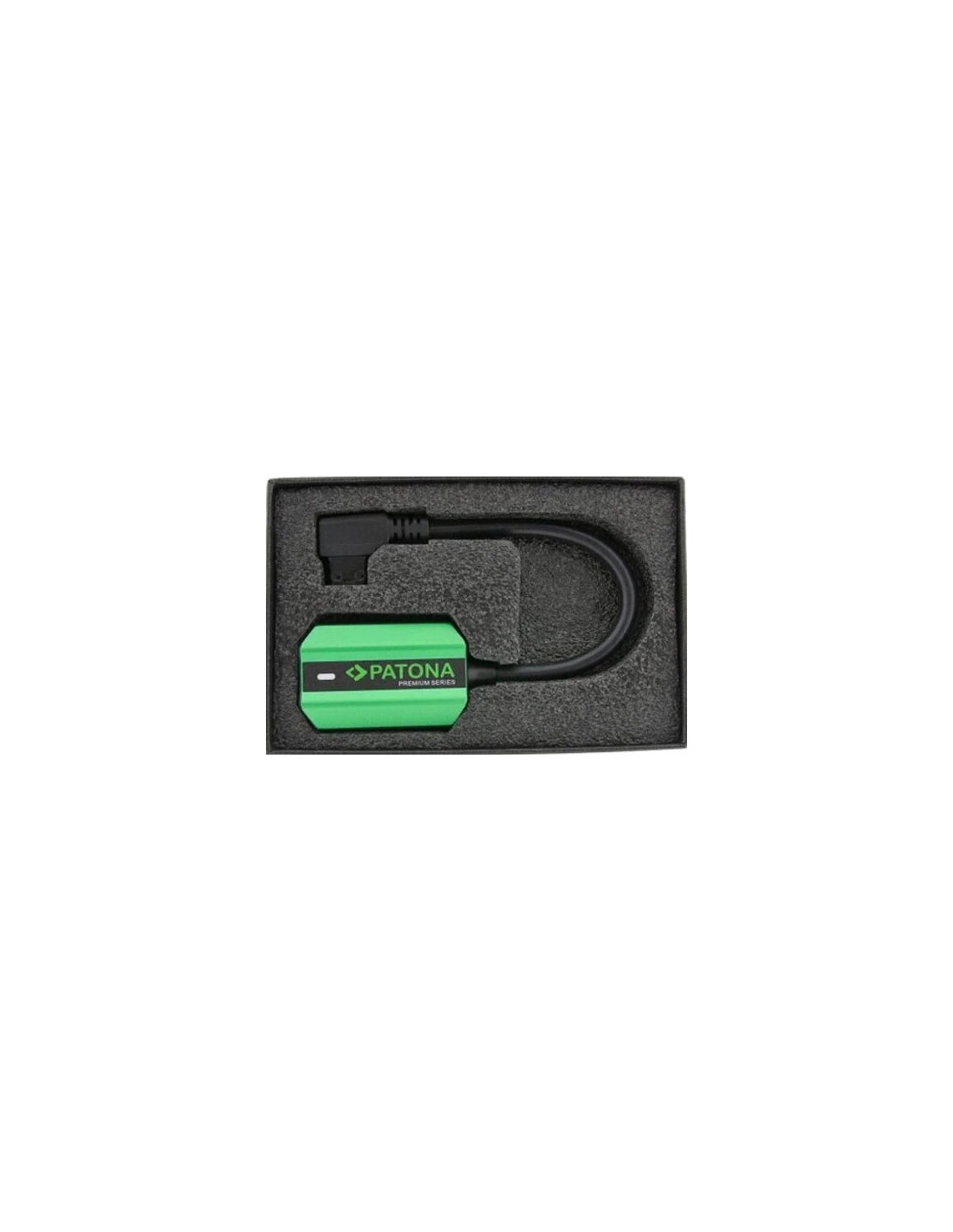

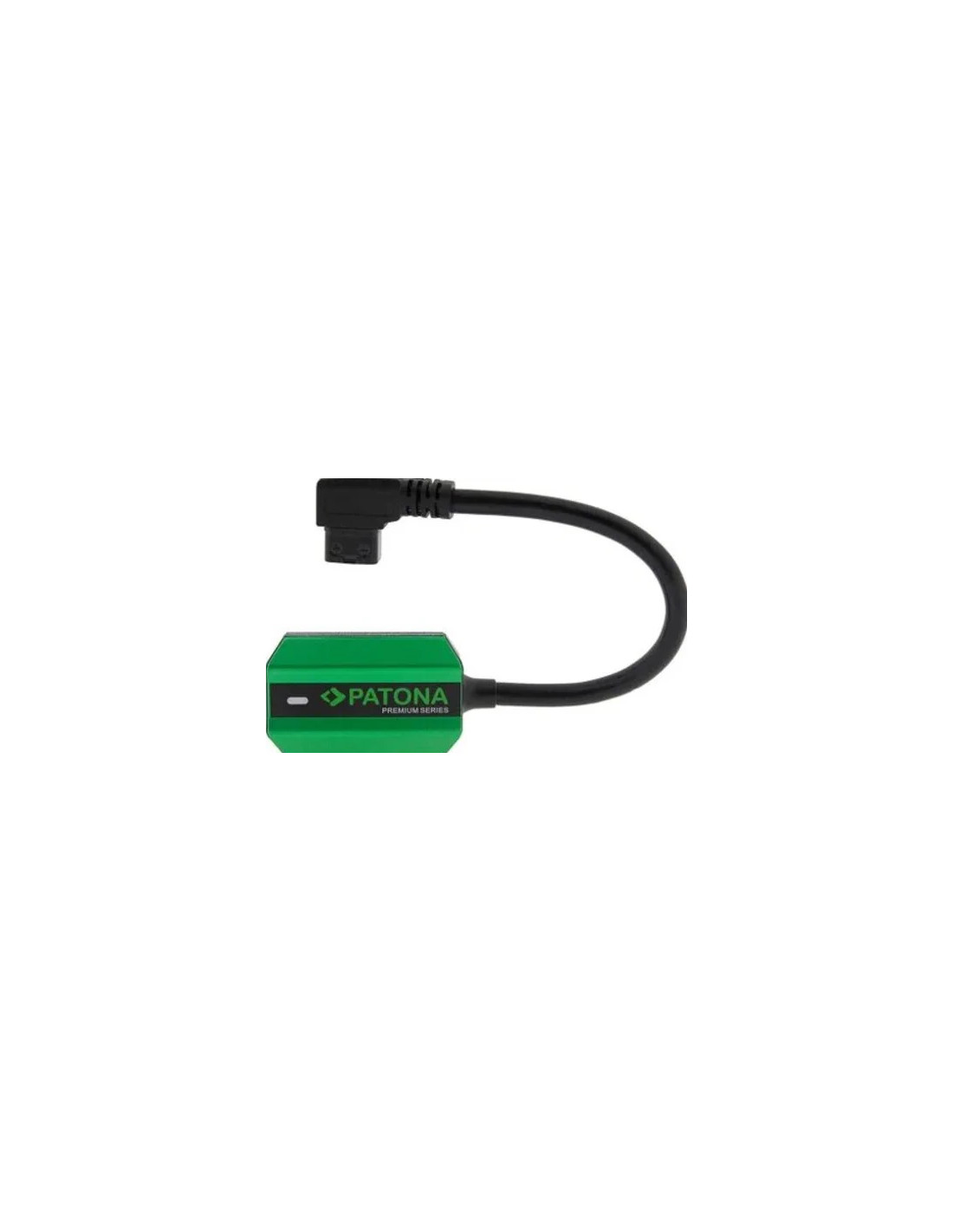

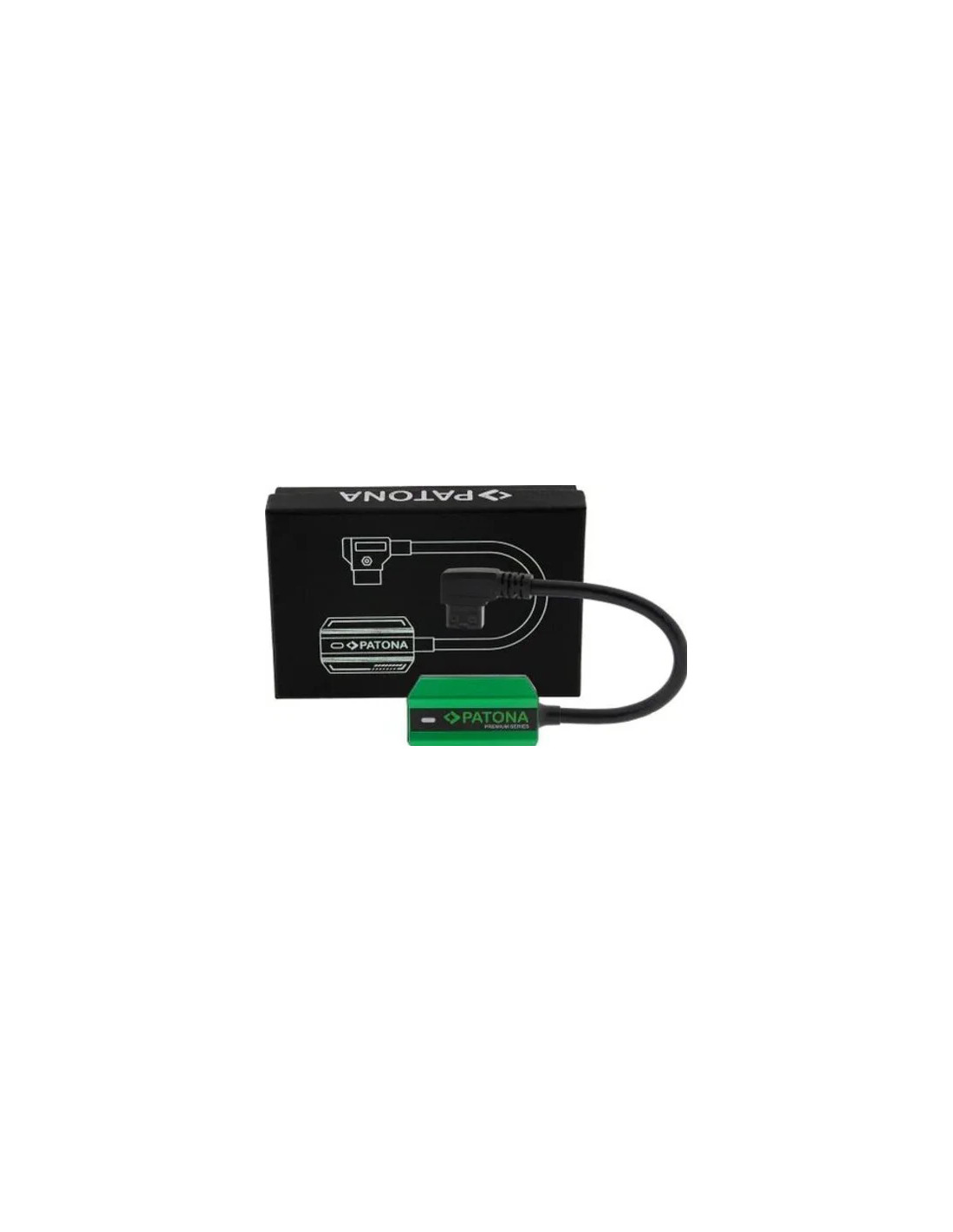

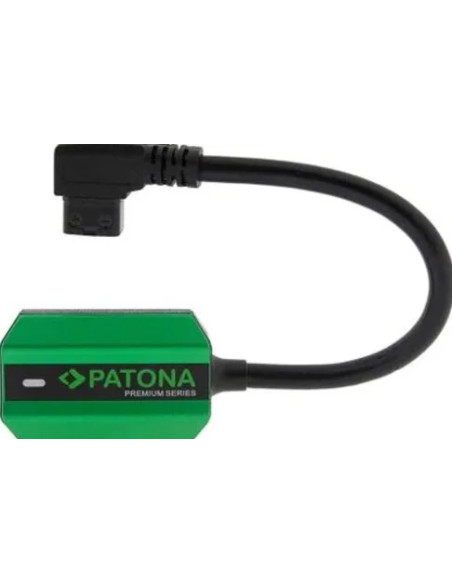

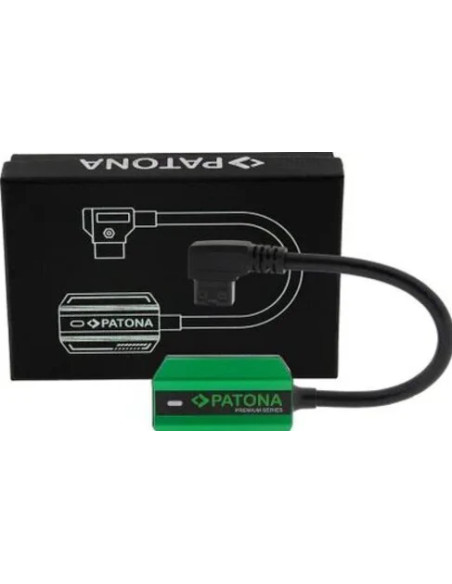

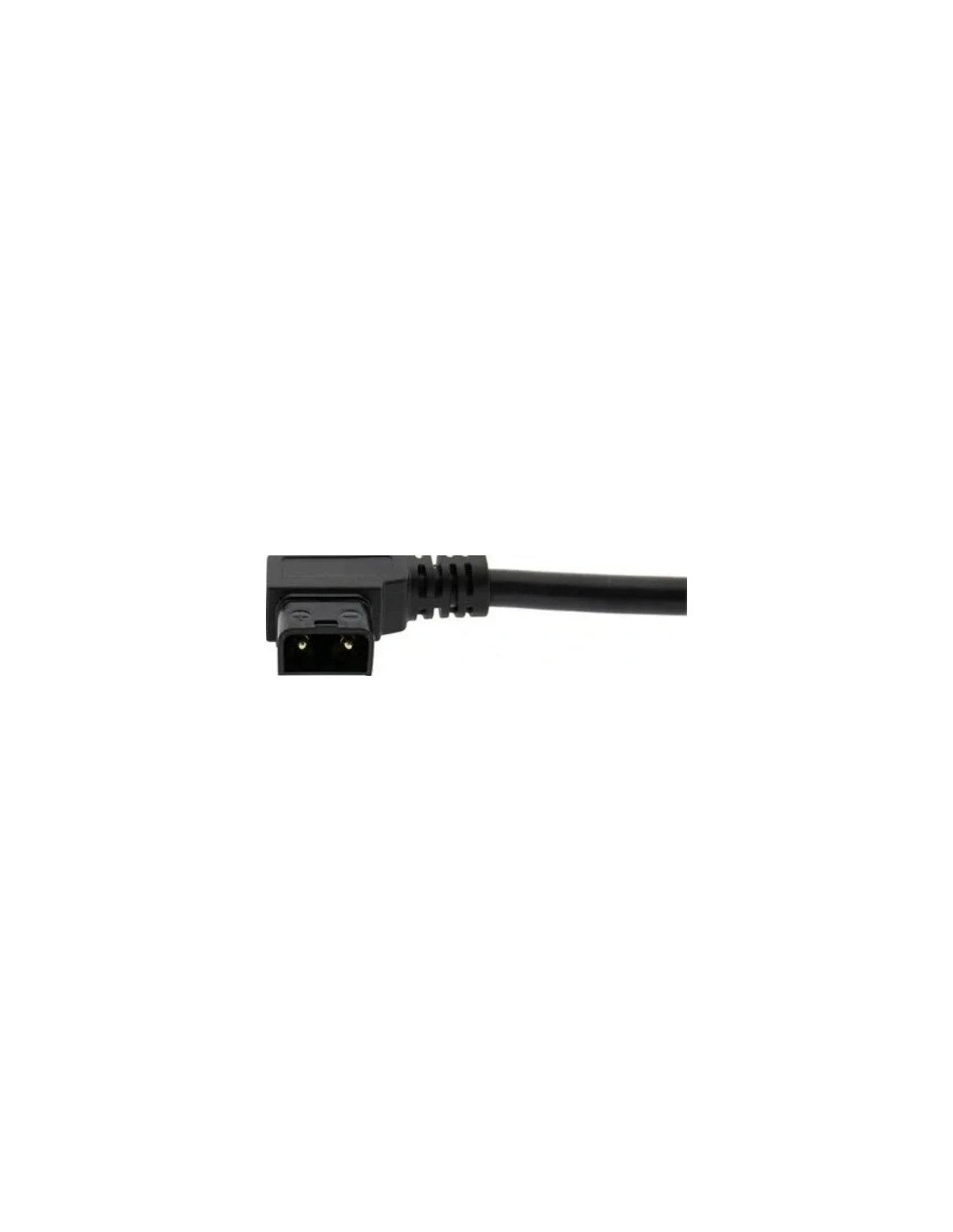

Premium PD100W Multifunctional D-TAP adapter to USB-C for phone power

PATONA PD100W is a D-TAP to USB-C adapter. A peculiarity: the power supply works in both directions, ie the battery can provide and receive energy with this adapter. Thanks to its size and its weight, it is smaller and lightweight than a traditional charger.

Application options:

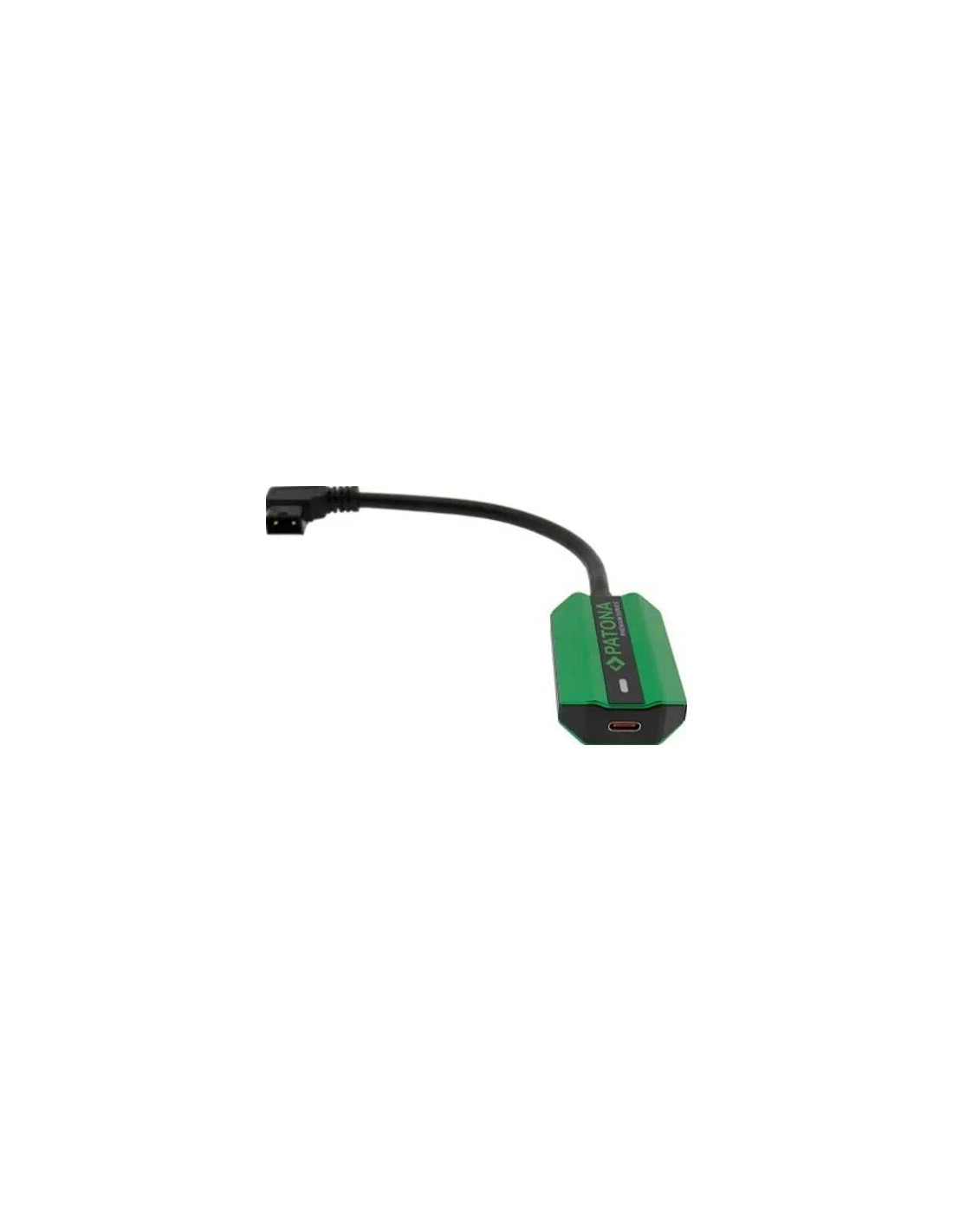

1.) The battery provides energy: the device to be loaded is connected to the adapter via the USB-C port, the adapter's D-TAP plug is connected to the battery d-tap output.
2.) The battery receives the power supply: A USB power adapter is connected to the USB-C output, the adapter D-TAP plug is connected to the battery of the battery. The battery is now charged.

Technical data:
- Bidirectional transfer from D-TAP to USB-C
- Maximum power transmission: 100W
- Output / input D-TAP: 12V - 16.8V, 10A
- USB-C output / input: 3V - 20V, 5A
- Intelligent recognition of charging protocols
- Supported charging protocols: FCP, AFC, SCP, DRP, TRY SRC, PD3.0, QC2 / QC3.0 / QC3.0 +
- Automatic adjustment of the output voltage
- Overvoltage / undervoltage protection, short circuit and battery overload

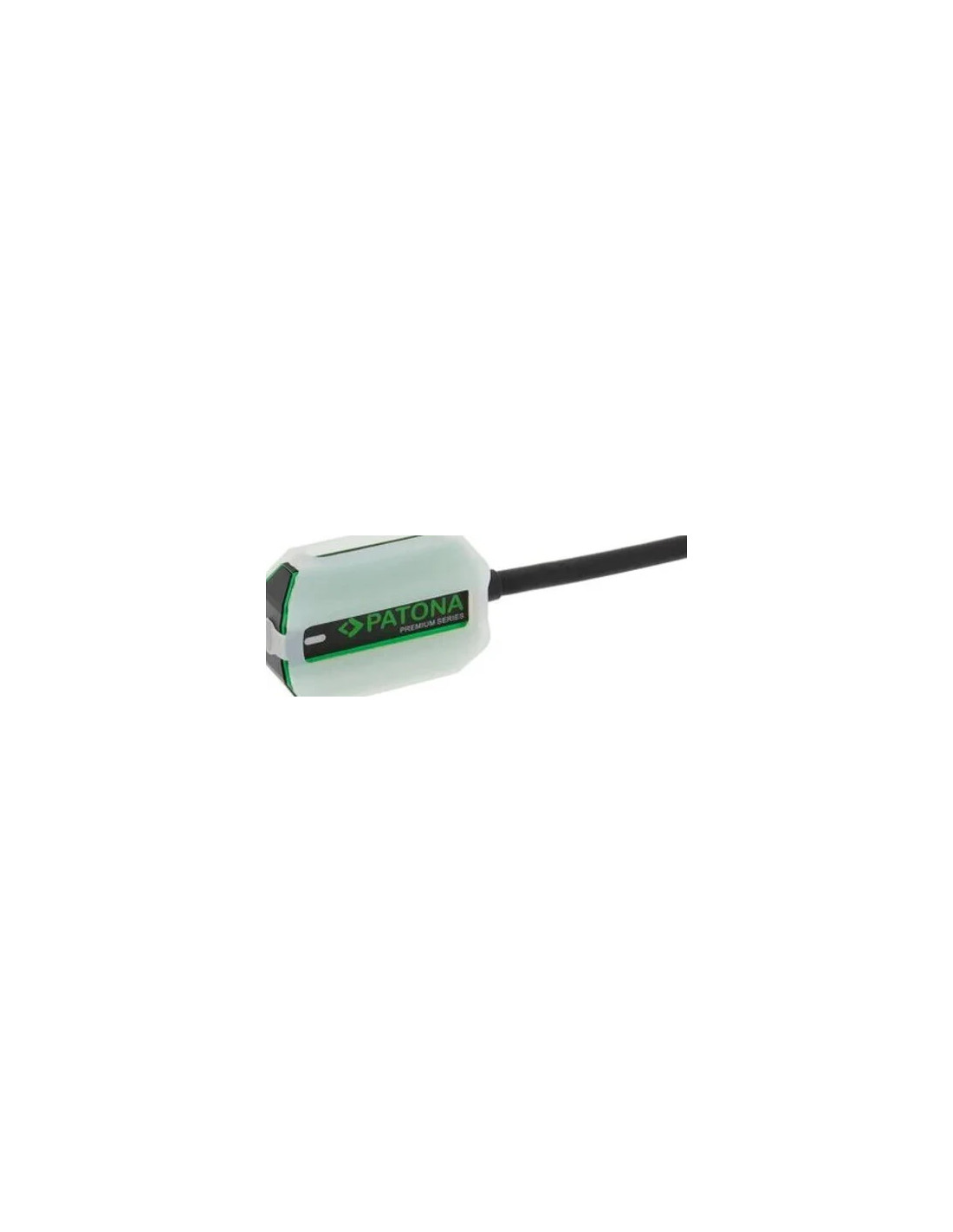

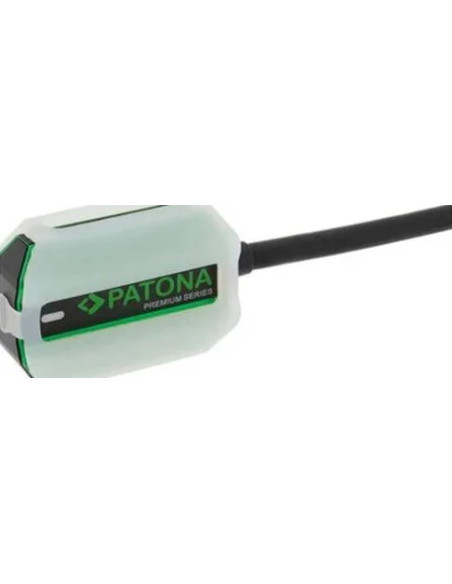

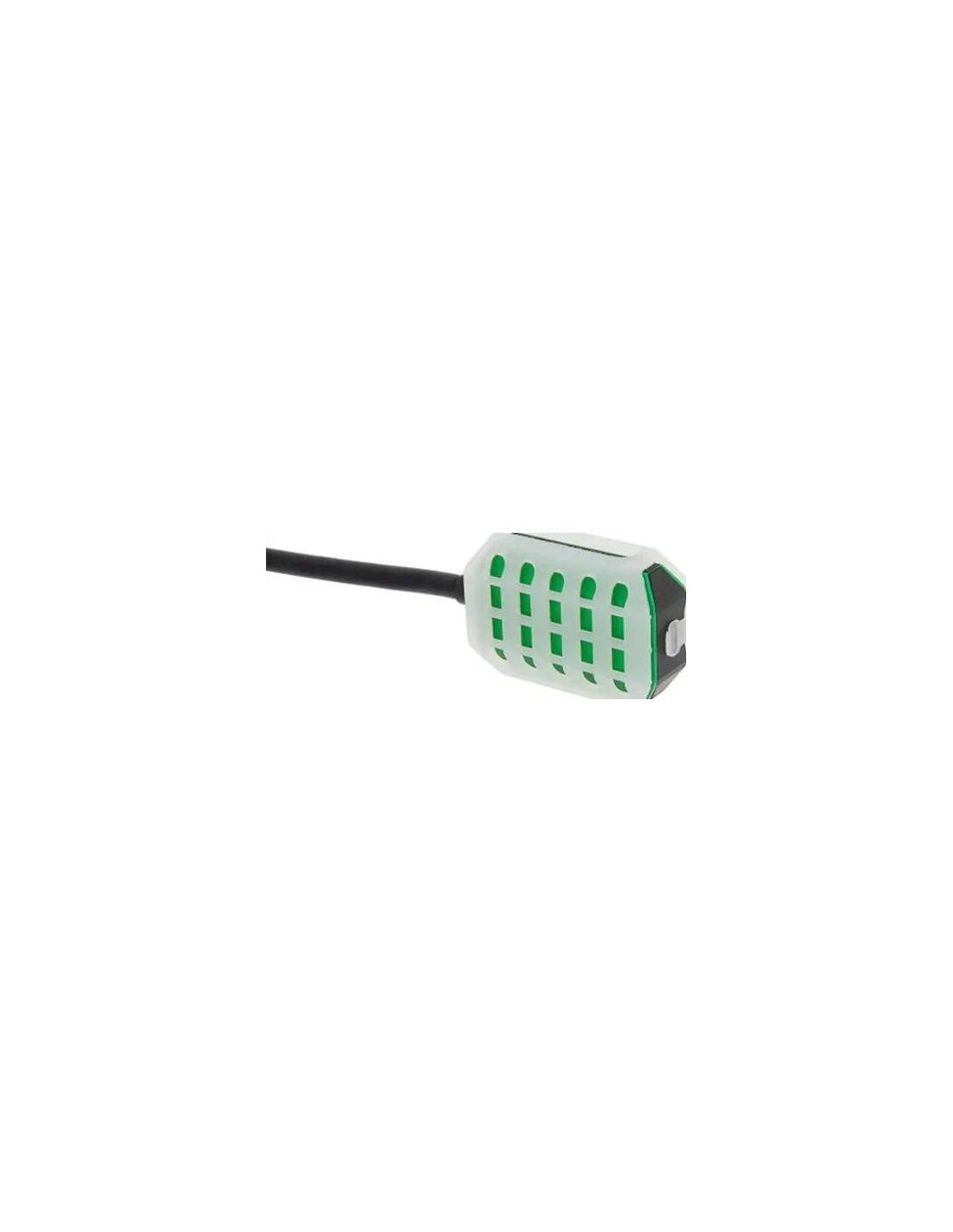

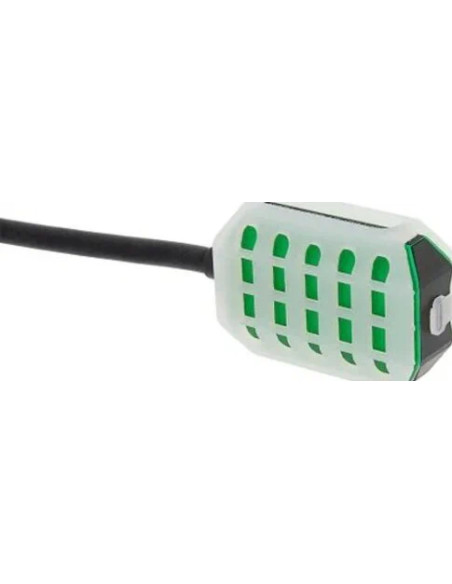

- with silicone thermal protection
- Current consumption in stand-by: 0.18mA
- LED light (blue light during operation, no light when connected)
- Material: aluminum alloy, plastic
- Dimensions: 250 x 35 x 17 mm (L x L x a)
- Weight: 66gr
- Brand: PATONA Premium

Compatibility:
- Compatible with Samsung SFC / AFC and PPS, as well as with QC, PD and Huawei SCP.

Examples of recharge times
- 95WH lithium ion battery: 50 minutes; 80% charge capacity.
- 145Wh lithium ion battery: 75 minutes; 80% charge capacity.
- 284Wh lithium ion battery: 215 minutes; 80% charge capacity.
