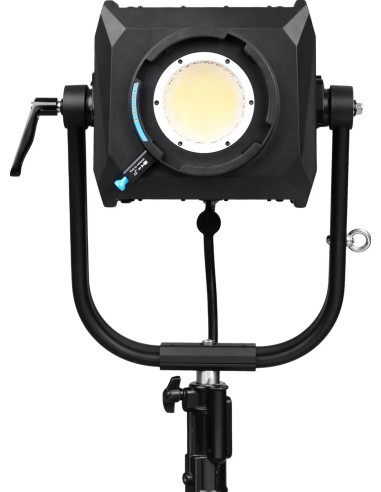

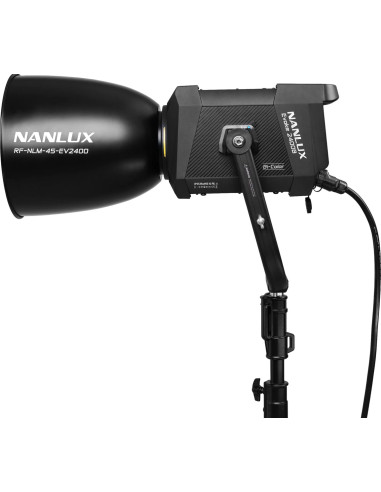

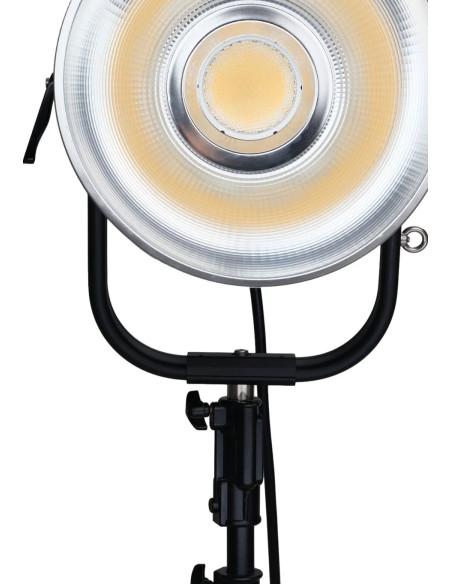

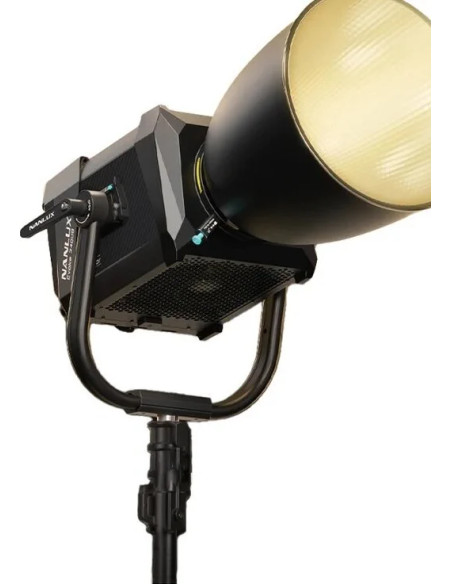

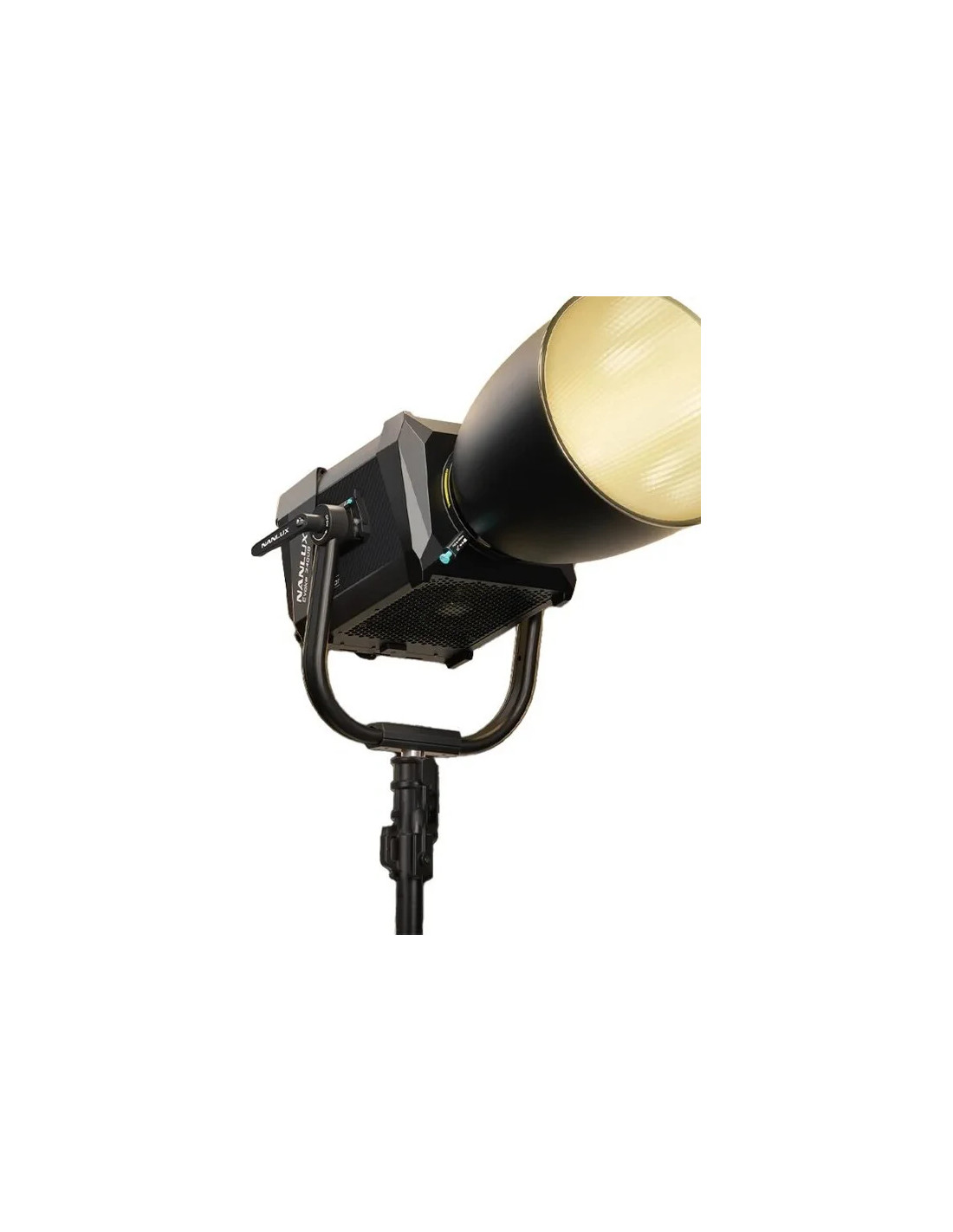

EVOKE 2400B Bi-Color with Trolley and 45 ° Spotlight

NanLux Evoke 2400B Trolley Case Kit with Reflector 45

The EVOKE 2400B is a 2400W LED color spot light with G / M adjustment function and an IP55 classification
Features:

• Color temperature adjustable from 2700K to 6500K, completely dimmable from 0-100% in 0.1% increments, green / magenta correction of ± 80
• Effects: 12 built-in practical effects: CCT loop, int loop, flash, pulse, storm, TV, paparazzi, candle / fire, bad bulb, firework, explosion and welding.
• Fan mode: Smart, Full Speed, Low Speed, OFF.

• Two output modes: Max Output and Constant Output.
• Accessory recognition function: Evoke 2400B has an accessories recognition function to recognize accessories with optical contacts; This function can be activated / deactivated in the menu.
• Two language options: English and Chinese.
• Support for firmware update.
• Bluetooth reset function.

Structure:

• Separate light and power structure design, high output power with ultra-intense brightness.

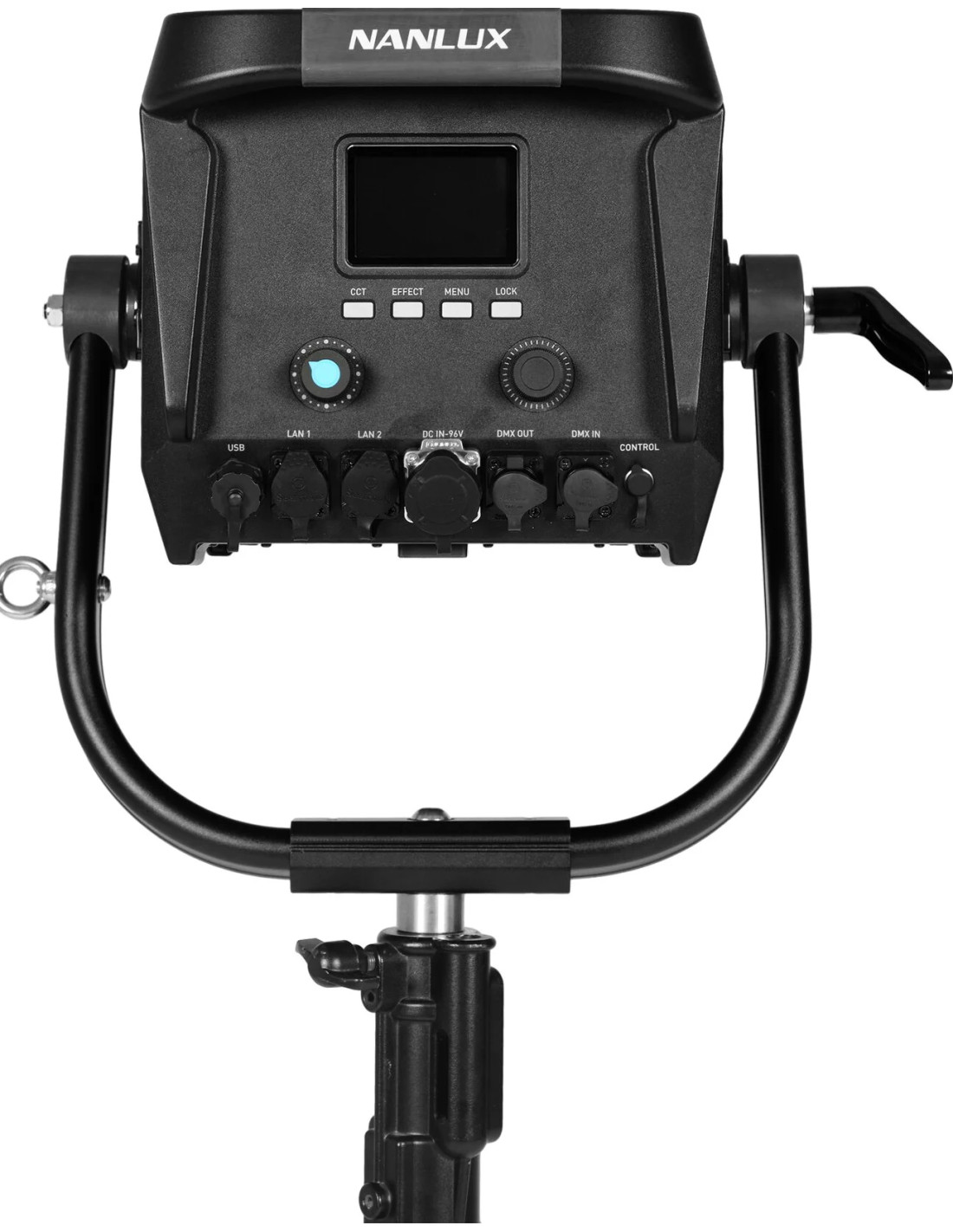

• 3.5-inch screen, with four buttons and three knobs.
• Construction in robust and durable metal, with IP55 classification.
• Rapid release design of the bracket with eyelet bolt, allows EVOKE 2400B to rotate 360 degrees.
• Integral disassembly design that facilitates the maintenance and replacement of the parts.
• Quick release plate and terminal for power supply, with a tightening range of φ15-50mm.
• Evoke 2400B is equipped with NL attachment and optical contacts, making it compatible with NL mount accessories and modifiers with optical contacts.

Control:

• Integrated control: EVOKE 2400B can be controlled via the control panel on the structure.
• Bluetooth: Evoke 2400B has an integrated Bluetooth module for direct control via the app
• Nanlink.
• 2.4G: Evoke 2400B is equipped with an integrated 2.4G receiver, allowing control via remote control or via the NanLink app through the NanLink box.
• DMX / RDM: DMX / RDM control support.
• LumenRadio: integrated lumenradio module for remote control.
• Wireless on / off function.
• Reserved wired control function.
• Support for the ART-NET and SACN control protocols.

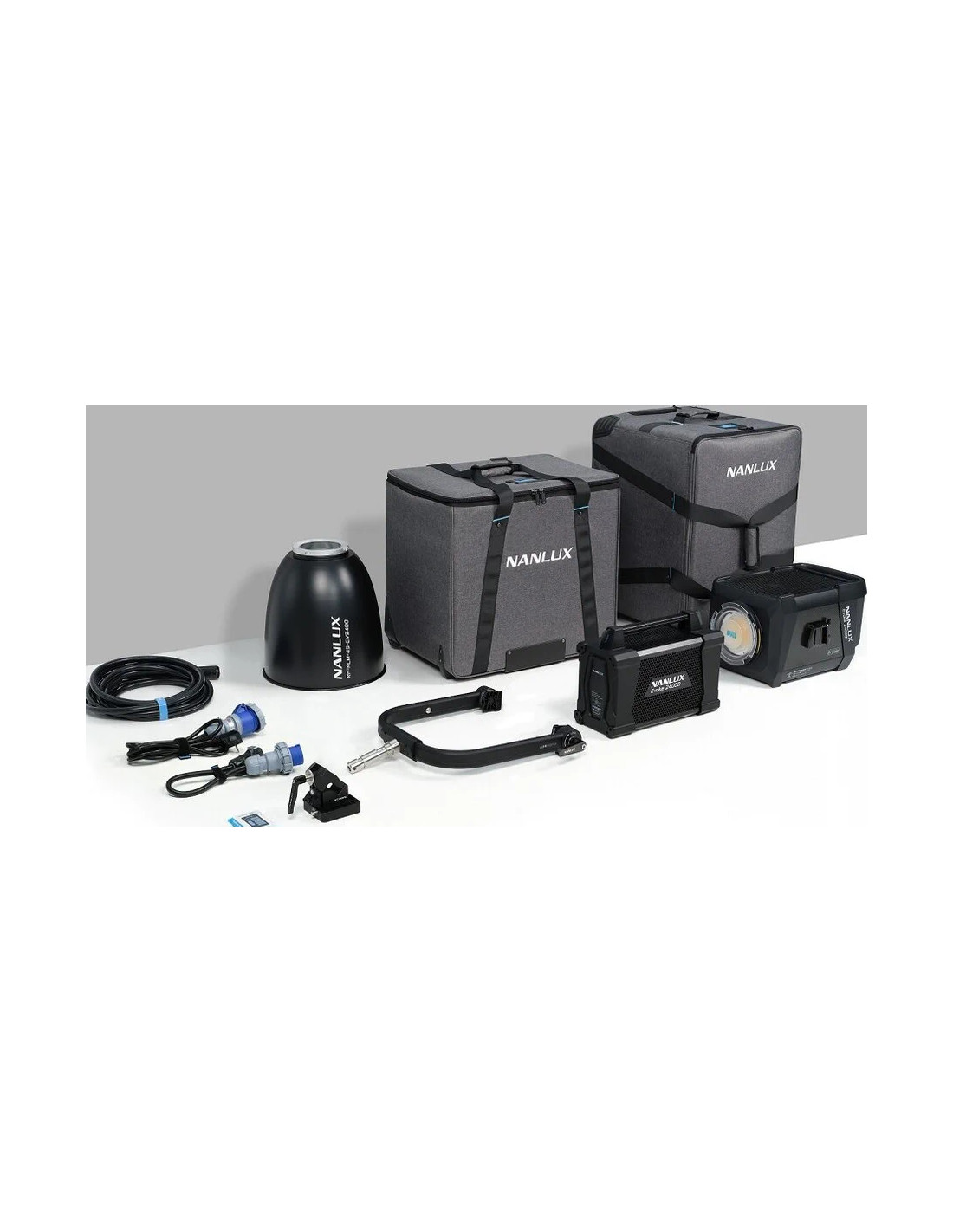

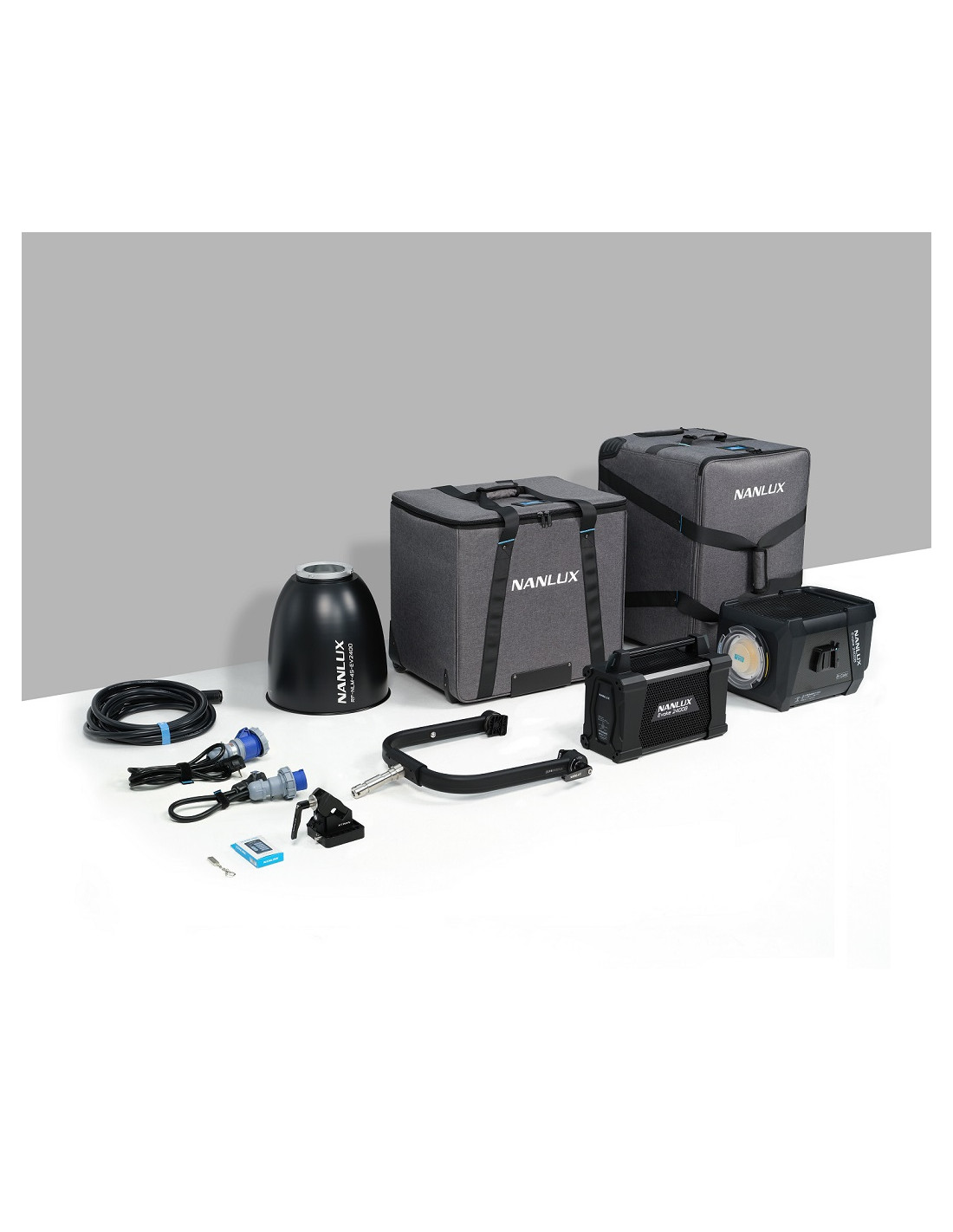

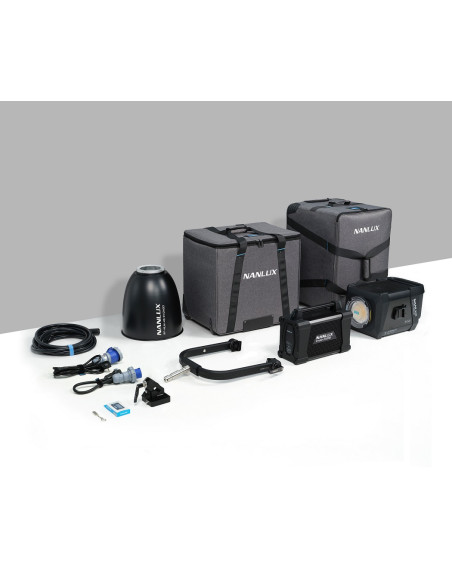

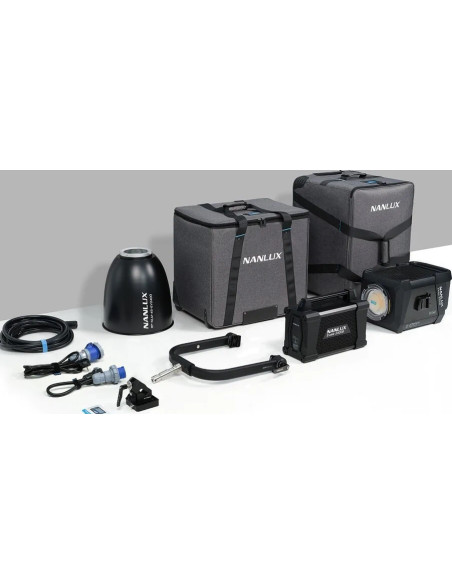

Contents of the box:

• Evoke 2400b × 1
• Yoke × 1
• Power supply × 1
• USB key × 1
• AS-CP-QR-EV Quick release clamp × 1

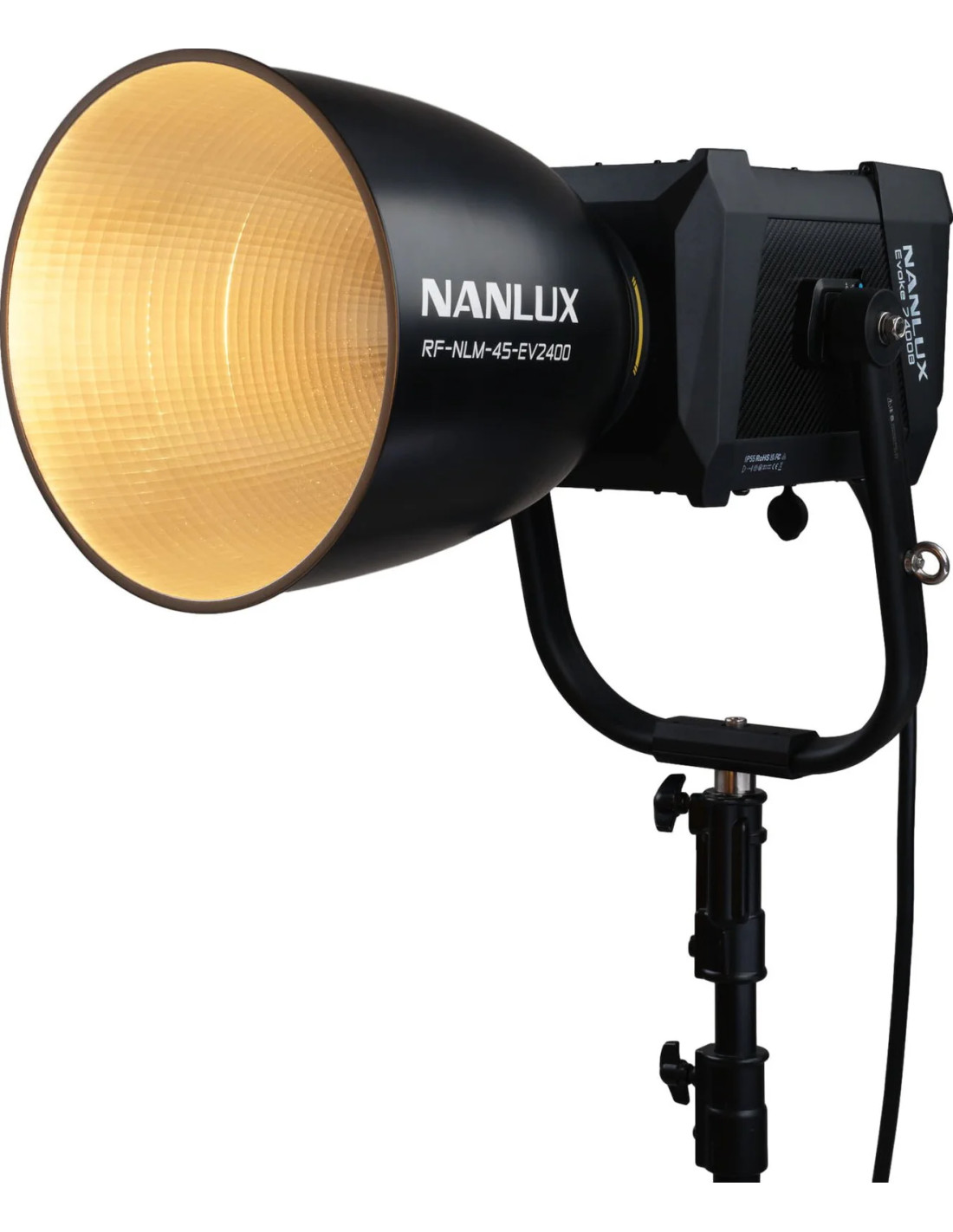

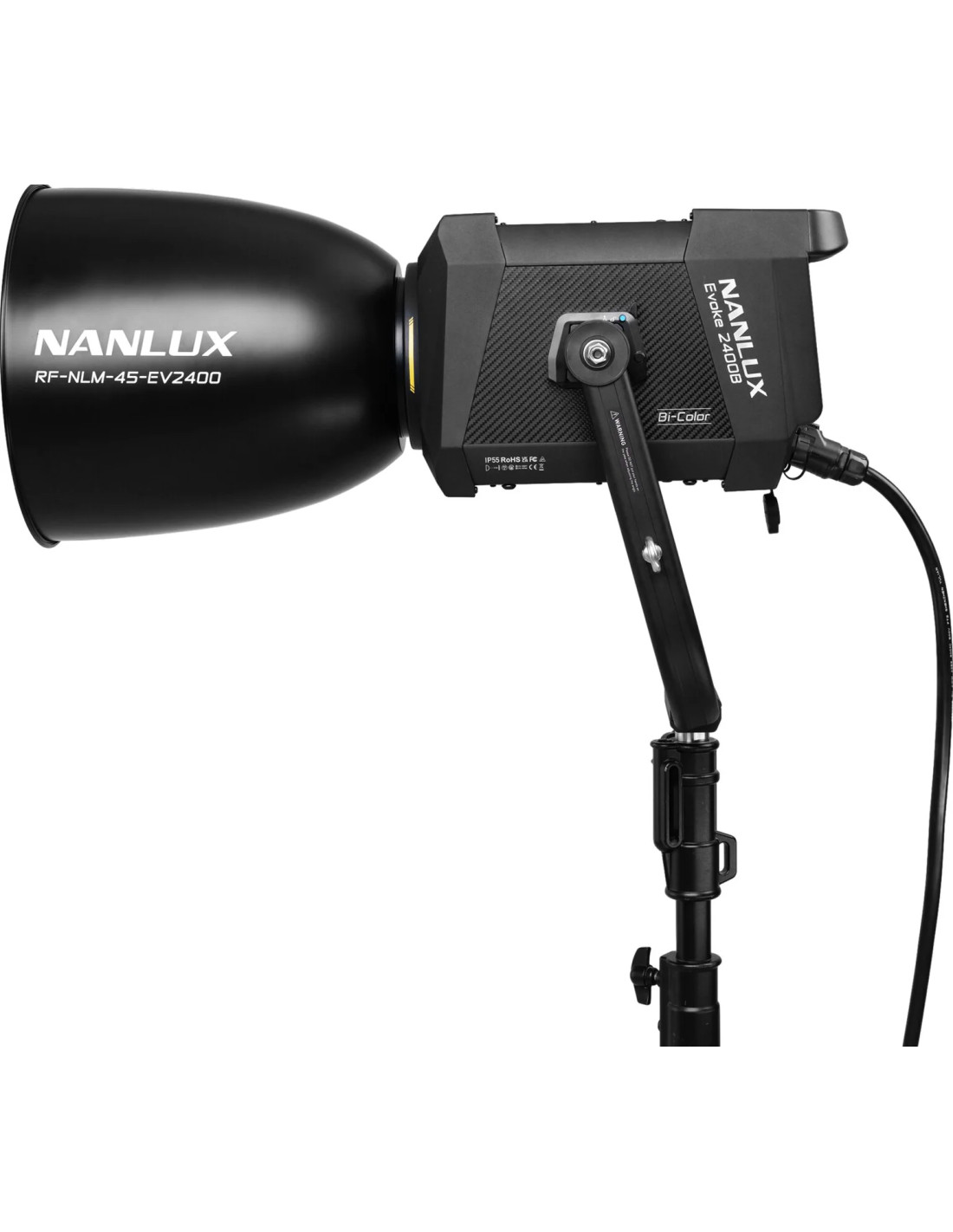

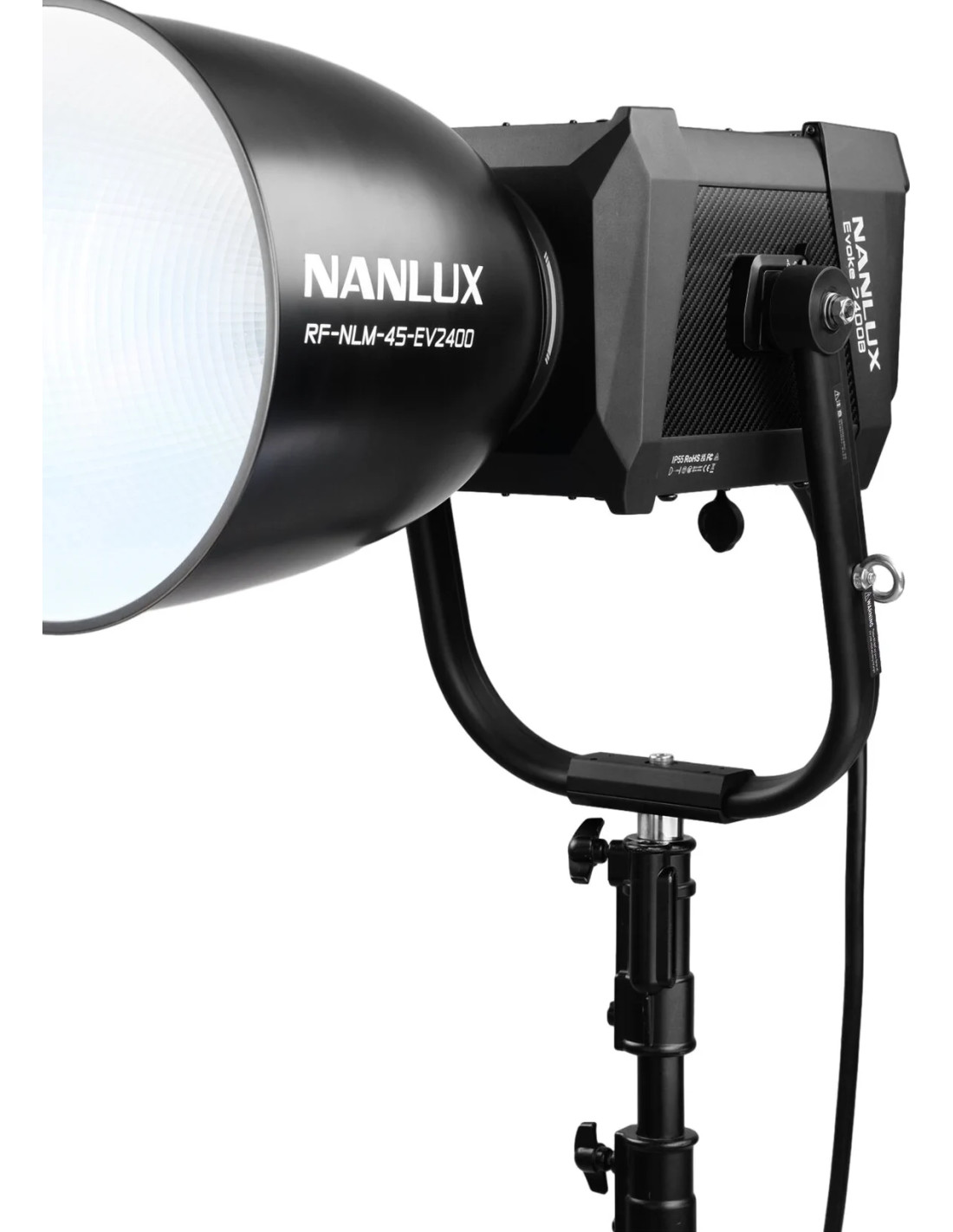

• RF-NLM-45-EV2400 Parabola X1
• WS-RC-C2 remote control × 1
• 7.5m × 1 DC connection cable
• 3M × 1 AC power cable
• User manual × 1

Data sheet
