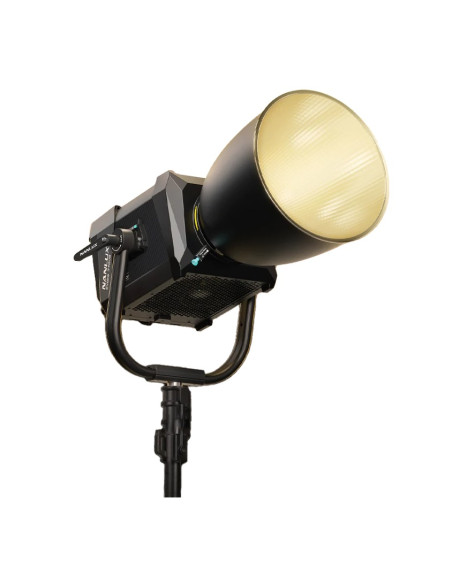

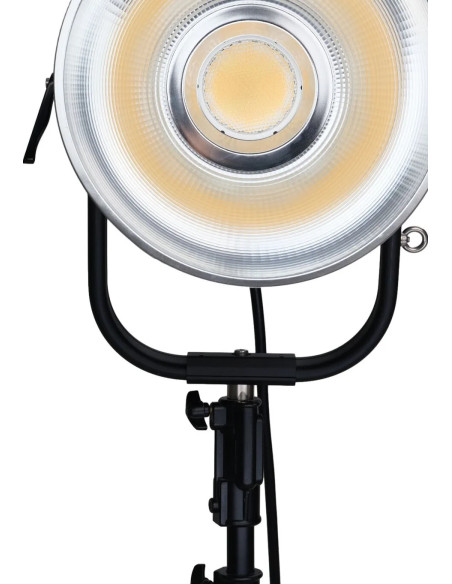

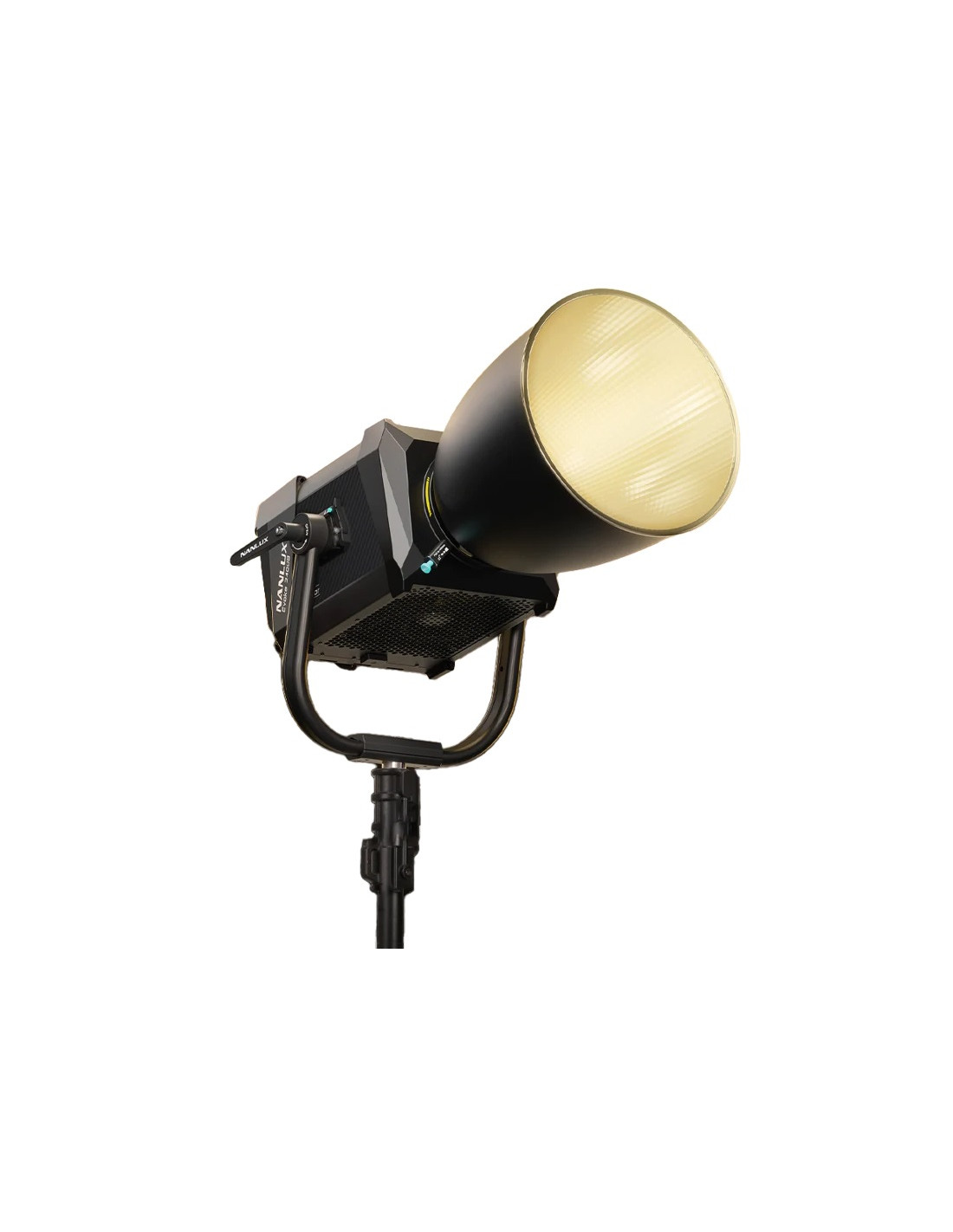

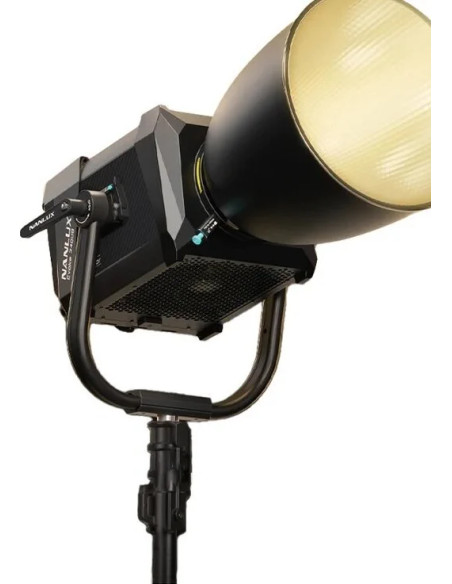

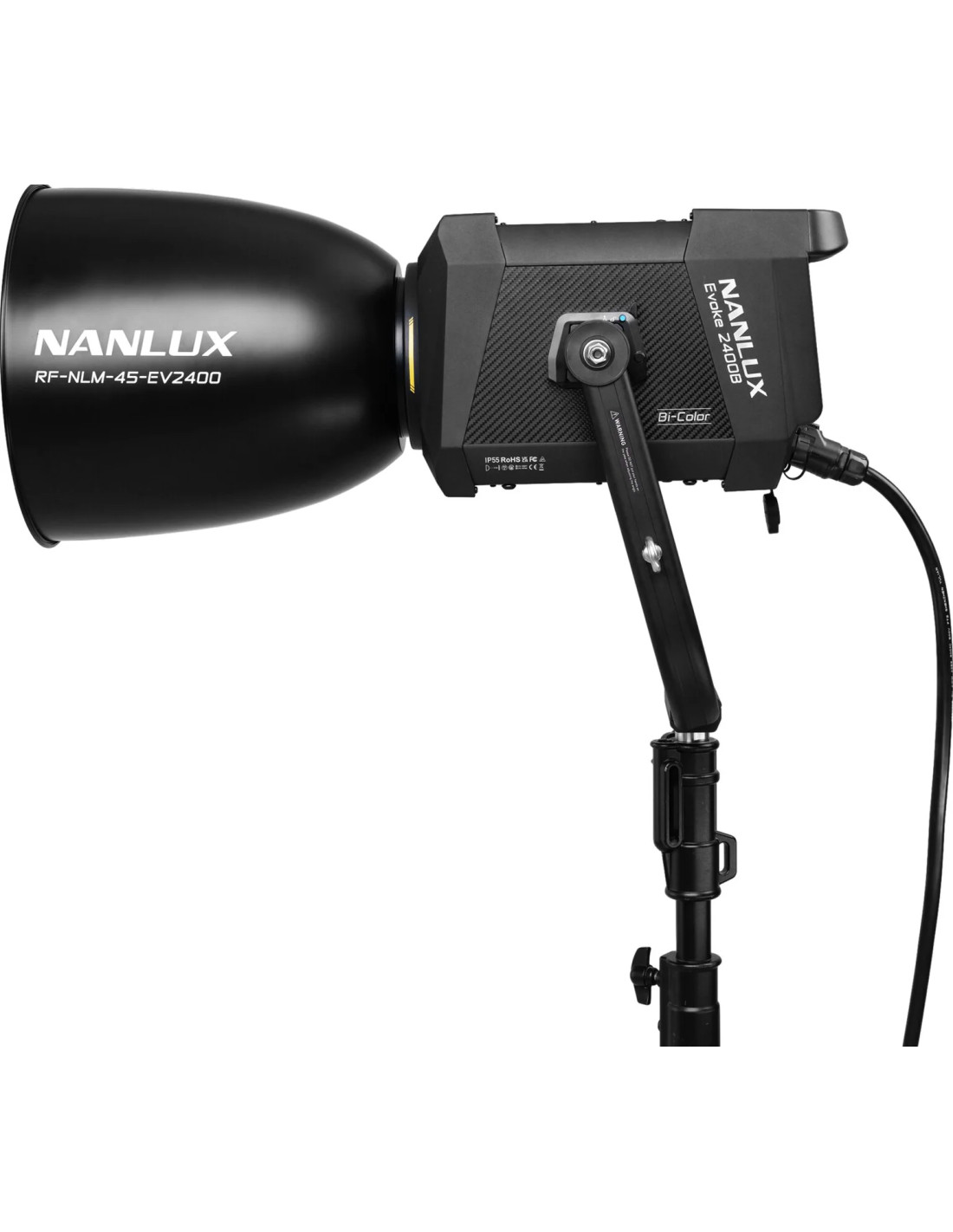

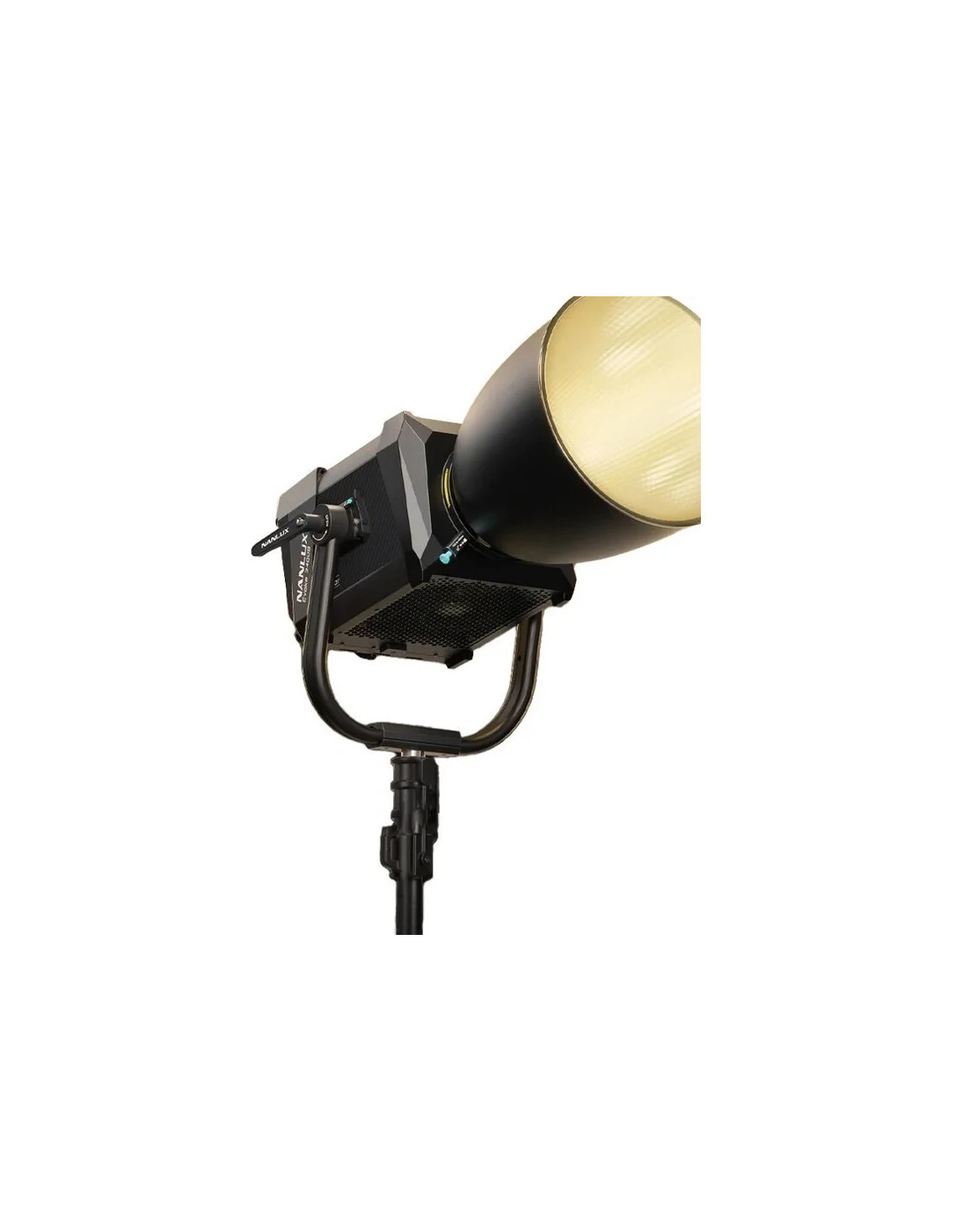

Evoke 2400B Bi-Color

NanLux Evoke 2400B LED Bi-Color Spot Light- Carton Packaging

The EVOKE 2400B is a 2400W LED color spot light with G / M adjustment function and an IP55 classification

Features:

. Color temperature adjustable from 2700K to 6500K, completely dimmable from 0-100% in 0.1% increments, green / magenta correction of ± 80

. Effects: 12 built-in practical effects: CCT loop, int loop, flash, pulse, storm, TV, paparazzi, candle / fire, bad bulb, firework, explosion and welding.

. Fan mode: Smart, Full Speed, Low Speed, OFF.

-The maximum output is 100% when the fan is in Smart or Full Speed mode.

-The maximum output is 50% in Low Speed mode.

-The maximum output is 10% when the fan is off (OFF mode).

. Two output modes: Max Output and Constant Output.

. Accessory recognition function: Evoke 2400B has an accessories recognition function to recognize accessories with optical contacts; This function can be activated / deactivated in the menu.

. Two language options: English and Chinese.

. Support for firmware update.

. Bluetooth reset function.

Structure:

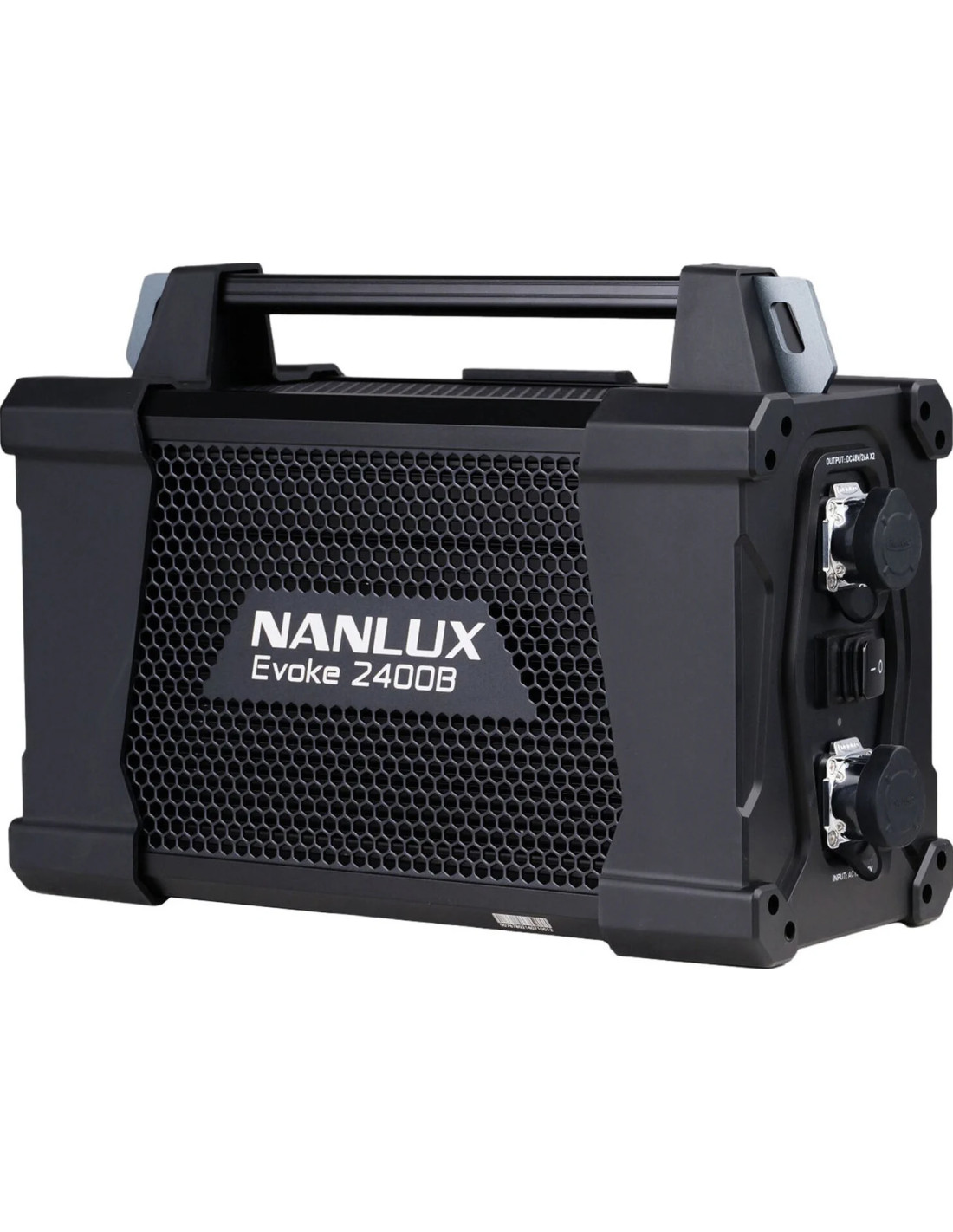

. Separate light and power structure design, high output power with ultra-intense brightness.

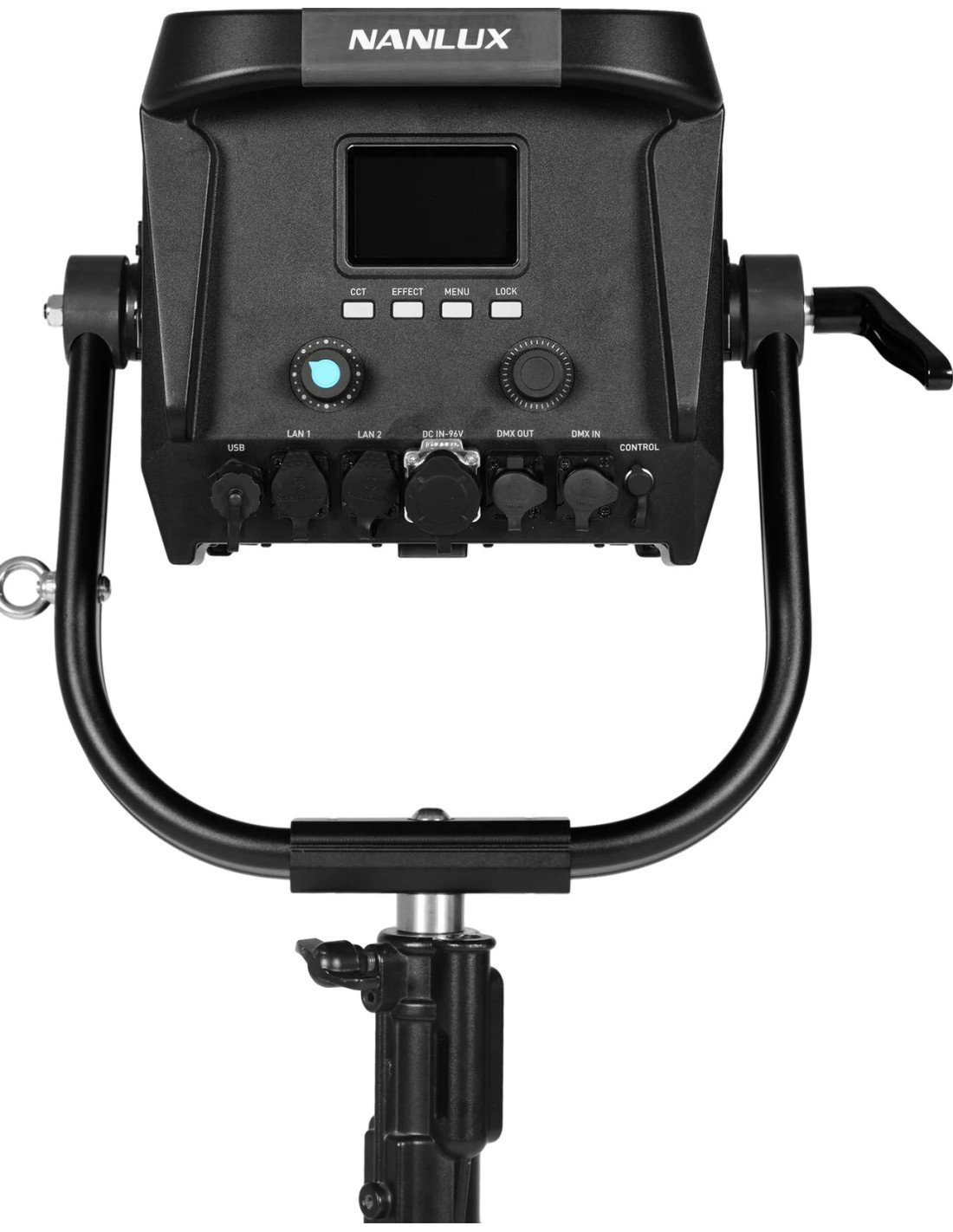

. 3.5-inch screen, with four buttons and three knobs.
. Construction in robust and durable metal, with IP55 classification.

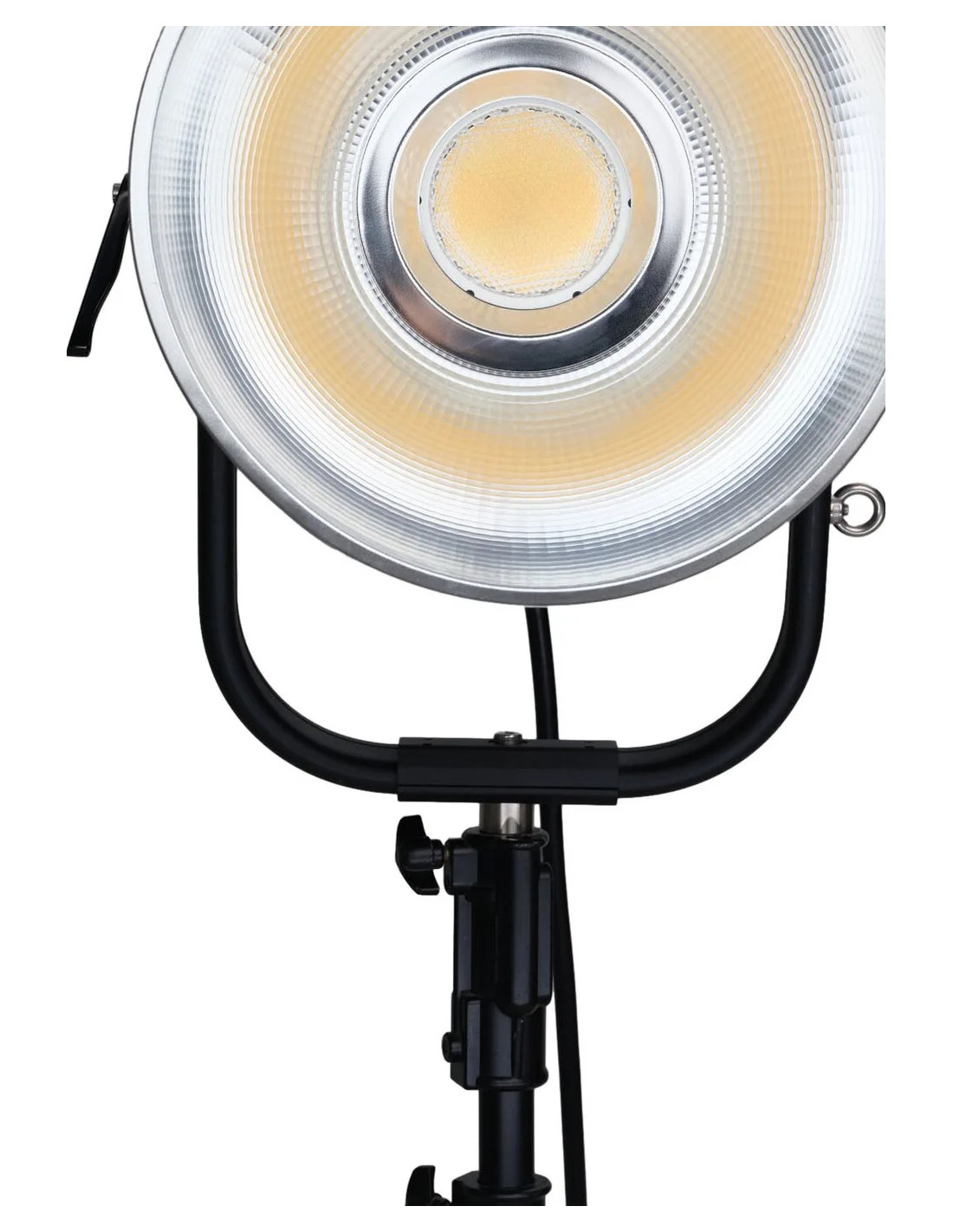

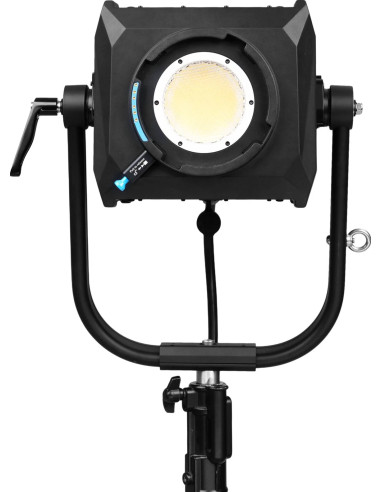

. Rapid release design of the bracket with eyelet bolt, allows EVOKE 2400B to rotate 360 degrees.
. Integral disassembly design that facilitates the maintenance and replacement of the parts.

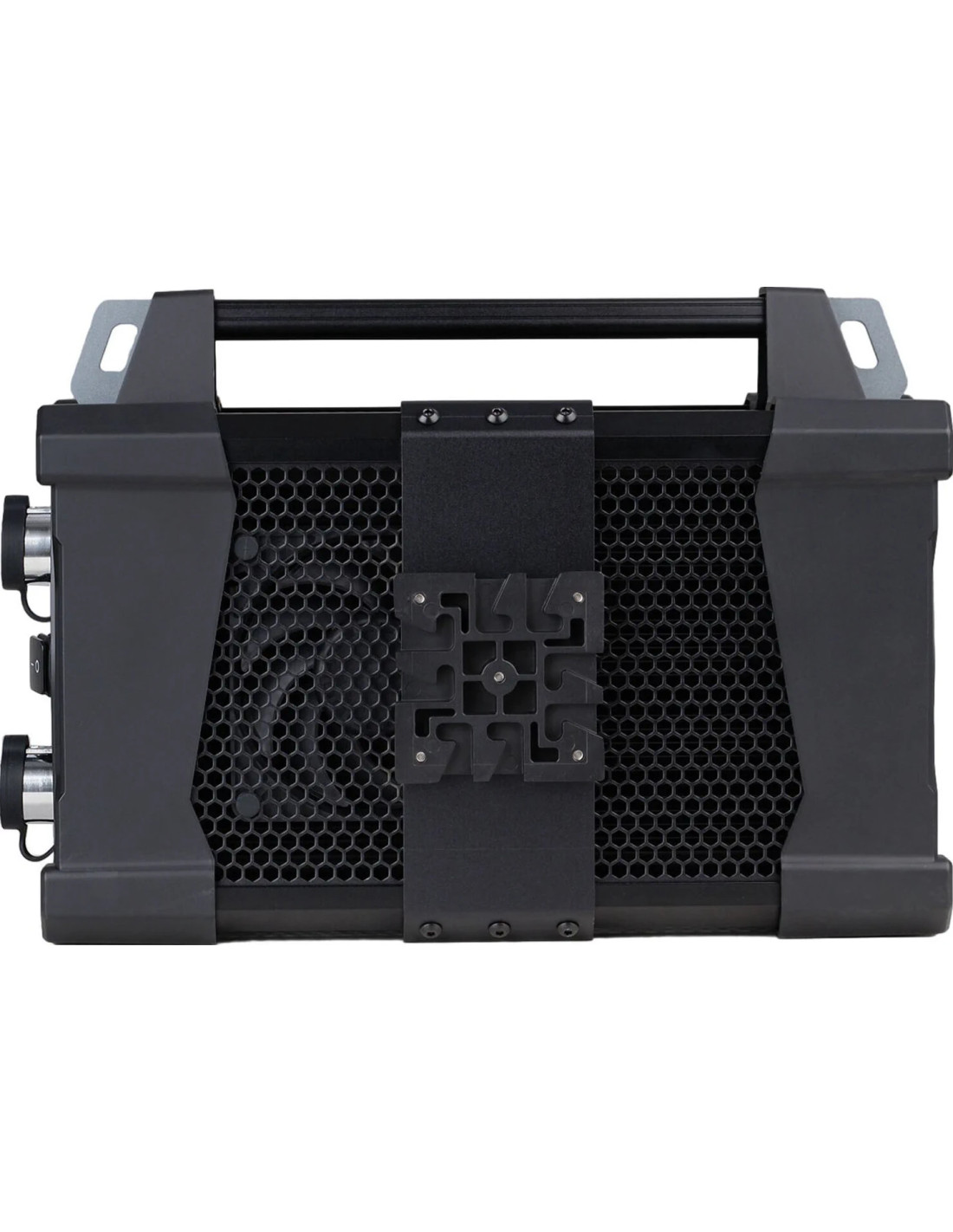

. Quick release plate and terminal for power supply, with a tightening range of φ15-50mm.

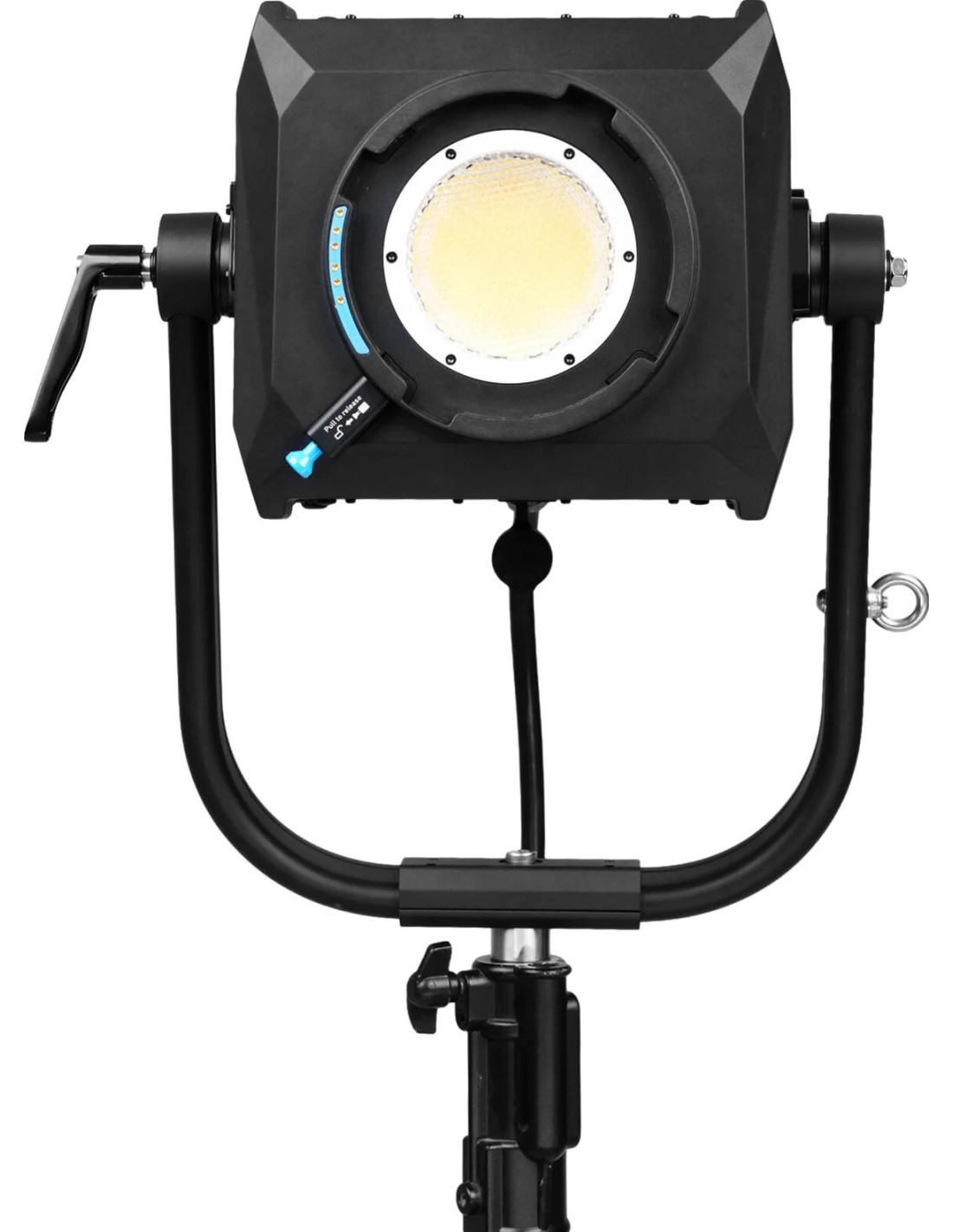

. Evoke 2400B is equipped with NL attachment and optical contacts, making it compatible with NL mount accessories and modifiers with optical contacts.

Control:

. Integrated control: EVOKE 2400B can be controlled via the control panel on the structure.

. Bluetooth: Evoke 2400B has an integrated Bluetooth module for direct control via the NanLink app.

. 2.4G: Evoke 2400B is equipped with an integrated 2.4G receiver, allowing control via remote control or via the NanLink app through the NanLink box.

. DMX / RDM: DMX / RDM control support.

. LumenRadio: integrated lumenradio module for remote control.

. Wireless on / off function.

. Reserved wired control function.

. Support for the ART-NET and SACN control protocols.

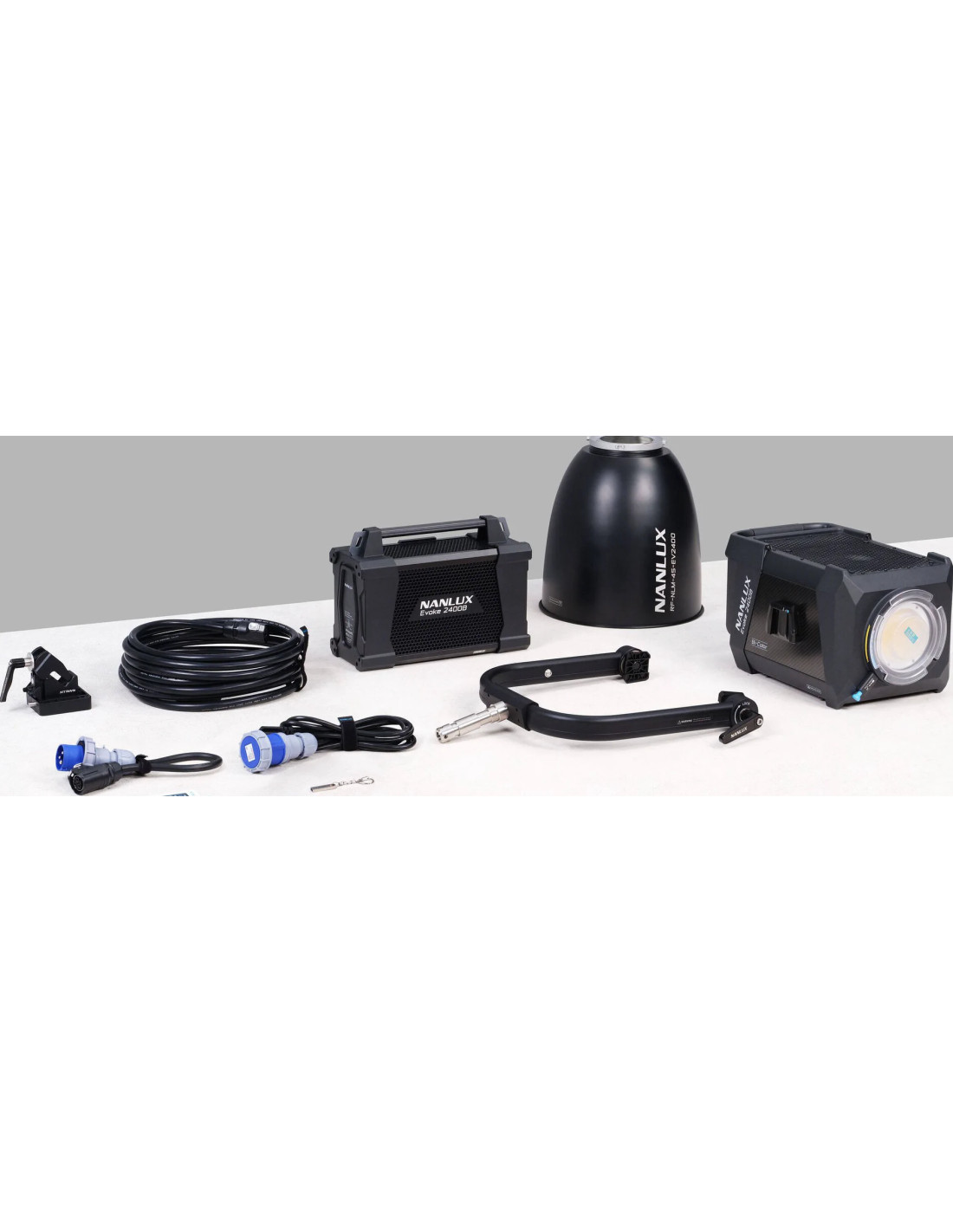

Content

- EVOKE 2400B × 1

- Yoke × 1

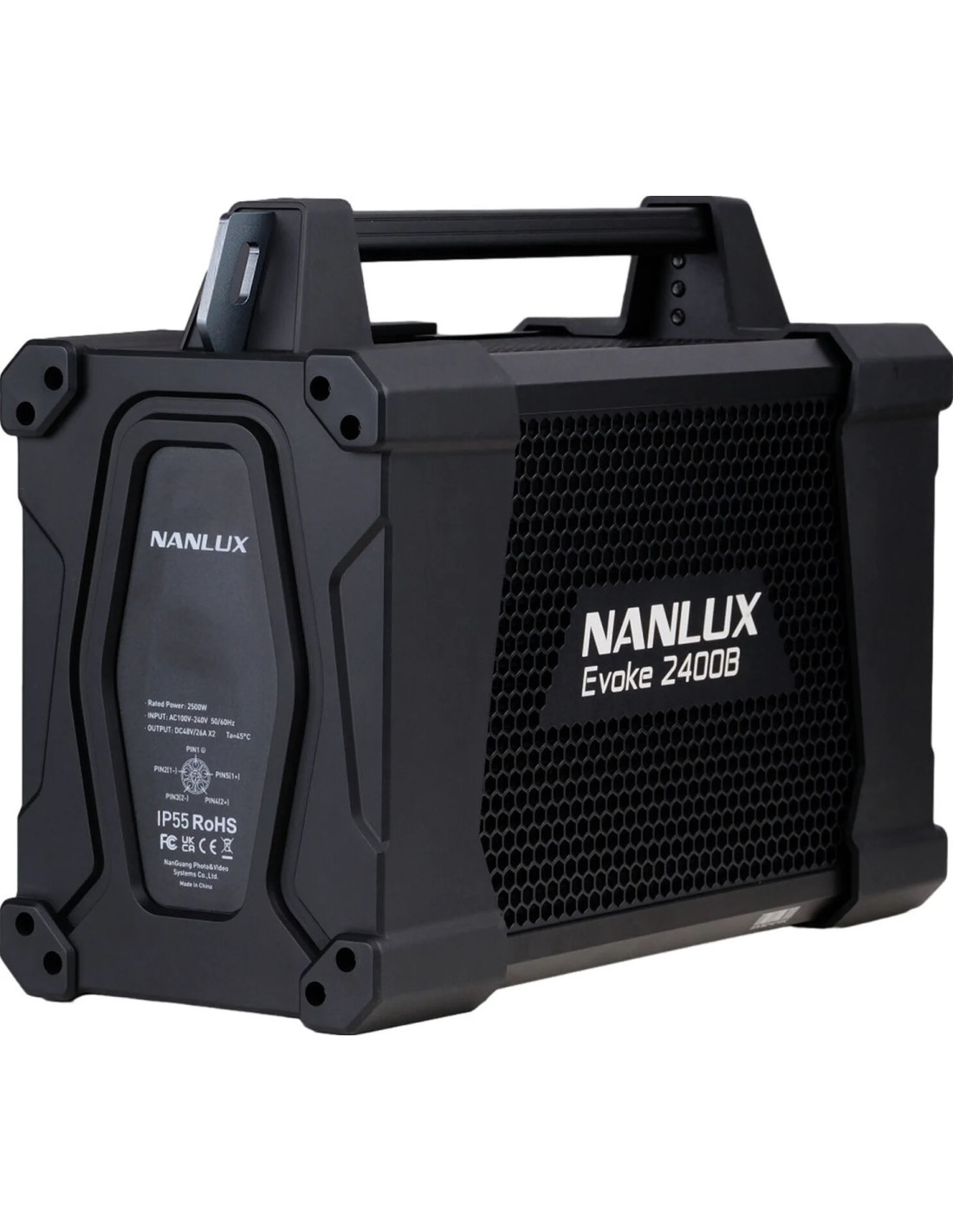

- Power supply × 1

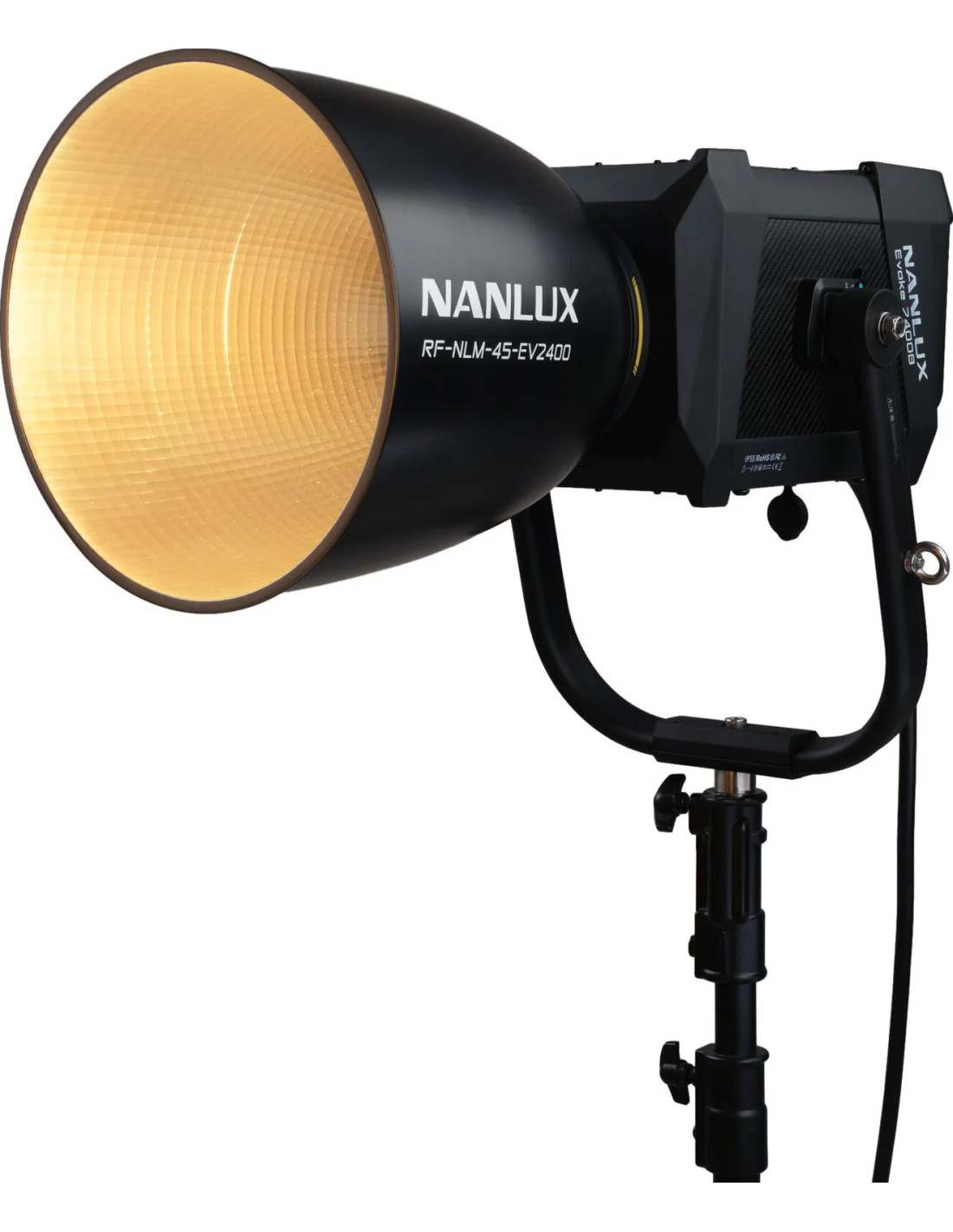

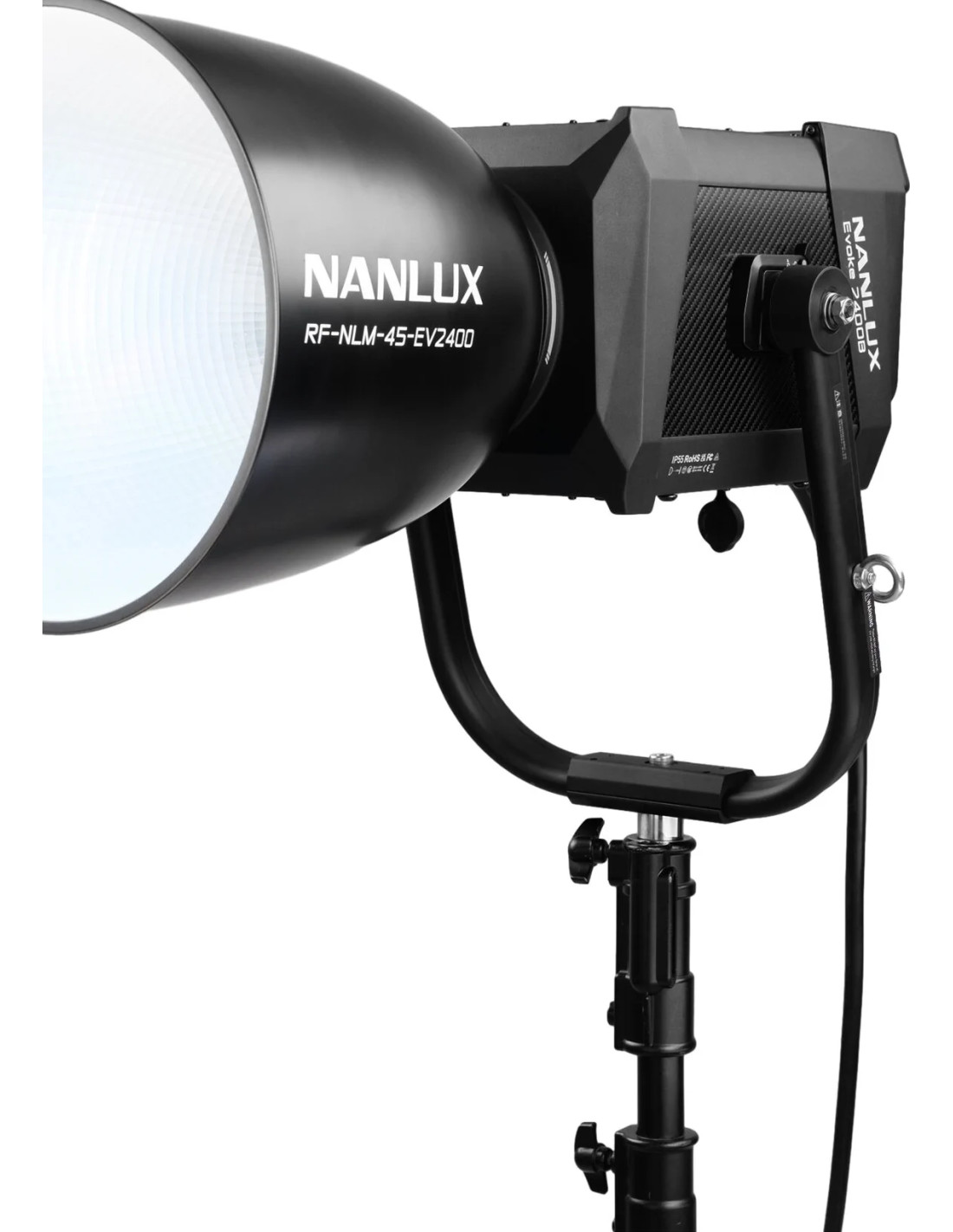

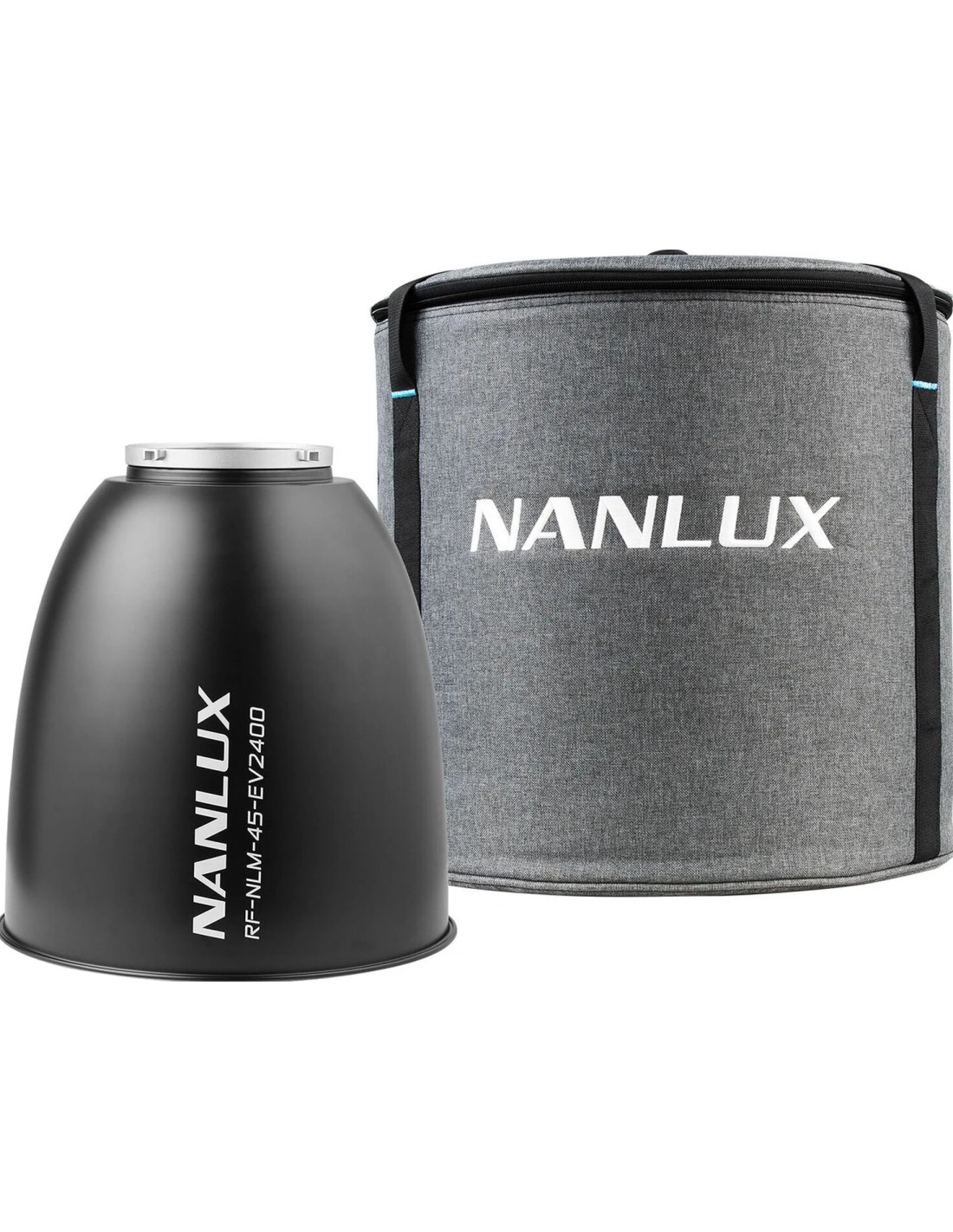

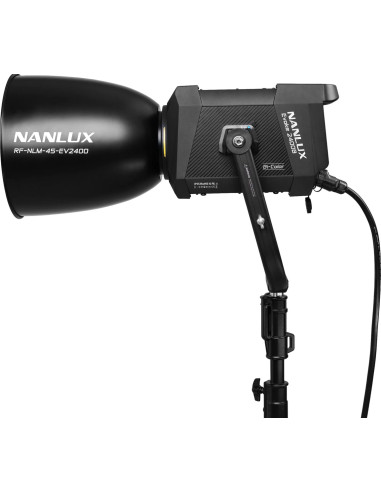

- RF-NLM-45-EV2400 reflector 45 ° × 1

- USB key × 1

- AS-CP-QR-EV rapid release clamp × 1

- WS-RC-C2 remote control × 1

- 7.5m × 1 DC connection cable

- CA power cable from 3m × 1

- User manual × 1 "
