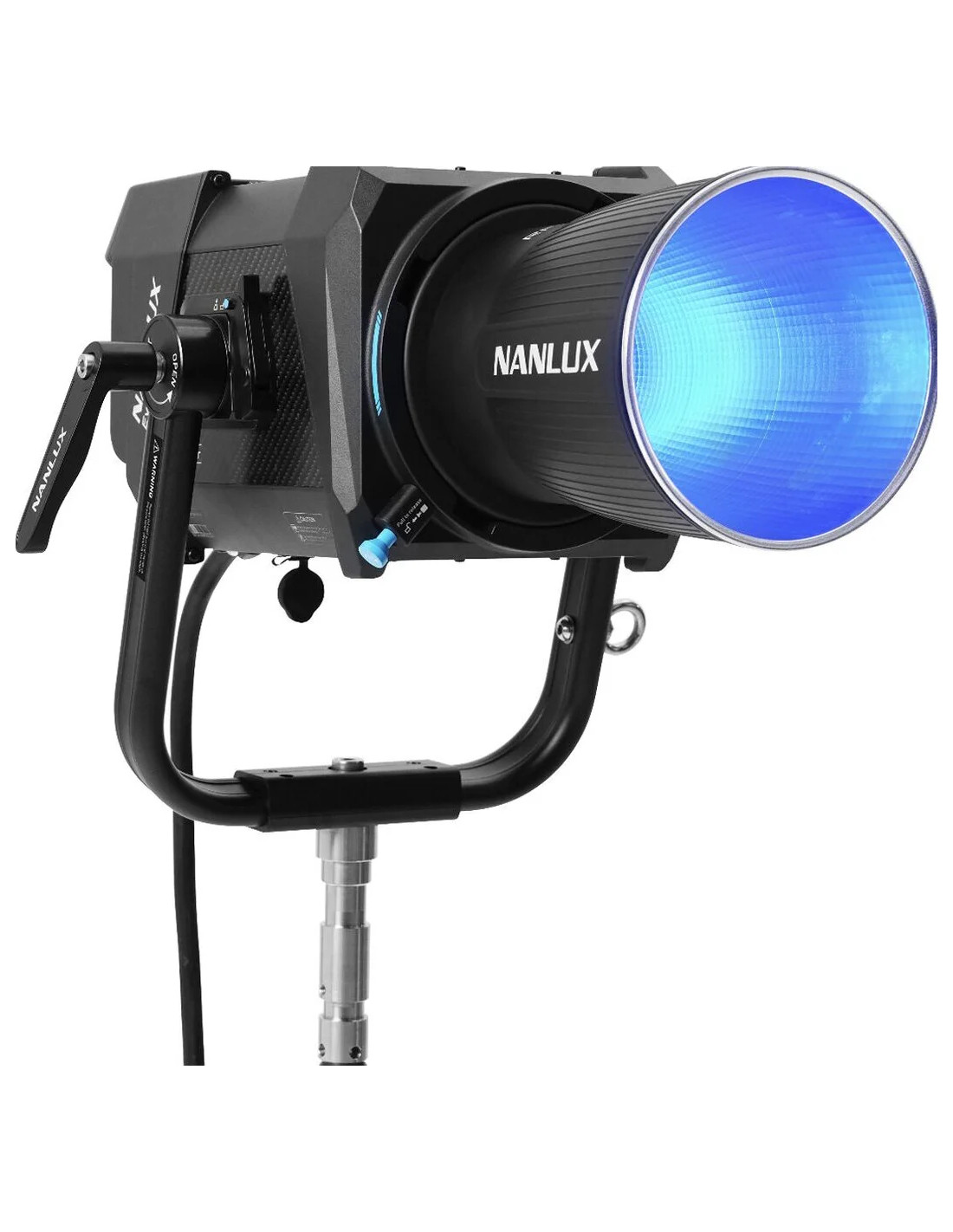

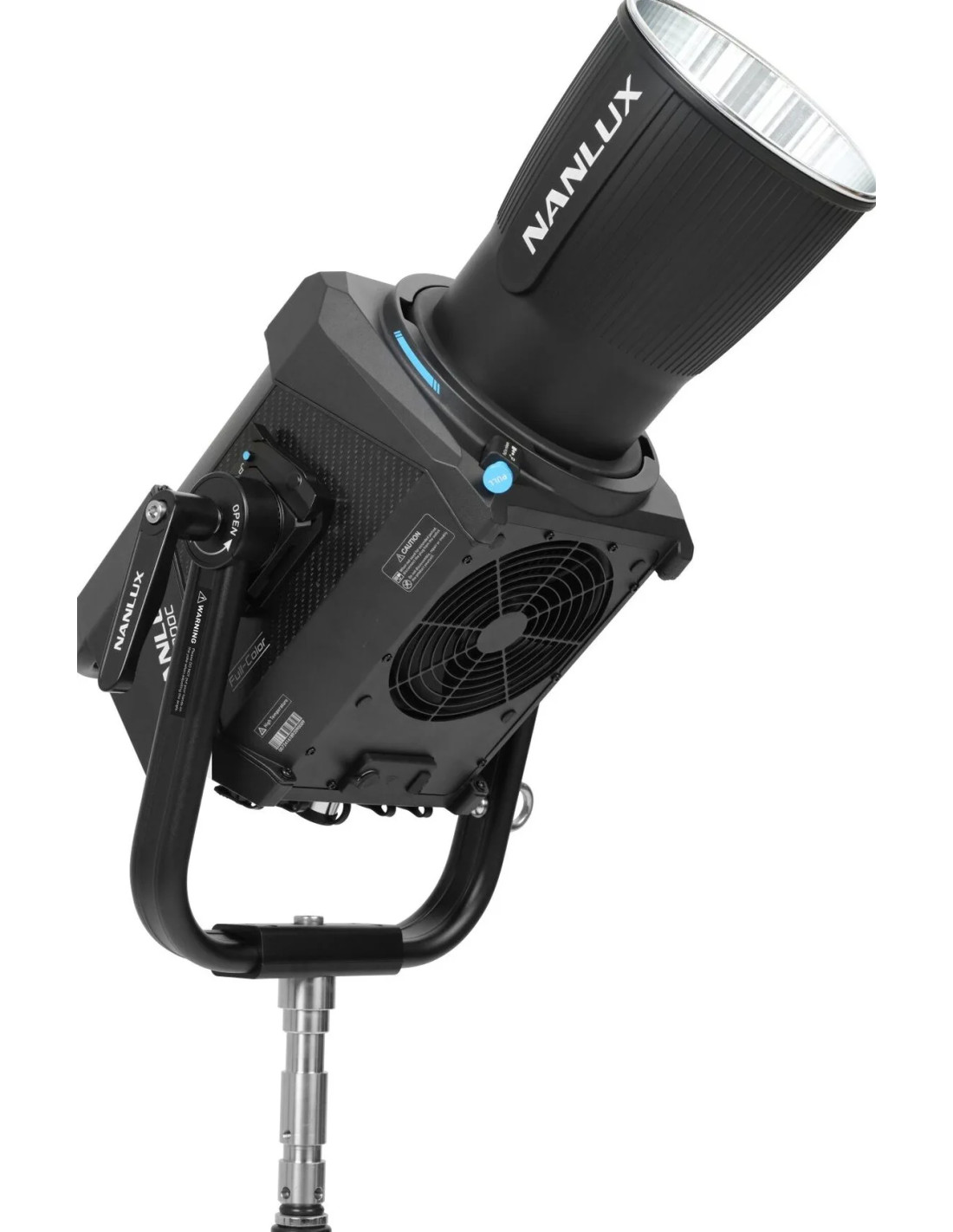

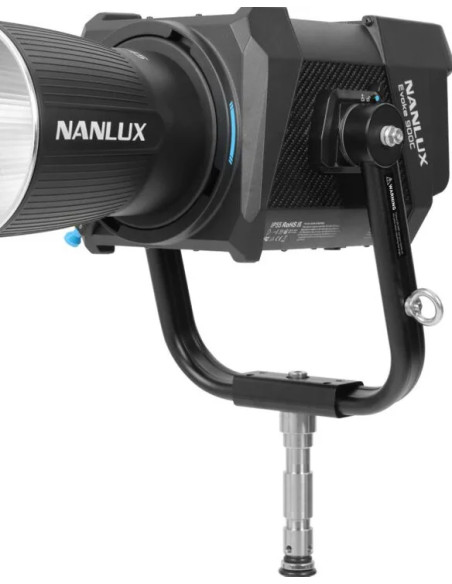

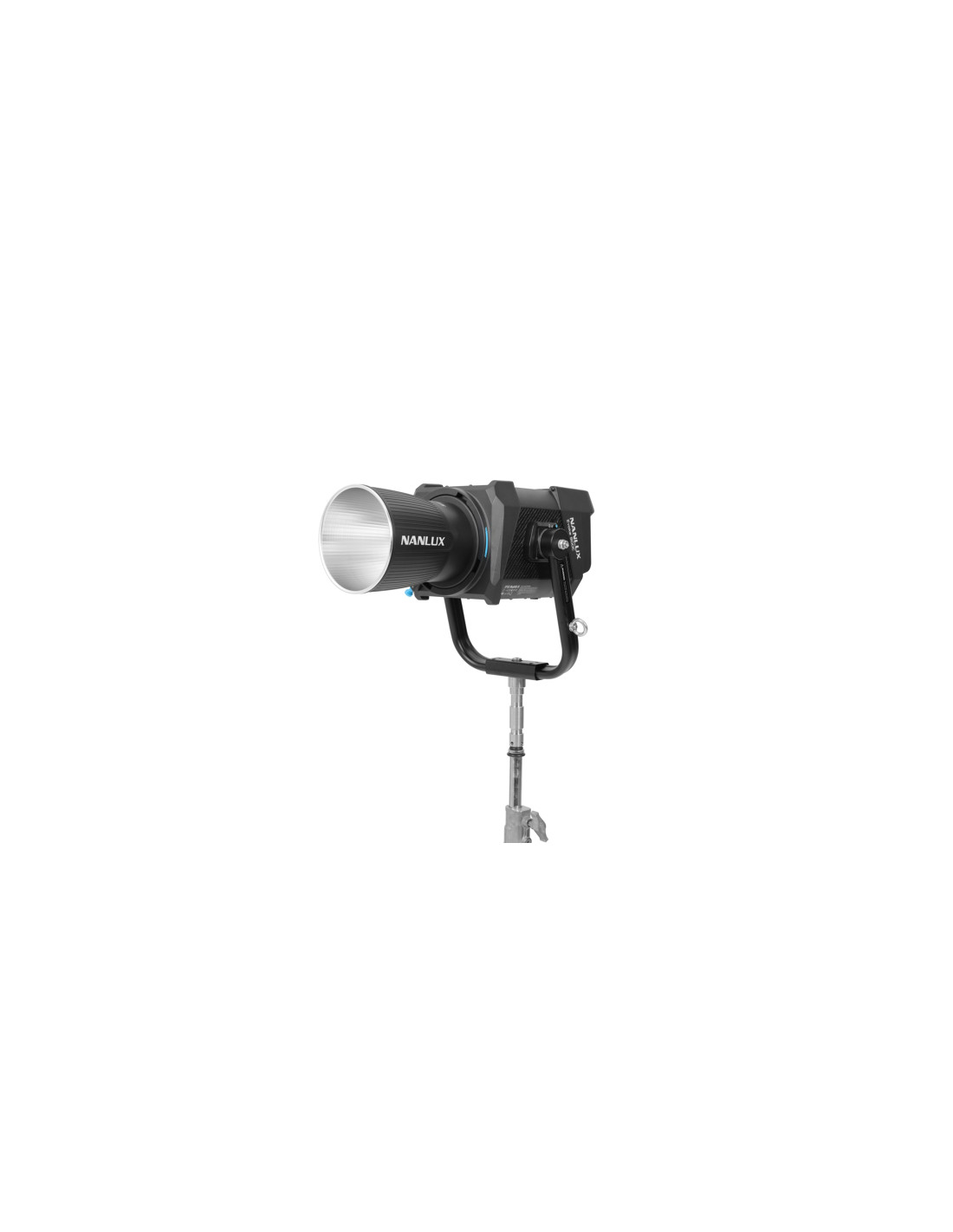

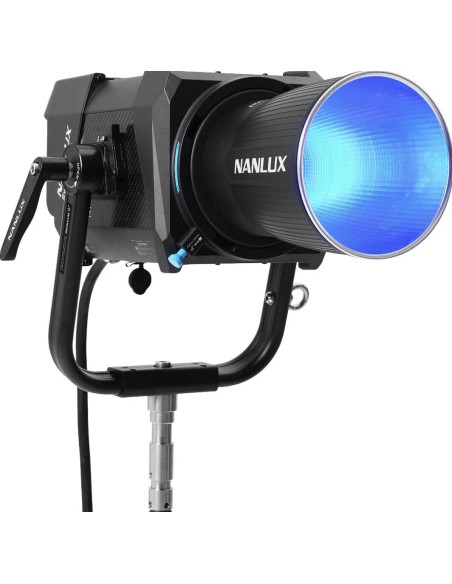

EVOKE 900C RGBLAC ST-kit

The new Evoke 900C is equipped with a RGBlac color mixing system and provides abundant and natural quality light.

Evoke 900C boasts an incredible lighting of 12,940 lux @ 3M (at 5600k, with 45 ° reflector) to the nominal power of 940W. The appliance offers a high quality homogeneous light beam and at the same time can be easily converted into soft and hard light thanks to the application of different modifiers.

The device adopts the advanced RGBlac color mixing system - adding Lime, Amber and Cyanobase to RGB primary colors, obtaining high chromatic precision with Cri / TLCI both equal to 96. This system allows you to have More color options and make the sun's natural light all day, offering an excellent quality of light.

Applications:
1. Virtual production (for example, cinematographic and television projects, commercials, MV), as main light / filling, ambient light, practical light
2. External scene (for example, street night scene, rain scene, forest) as a key light.
3. Personalized creation, such as ambient light, practical light, modeling light.
4. Shooting scene in medium and large interior, as a window light, key light.
5. Large shooting set
6. Interviews, as a key light / filling light

Features
- High output power with ultra brightness
- Mixing technology with six colors RGBlac
- Adding Lime, Amber and Cyan to the base of RGB primary colors, a new level of color accuracy is reached.
- Wide CCT range of 1.800K-20.000K with adjustment of ± 200 g / m.
with adjustment of ± 200 g / m.
- CRI: average 95, TLCI: average 95

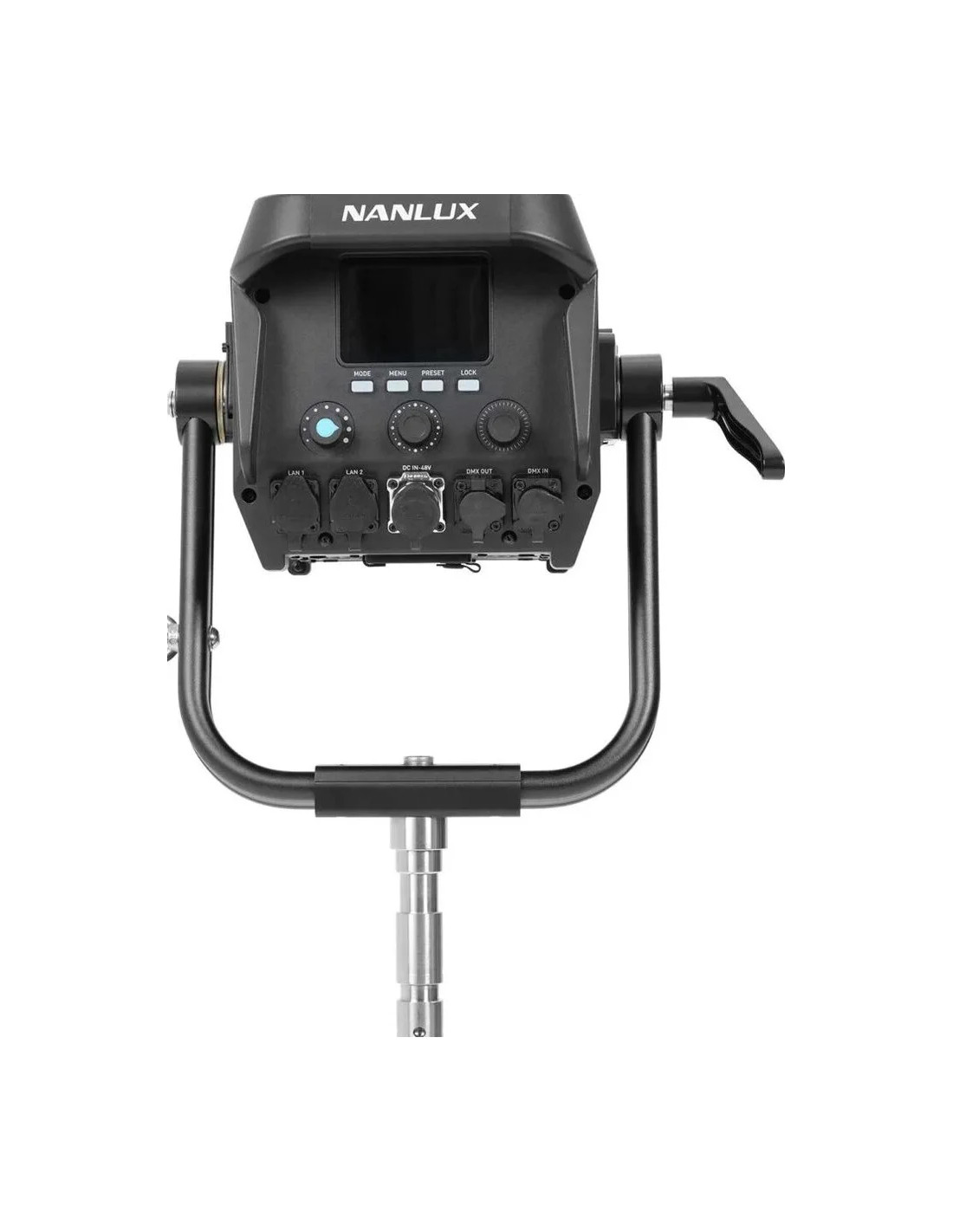

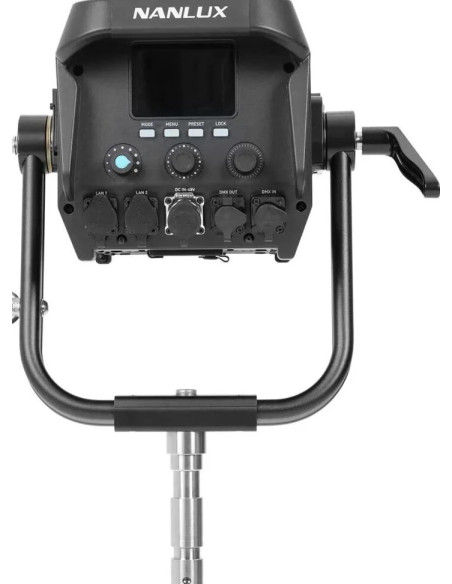

- Different control options: On board, 2.4G, Bluetooth, NanLink app, DMX / RDM, CRMX lumenradio, Art-Net, Sacn, Wire control
- Diverse adjustment mode: CCT mode, advanced HSI mode, RGBW mode, XY mode, gel mode
- 15 built-in practical effects
- resistant to atmospheric agents IP55
- 4 Ventilation modes: intelligent, maximum speed, low speed, off.

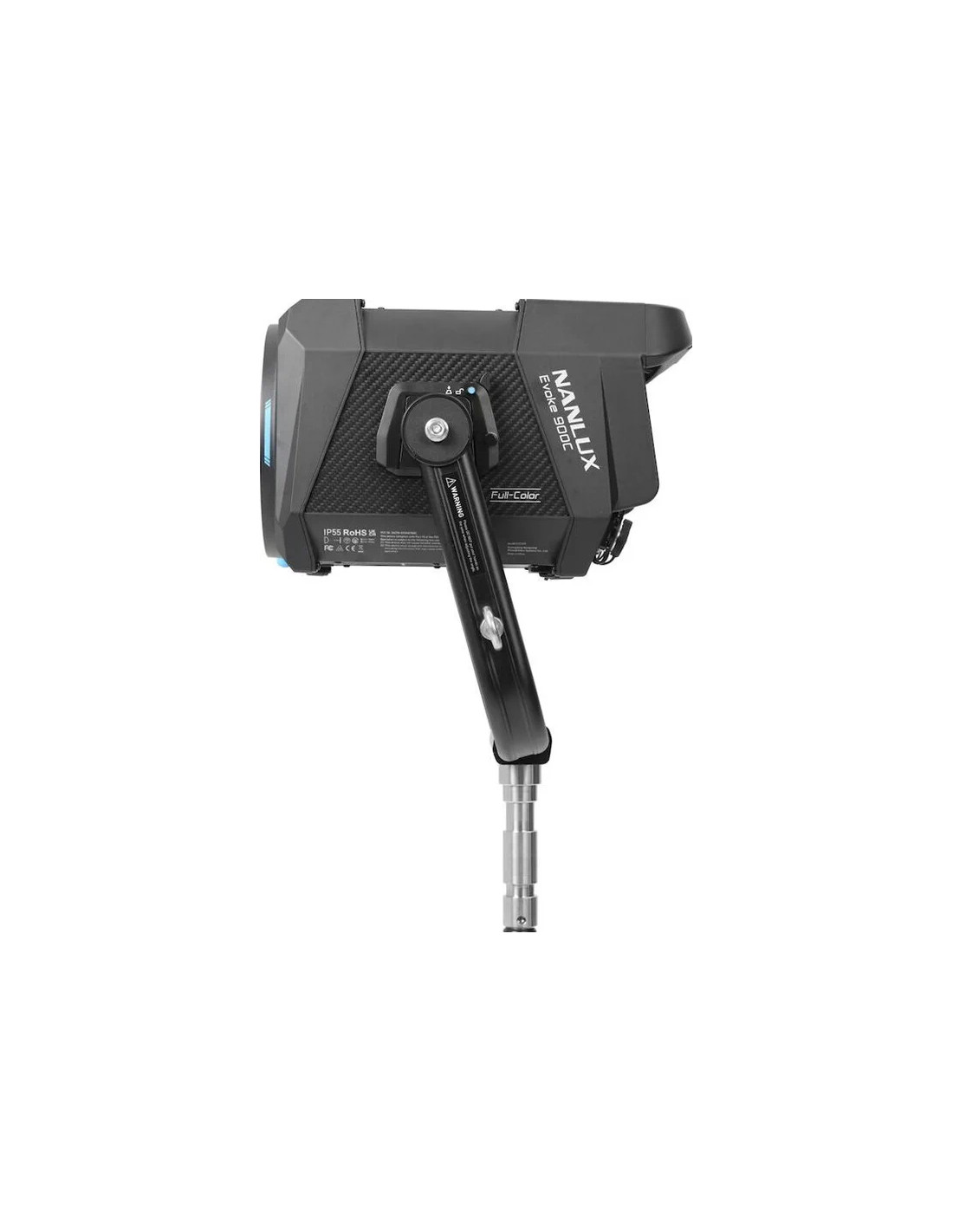

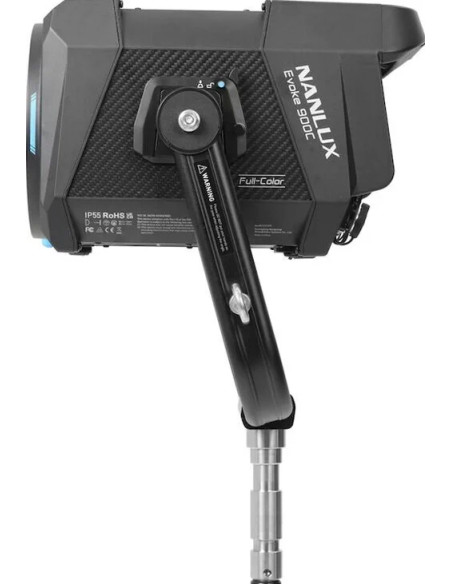

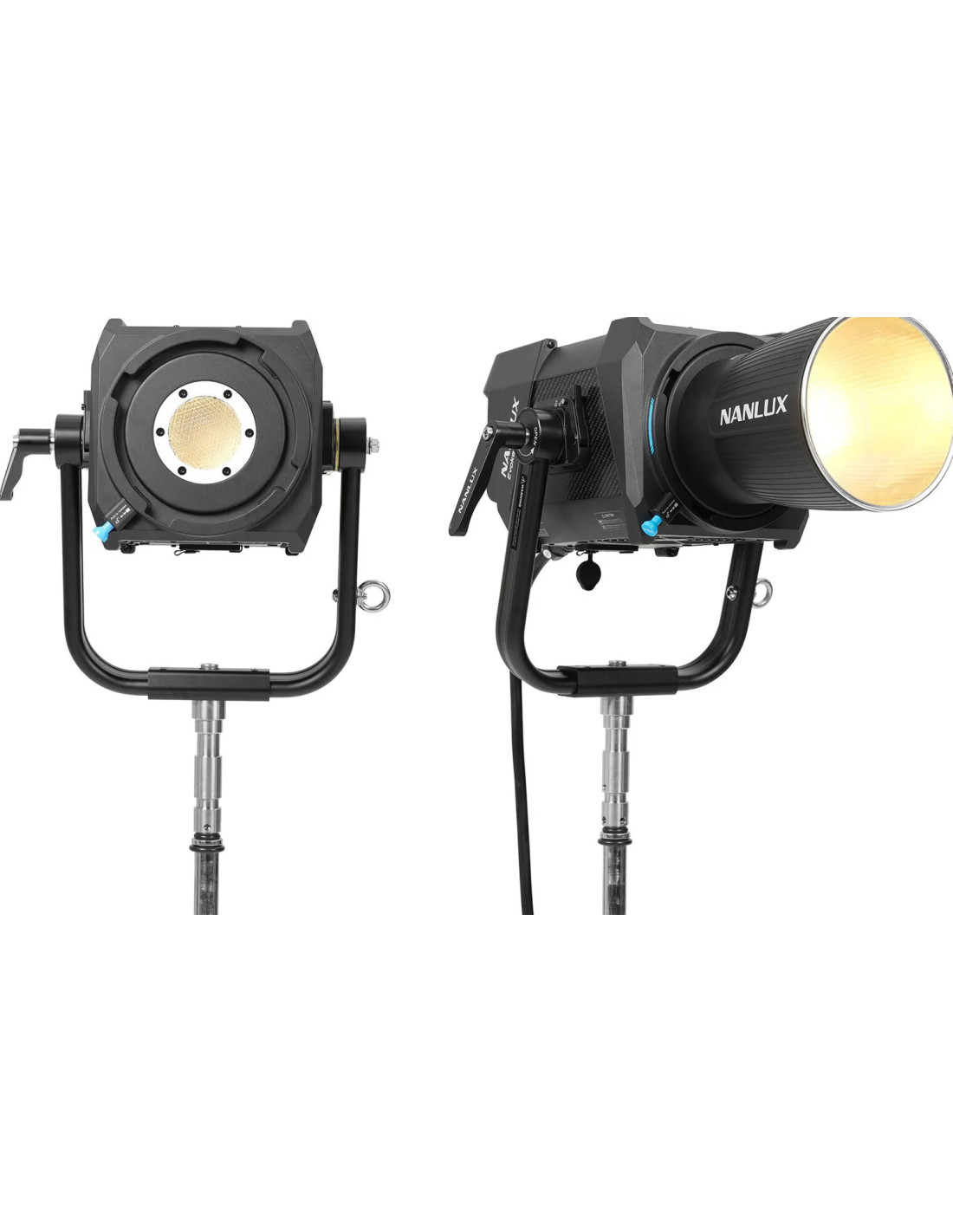

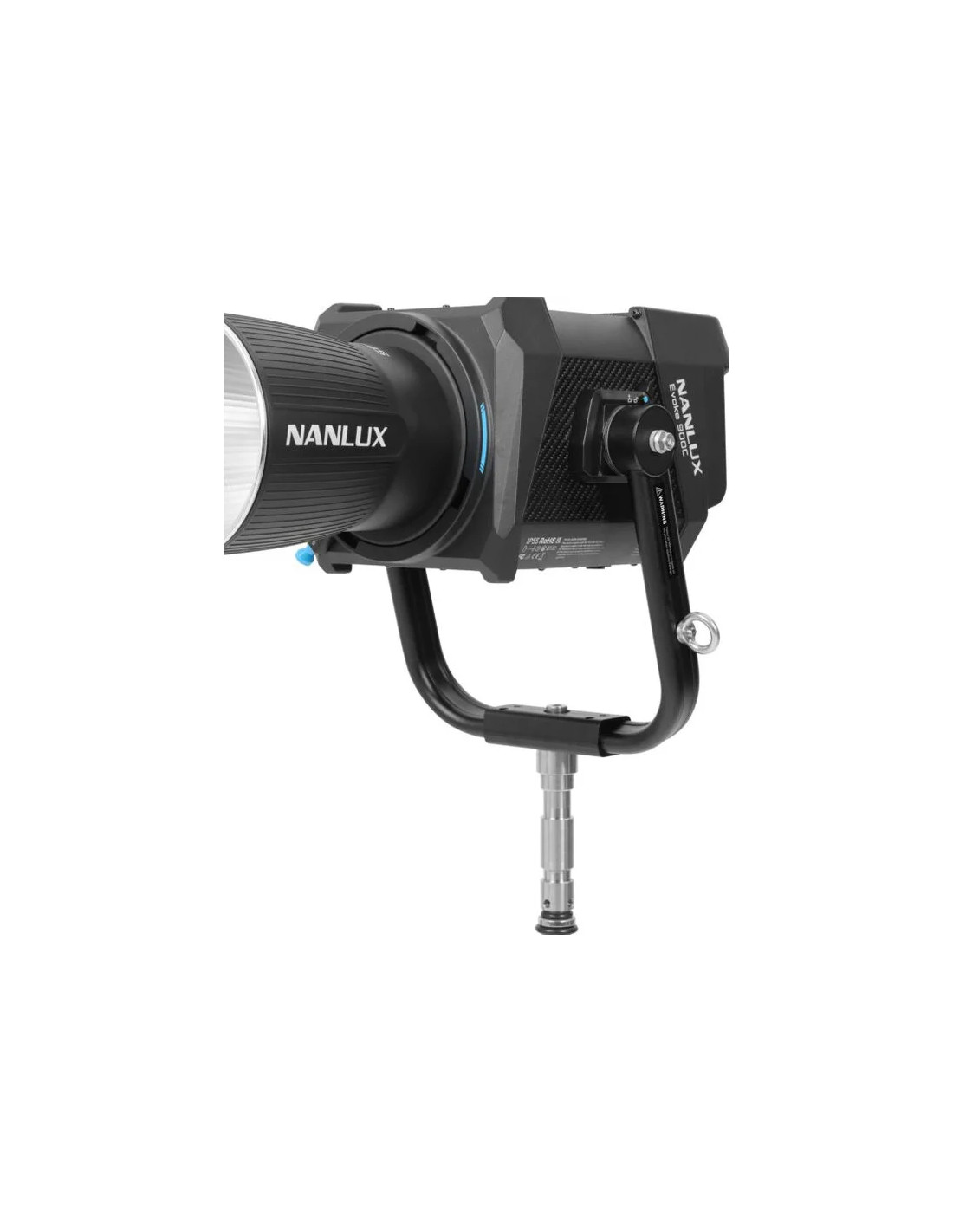

- Design of the offset yoke at 15 ° for a greater range of inclination
When using soft boxes and other light modeling accessories.
- NL connection: Compatibility with all modifiers with NL Attack
Nl
- support of the firmware update via the USB port on the body of the
projector body

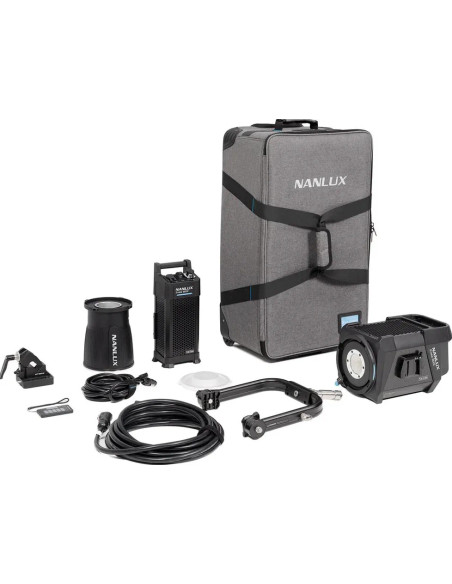

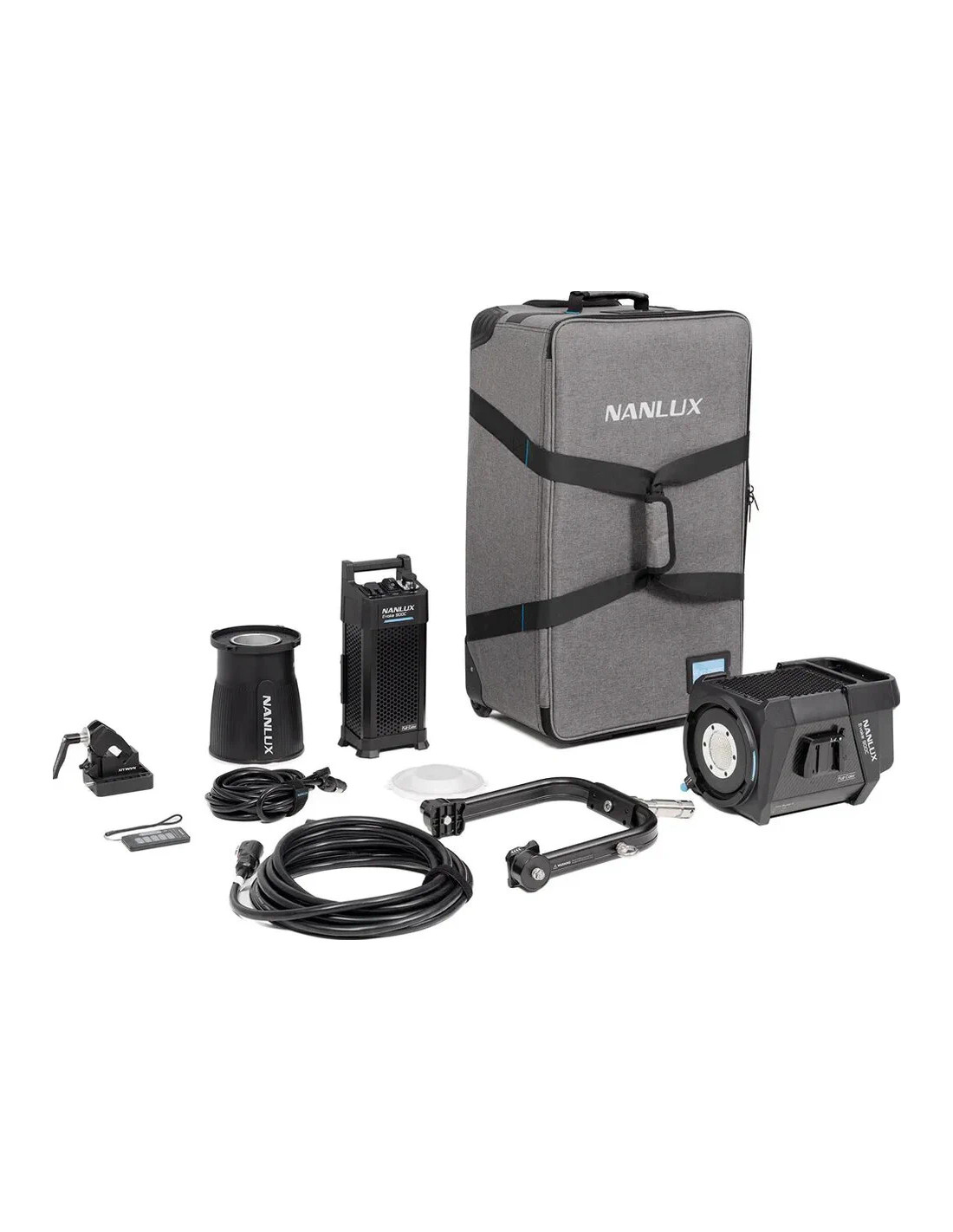

What's in the package?
- EVOKE 900C X 1
- Yoke x 1

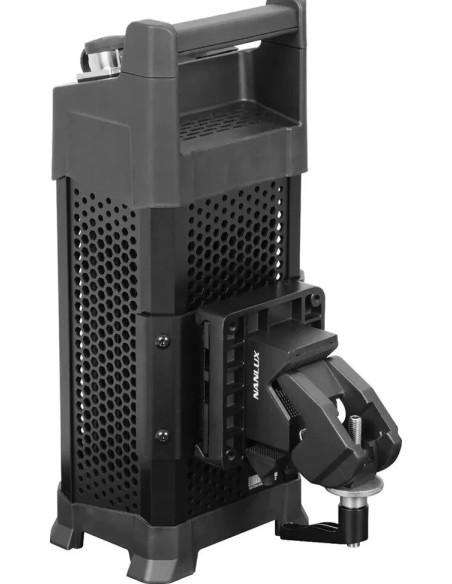

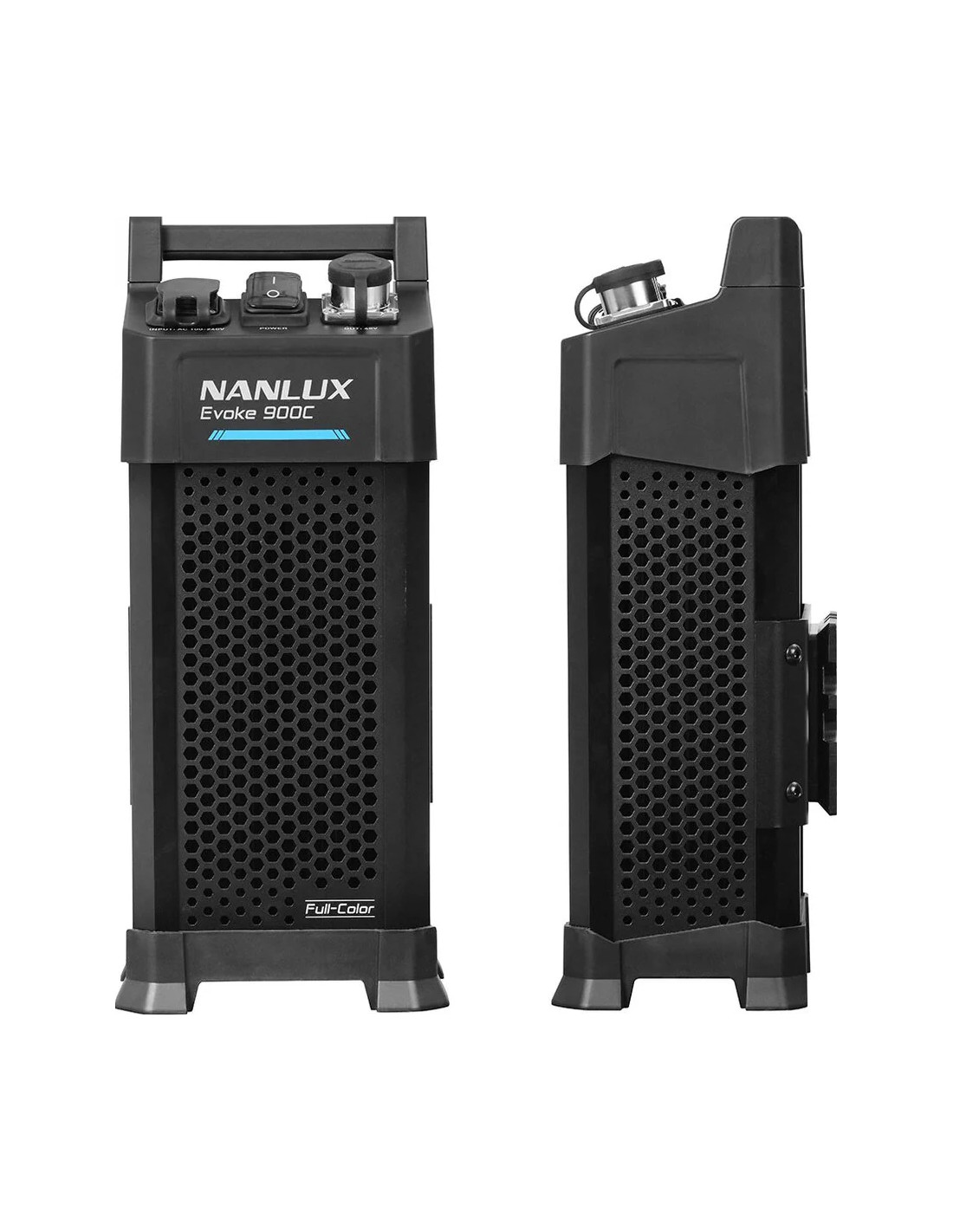

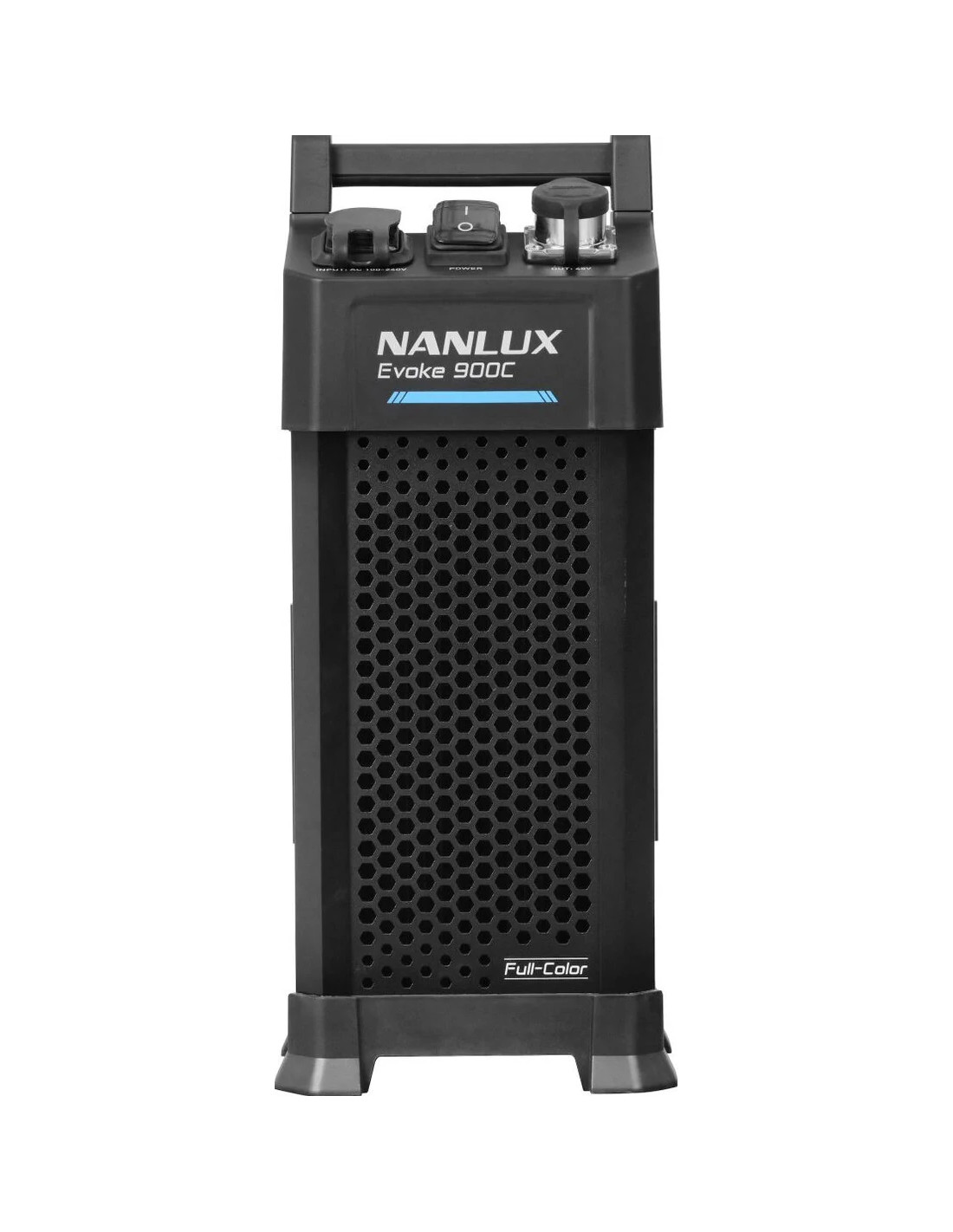

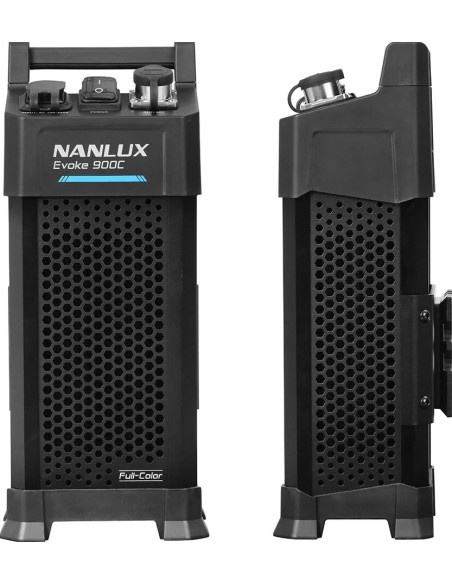

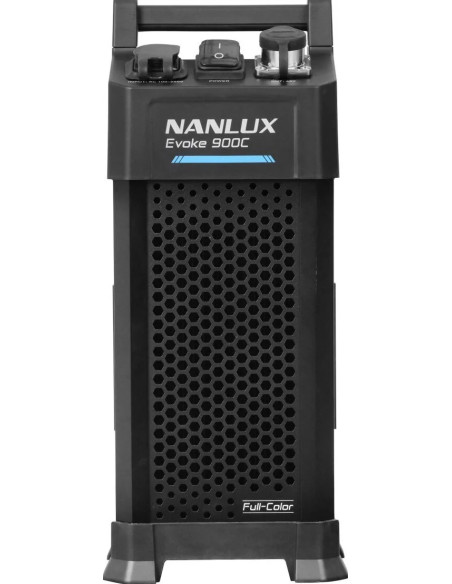

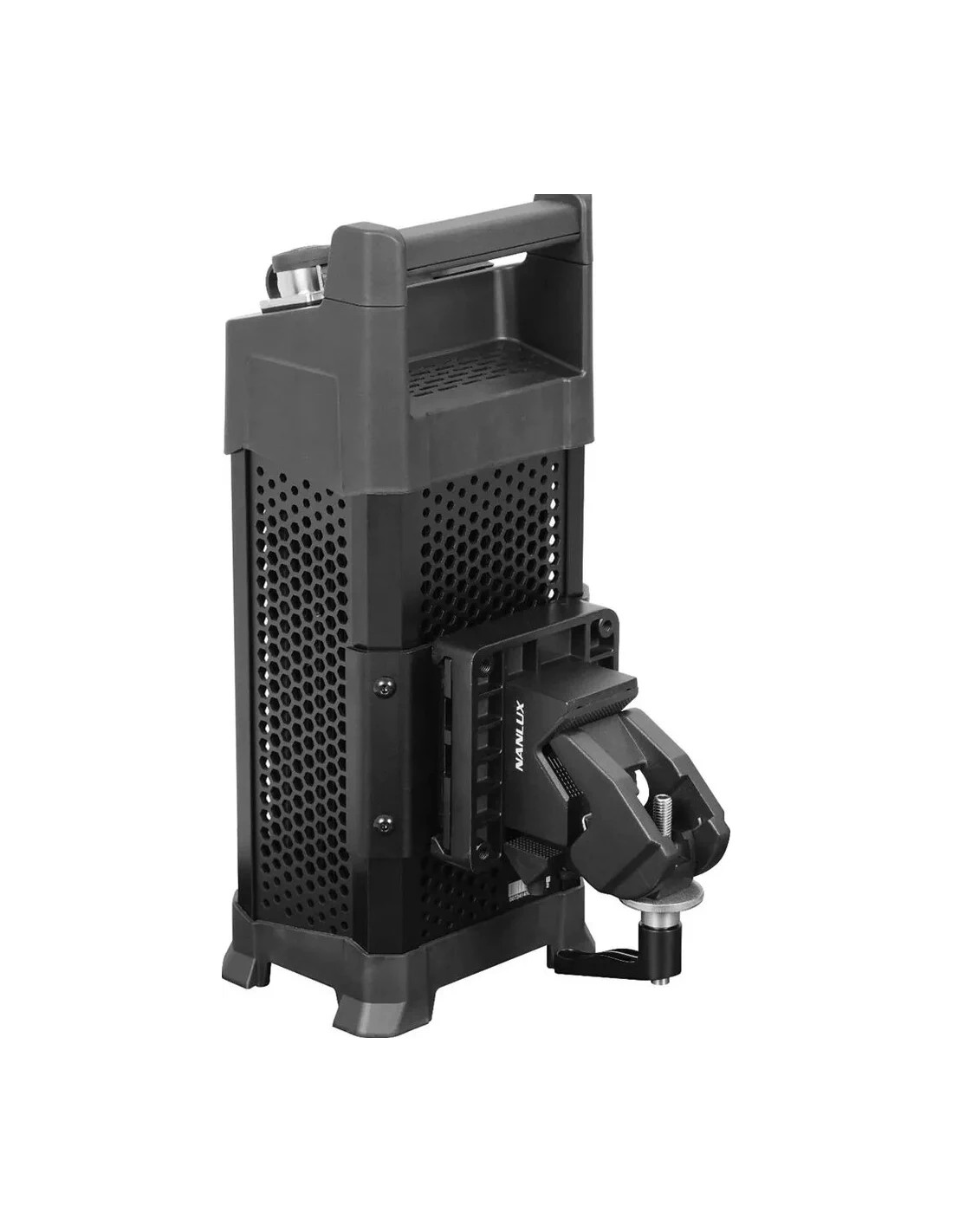

- Power supply X 1

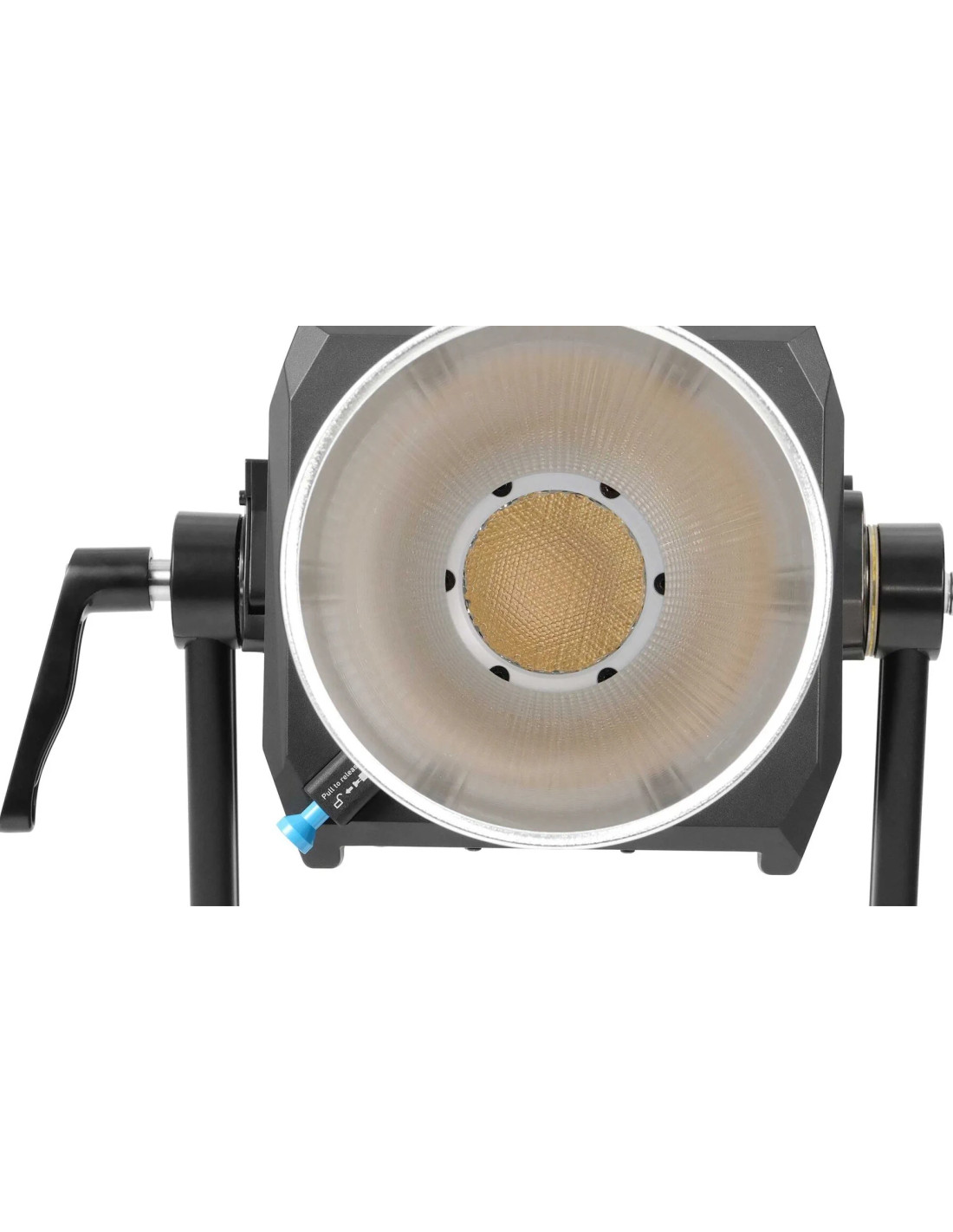

- RF-NLM-45 x 1 reflector
- CC 7.5 m x 1 connection cable
- AC 6M X power cable 1
- AS-CP-QR-q-q x 1 quick release clamp x 1
- Remote Controller WS-RC-C2 2.4G X 1
- USB flash drive x 1
- User manual x 1
- DMX X reference guide 1
- CC-ST-EV900C Trolley case × 1

Technical details:

- Model: EVOKE 900C ST-kit
- Nominal power: 940W
- Entry / current voltage: DC 48V / 18.75A Max, AC 100-240V 50 / 60Hz
- Dimmer: 0-100%, 0.1% increment
- CRI: average 95
- TLCI: average 95
- CCT: 1800K-20000K (g / m ± 200)
- IP protection degree: IP55
- Product dimensions (mm): Lighting fixture (without COB protective hood): 330 × 241 × 210 mm. Power supply: 146 × 125 × 344 mm. CC-ST-EV900C trolley case: 760 × 440 × 290mm
- Weight of the product: Body: 7.7 kg, Yoke: 1.84 kg, power supply: 4.5 kg, RF-NLM-45 reflector: 0.62 kg, CC 7.5 m connection cable: 0.88 kg, power cable AC 6 M: 2.62 KG, CC-ST-EV900C Trolley Suitcase (without a device): 6.9 kg, EVOKE 900C ST-kit (with appliance): 26.5 kg

The images are present the Lux diagrams of the EVOKE 900C.
