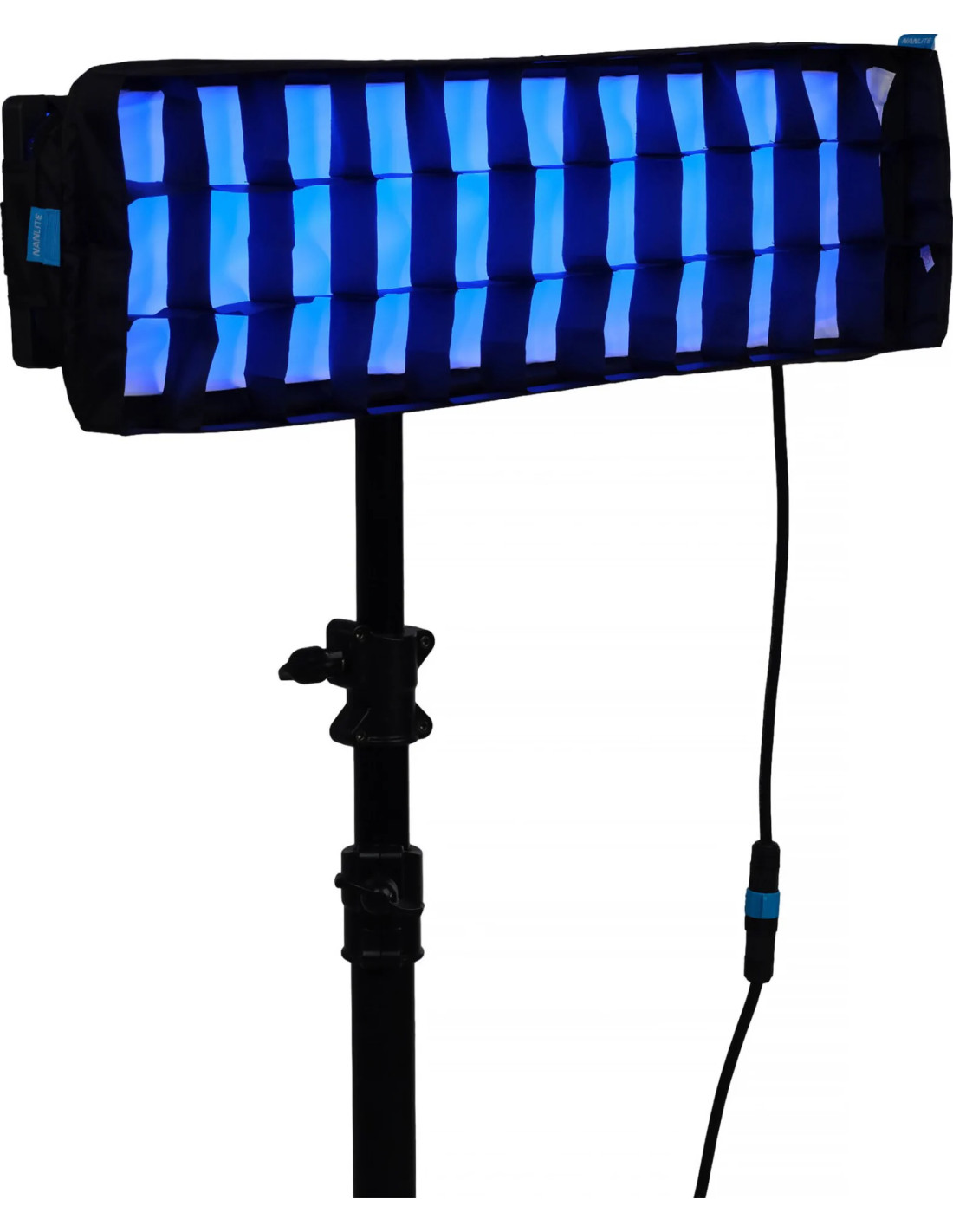

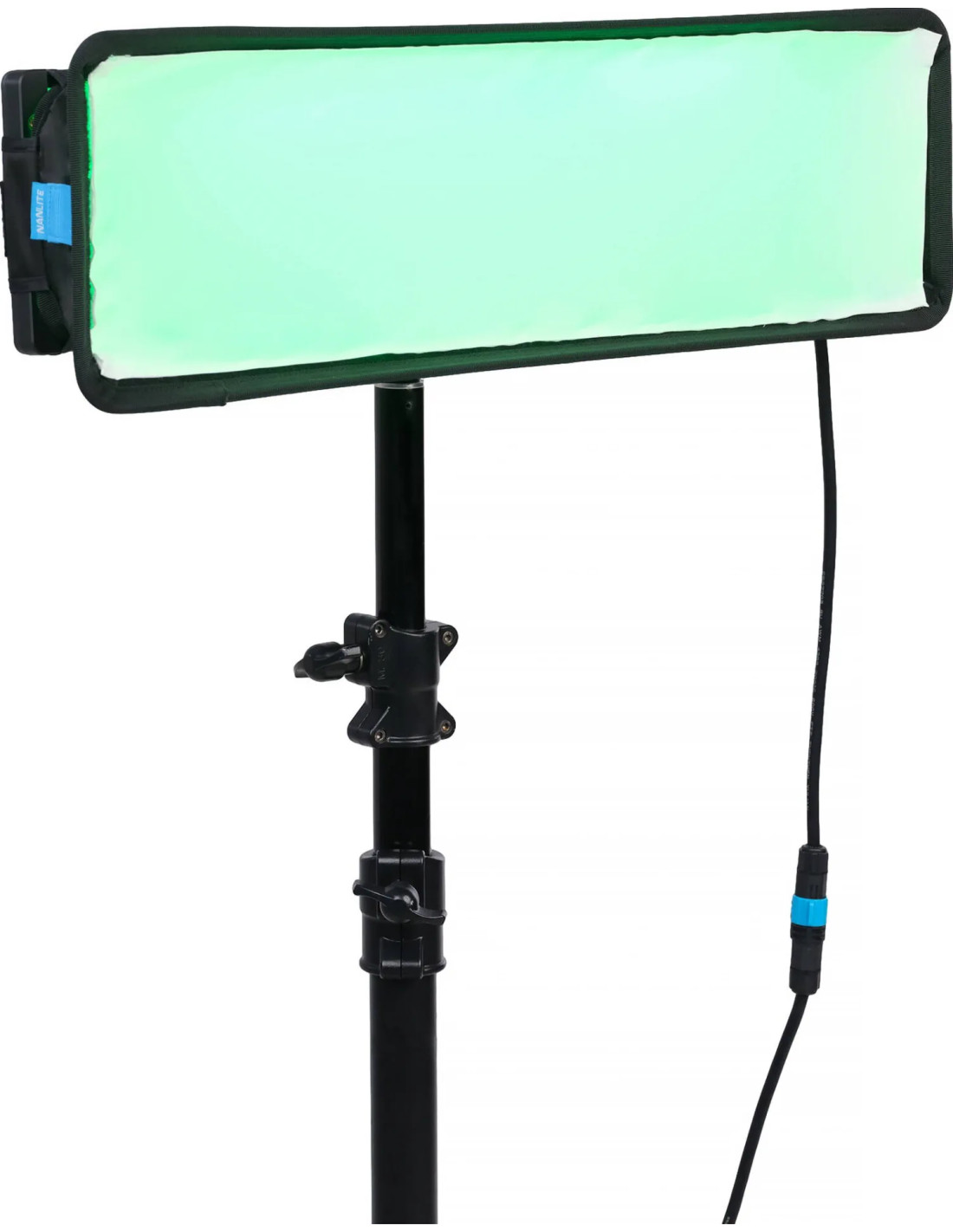

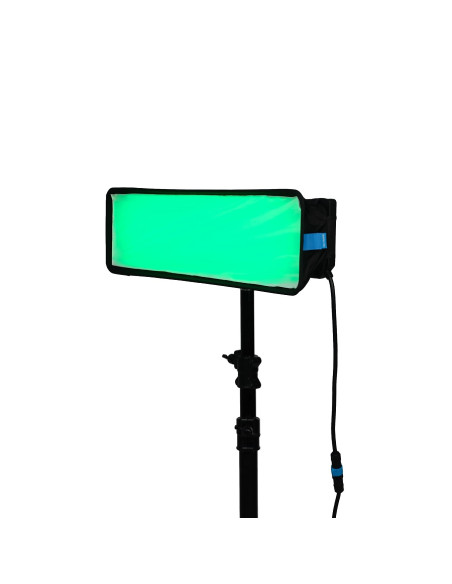

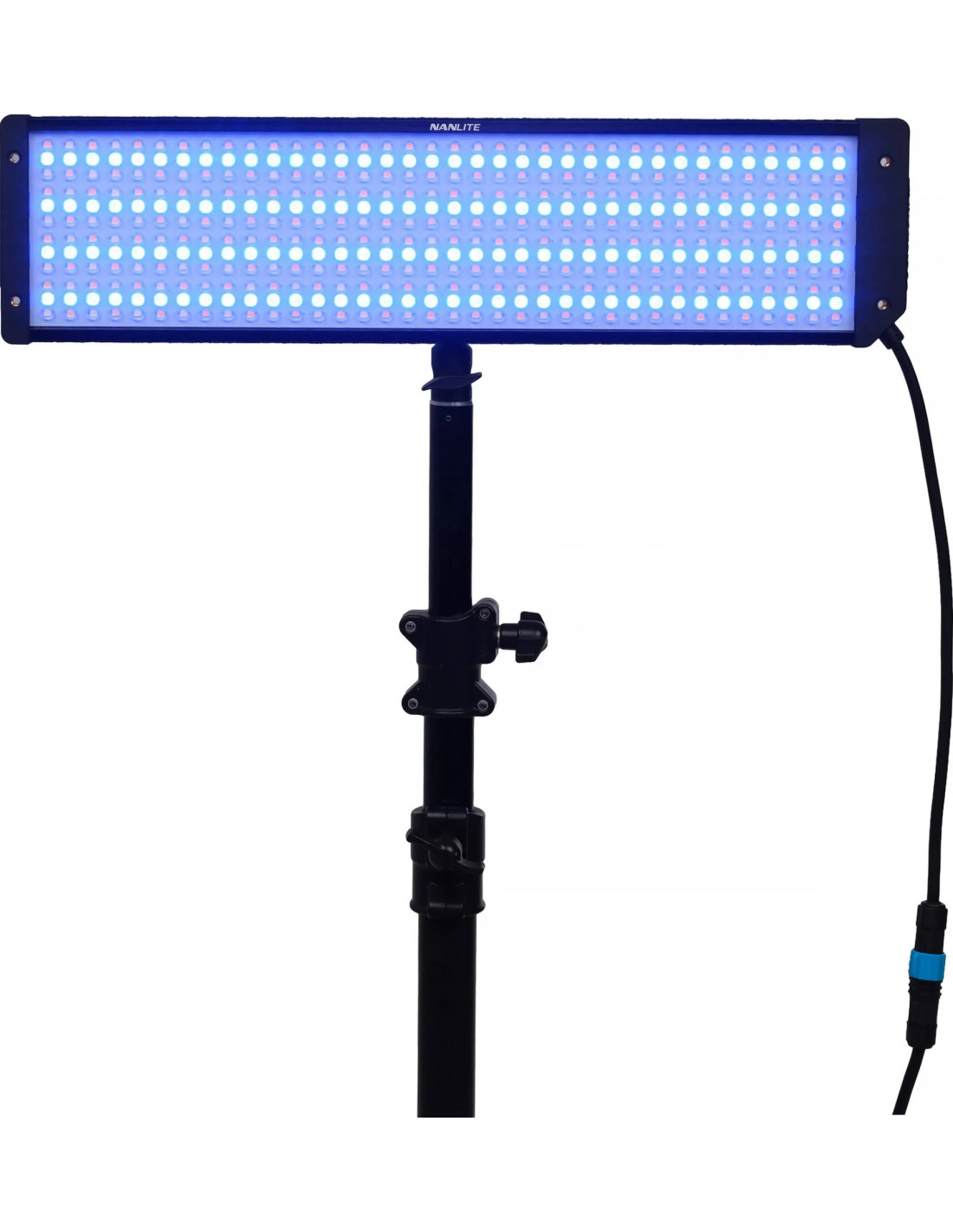

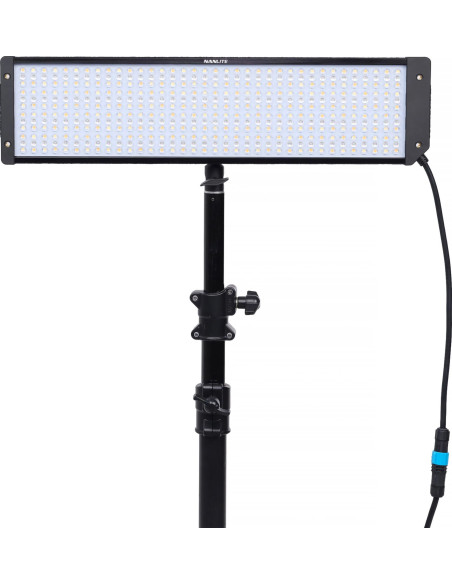

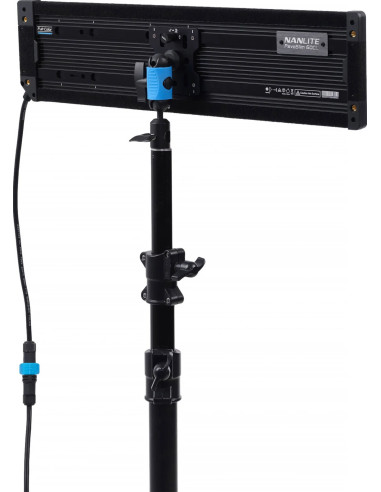

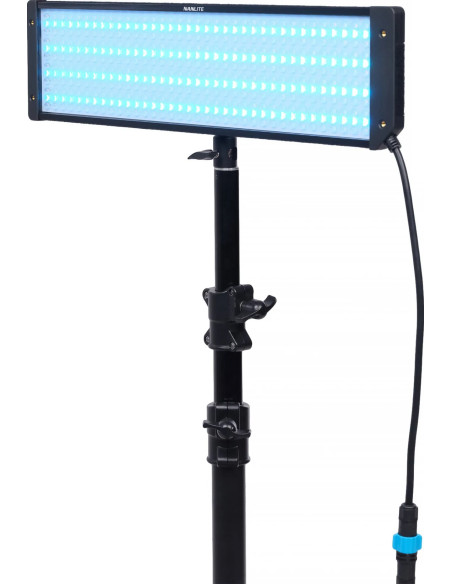

Pavoslim 60cl LED RGBWW

Thin but robust, compact but bright

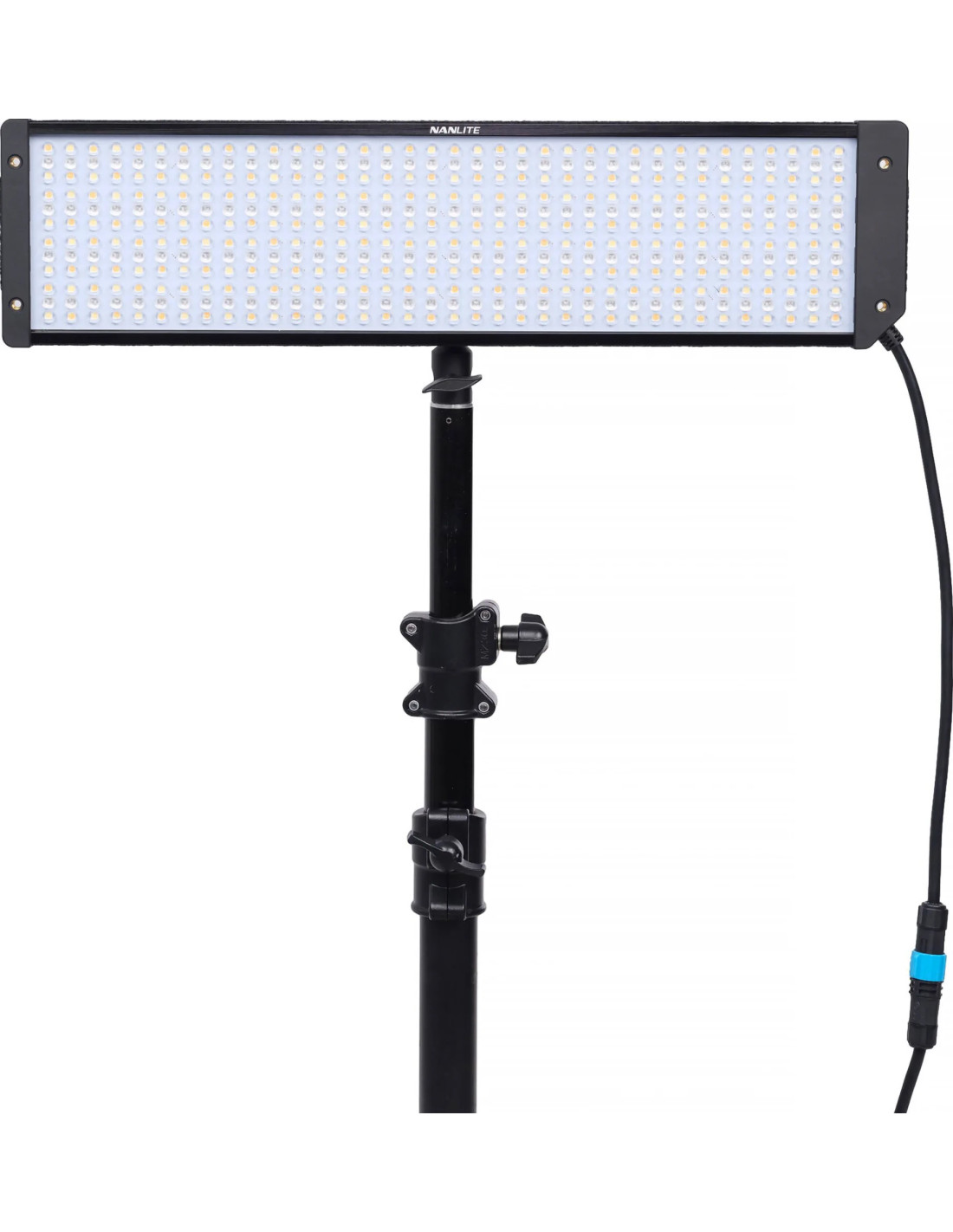

Based on the new generation of Pavoslim LED panel lamps, NanLite has a new product designed for restricted spaces: Pavoslim 60cl. Characterized by an elongated design, combines a thin and light structure, a quick and comfortable installation, high luminance and an accurate color rendering. The Pavoslim series will offer the most flexible options creators to realize their visions.

Efficient design, maximum yield
The Pavoslim 60cl reaches a rendering four times higher than that of similar LED lights.
PAVOSLIM 60CL: 7.094 LUX @ 1M (Light Only, 5600k).

To get this result, the team NANLITE He has developed a dedicated optical system that maximizes the yield and dissipation of heat.

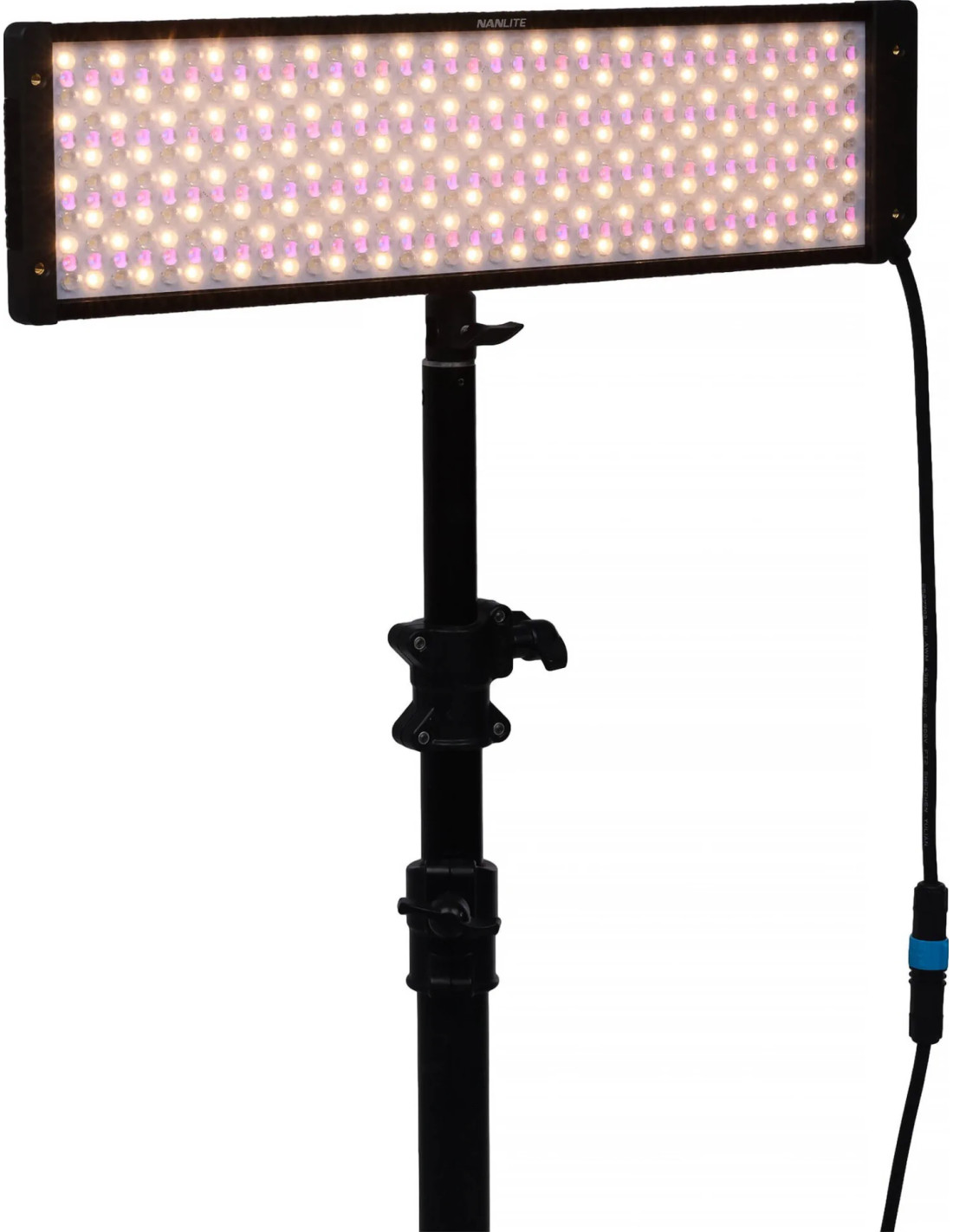

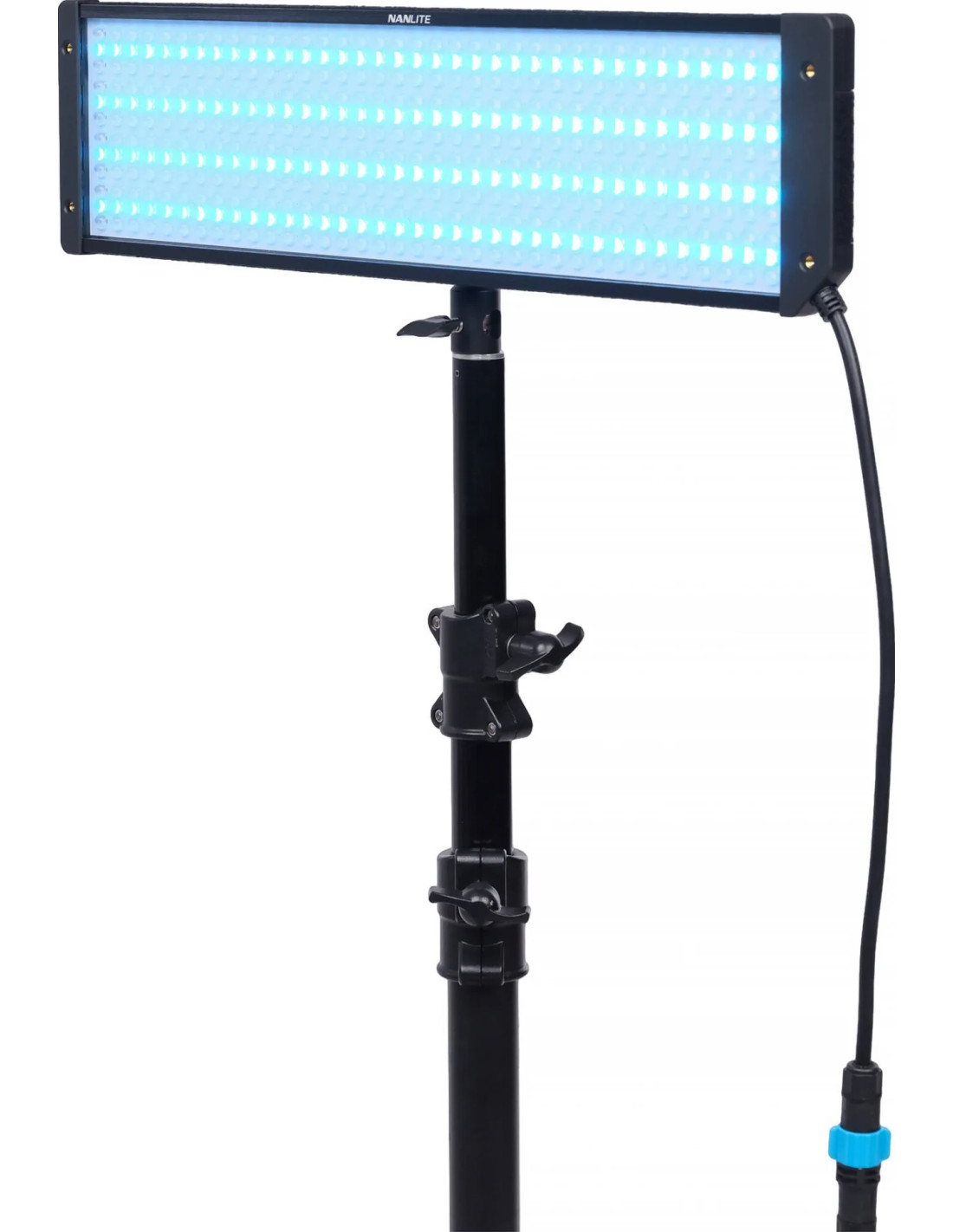

Thanks to RGBWW color mixing technology, Pavoslim 60cl offers HSI, RGBW, Gel and effects modes. Furthermore, it is equipped with a green / magenta displacement (g / m) function for accurate combination with other light sources.
- CCT mode
- CCT range: 2700K-7500K
- G / M adjustment: ± 150
- CRI: average 96 TLCI: average 97
- TM-30 RF: average 94
- TM-30 RG: average 100
- SSI
- 3200K: 83
- 5600K: 74

HSI mode
In this mode, you can quickly adjust the shade, saturation and intensity of light with the 36,000 color option.

RGBW mode
It offers the control of four separate channels: red, green, blue and white, allowing greater color accuracy.

Gel mode
The Pavoslim 60cl has 151 integrated colored gel emulations that can be used to match scenes, add atmosphere or evoke emotions. This not only carefully reproduces the colors of the most common gels, but speeds up the configuration by eliminating the need to install the gels.

Effect mode
The Pavoslim 60cl is equipped with 15 different lighting effects for movies and TV. The various parameters of each effect can be adjusted on board, while additional custom settings can be obtained via the NanLink, CRMX and DMX / RDM lumenradium app.

HSI mode
In this mode, you can quickly adjust the shade, saturation and intensity of light with the 36,000 color option.

RGBW mode
It offers the control of four separate channels: red, green, blue and white, allowing greater color accuracy.

Gel mode
The Pavoslim 60cl has 151 integrated colored gel emulations that can be used to match scenes, add atmosphere or evoke emotions. This not only carefully reproduces the colors of the most common gels, but speeds up the configuration by eliminating the need to install the gels.

Effect mode
The Pavoslim 60cl is equipped with 15 different lighting effects for movies and TV. The various parameters of each effect can be adjusted on board, while additional custom settings can be obtained via the NanLink, CRMX and DMX / RDM lumenradium app.

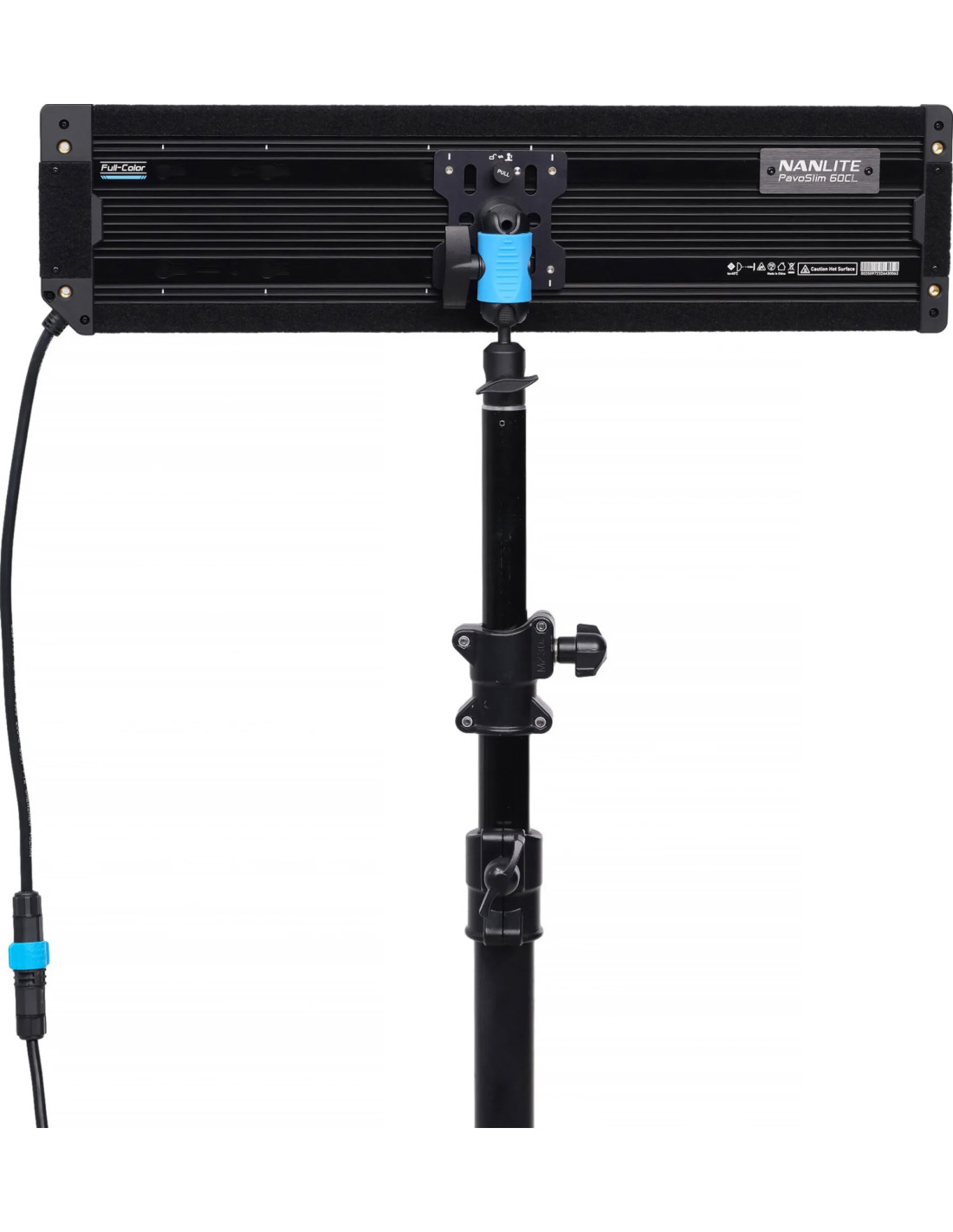

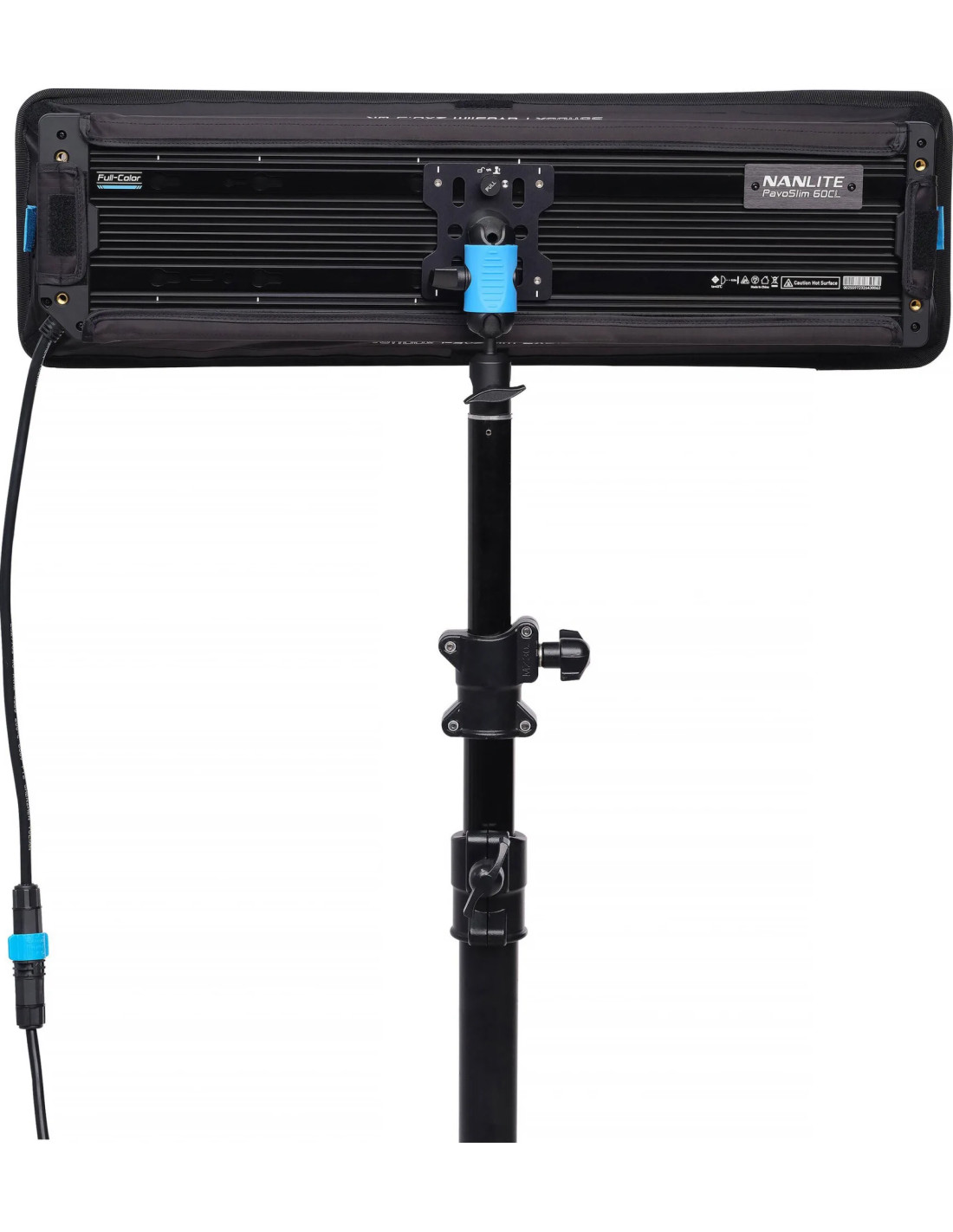

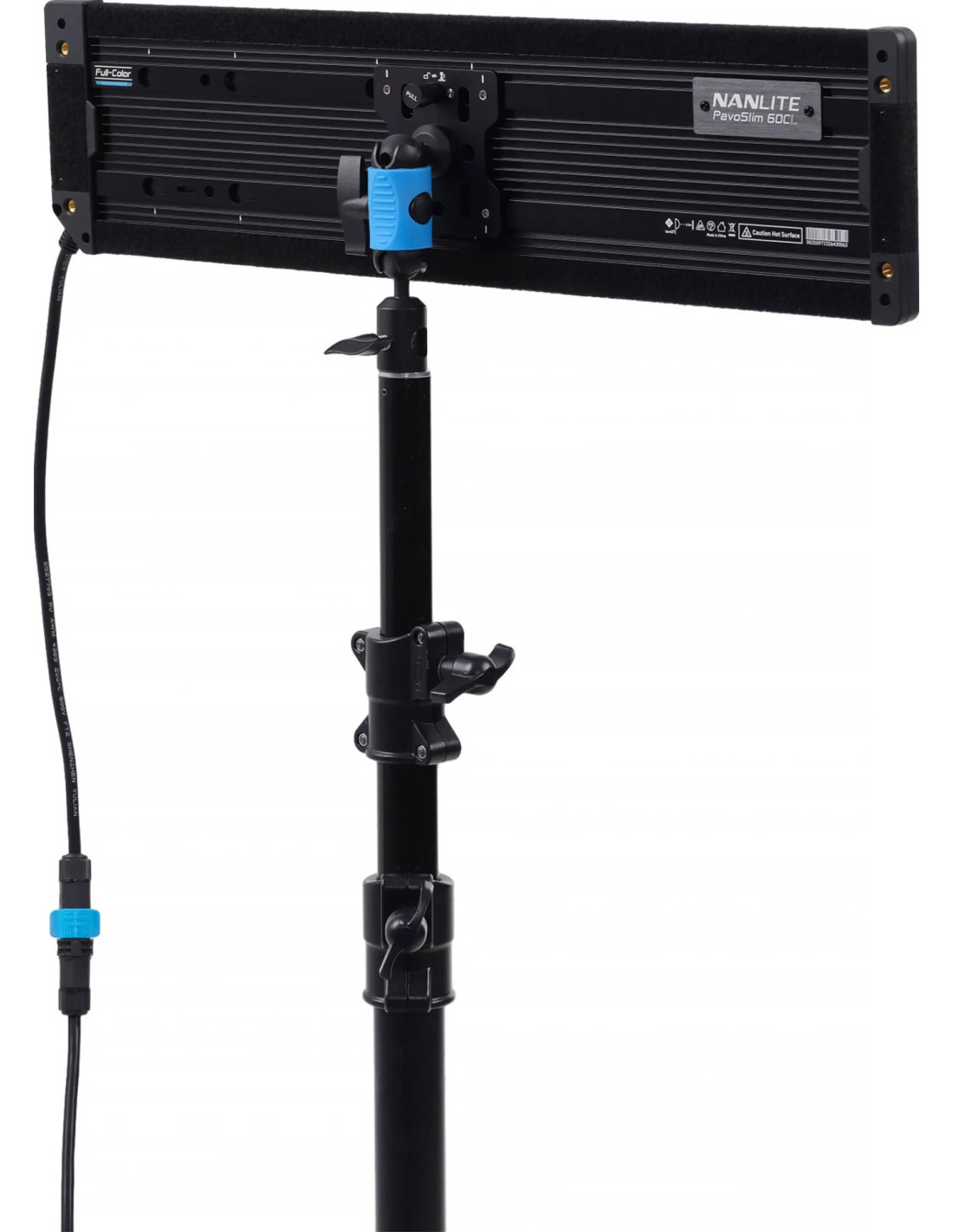

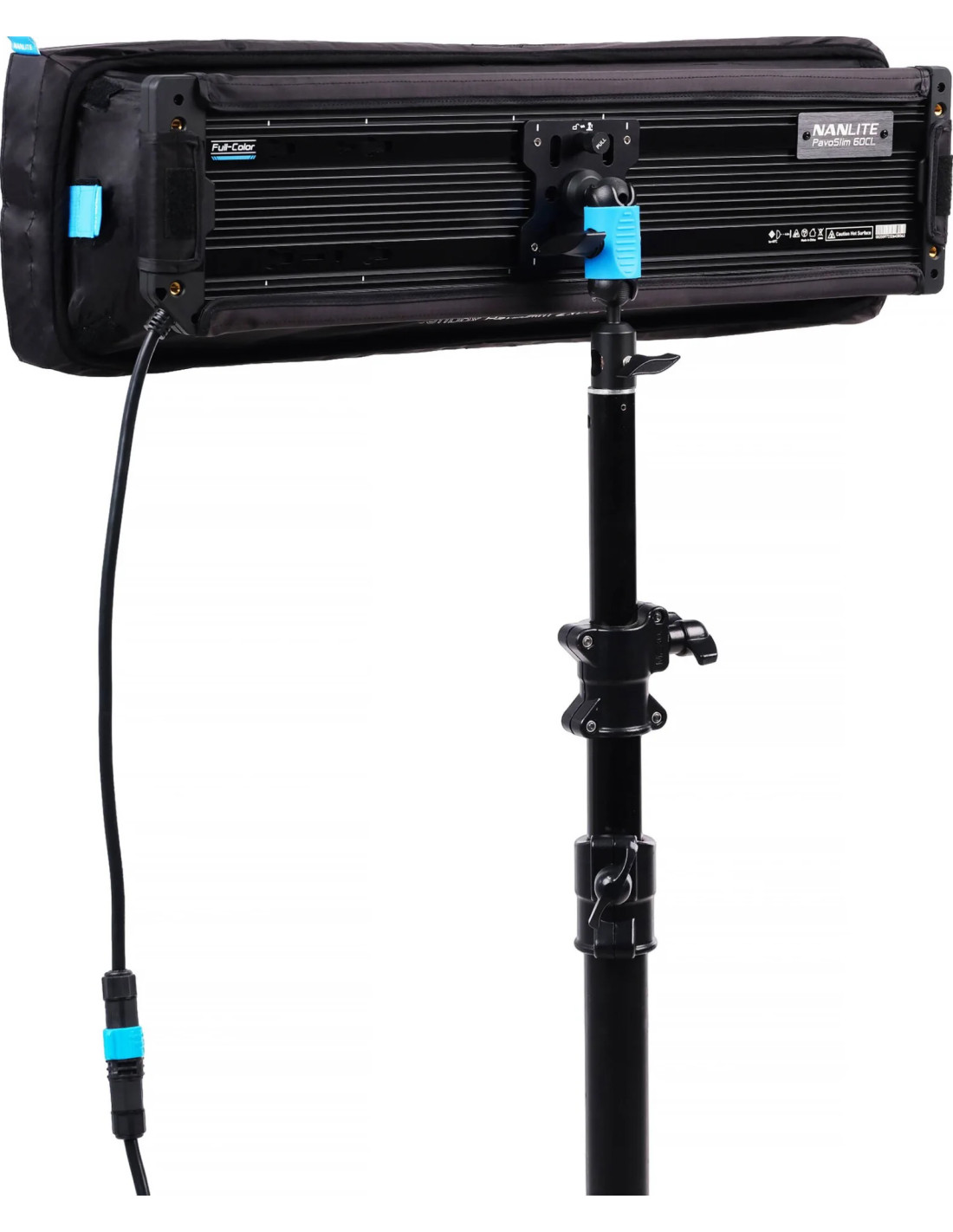

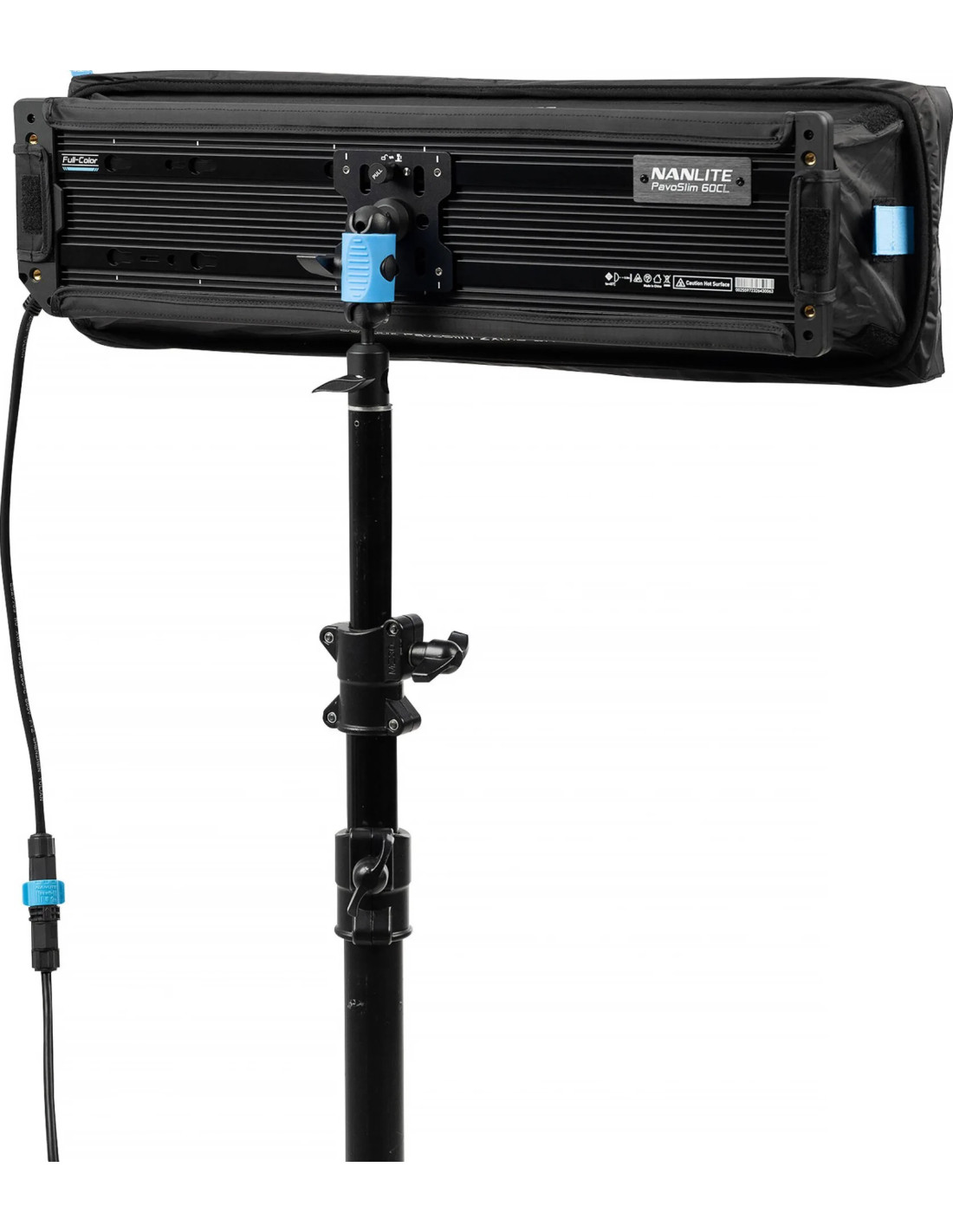

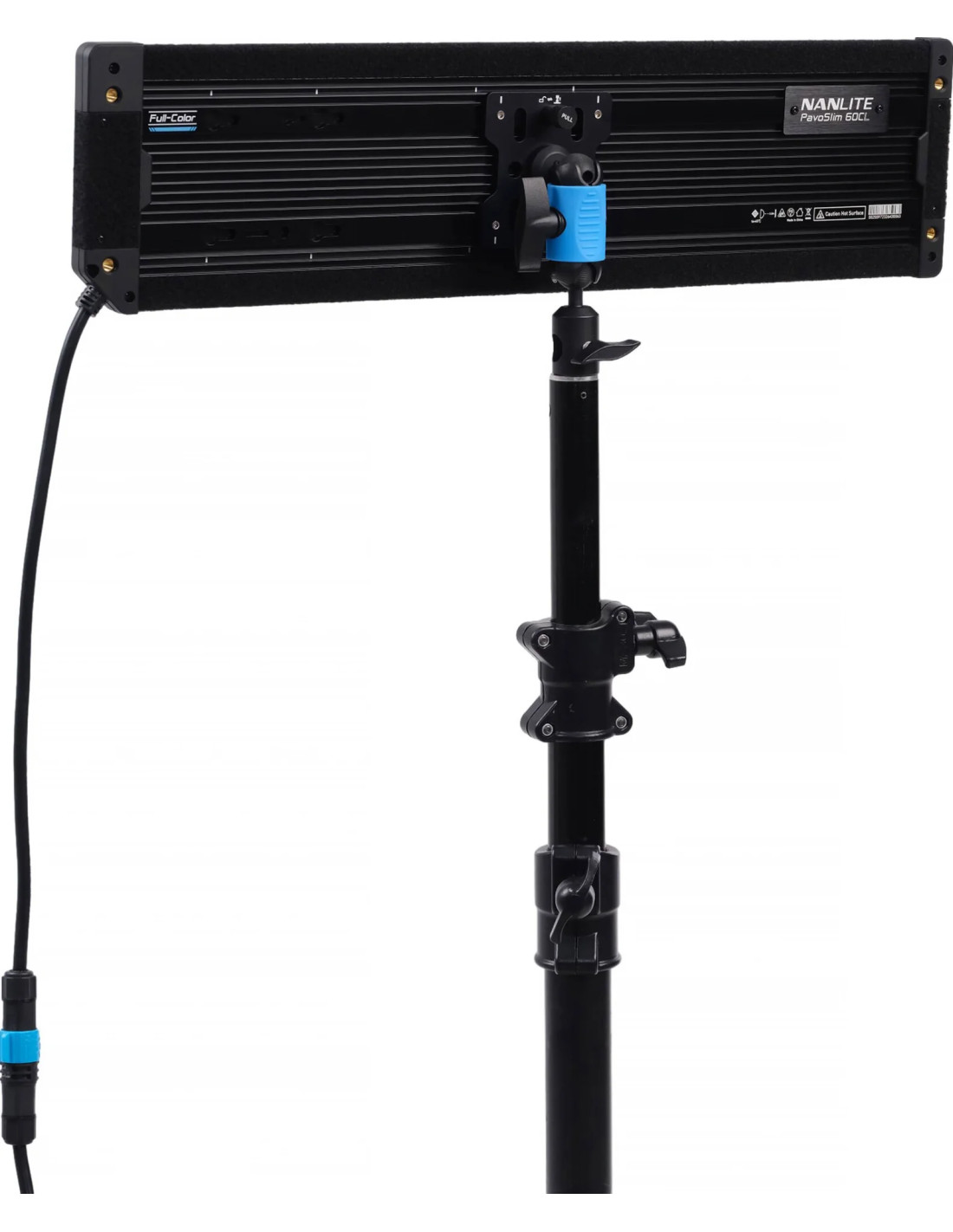

Housing in durable metal, thin and light
With its metal housing, the Pavoslim 60cl shows that slenderness and robustness are not in contradiction. Although equipped with a complete set of modifiers and accessories for installation, it is still lighter and thin than traditional bright carpets. This makes it essential both in small studios, and in places with low ceilings or in cinematographic and television set with strict requirements.

- Nominal power 72W
- Weight 0.98 kg
- 1.86 cm thick

Pavoslim 60cl power options

** AC power or: **

- 14.4-14.8 V × V battery
- Battery with 26 V × 1 V connection

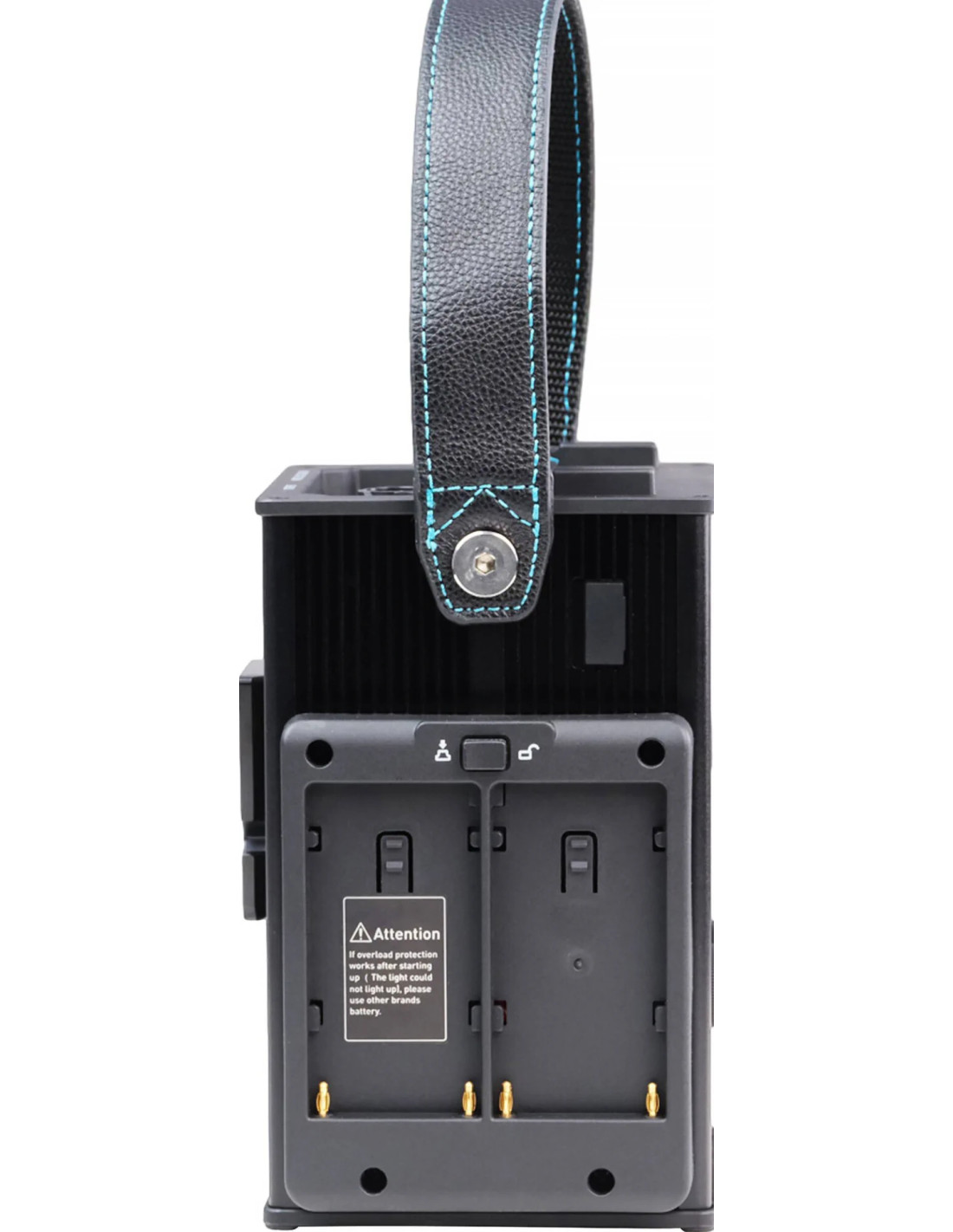

- 7.4 V × NP-F battery

Extension cable
The Pavoslim 60cl is equipped with a solid 0.4 m DC connection cable, which in turn is connected to the control unit via a 2.6 m DC connection cable. If necessary, this can be extended with another 2.6 meter connection cable.

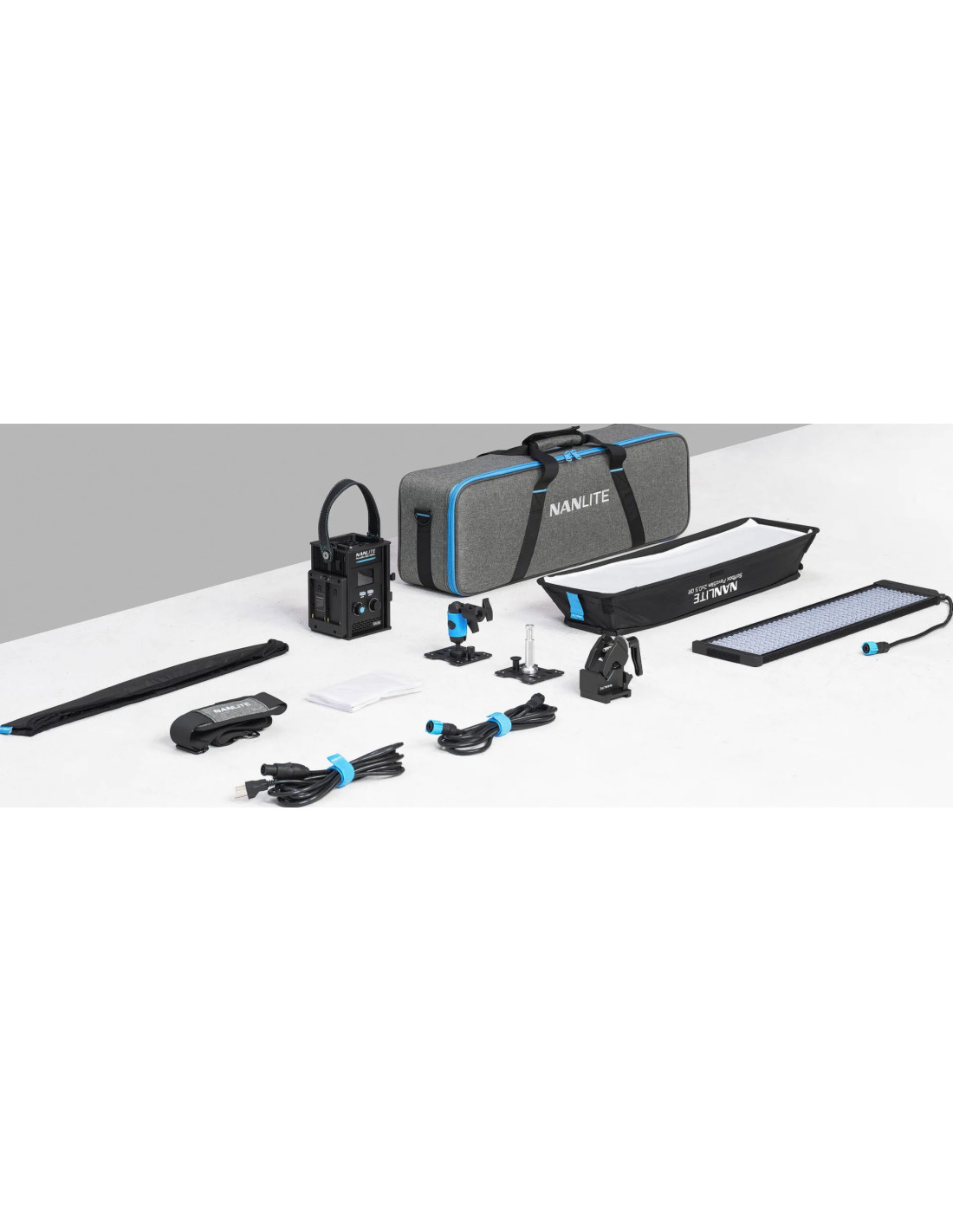

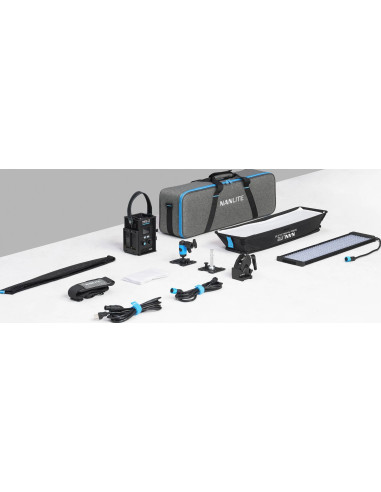

Pavoslim 60cl includes:
- Pavoslim 60cl × 1

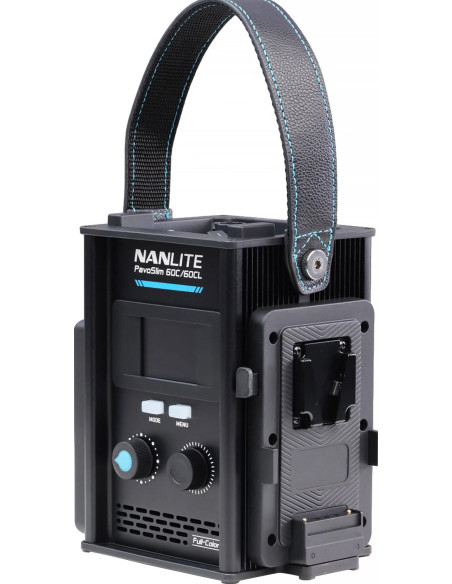

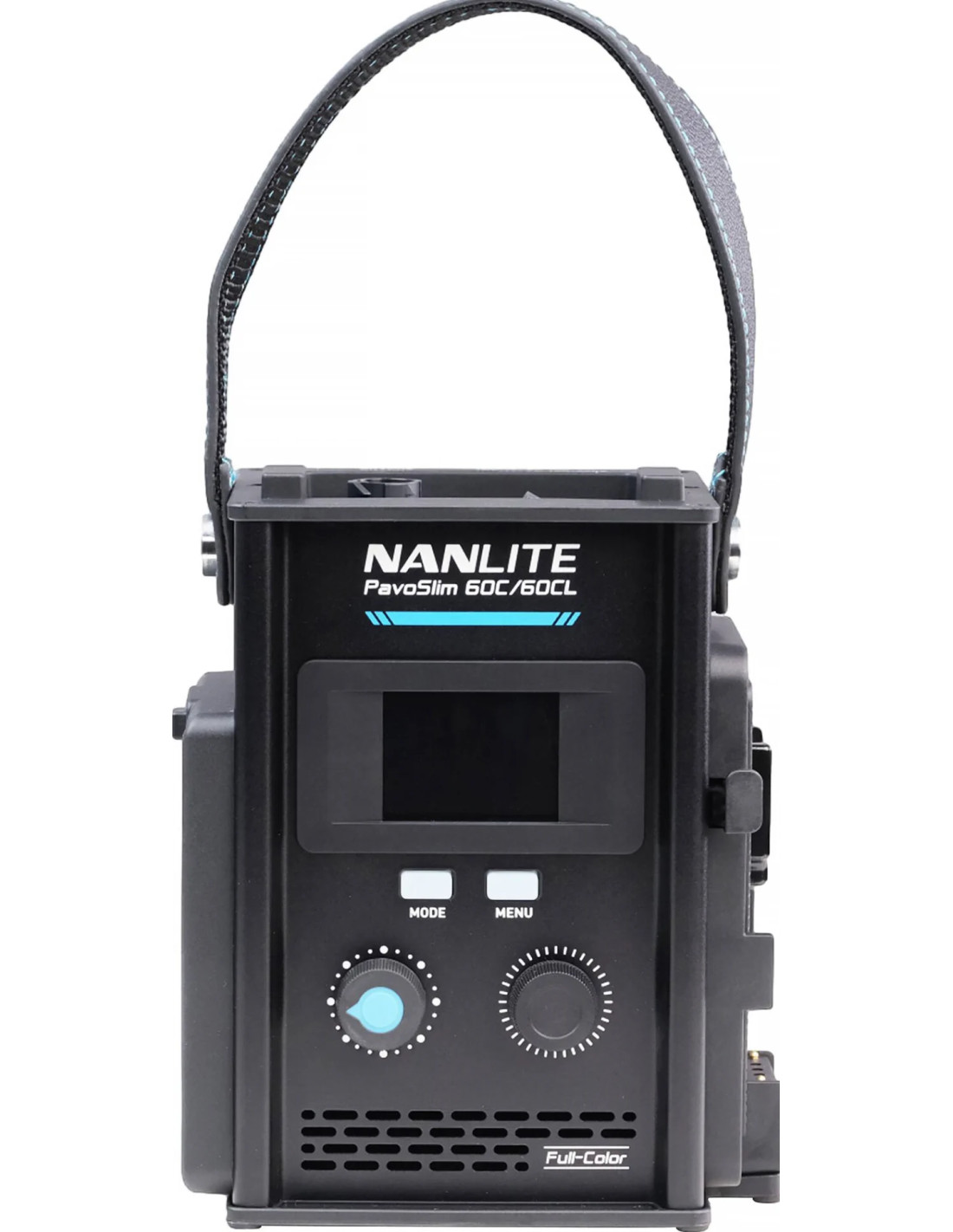

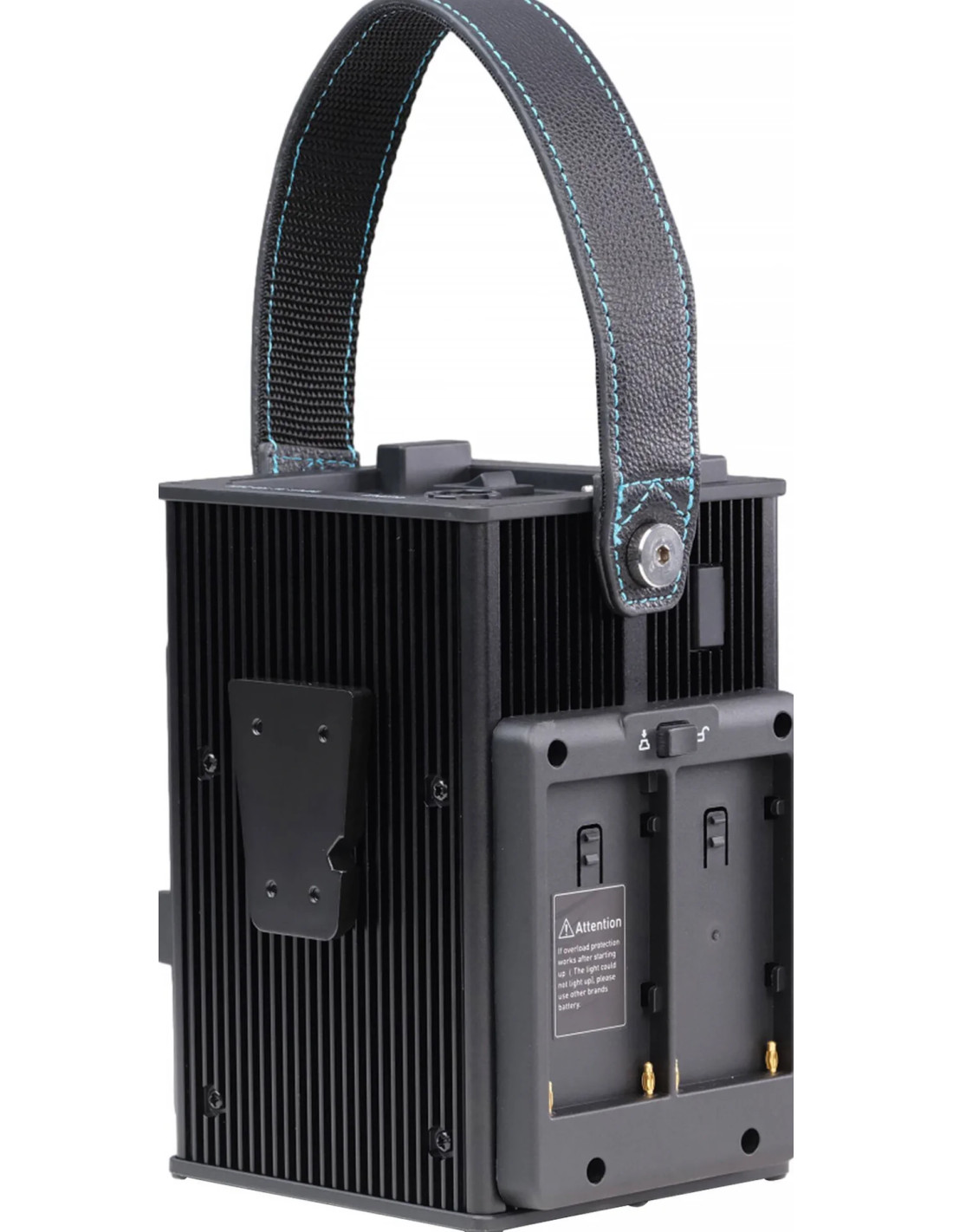

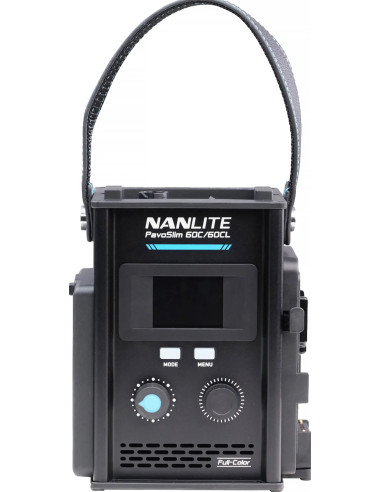

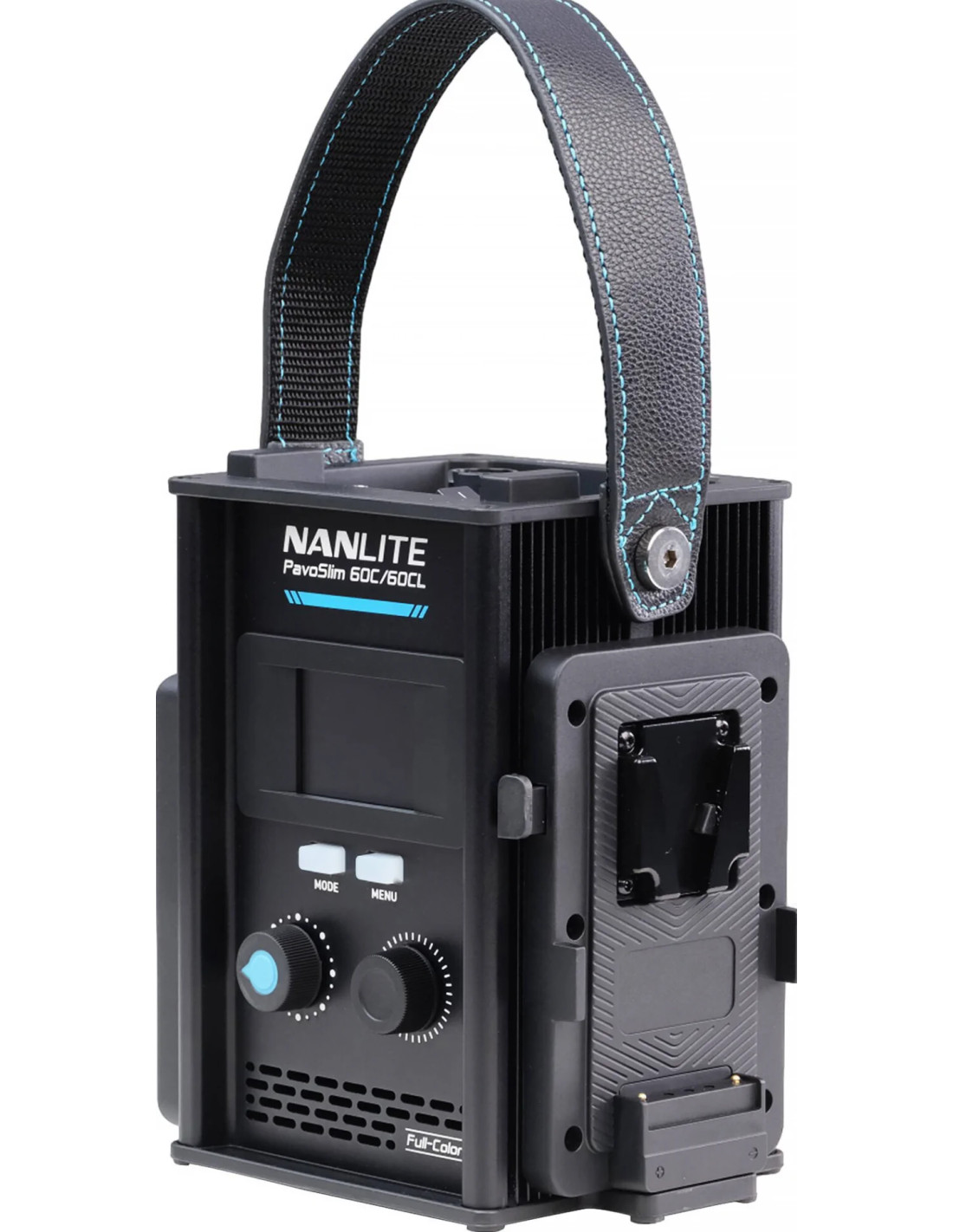

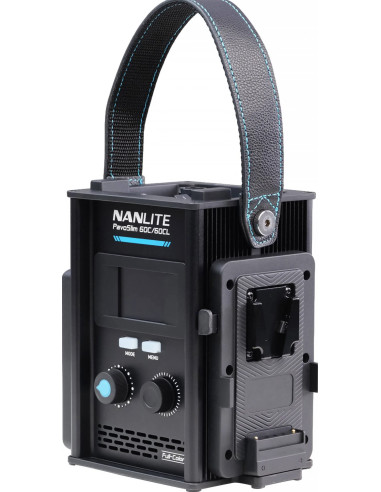

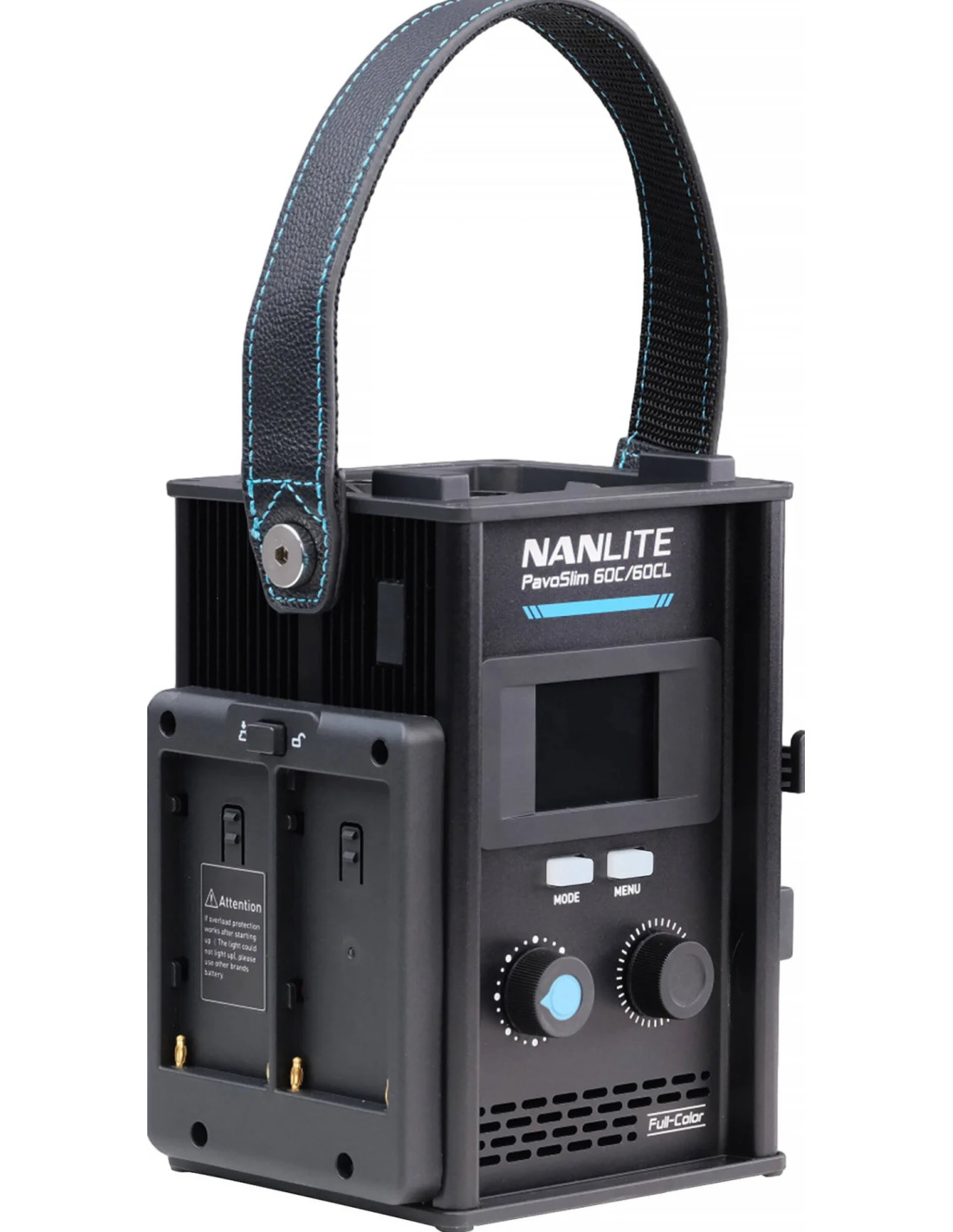

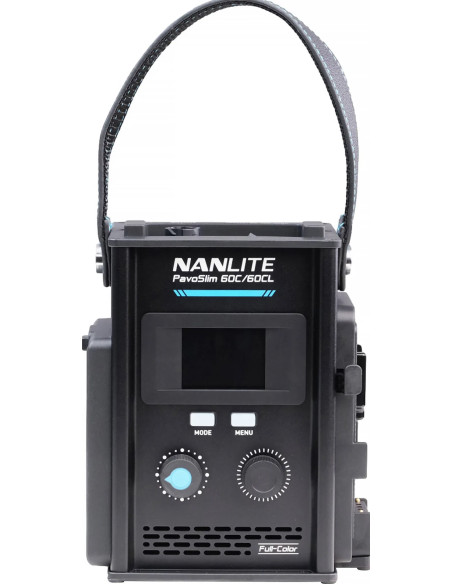

- Control unit × 1
- Universal support × 1
- Quick release clamp × 1
- Support for pins × 1
- CC 2.6 M × 1 connection cable
- 4.5 m × power cable × 1

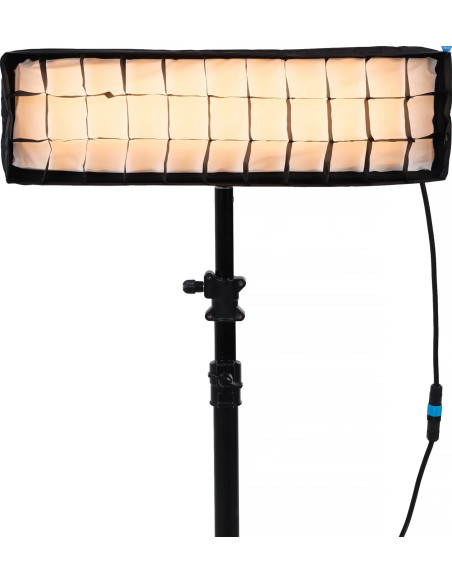

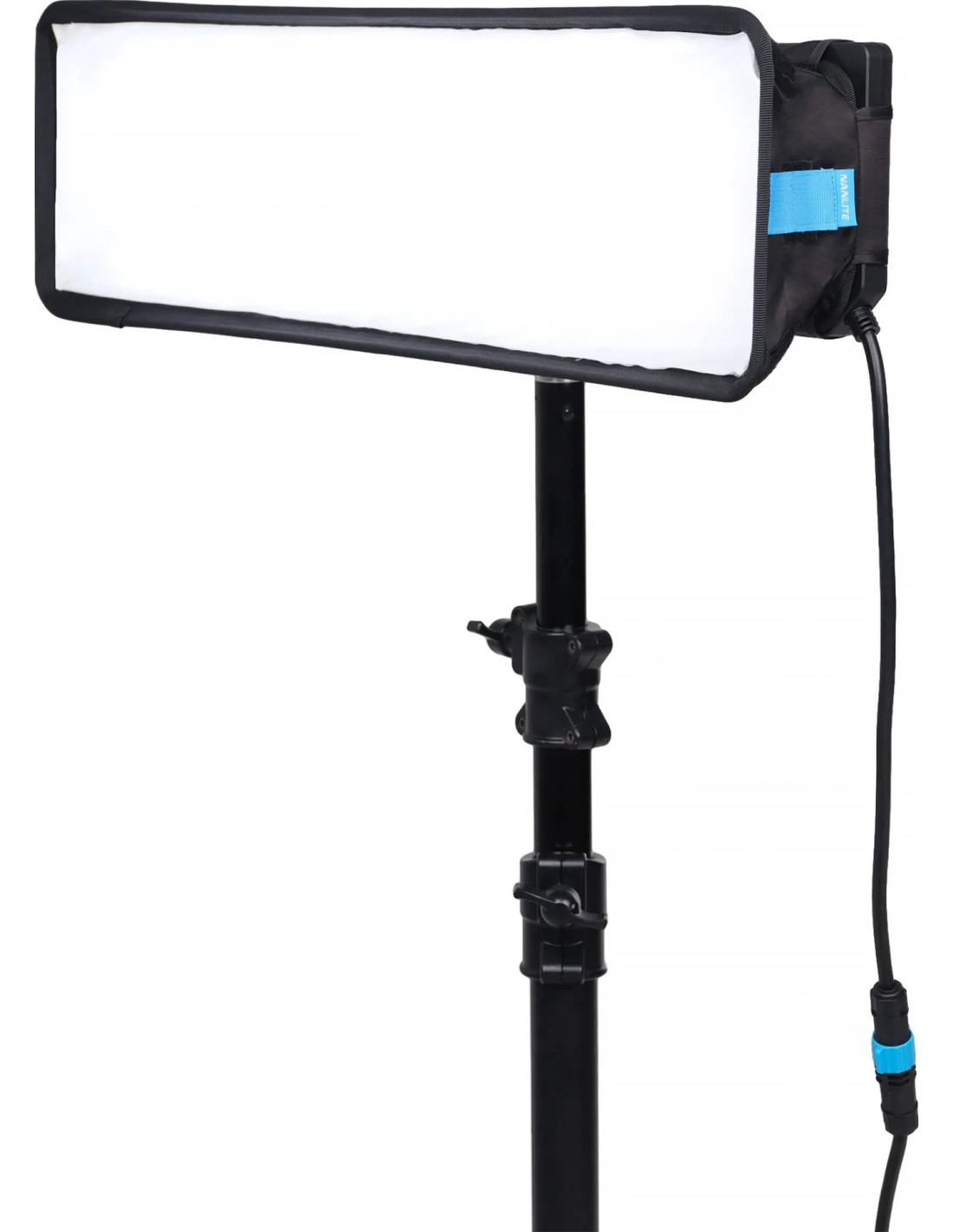

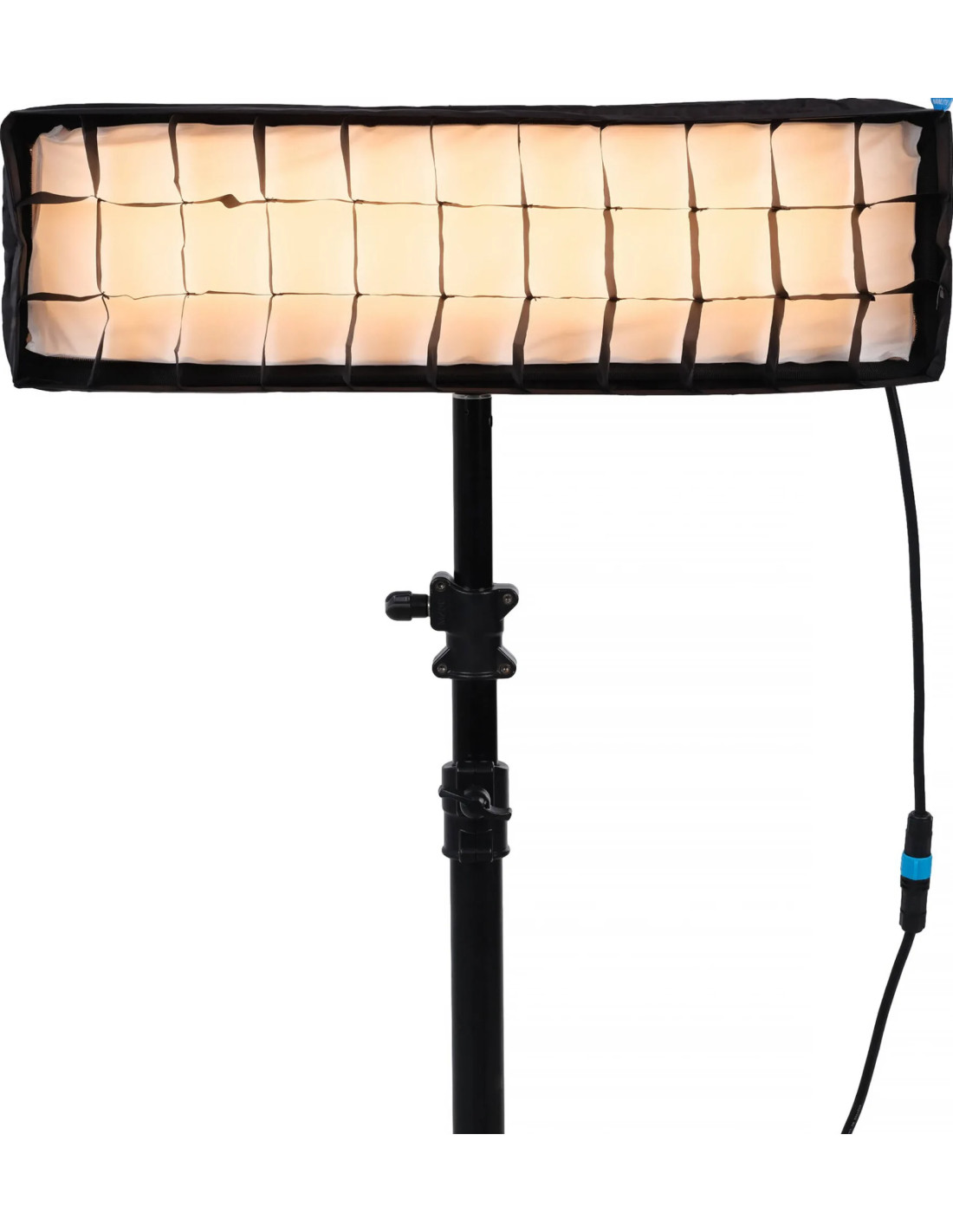

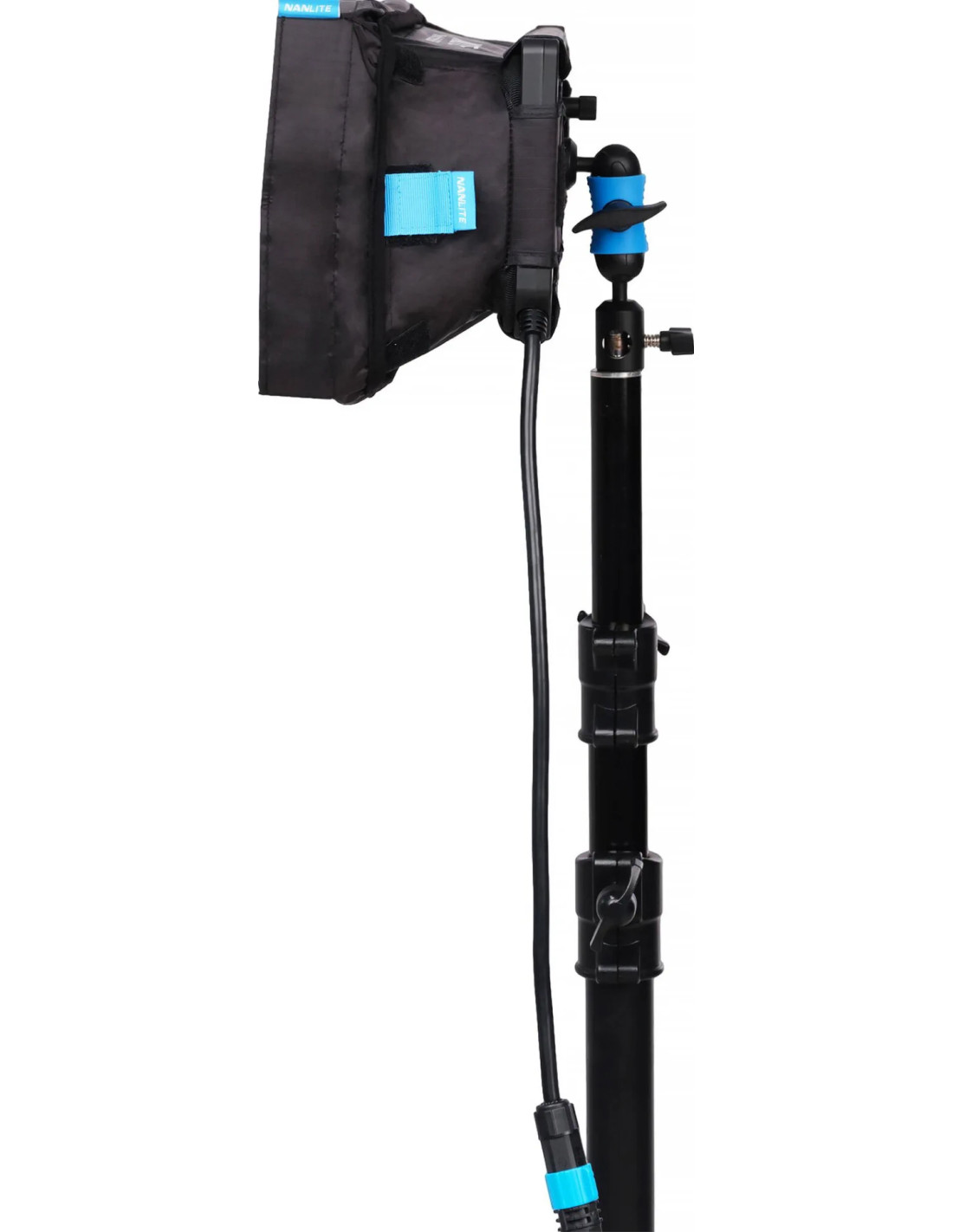

- Softbox × 1

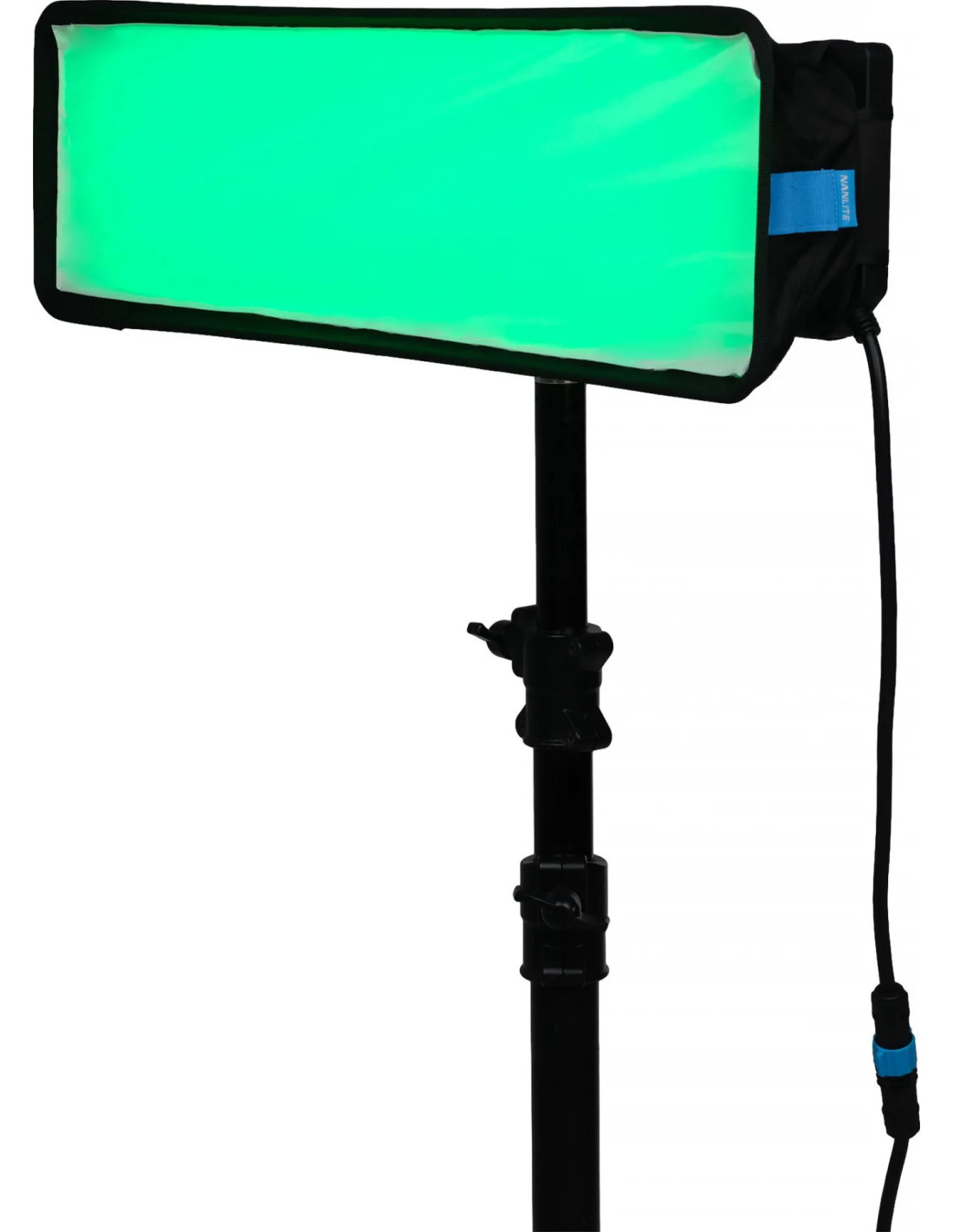

- Diffuser × 2 (standard diffuser × 1 + Lite diffuser × 1)

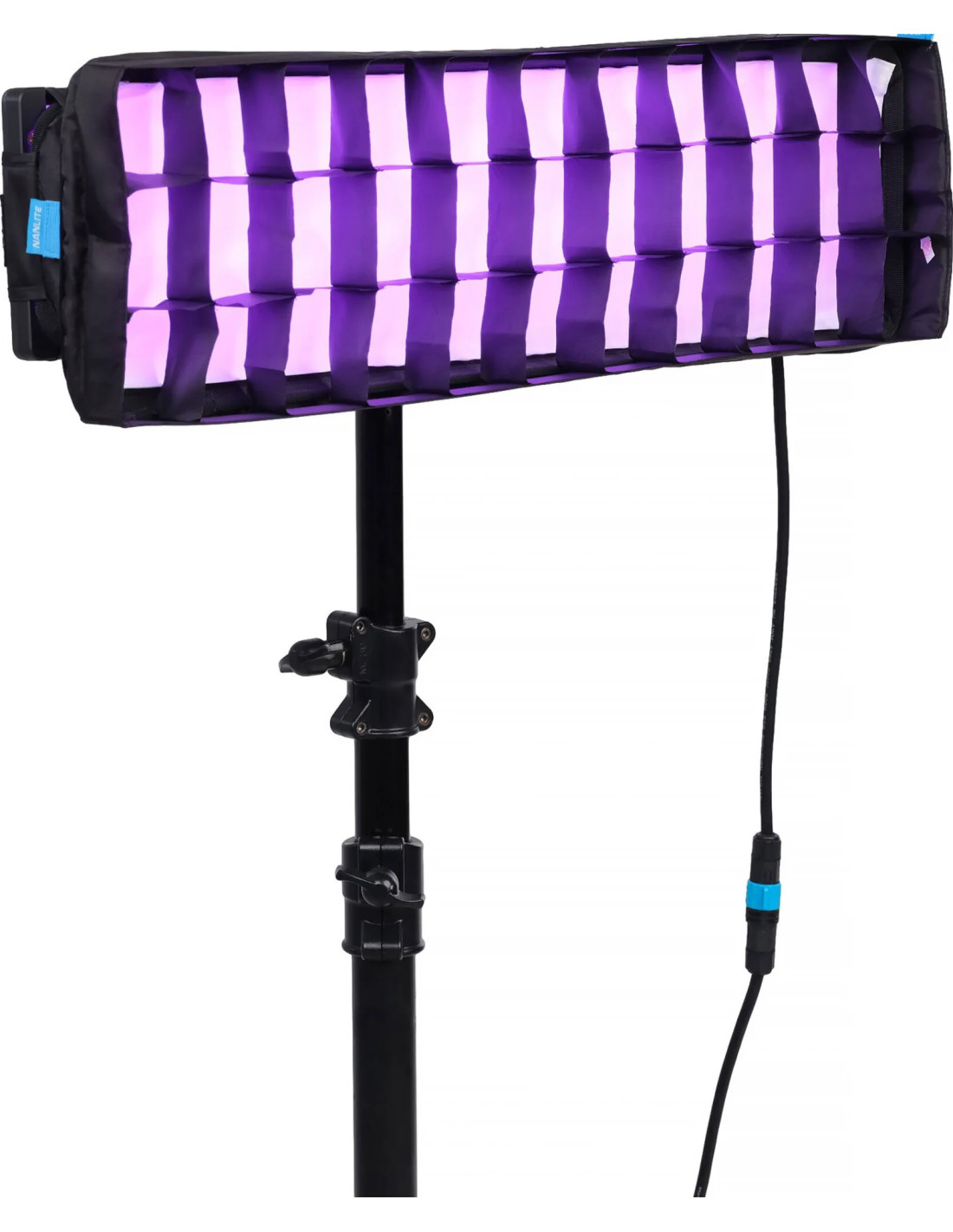

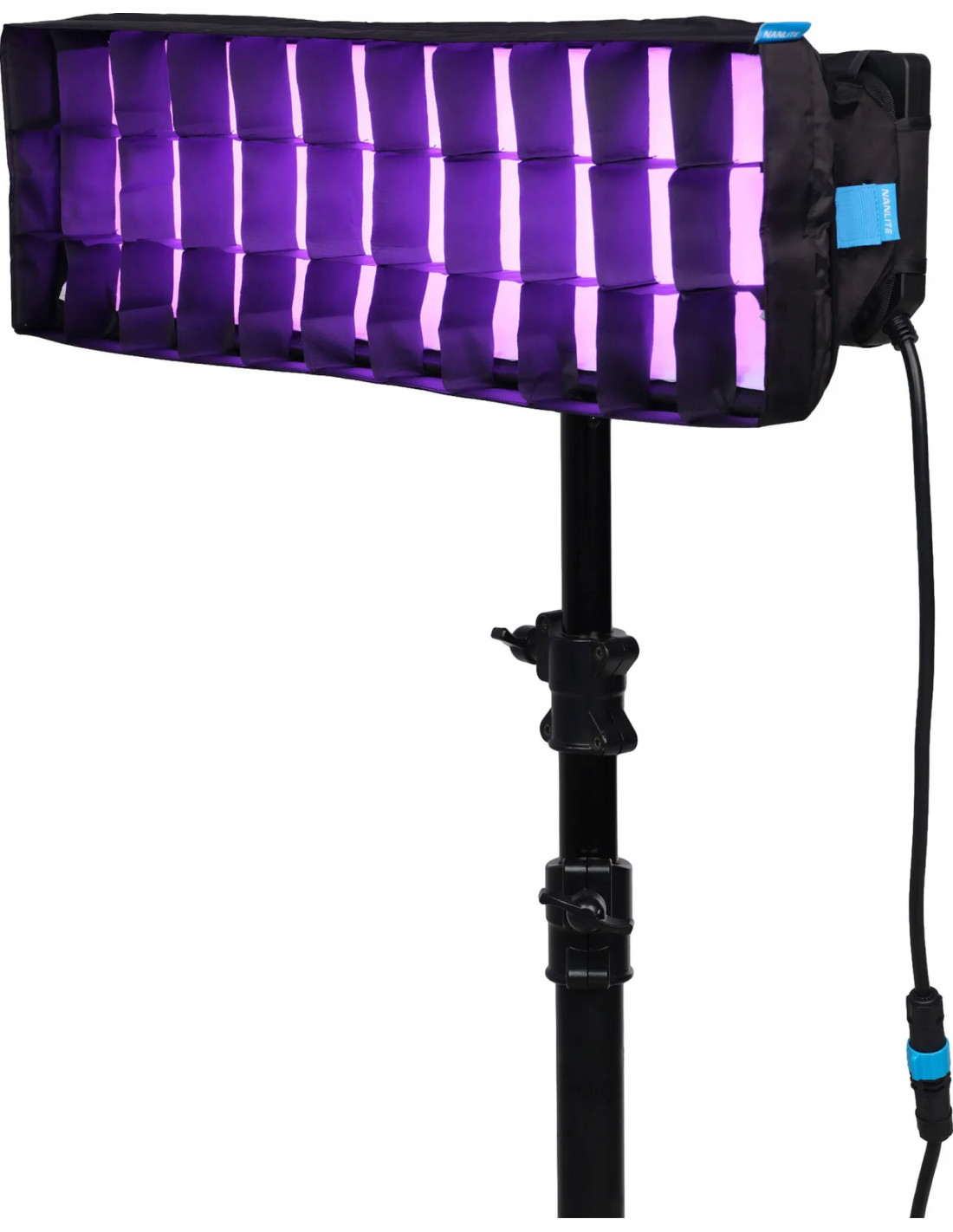

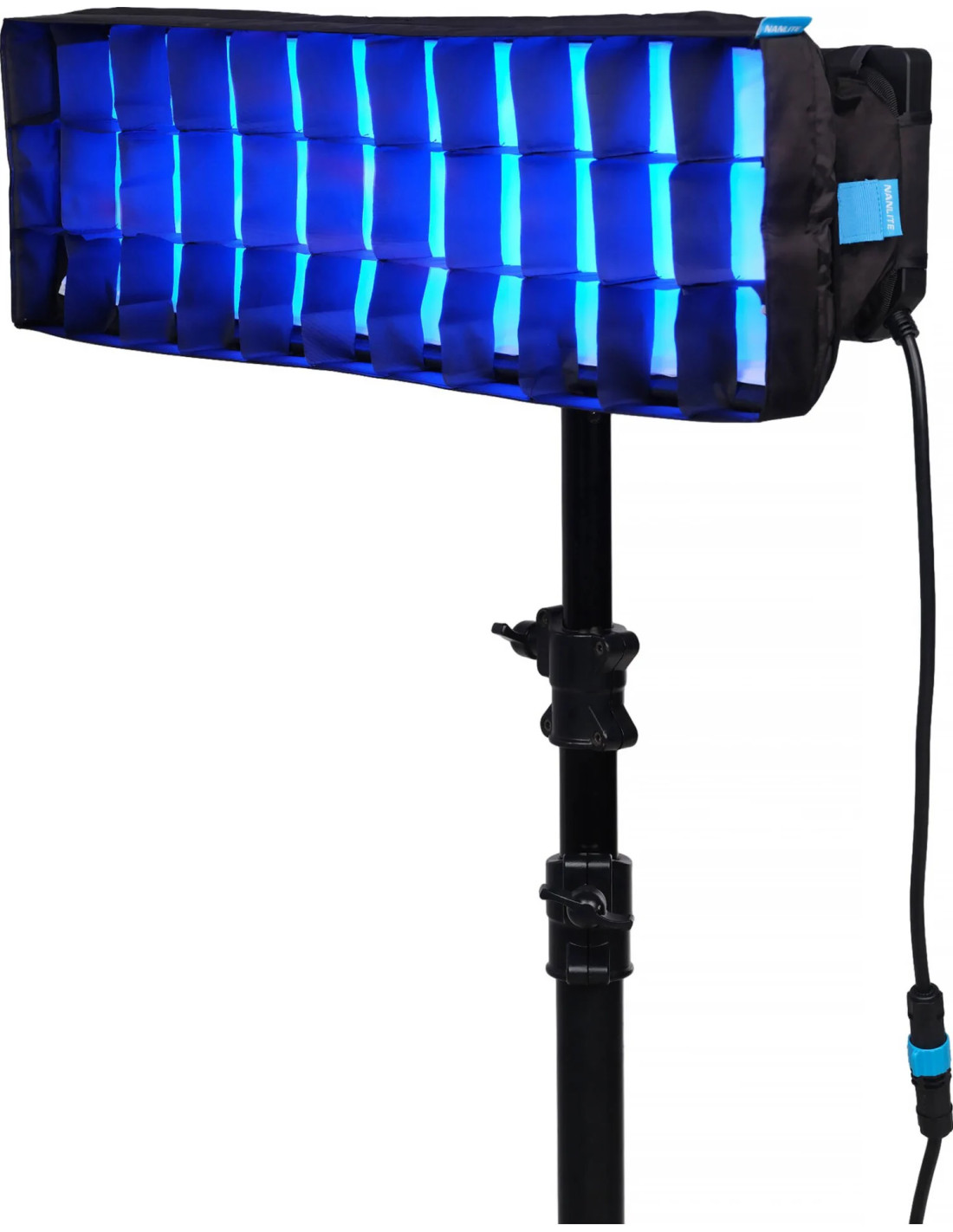

- bee nest × 1

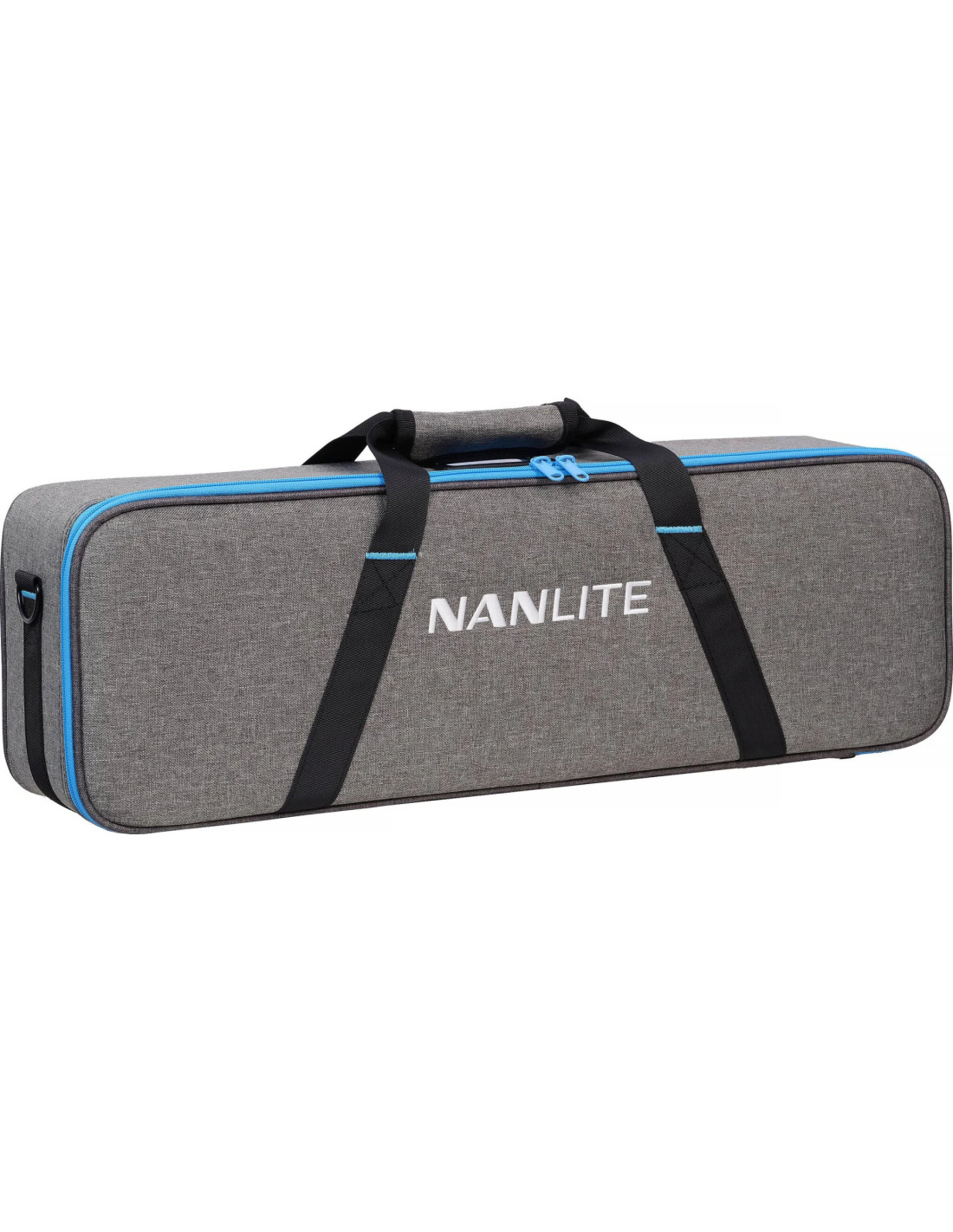

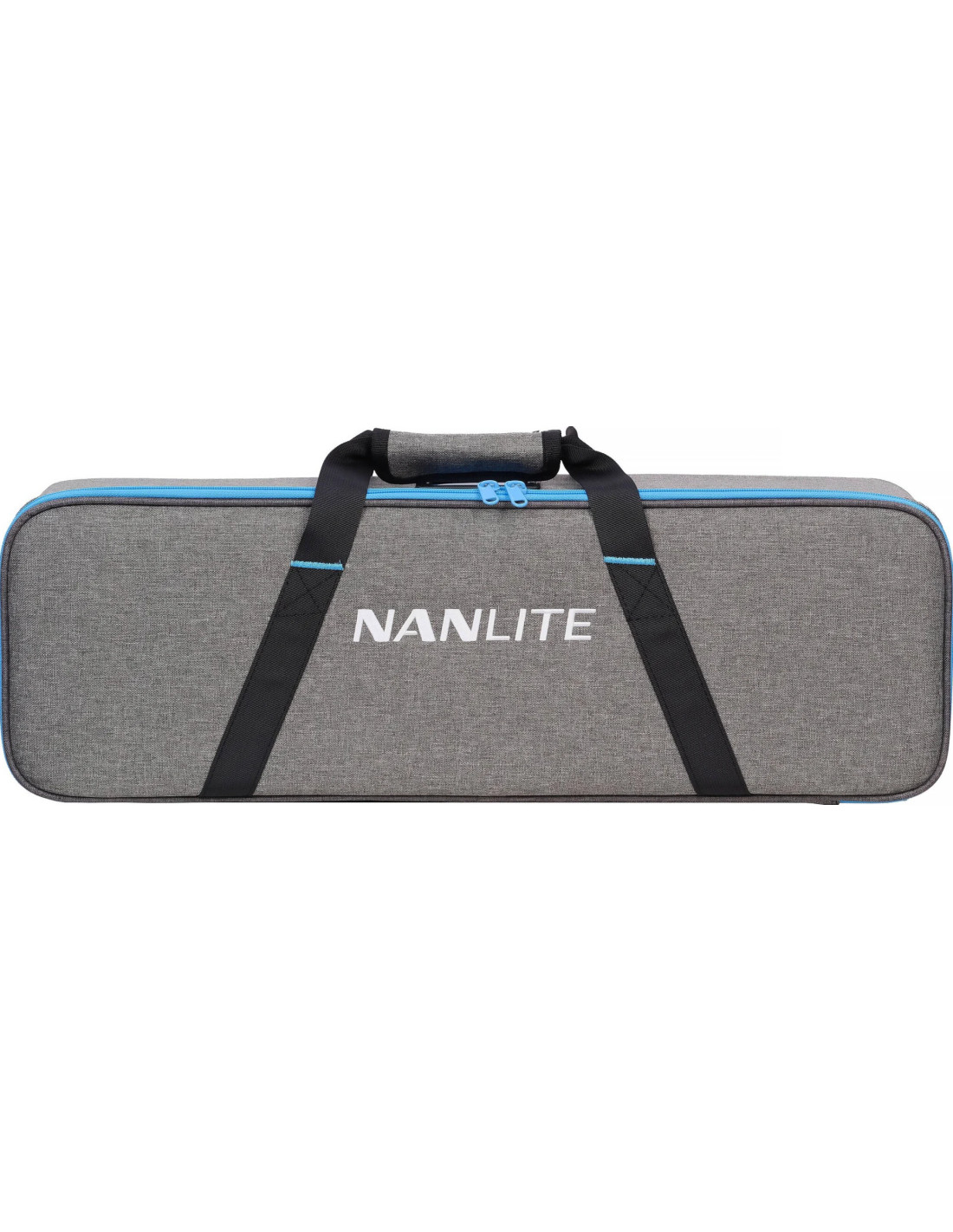

- Transport bag × 1
- User manual × 1

Technical details:
- Brightness control: DMX, app
- Color temperature: 2700-7500
- CRI: 96
- Power: 72
- Power supply: DC (battery) 14.4-26V, DC (battery) 7.4Vx2, AC100-240V 50 / 60Hz
- Bright spectrum: RGB
- DMX: Yes
