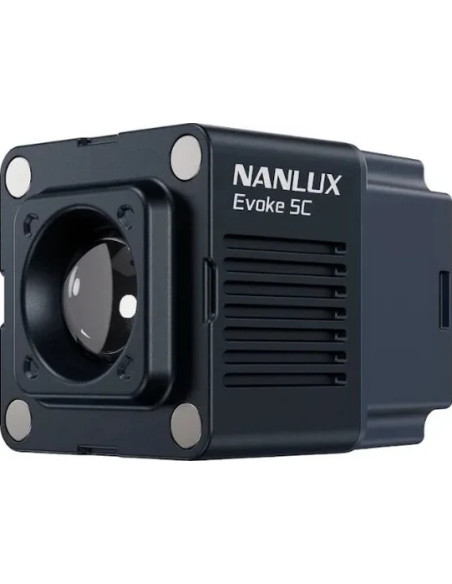

EVOKE 5C 8KIT FULL-COLOR RGB SPOT LIGHT

Portable lighting solution

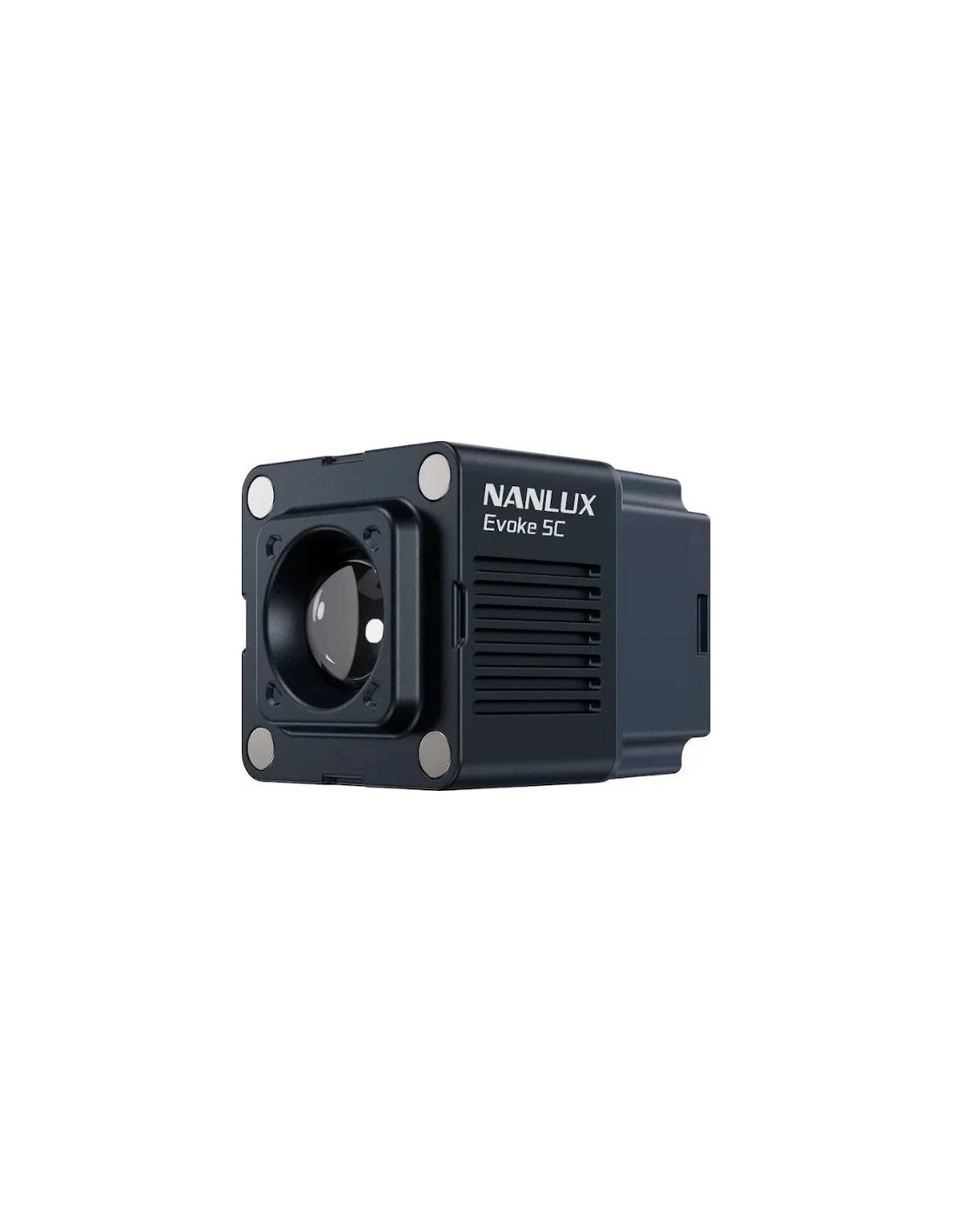

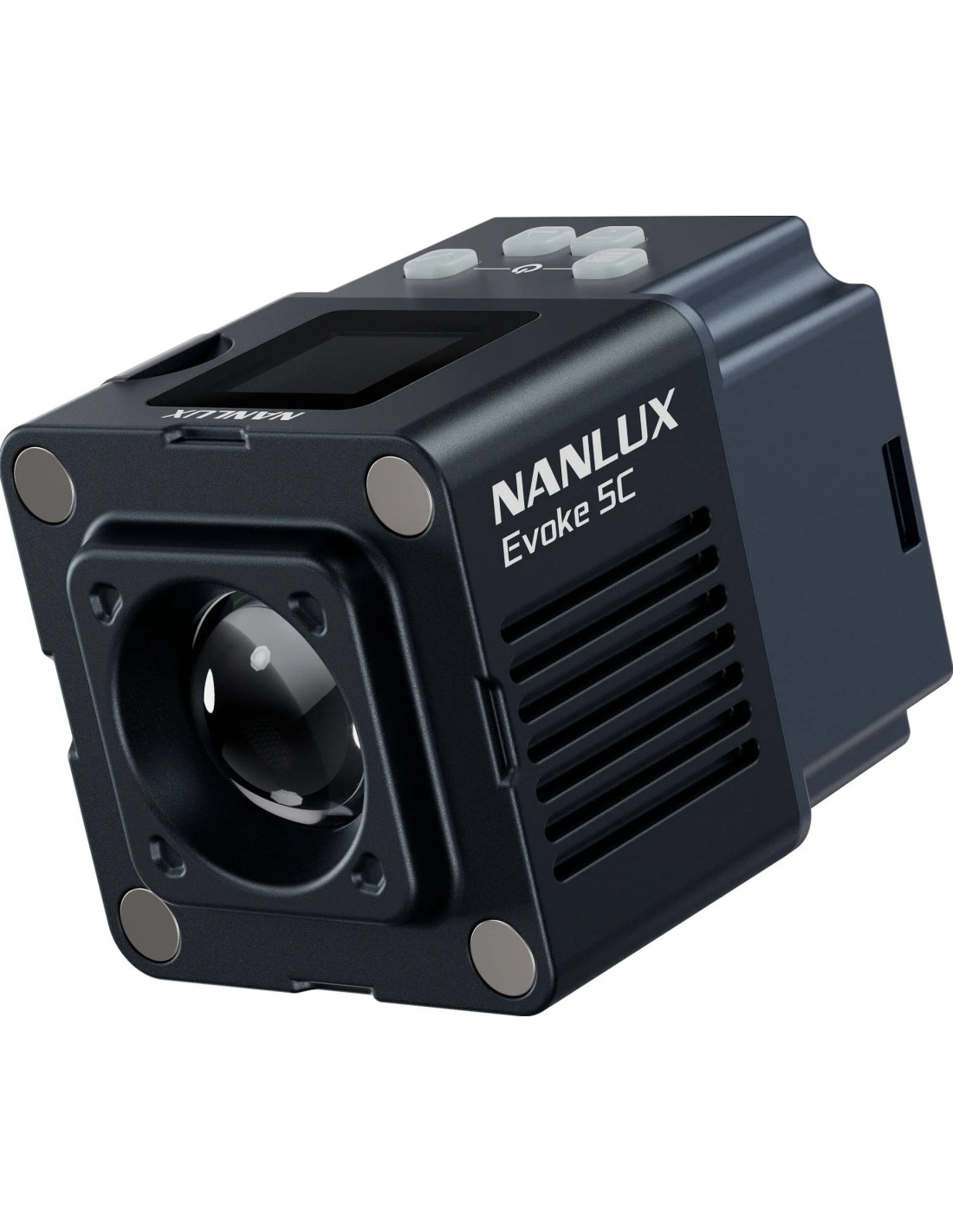

Light your scene with the Kit of 8 spotlights RGB EVOKE 5C LED of Nanlux. Composed of eight of their most compact appliances, the 6W EVOKE 5C spotlights offer a complete color rendering, an extremely large CCT interval (from 1000 to 20,000 K), a wide adjustment of the green / magenta tint and an advanced control system. The kit also includes a wide range of magnetic modifiers and accessories with a robust protective case for charging, storage and transport. Additional advantages are the IP67 classification resistant to weather and an ecosystem complete with magnetic accessories. Together with lights, Nanlux includes bondoor, speakers, soft domes, snoots and thermal screens. The list continues with brackets, E27 clog adapters, CRMX modules, 15-35 ° projection accessories, gobo and more. Thanks to Nanlux's Nebula C8 technology, every ultra-compact Evoke 5C produces red, intense red, amber, lime, green, cyan, blue and indigo in an impressive format of 5.6 x 4.3 x 4.3 cm and a light body from 158 g. All these features make the 5c a versatile light that you can easily edit and bring wherever you go.

8 light kit

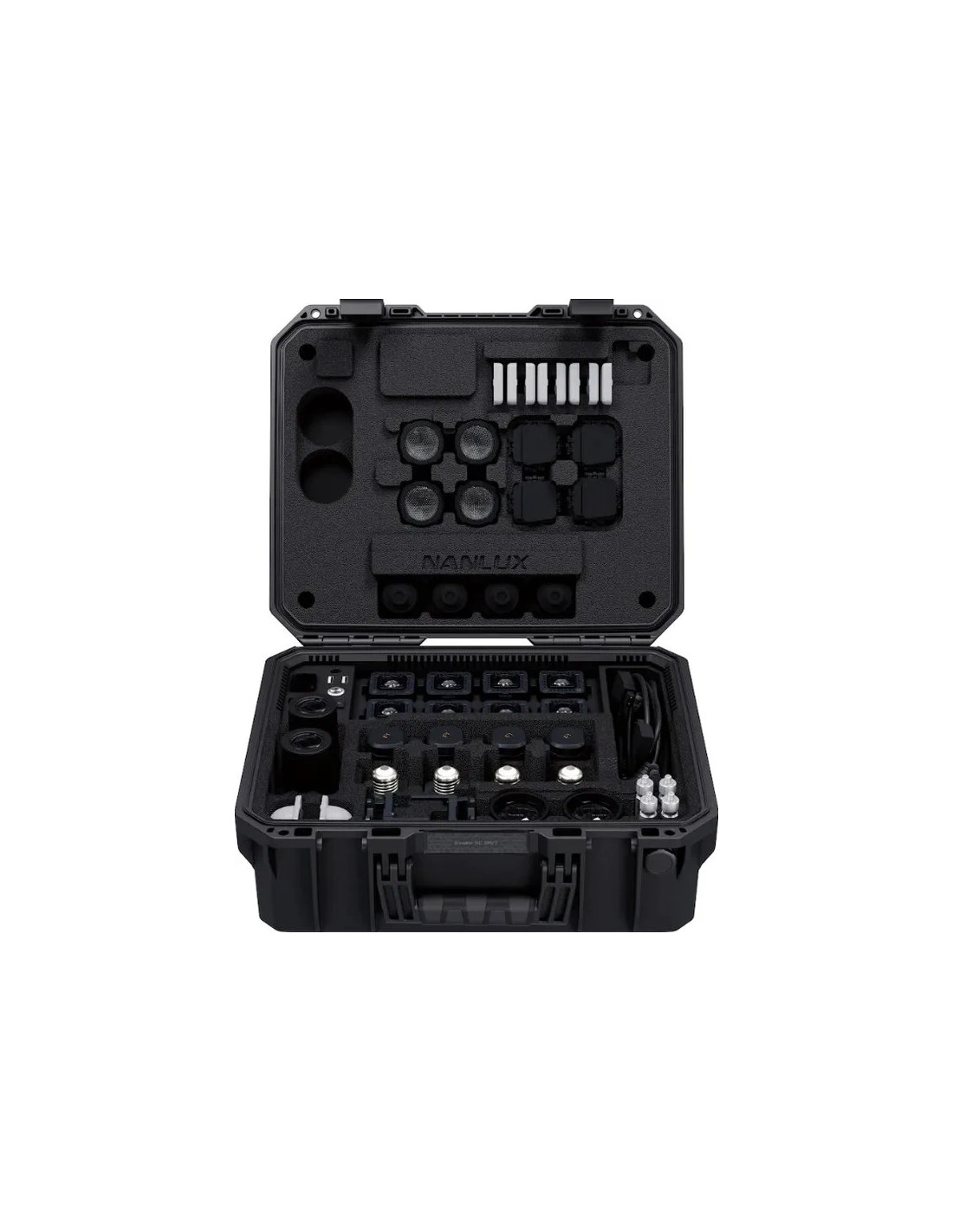

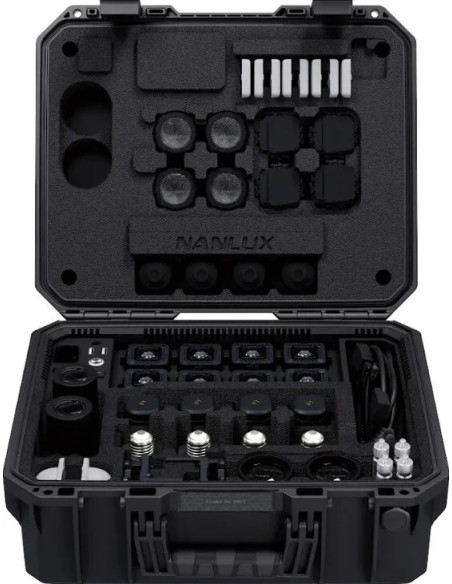

Included with the eight EVOKE 5C devices there is a complete set of magnetic accessories, including Bandoor to direct and limit the spread of light, speakers and domes to get a soft light, snoot for selective lighting and more. This kit also includes CRMX modules, 5/8 "baby pins with 1/4" -20 thread, magnetic adapters for E27 connections, brackets, lenses and two projection accessories from 15-35 ° with eight gobo for creative use. You can hook or unhook the modifiers effortlessly thanks to their magnetic design. A robust protective case guarantees the conservation and safe transport of the entire kit. The case is equipped with magnetic contact points that recharge the EVOKE 5C units and the battery gripming when connected to the AC, CC or PD power supply. Two USB ports allow the top-up of external devices.

For multiple scenarios

Use the EVOKE 5C devices to illuminate scenes and objects, enhance details, create atmosphere, add light points or create precise accent lighting. These are compact LEDs for a delicate filling light, as well as for macro photography and miniature objects / products. Each Evoke 5C naked delivers up to 496 lux at 1 meter and 5600k with extended output options using additional modifiers included, such as fresnel lenses and spots beam. Hide the devices behind objects in the frame to add size to a scene, act as a practical light or illuminate the products.

Color lighting

Just like the most powerful lights of the EVOKE series, each 5C model allows an intensity adjustment from 0 to 100% and advanced light mixing technologies, guaranteeing precision in the variations of 1000K CCT up to 20.000K. The high values of CRI 98 and TLCI 98 highlight the precise color rendering of the light, which translates into pleasant shades for the viewer. Access the CCT, HSI, HSIW, RGBW, XY, Gel and device effects for customized lighting options.

Gel mode and creative effects

NanLux offers a wide range of methods to control EVOKE 5C units, supporting both wired and wireless control for simple or complex sets.

The lights have 460 lee gels and rosco for a quick selection, as well as 15 integrated effects for easy lighting simulations. These include CCT loop, int loop, hue loop, flash, pulse, storm, police car, TV, paparazzi, candle / fire, disc, bad bulb, fireworks, explosion and welding.

Intuitive and advanced control options

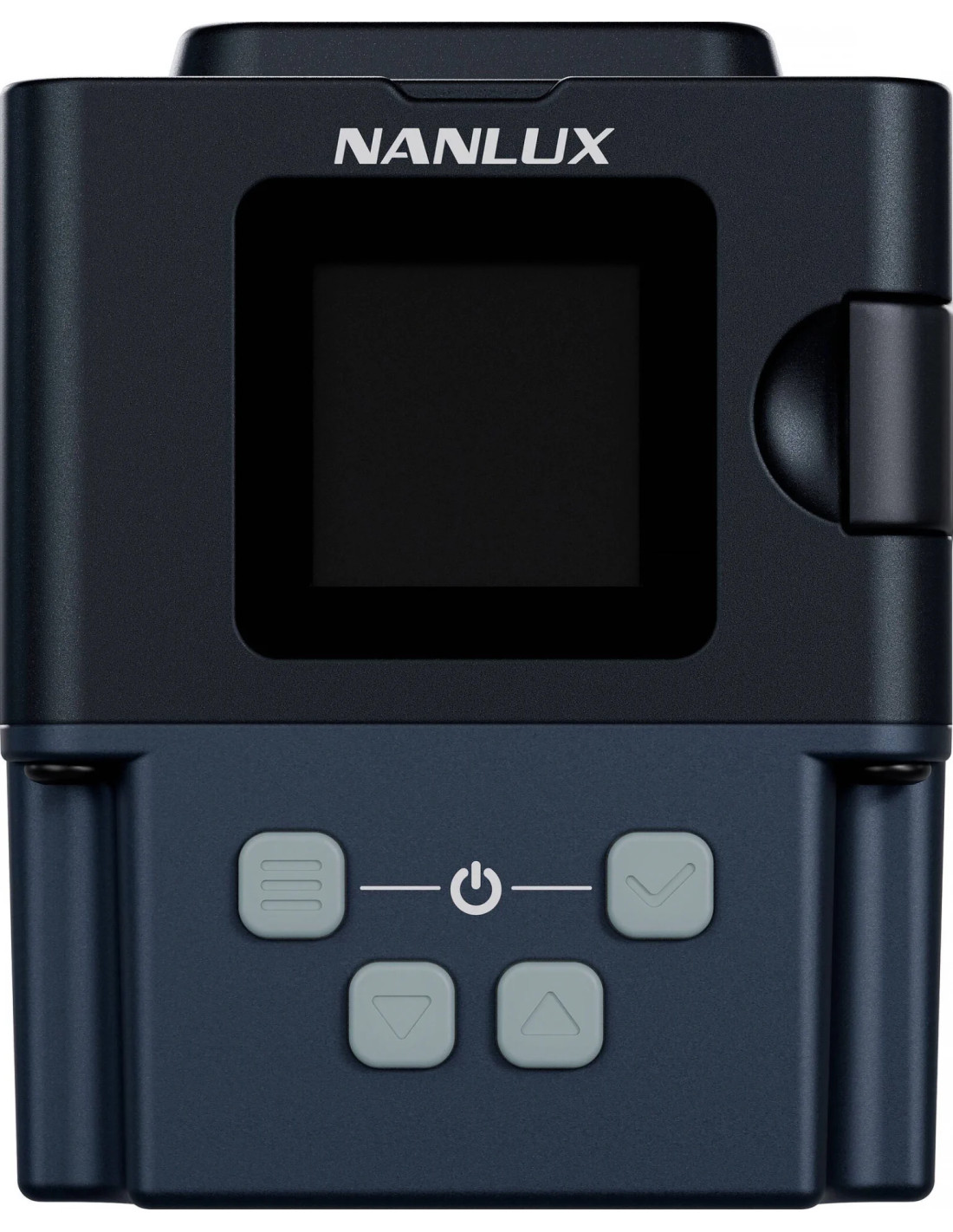

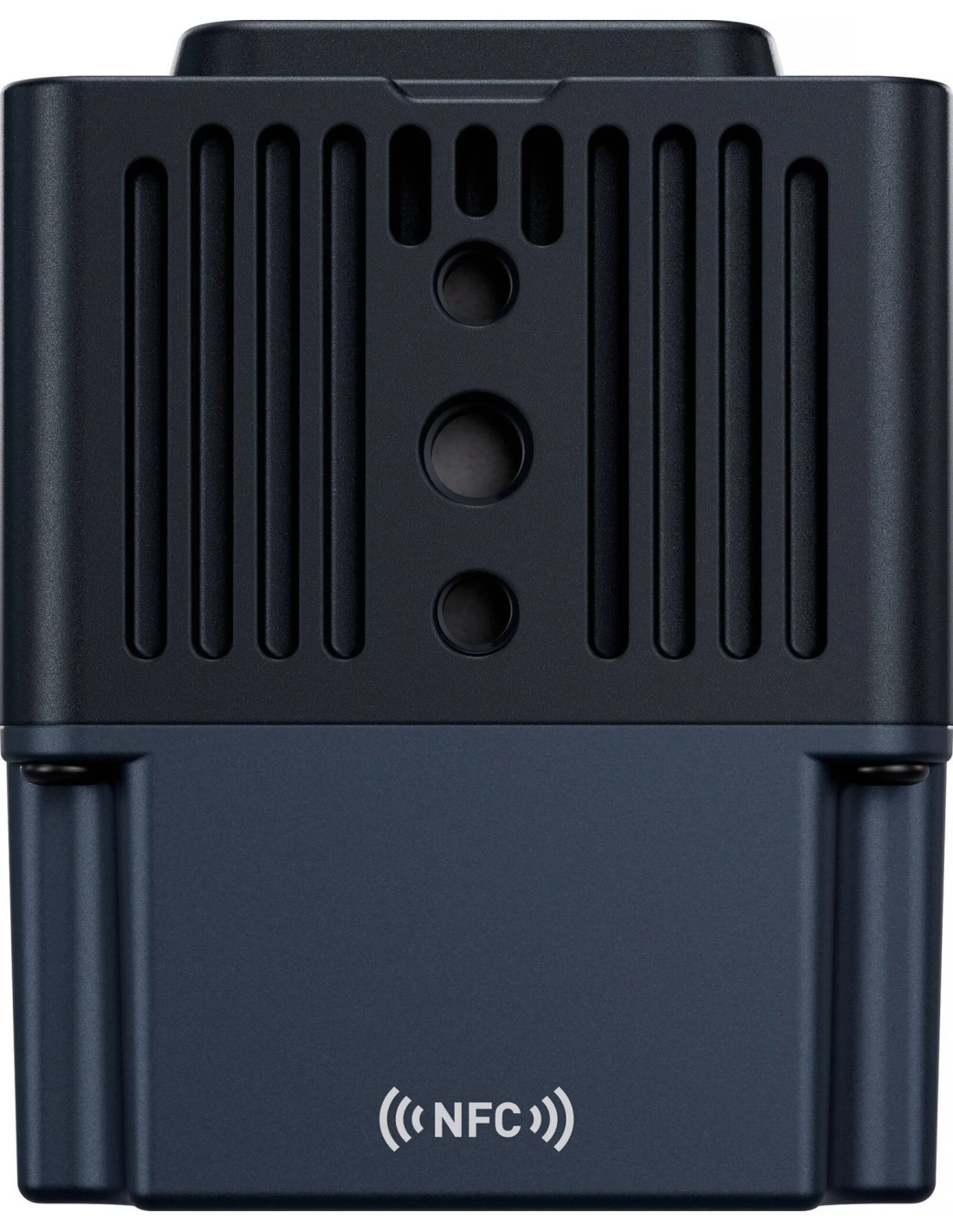

Choose the integrated or wireless NanLink 2.0 app via Bluetooth for an intuitive settings management. The screen brightness is adjustable and can be set to turn off automatically after a certain period of time, if necessary. Furthermore, the 5C also supports DMX / RDM and LumenRadio CRMX (CRMX modules are included). The NFC coupling is another addition to these lights.

Power supply and accessories

• One of the main features of these devices is an internal battery with a 50-minute full power range. It is possible to recharge the lights using an optional adapter or a power bank with a nominal power of 5V / 2A or higher.

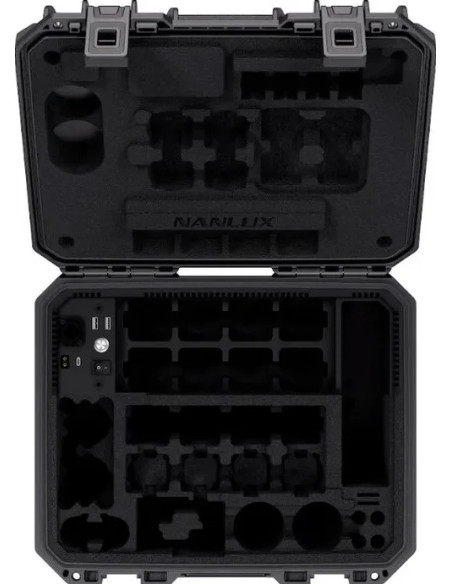

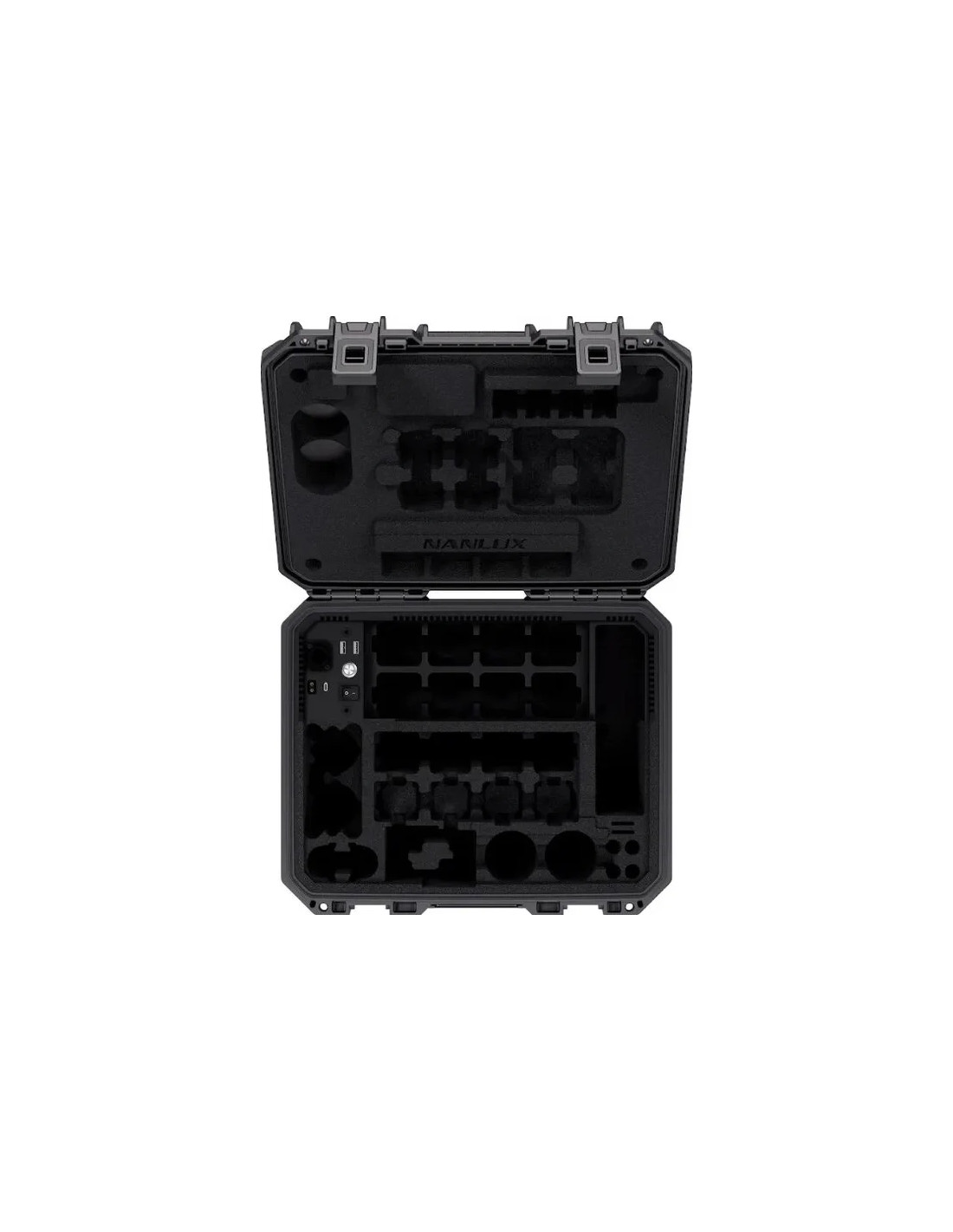

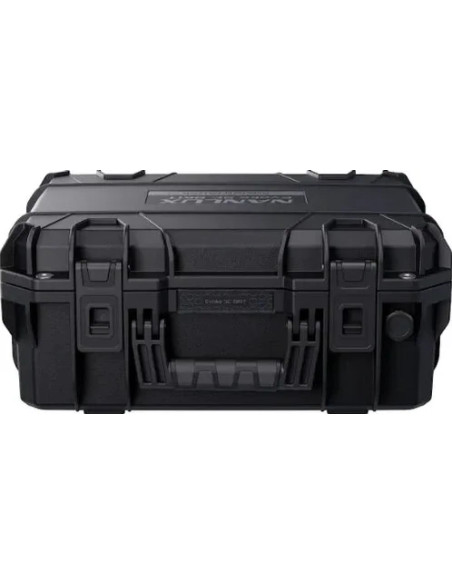

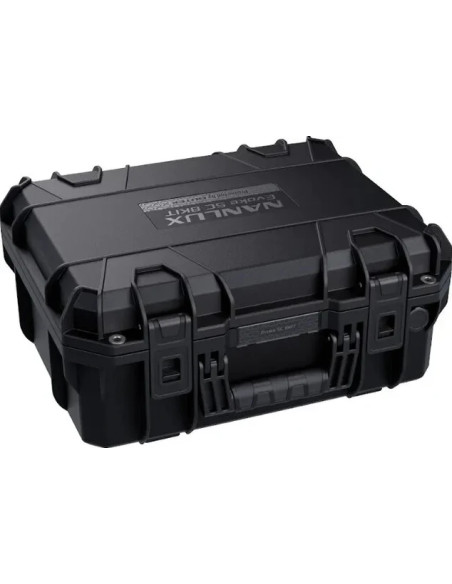

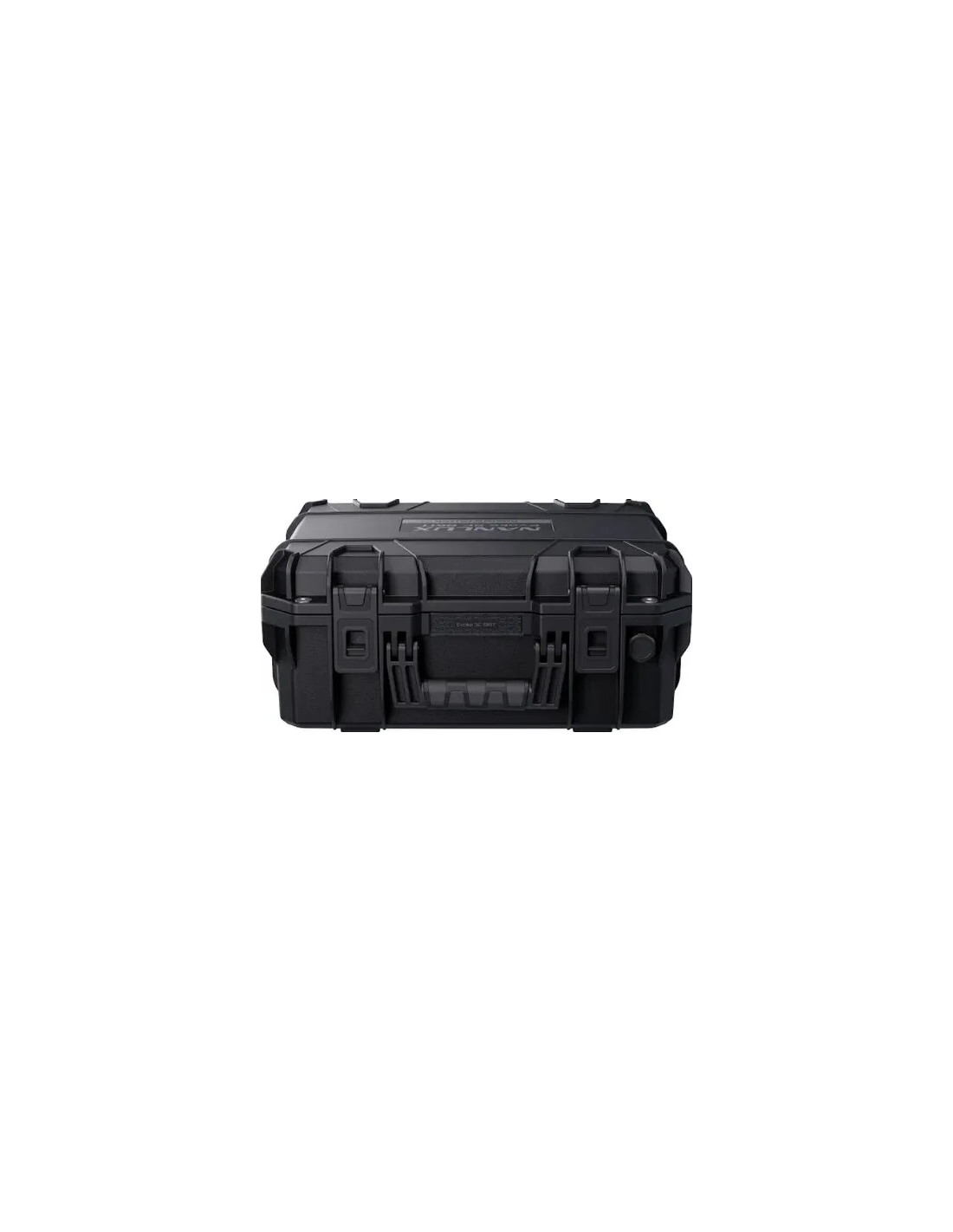

• Housing GUTEK T-230 supplied offers an all-in-one solution for charging, storage and transport. Electronic contacts support the top-up of eight devices including and four battery handles. Each battery handle allows a 4,78-hour range of brightness increased by 4.7 hours.
• Each light has a beam angle of 25 ° and includes a wide variety of modifiers for different lighting needs. Electronic contacts communicate with selected modifiers for optimized performance.

Protection for all weather conditions and more

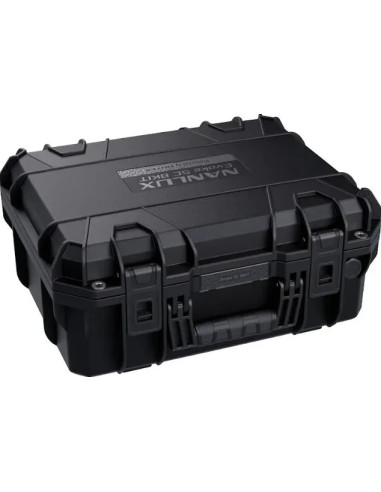

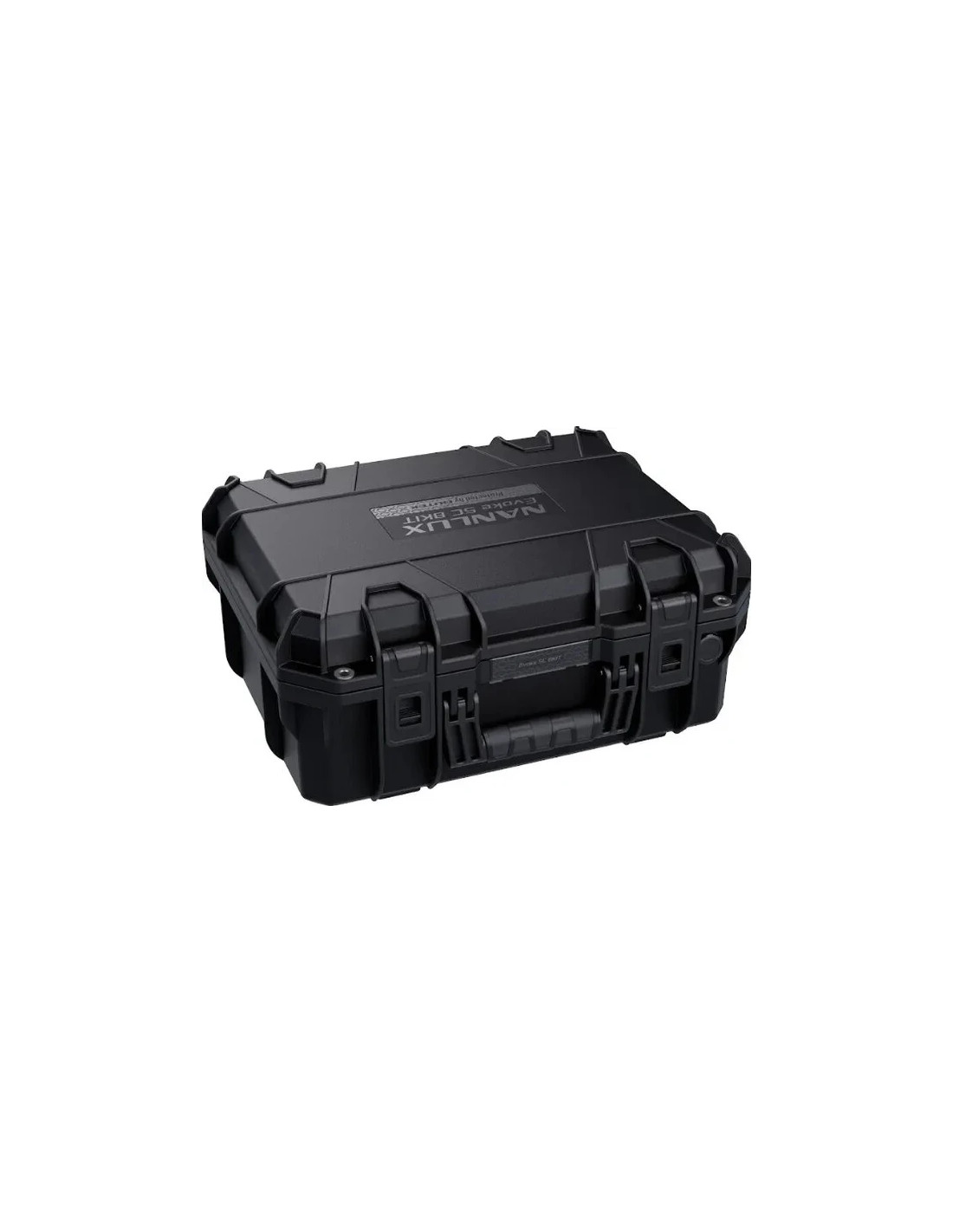

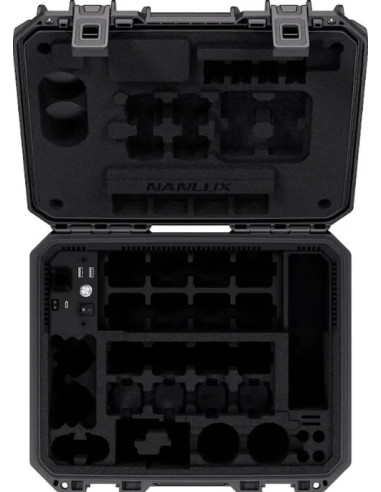

The IP67 classification of devices protects them from dust, water or any adverse atmospheric condition or difficult environments. They have a waterproof design up to 30 minutes at a depth of 1 meter and optional IP68 underwater cases are available to work at a depth of 30 meters. These lights are also magnetically fixable and have 1/4 "-20 connections for a wide mounting compatibility. If the lights work for long periods of time, the thermal screens included by NanLux keep them cold to the touch. Firmware updates are available for lights and some accessories, such as battery-powered handles and CRMX modules. The included hard case has foam customized for accessories and a complete IP67 protection degree. For maximum safety, the case has a structure fireproof and offers resistance to pressure and impacts.

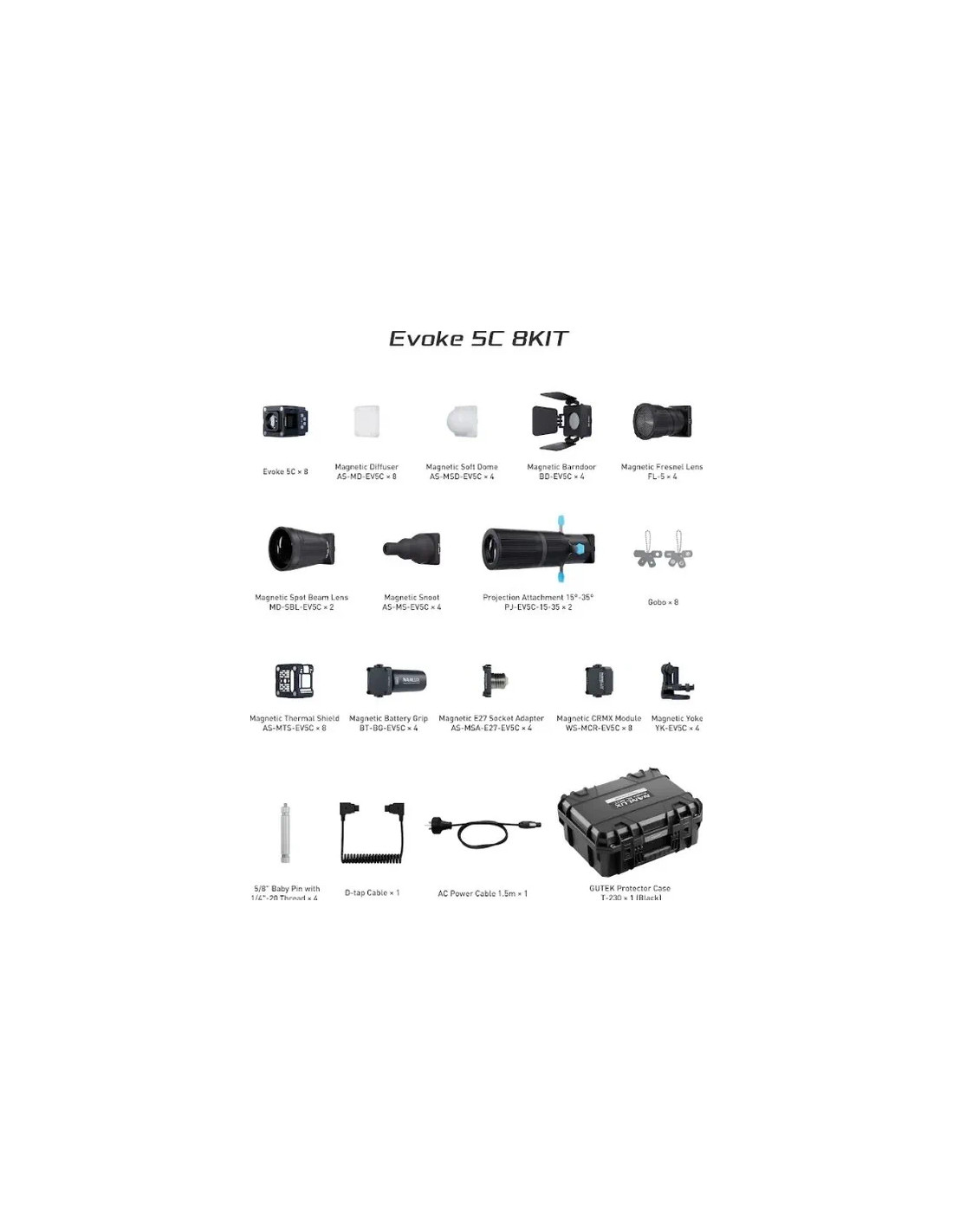

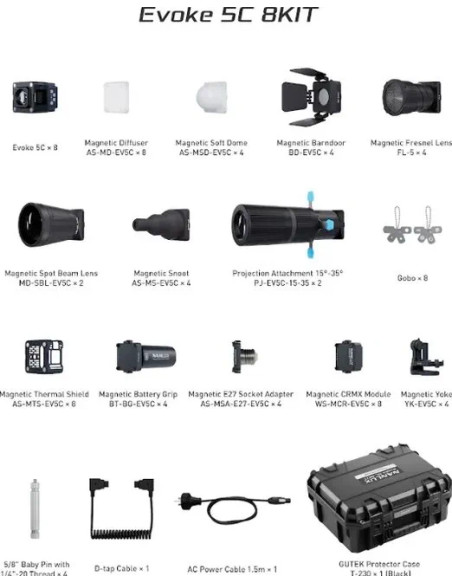

Included in the kit:

• RGB LED spotlight NanLux EVOKE 5C (8 light kit)
• 8 x magnetic diffuser
• 4 x Magnetic soft dome
• 8 x magnetic CRMX module
• 8 x magnetic thermal screen
• 4 x magnetic barndoor
• 4 x magnetic snoot
• 4 x magnetic fresnel lens
• 4 x magnetic battery handle
• 4 x 5/8 "baby pin with 1/4" -20 thread
• 4 x magnetic adapter for socket E27
• 4 x magnetic bracket
• 2 x Projection connection (15-35 °)
• 8 x gobo
• 2 x Magnetic Lenses Spot Beam
• AC power cable (4.9 ')
• D-TAP cable
• Protective charging case GUTEK T-230 (black)
