EVOKE 5C Full-Color RGB Spot Light Kit

Practical and versatile

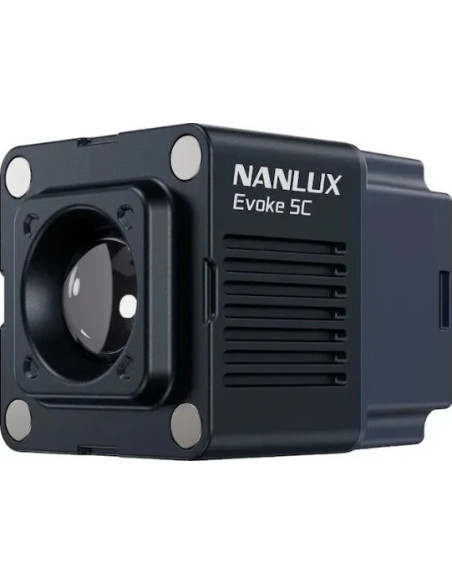

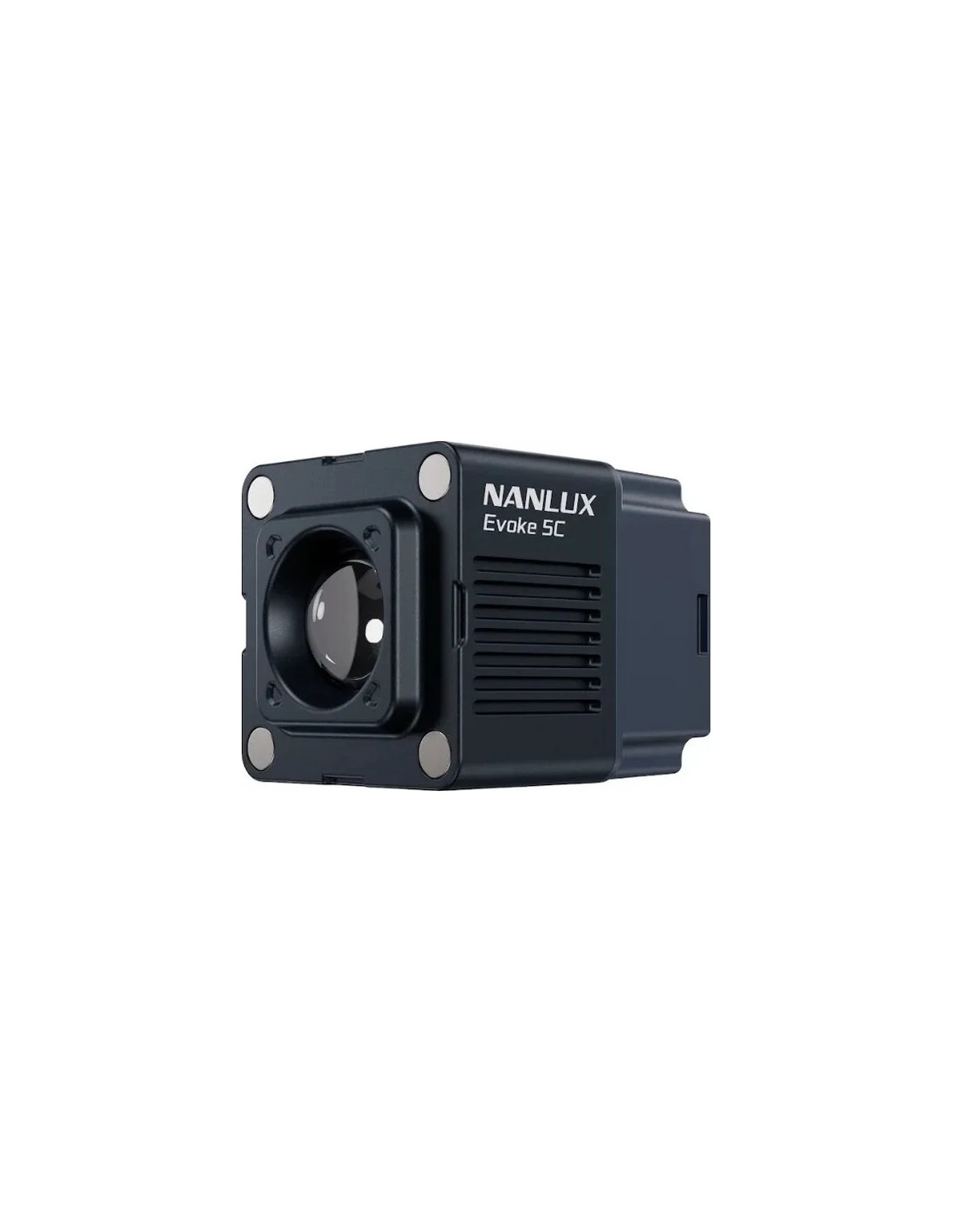

Designed as the most compact EVOKE spotlight Nanlux, the EVOKE 5C RGB LED Spotlight Kit It includes a 6 W device with color emission, an extremely large CCT range (1000 to 20,000 K), a wide adjustment of the green / magenta tint and an advanced control system. The kit also includes a magnetic fresnel lens and a magnetic grip for the battery, for greater practicality.

Additional advantages are the IP67 classification resistant to weather and an ecosystem of magnetic accessories. Together with the light, Nanlux includes a 1 meter long USB-C cable and a wide range of magnetic accessories, such as fins, a diffuser, a soft dome, a snoot and a thermal screen. A transport bag for storage and transport is also provided.

Thanks to Nanlux's Nebula C8 technology, the ultra-compact Evoke 5C produces red, intense red, amber, lime, green, cyan, blue and indigo in an impressive format of 5.6 x 4.3 x 4.3 cm and a light body from 158 g. All these features make it a versatile light that you can easily edit and bring wherever you go.

Small and bright

Use the Evoke 5C to illuminate your scenes and your items, enhance the finest details, create atmosphere, add light points or make a precise accent lighting. The ideal compact LED solution for a delicate fill light, as well as for macro photography and miniature objects / products. Despite the small size, the EVOKE 5C naked delivers up to 496 lux at 1 meter and 5600k or 830 lux using the Fresnel lens included at the same distance, CCT and 25 °. It can be easily hidden behind objects in the frame to add size to a scene, act as a practical light or illuminate products.

Magnetic modifiers

Supplied with the Evoke 5C there are a fresnel lens and a set of magnetic accessories, including modifiers and a magnetic grip for the battery. You can hook or unhook effortless accessories thanks to their magnetic design.

• Fresnel lens increases power.
• The Bandoors direct and limit the spread of light.
• The diffuser and the dome are included to get a soft light.

• A snoot allows selective lighting.

Color lighting

Just like the most powerful lights of the EVOKE series, the 5C model allows an intensity adjustment from 0 to 100% and advanced light mixing technologies, ensuring precision in the 1000K CCT variations up to 20.000K. The high values CRI 98 and TLCI 98 highlight the precise color rendering of the light, which translates into pleasant shades for the viewer. Access CCT, HSI, HSIW, RGBW, XY, Gel and Effects of the device for customized lighting options.

Gel mode and creative effects

The light has 460 gels Lee and Rosco for a quick selection, as well as 15 integrated effects for simple lighting simulations. These include CCT loop, int loop, hue loop, flash, pulse, storm, police car, TV, paparazzi, candle / fire, disc, bad bulb, fireworks, explosion and welding.

Intuitive control options

NanLux offers a wide range of methods to control EVOKE 5C, supporting both cable and wireless control for simple or complex sets. You can choose between the integrated control or the NanLink 2.0 app via Bluetooth. The screen brightness is adjustable and can be set to turn off automatically after a certain period of time, if necessary.

Furthermore, the 5C also supports DMX / RDM and CRMX LumenRadio (requires an optional DMX adapter cable or a CRMX module). The NFC coupling is another novelty of this light.

Battery power supply and accessories

• One of the main strengths of this appliance is its internal battery that guarantees a 50-minute autonomy at full power.
• It is possible to recharge it using an optional adapter or a Power Bank with a nominal power of 5V / 2A or higher.
• The Evoke 5C also supports charging through electronic contacts. In this case, a battery grip is provided for a 4,7 hours augmented autonomy of 100% brightness.
• The light has a beam angle of 25 °, and other accessories and a variety of modifiers are available separately (optional Yoke, adapter for E27 and more attack). Electronic contacts communicate with selected modifiers for optimized performance.

Protection for all weather conditions and more

The IP67 degree of protection protects the dust, water or any adverse atmospheric condition or difficult environments. It has a waterproof design up to 30 minutes at a depth of 1 meter and an optional IP68 underwater case is available to work at a depth of 30 meters. The appliance is also magnetically fixable and has a 1/4 "-20 connection for a wide mounting compatibility. Use it by holding it in your hand or mounting it with its 1/4 "-20 attack with anti-rotation design. If the light stays on for long periods of time, the thermal shield included by NanLux keeps it cold to the touch. Firmware updates are available for light and some accessories, such as the battery holder and the optional CRMX module.

Porting

This kit is a comfortable, lightweight and portable lighting solution that includes essential accessories to cover most of the shooting situations. Use the EVOKE 5C as a spotlight or soft light and get a precise control of the beam angle. The case included, simple but versatile, allows you to pack, transport or fix the entire kit to the belt or a bag for larger equipment.

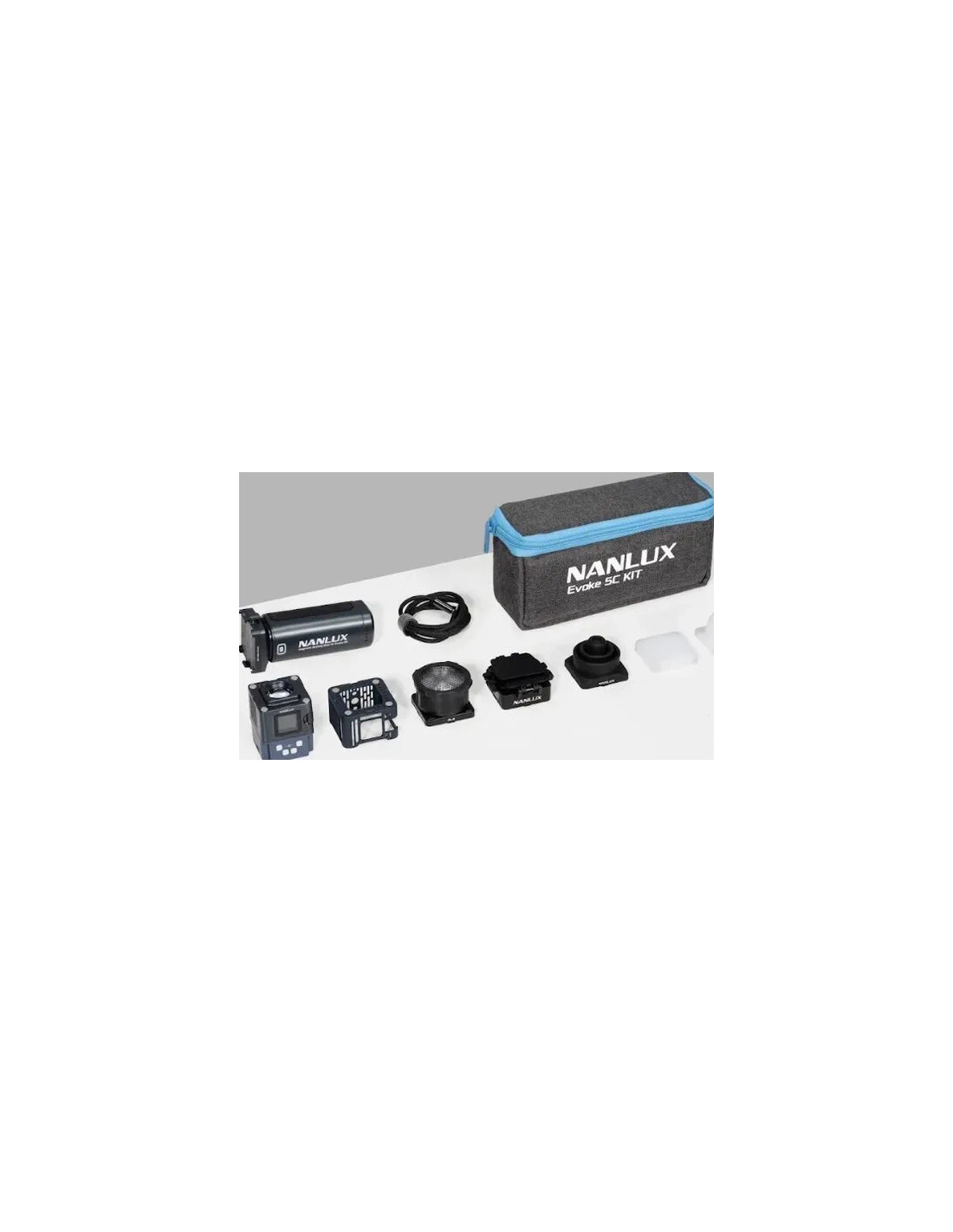

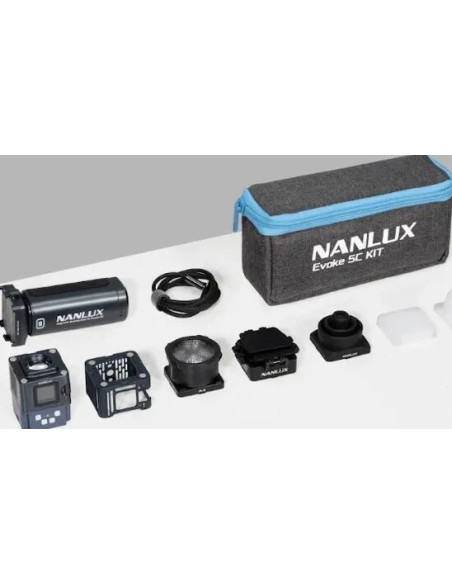

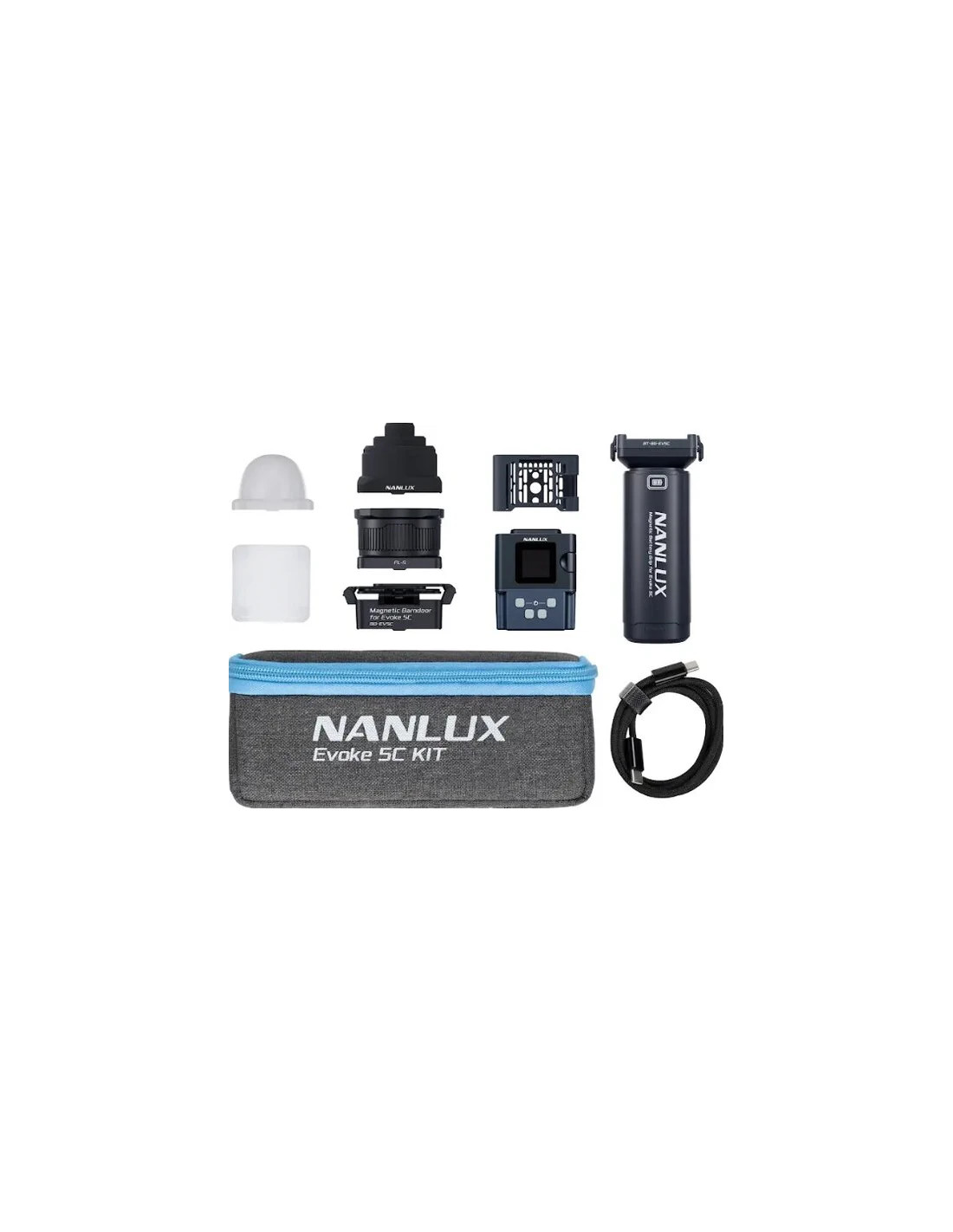

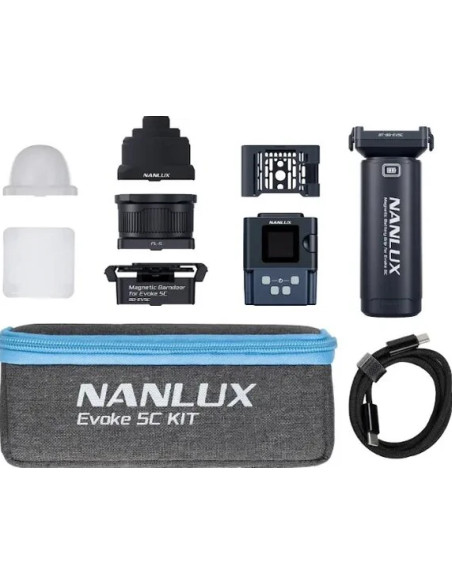

Articles included

• RGB LED Spotlight NanLux EVOKE 5C
• USB-C cable (1 m)
• Fresnel magnetic lens
• Magnetic battery handle
• Magnetic thermal screen
• Magnetic speaker
• Magnetic soft dome
• Magnetic barroor
• Magnetic snoot
• Transport bag
