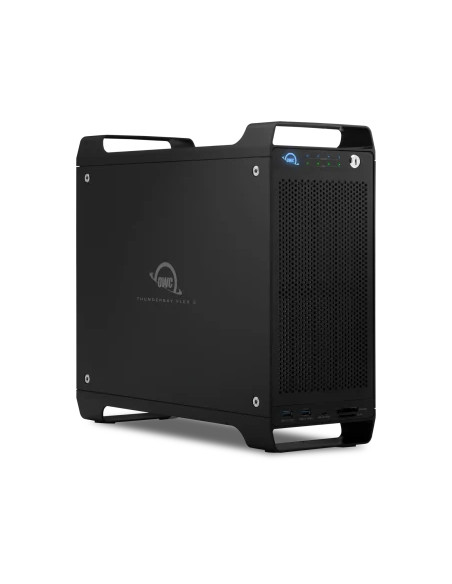

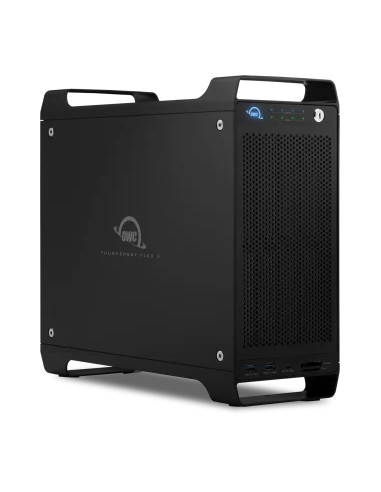

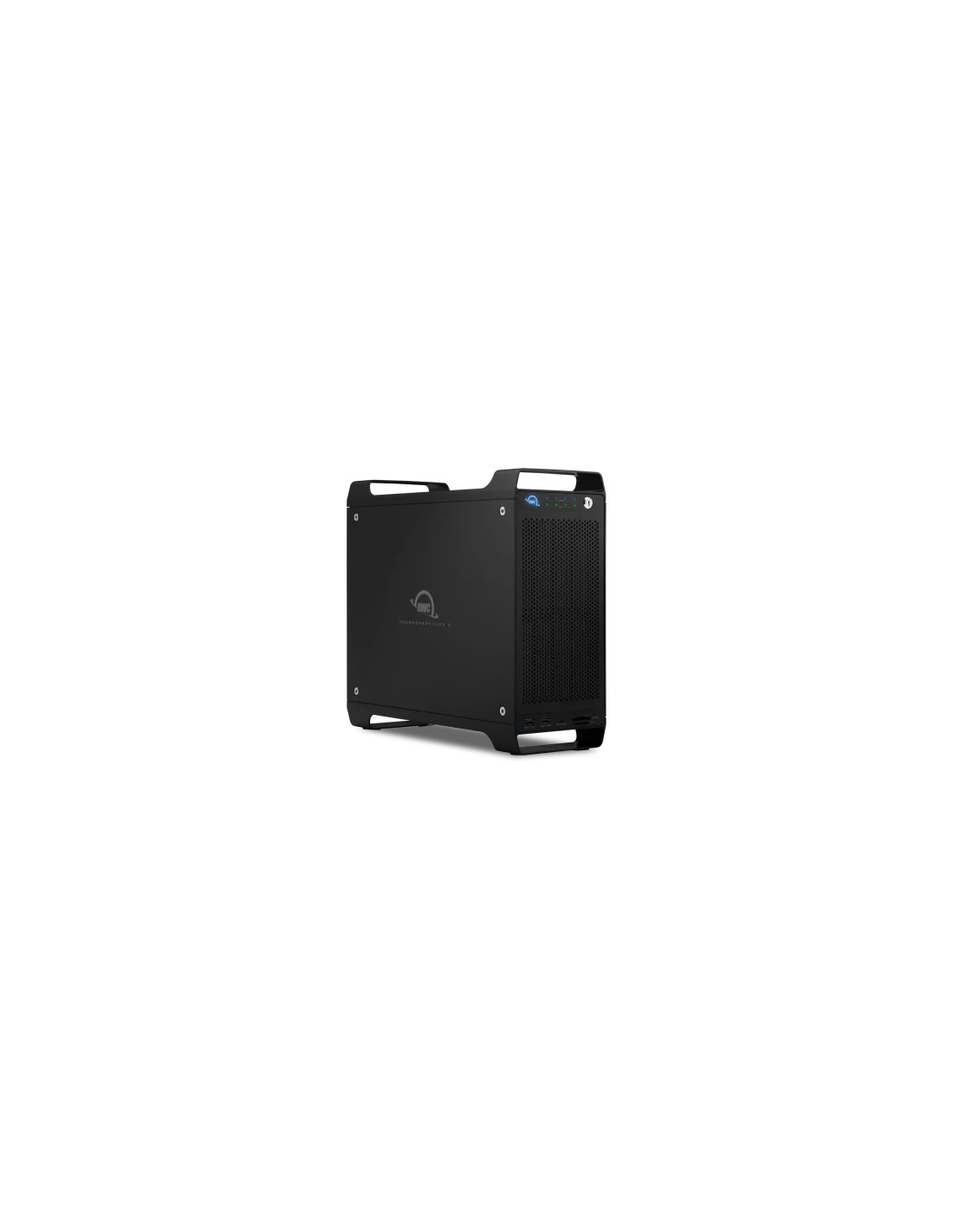

OWC TB3F80D064 64.0TB Thunderbay Flex Flexible 8-Bay Storage / Dock / PCIe Enclosure with 2x TB3 Ports Featuring Softraid XT. TB

The 64 TB RAID Thunderbay Flex 8 array to 8 Thunderbolt 3 housings of OWC It offers a flexible storage space. Designed to optimize production workflows, this RAID array is equipped with eight housings per unit from 2.5 / 3.5 ", each of which is pre-installed with a 8-tb disk drive. Preconfigured in RAID 5, the Thunderbay Flex 8 also supports RAID 0, 1, 0 + 1 (10), 4 and JBOD modes, allowing you to choose between speed and redundancy of data. Thunderbolt 3 and SATA III interfaces, as well as the speed of the Disk drives at 7200 rpm, guarantee quick access to data to play video editing, VFX, digital imaging and more. The 120 mm cooling fan prevents overheating, while the slot door with lock and the lock and the lock Slot Kensington Lock guarantee security.

Use CFExpress and SD UHS-II card slots to easily import 4K or 8K video or high resolution photos. A USB-C 3.2 Jan 2 port, two USB-A 3.2 Gen 2 ports and two Thunderbolt 3 doors allow you to connect a range of accessories and a host, while the Thunderbolt 3 doors deliver 15W and 85W power. The DisplayPort 1.4 output allows you to connect a screen with resolution up to 8K. When you are ready for expansion, you can use a PCIe 3.0 X16 / X4 slot to host a hardware RAID controller or another adapter tab. The RAID Thunderbay Flex 8 64TB 8-Bay Thunderbolt 3 array is compatible with MacOS 10.15 and later.

Thunderbay Flex 8 is optimized for digital imaging, VFXs, production and video editing. The 8-chamber design can accommodate a mix of SATA units, SAS, U.2 and M.2, while the Thunderbolt 3 and USB-C 3.2 Gen 2 and USB-AD ports 3.2 Jan 2 C allow you to connect various accessories for docking and charging. To see your work in more detail, add a display with resolutions up to 8K supported by an integrated DisplayPort 1.4 connection. Ingestion of images and high resolution videos through SD card readers and CFExpress UHS-II. And when you want to expand your desktop's abilities, there is a PCIe slot waiting to meet your specific project needs.

Are you a video professional working with 4K / 8K high-speed files and even phantom? Thunderbay Flex 8 offers a wide range of unity configurations that guarantee real reading / writing speeds of 2750 MB / s, which saturates the Thunderbolt 3 speed threshold. Try one of these options:
- a single U.2 NVME SSD unit in the housing a
- More SSD U.2 units installed in the first four housings (A-D) in RAID 0
- Six or more SATA SSD units in any housing in RAID 0
- Replace the integrated SATA controller card with a SATA / SAS hardware RAID card and configure 8 SATA / SAS units in RAID 0 hardware.

Display support:
- A 60 Hz 8K screen
- A 4K screen at 120 Hz
- a 5K 60 Hz screen
- a 60 Hz 4K screen and a 30 Hz 4K screen
- A 4K 60 Hz screen
- A 4K screen at 30 Hz
- two 4K 60 Hz displays

Technical details:
- storage capacity: 64 TB
- Unit included: 8x 8 TB 3.5 "HDD
- Initial RAID configuration: RAID 5
- Interface: SATA III
- Rotation speed: 7200 rpm
- Inputs / Outputs
2x USB-C Thunderbolt 3 (40 GB / s)
1 USB-C 3.1 / 3.2 Jan 2
2x USB-A 3.1 / 3.2 Jan 2
1 DisplayPort 1.4
- Transfer speed: 2750 MB / s (reading / writing)
- Compatibility with the operating system: MacOS 10.15 or later
- Encryption: Yes
- Security features: Kensington safety slots, lockable safety door
- AC input power supply: from 100 to 240 VCA, 50/60 Hz to 3.5 - 7.0 a
- Power source: Internal power supply
- Power supply power: 1 x 450 W
- Operating temperature: from 50 to 95 ° f / from 10 to 35 ° C
- Color: black
- Status monitoring: LED indicator
- Cooling: 1x 1600 rpm 120 mm fan
- Cable length: 2.3 '/ 0.7 m
- Construction material: aluminum
- Dimensions: 39 x 34.9 x 14.9 cm
- Weight: 9.2 kg
