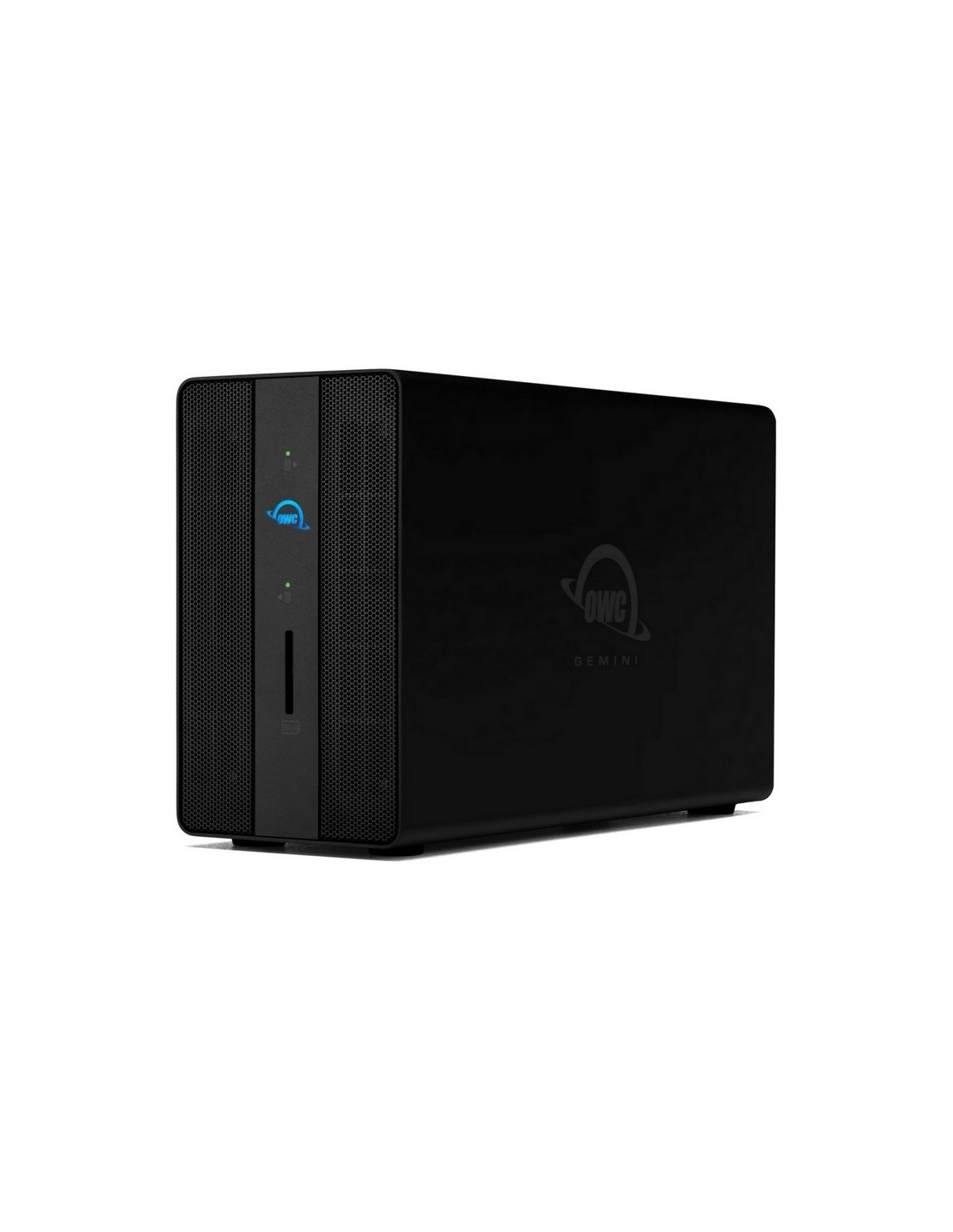

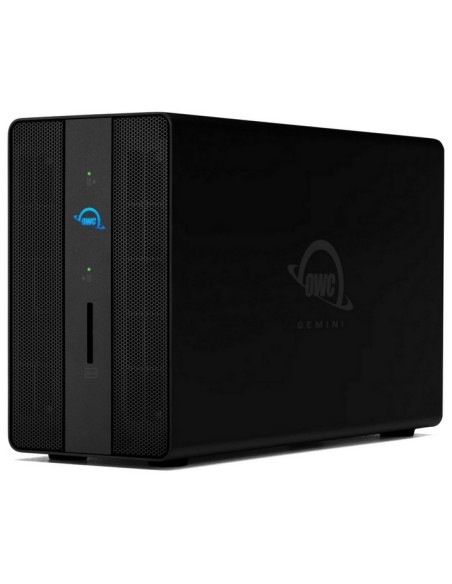

OWC TB3GM000H40 40.0TB HDD Gemini - Thunderbolt (USB-C) Dock and Dual-Drive Raid External Storage Solution

Archive your most important assets, such as video clips, photos and music, with robust and flexible OWC GEMINI 40TB 2-BAY THUNDERBOLT 3 RAID Array. Designed to manage scalable workloads, Gemini is able to accommodate all important data and quickly migrate information to and from the host system thanks to different connectivity options.

Thanks to two 20TB HDDs from 3.5 "to 7200 rpm, it is possible to have a total of 40 TB, offering ample space for multimedia files, data and more. Equipped with a hardware RAID controller with the ability to use software RAID systems, The Gemini supports RAID 0, 1, Span and JBOD levels, allowing you to set the system parameters to your liking. Gemini connects to the host system via Thunderbolt 3 ports with Daisy-Chaining features and also includes two USB ports -a 3.2 Jan 2 for the support of the peripherals. A 2.5 Gigabit Ethernet port supports network features with online software via optional software. A wide range of displays can be connected to the Gemini thanks to the HDMI video output, which produces a resolution up to 8K at 120 Hz for a clear and fluid image. The front SD card reader allows you to manage data from mobile devices such as phones, tablets, cameras and more. A single 60 mm fan to 3000 rpm. It maintains the fresh units even in the presence of extreme loads and optimizes the duration of the equipment.

Thunderbolt 3
The Gemini uses two Thunderbolt 3 doors to send and receive data with speeds up to 40 GB / s. In addition, a single Thunderbolt 3 host port supports video resolutions up to 4K and 8K with update frequencies up to 120 and 60 Hz, respectively. It also uses Power Delivery technology to power the system during connection, avoiding progress interruptions.

USB-A 3.2 Jan 2
Connect your peripherals, printers and more with the two USB-AD ports 3.2 Gen 2. Thanks to the data transfer rate up to 10 GB / s and to support for devices that require resources, you can optimize the spreadput of devices to get speed Higher and lower latency.

Network connection 2.5
OWC Gemini is equipped with a 2.5 GB / s Ethernet port that allows you to transfer files and jobs up to 2.5 times faster than wired networks and increase productivity in an IP-based workflow. Ideal for shared workplace and workflows, file transfers are quick and allow you to dedicate less time to configuration and more at work.

Dock ejector
Safely disconnect more units with one click. OWC Dock Ejector has been designed by hardware and software engineers OWC To ensure that all data is written before disconnecting, saving time and protecting from data loss. In this way, the loss of hard earned work becomes a memory of the past.

System compatibility
Gemini can be used easily on different operating systems, guaranteeing greater flexibility where necessary. It is compatible with:
- Windows 11, 10 and 2016 server
- MacOS 12.x and 13.x
- iPados 15 and 16
- Linux
- Chromeos 107 or later

Technical details:
- storage capacity: 40TB
- Unit included: 2x 20TB 3.5 "HDD
- Interface: SATA III
- Number of housings: 2 from 3.5
- Inputs / outputs:
2 Inputs / Outputs USB-C Thunderbolt 3 (40 GB / s)
2 USB-A inputs 3.1 / 3.2 Jan 2
1 HDMI output
1 RJ45 2,5GBE input / output
- Rotation speed: 7200 rpm
- AC input power: from 100 to 240 VCA, 50/60 Hz to 2 a
- Power source: AC adapter
- Energy consumption: 120 W
- Operating temperature: from 41 to 95 ° f / from 5 to 35 ° C
- Storage temperature: from -4 to 140 ° f / from -20 to 60 ° C
- Color: black
- Noise level: 19.3 DBA
- Cable length: 0.7 m
- Construction material: aluminum
- Dimensions: 23.9 x 14.7 x 8.4 cm
- Weight: 1588.0 g
