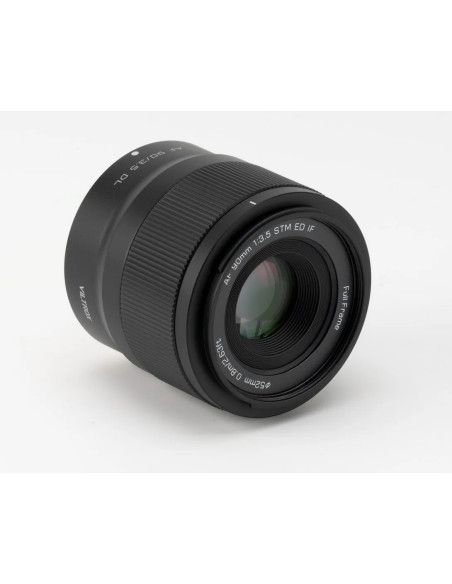

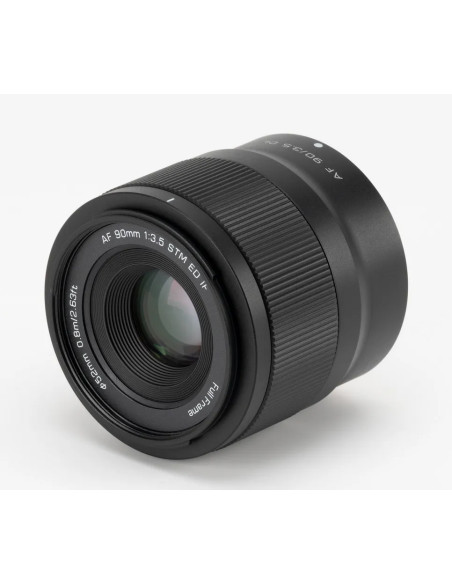

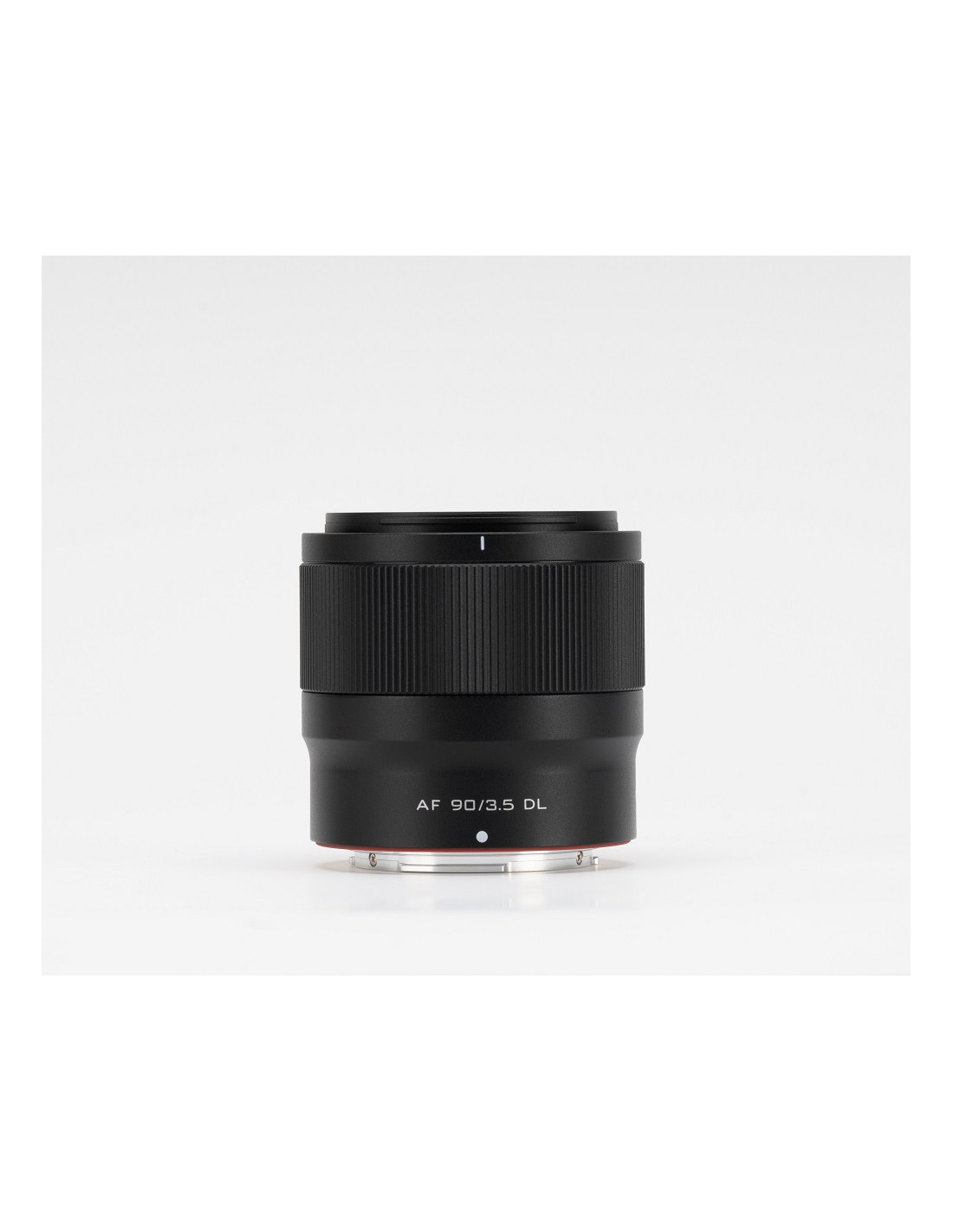

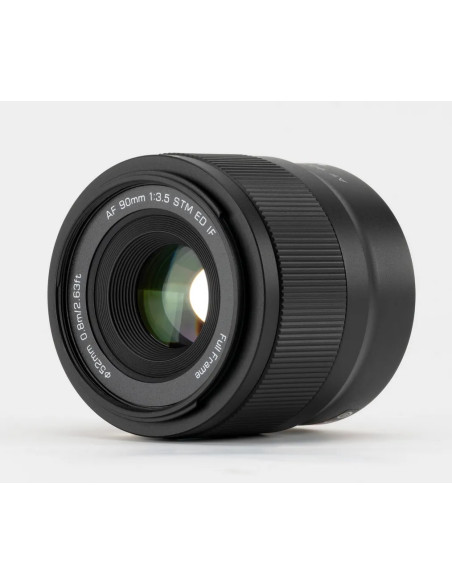

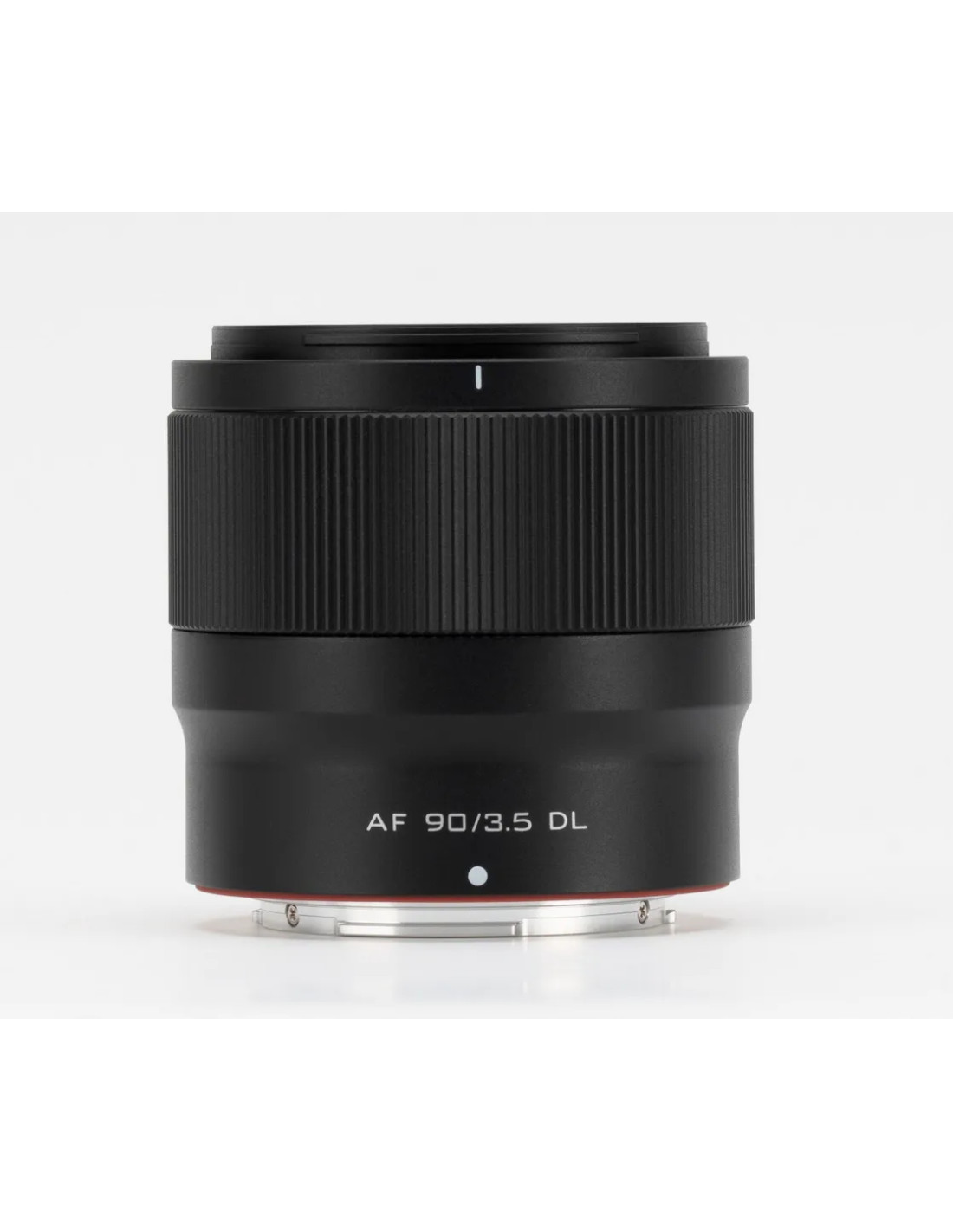

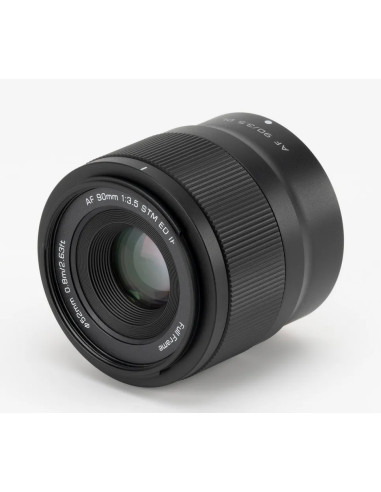

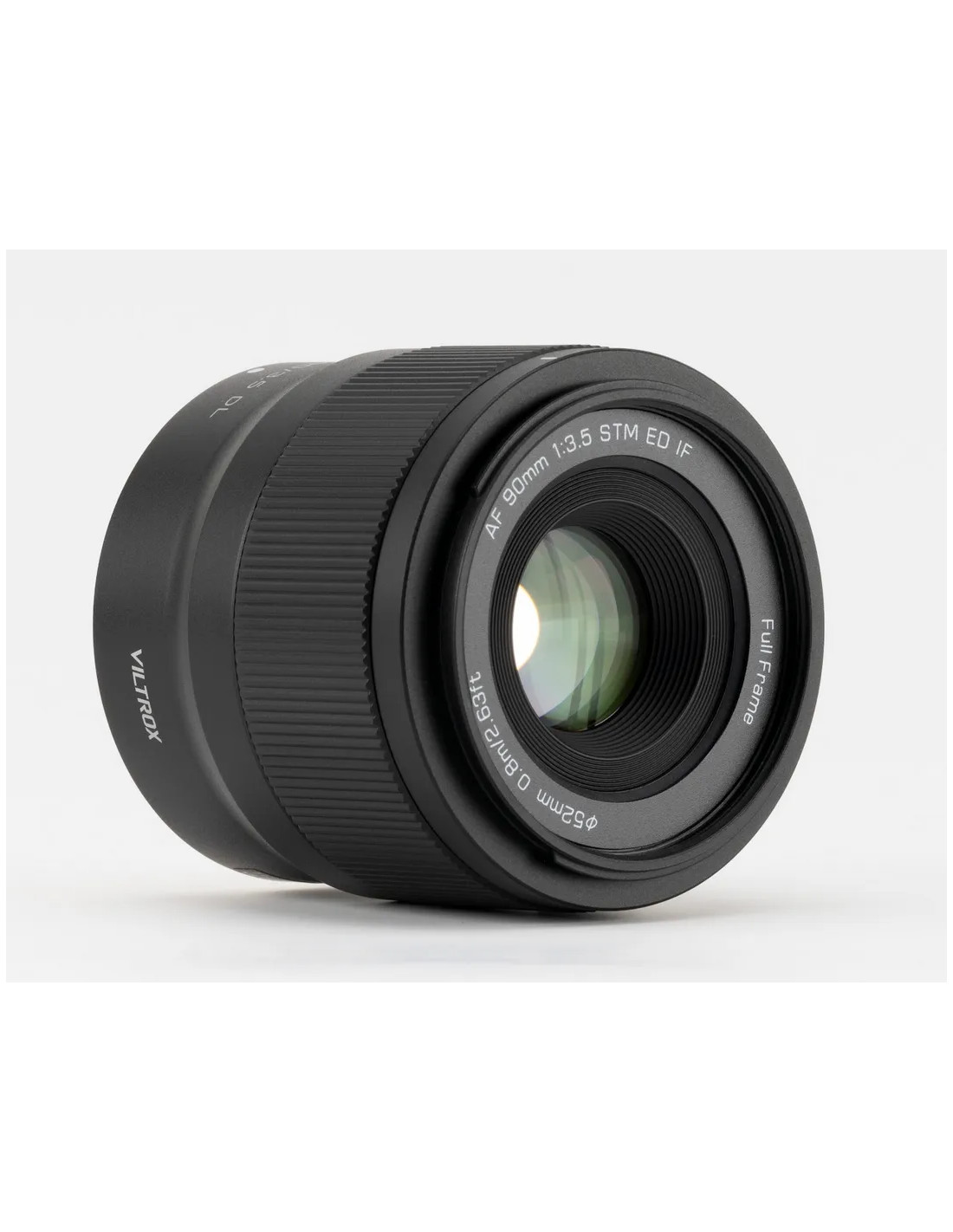

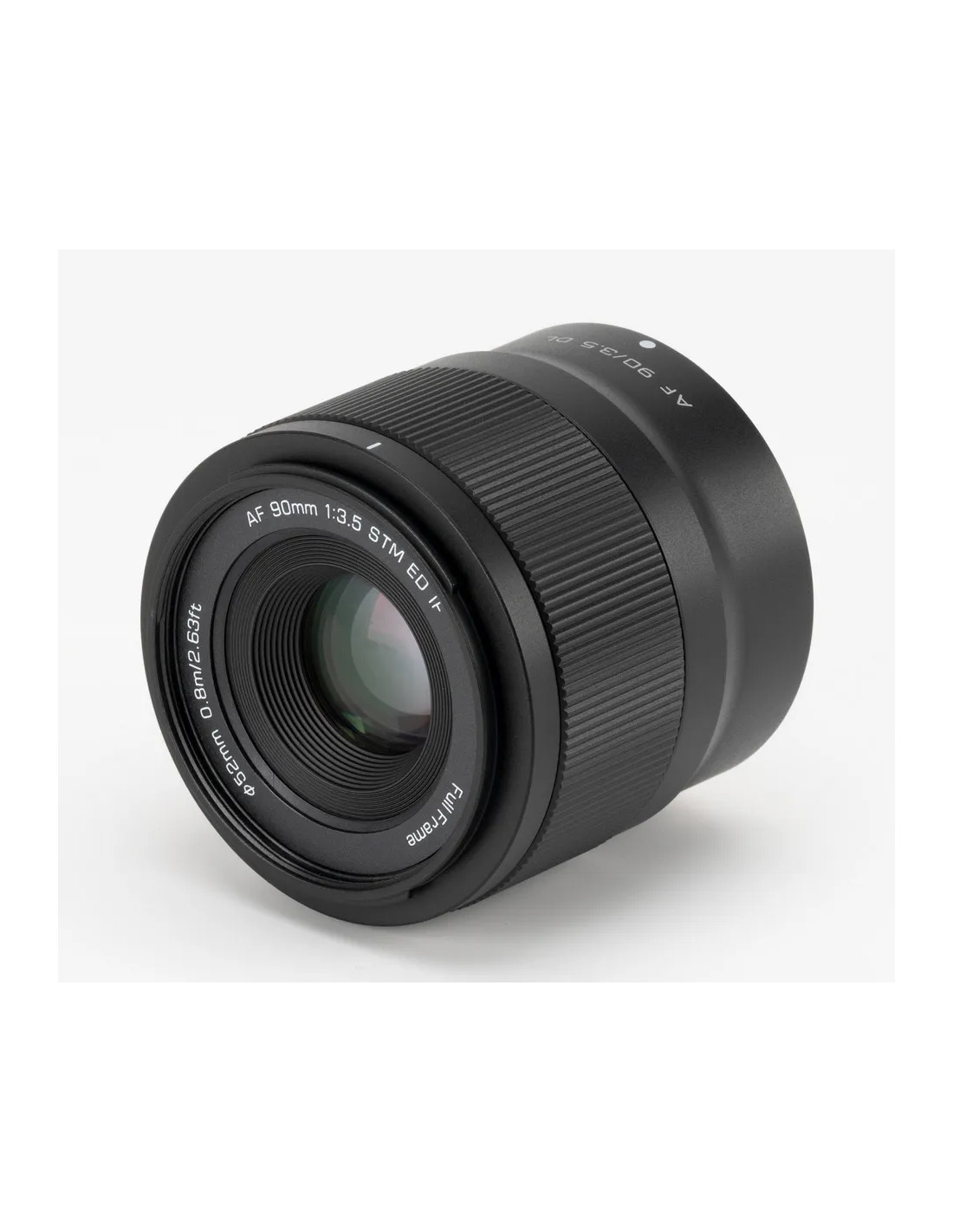

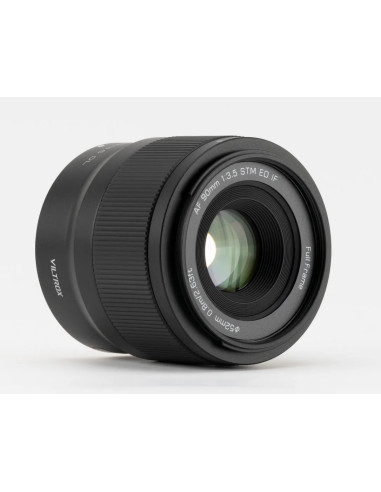

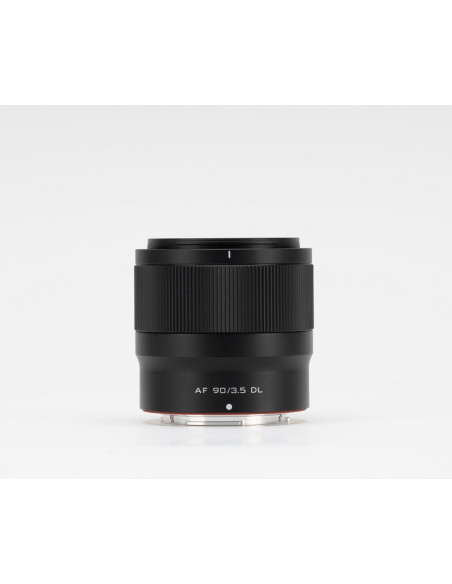

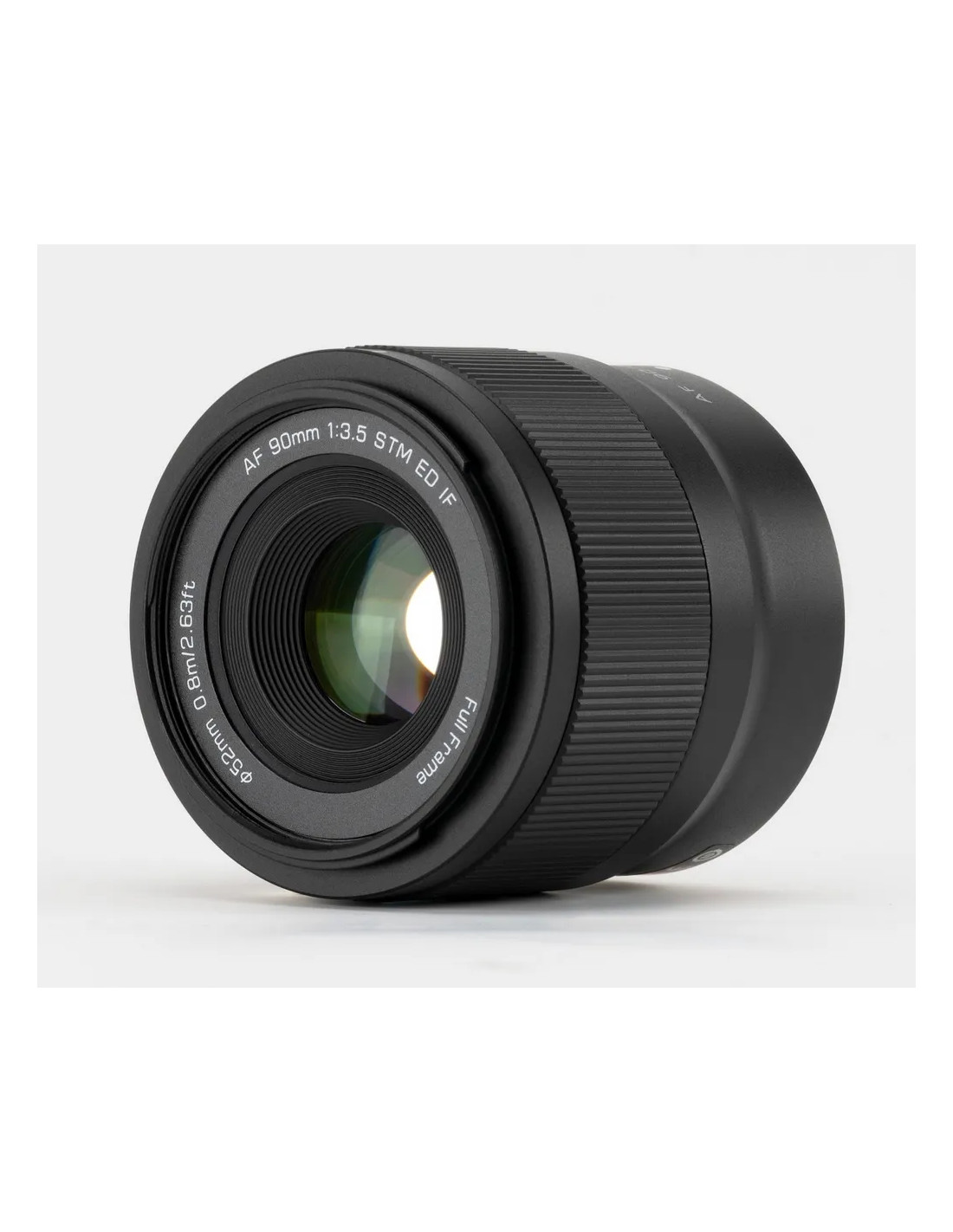

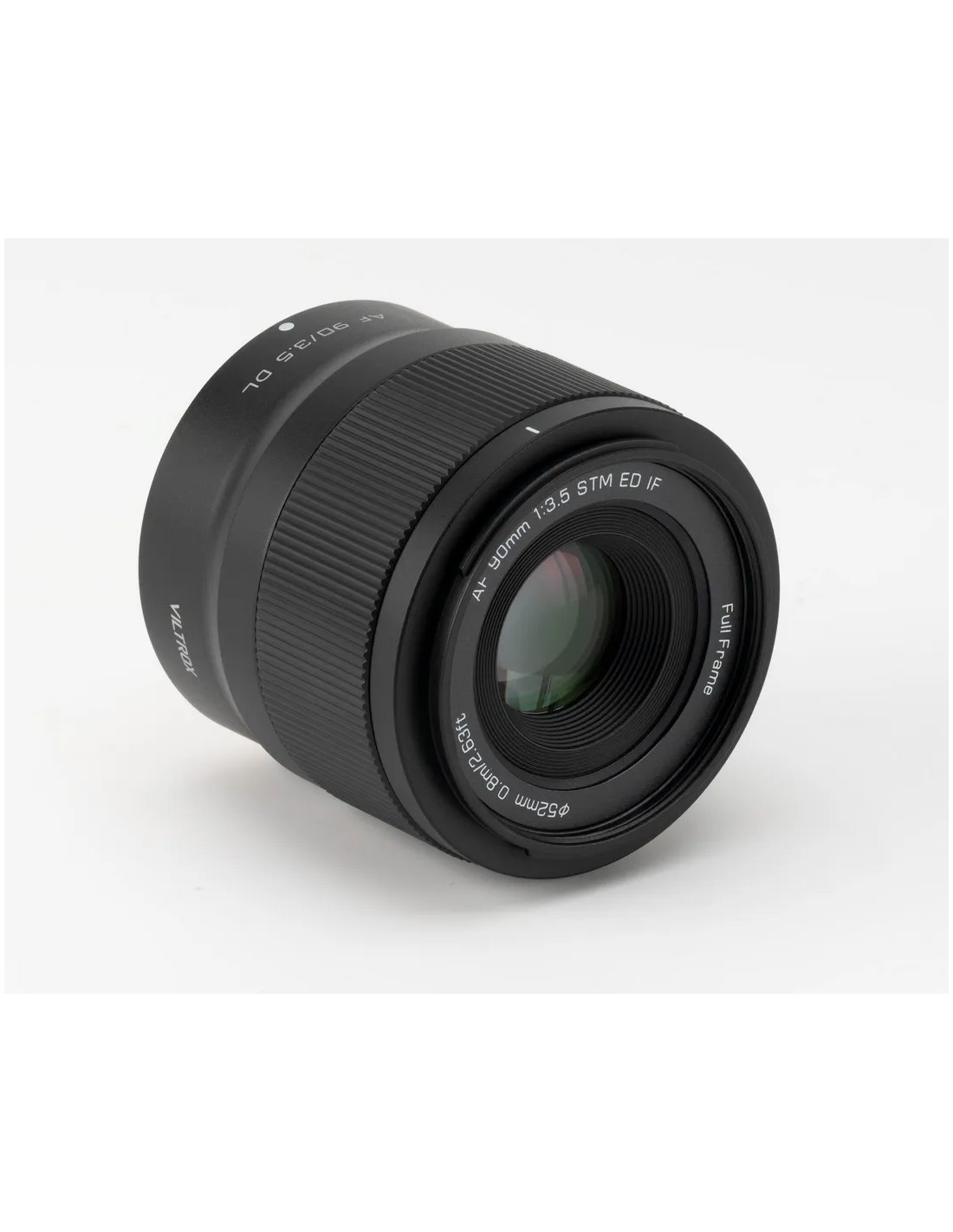

90mm f / 3.5 AF target for Ronin 4D DL-Mount

Designed for DJI Inspire 3, the AF 90 mm F3.5 lens capture film aerial shooting with distinctive compression and depth. His Native DL attack guarantees a perfect integration with the plane system of Inspire 3 and full compatibility with Ronin 4D, creating a unified professional imaging workflow from land to heaven.

View from Drone with 90 mm telephoto lens
Capturing the sky with an exclusive visual field from 90 mm medium telephoto lens, offering a powerful spatial compression and a depth of cinematographic field at each frame.

Native DL attack for perfect integration

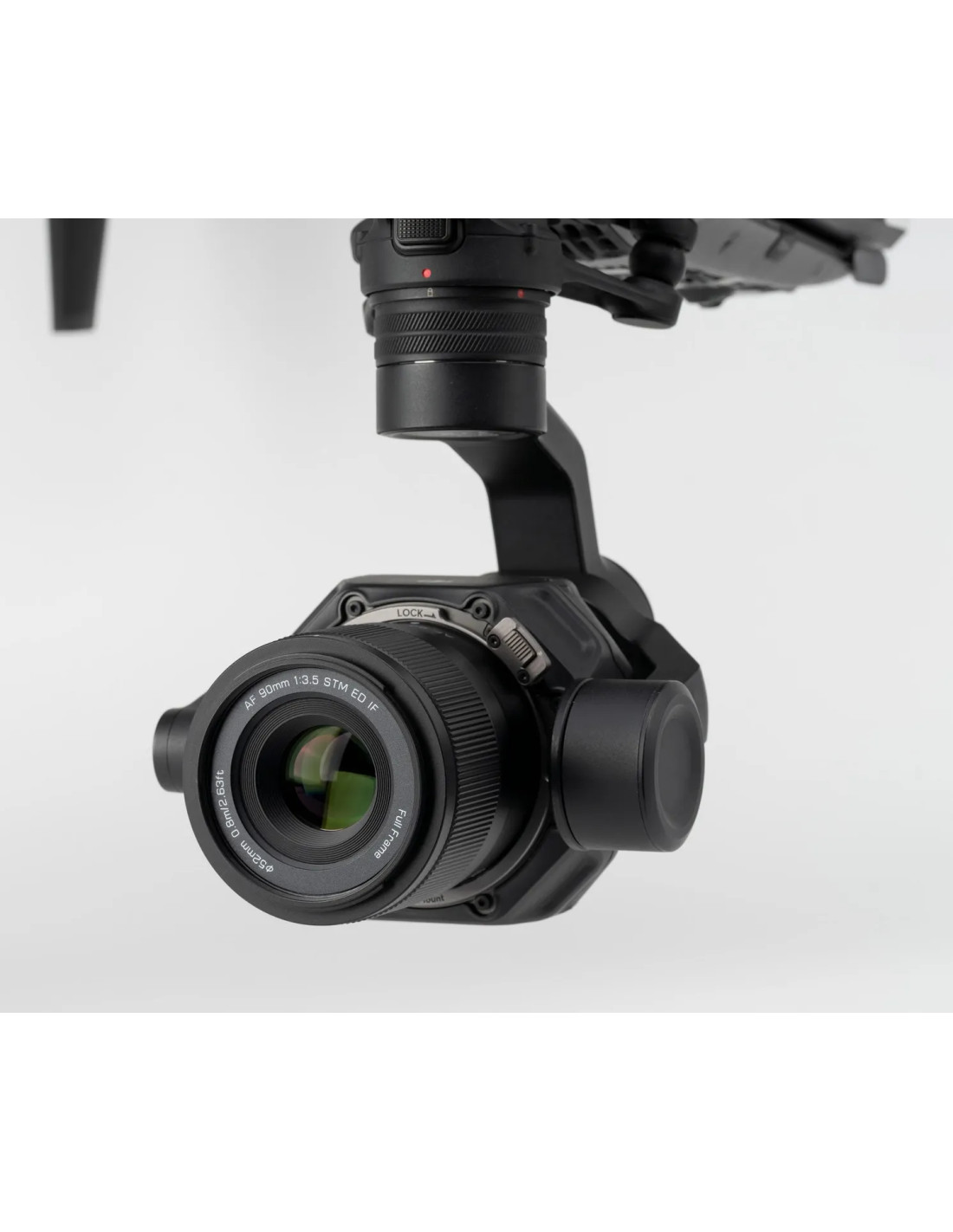

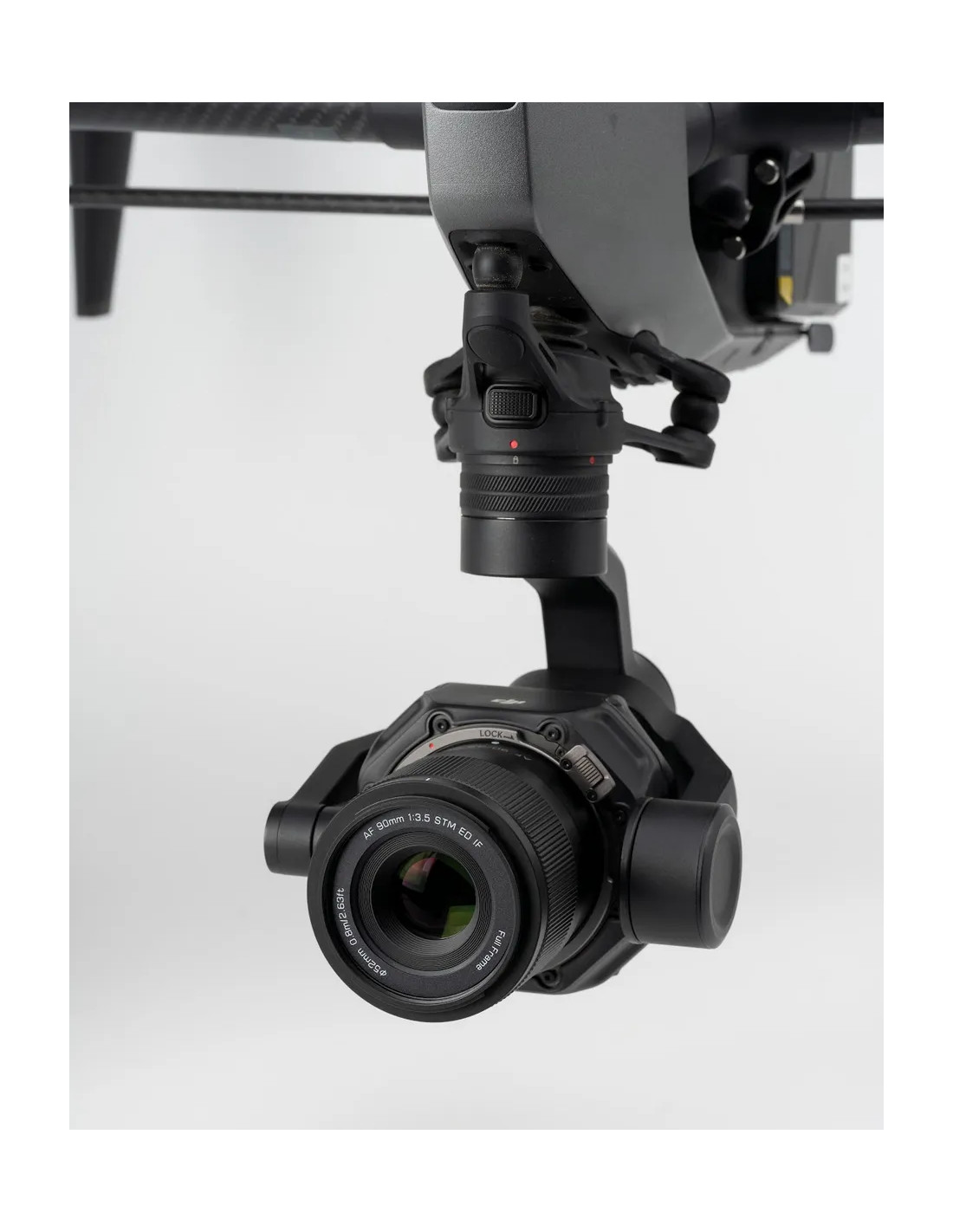

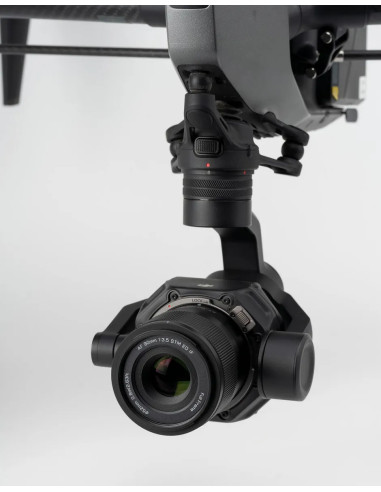

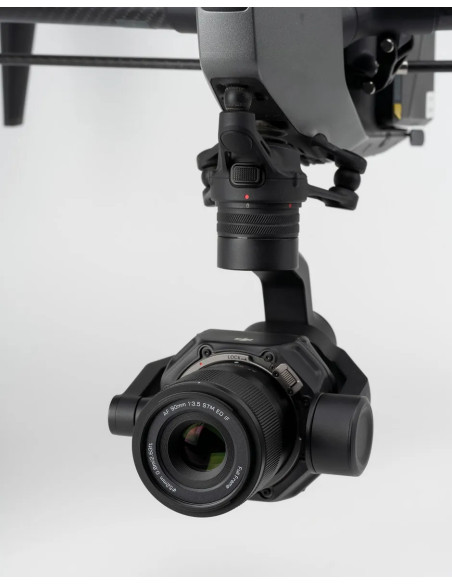

Built with a native DL attack, the AF 90 mm F3.5 is perfectly compatible with the Gimbal X9-8K AIR camera by Inspire 3, offering a new and powerful average telephoto option for aerial cinematography. Is also compatible with Ronin 4D, allowing flexible use with professional film systems of DJI.

12/9 optical structure for sharp aerial images in 8K
The optimized optical structure minimizes distortion and reflections, while improving the sharpness and resolution on board on board, perfectly adapted for 8K high fidelity air cinema.

Ultralight design with 130 g useful load
The 170 g compact structure reduces the stress of the payload on Gimbal and the drone, prolonging flight time and at the same time ensuring optimal reactivity for the omnidirectional avoidance system of the Inspire 3 obstacles.
Easy to assemble without the need for counterweight, meeting the ultra high maneuverability requirements of the Spire 3.

Expand the DL-MOUNT range at the average telephoto lens
The 90 mm objective expands the DL-MOUNT ecosystem to the average telephoto lens, allowing an accurate prospective control in the architecture and stratified landscapes.

F3.5 opening for a wide dynamic range
Along with the native double ISO of Inspire 3 and to over 14 dynamic range stops, the opening F3.5 easily manages high contrast lighting, preserving the details both in high lights and in shadows.

A film quality air vision shiver
The VILTROX AF 90 mm F3.5 DL, combined with DJI Inspire 3, gives a film aerial narration with versatile shooting mode. Express your creativity and capture breathtaking skies, expanding the boundaries of cinematography with film quality drones.

Details

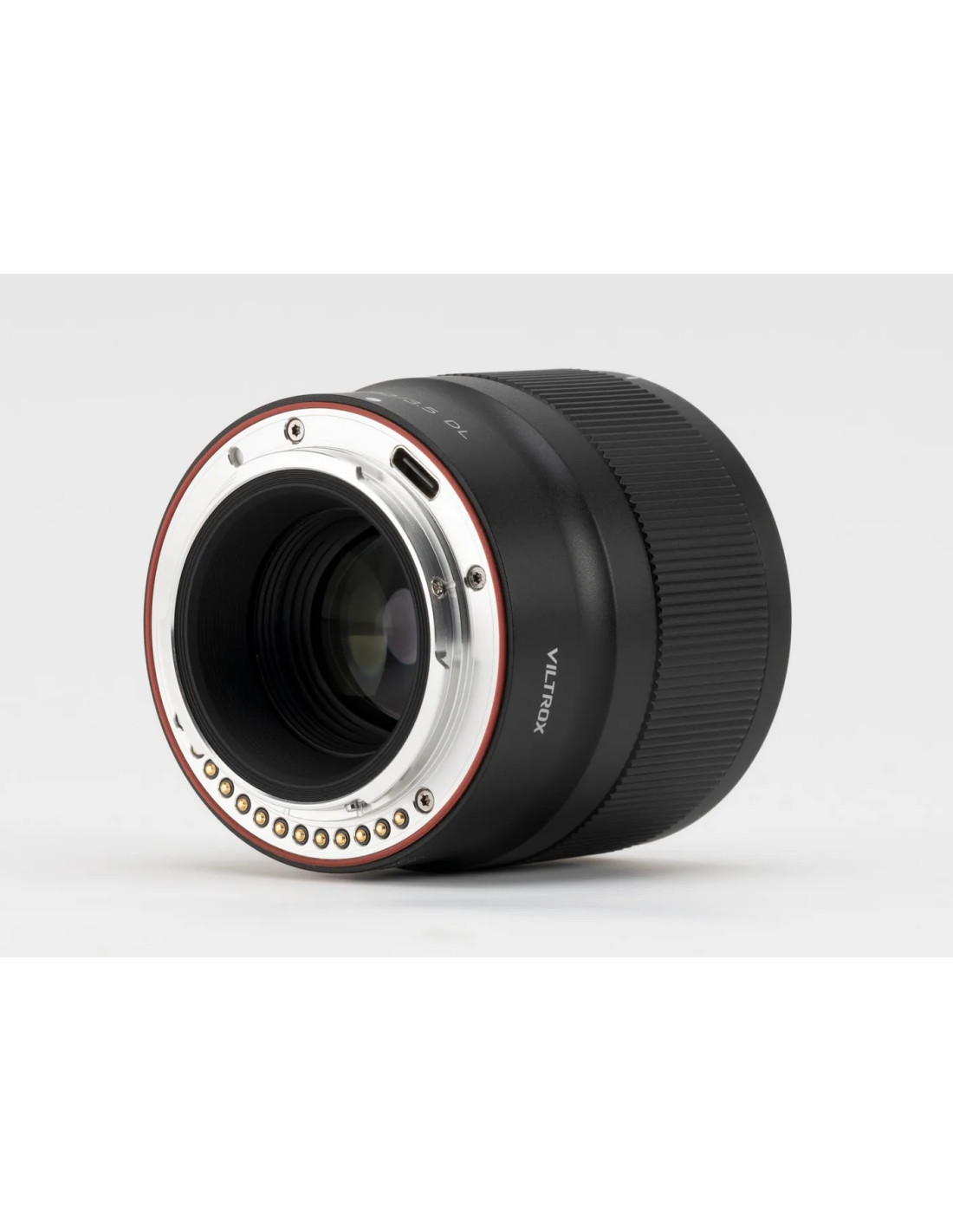

- Precision aluminum attachment
- TYPE-C firmware update port
- Front lens with water-repellent and anti-incrustation coating
- dustproof rubber seal

Specifications:
- Objective attack: DL
- Objective elements: 12/9
- Focal length: 90 mm
- Vision angle: 28.0 °
- Opening: F3.5-F16
- Number of diaphragm slats: 9
- Focus distance: 0.8 m-∞
- Focus mechanism: Internal focus
- Focus engine: STM
- maximum magnification: 0,114x
- Objective dimensions: φ65x63 mm
- Weight: 170 g
- Filter dimensions: φ52 mm
